The image displays an SMPS (Switched-Mode Power Supply) board, identified as the "ONIDA 43 FIF POWER SUPPLY BOARD" based on the query and search results. This board is a crucial component in LED TVs, specifically in Onida 43-inch models like the "43 FIF". Details of the SMPS Board: Function: This board is responsible for converting the incoming AC power from the mains to regulated DC power supplies required by various components of the TV, such as the main board, LED backlight, and other internal circuits. Key Components: The board features various electronic components typical of an SMPS, including: Transformers: Large yellow and brown components that are central to power conversion. Capacitors: Cylindrical components (blue, grey, black) for energy storage and filtering. Heat Sinks: Black finned components designed to dissipate heat from power-intensive parts like integrated circuits or transistors. Connectors: White multi-pin connectors for connecting to other parts of the TV, such as the main board or LED strips. Part Numbers/Markings: The board exhibits various markings, including "SYE02612-L250uA 1.0" and "PW.108W2.801", which are likely board revision numbers or part numbers. Designated Areas: The board also clearly labels "HOT" and "COLD" sections, indicating the isolation barrier between the primary (high voltage) and secondary (low voltage) sides for safety and functiona

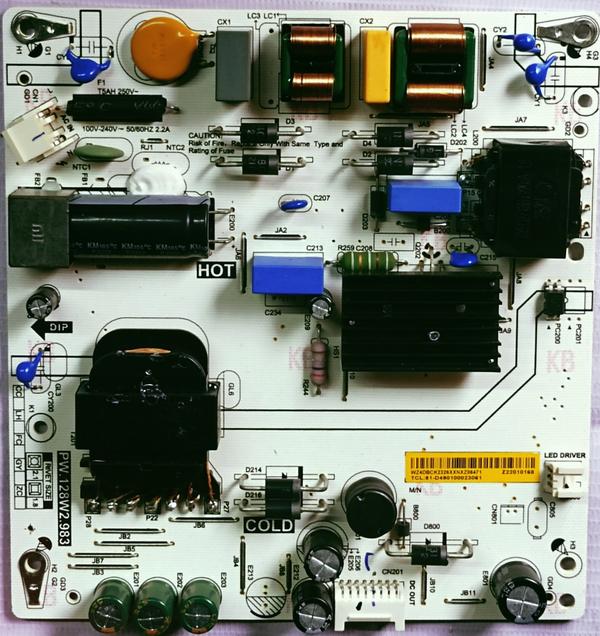

REDMI POWER SUPPLY BOARD MODEL NUMBER 43R77 .128W2.983 This image displays a power supply board for an LED TV, specifically identified by the part number "PW.128W2.983" and labeled as an "LED DRIVER". This board is designed to convert AC power (100V-240V, 50/60Hz, 2.2A) into the necessary DC voltages for the TV's operation, including powering the LED backlight. It features clearly marked "HOT" and "COLD" sections, indicating the isolation between the primary (high voltage) and secondary (low voltage) sides for safety. The board includes various components such as transformers, capacitors, diodes, and integrated circuits, essential for power regulation and LED driving. The caution note on the board warns about the risk of fire and recommends replacing fuses with the same type and rating.

VU POWER SUPPLY BOARD MODEL NUMBER 50CA The image displays a Megmeet MP160D-1MF 600-UA power supply board, which is a type of Switched-Mode Power Supply (SMPS) board, not a "50ca smps board" as queried. While the query might be a mistype or refer to a different model, the details provided below pertain to the board shown in the image. Megmeet MP160D-1MF 600-UA Power Supply Board Details: Manufacturer and Model: Megmeet MP160D-1MF 600-UA. Date of Manufacture: The PCB revision date is November 15, 2017. Key Components: Transformers: Includes two prominent transformers, one labeled "ER40-12V-24V MEGMEET EC40-018" and another "ER40-80V-160V MEGMEET EC40-017". Capacitors: Features various capacitors, including large electrolytic capacitors. Fuses: A warning label indicates the importance of replacing fuses with the correct rating for continued protection. Design Features: The board clearly demarcates "HOT" and "COLD" sections, indicating isolation for safety. Application: Typically found in electronic devices requiring power conversion, such as televisions or other display units, given the power supply nature and the presence of high-voltage components.

AKAI POWER SUPPLY BOARD MODEL NUMBER AKLT50-VD22CH The image displays a Switched-Mode Power Supply (SMPS) board, which is commonly found in electronic devices like televisions to convert AC power to DC power for various internal components. While the user's query specifies "AKLT50-UD22CH," the provided image and search results suggest it is an LG power supply unit, potentially related to models like LG 50LS4000-UA or 37LH5000-ZB. Details of the SMPS Main Board: Function: This board is responsible for regulating the voltage and current supplied to different parts of the electronic device, ensuring stable and efficient power delivery. Key Components: The board features various components typical of an SMPS, including: Transformers (yellow-wrapped coils): Used for voltage conversion and isolation between primary and secondary sections. Capacitors (cylindrical components): Store energy and smooth out voltage fluctuations. Heat Sinks (finned metal structures): Dissipate heat generated by power components like MOSFETs or diodes. Diodes and Resistors: Control current flow and provide resistance in circuits. Sections: The board is clearly divided into "Primary" and "Secondary" sections, indicating the input (AC) and output (DC) sides of the power conversion process. The primary side typically handles the rectification and initial voltage conversion, while the secondary side provides regulated DC outputs. Application: Boards like this are crucial for the operation of modern electronics, providing the necessary power for microprocessors, display panels, and other circuits.

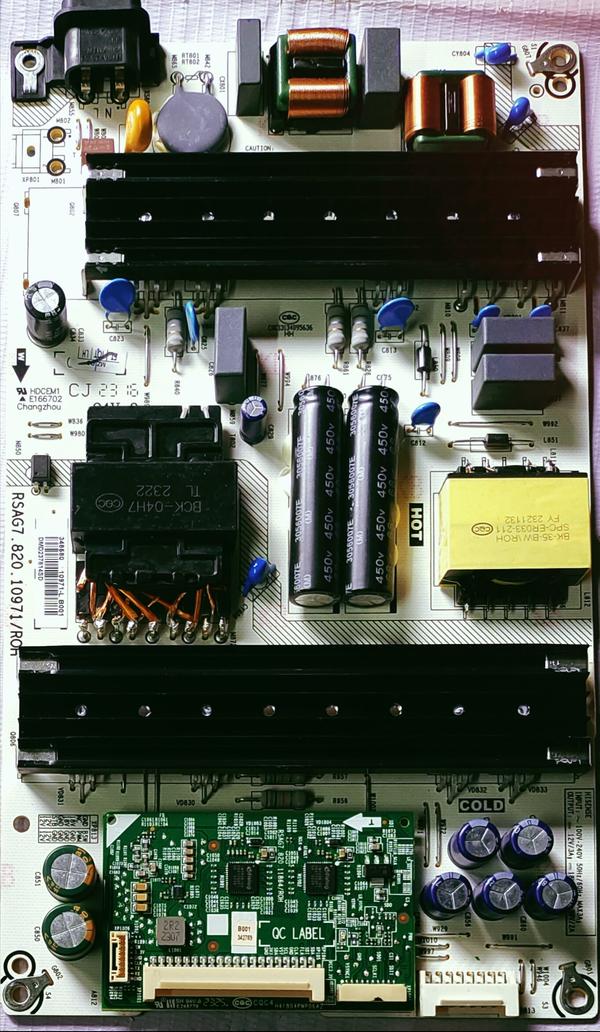

HISENSE POWER SUPPLY BOARD MODEL NUMBER 55UBK The image displays a power supply board, specifically identified as a Hisense power supply board with the model number RSAG7.820.10971/R0H. Function: Power supply boards are crucial components in electronic devices like televisions, responsible for converting incoming AC power into the various DC voltages required to operate the device's internal components, such as the main board and LED backlights. Components: This board features various electronic components like capacitors, transformers, and integrated circuits, which work together to regulate and distribute power. Safety: Power supply boards are designed with safety features to prevent overloads and ensure proper voltage delivery to protect the device. Isolation: The output of power supplies, especially those connected to mains electricity, is isolated to prevent dangerous electrical shocks.
