Name: ONIDA 43FIF POWER SUPPLY BOARD, SMPS BOARD,#wb29
Brand: ONIDA NEW SMPS BOARD
Price: 1999 INR
Availability: InStock

Chat with us

ONIDA POWER SUPPLY BOARD by ONIDA NEW SMPS BOARD

ONIDA 43FIF POWER SUPPLY BOARD, SMPS BOARD,#wb29

INR 1999 INR 2999

In stock•cod available

Phone Number

+919763720390

Email Address digitalelectronics.service@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address Shop.no.01, Sudarshan Nagar,Lane No.06, Near Sudarshan Chowk, Pimple Gurav, Contact No.9850791757, 9763720390

Pune - Maharashtra, India, 411061

Description

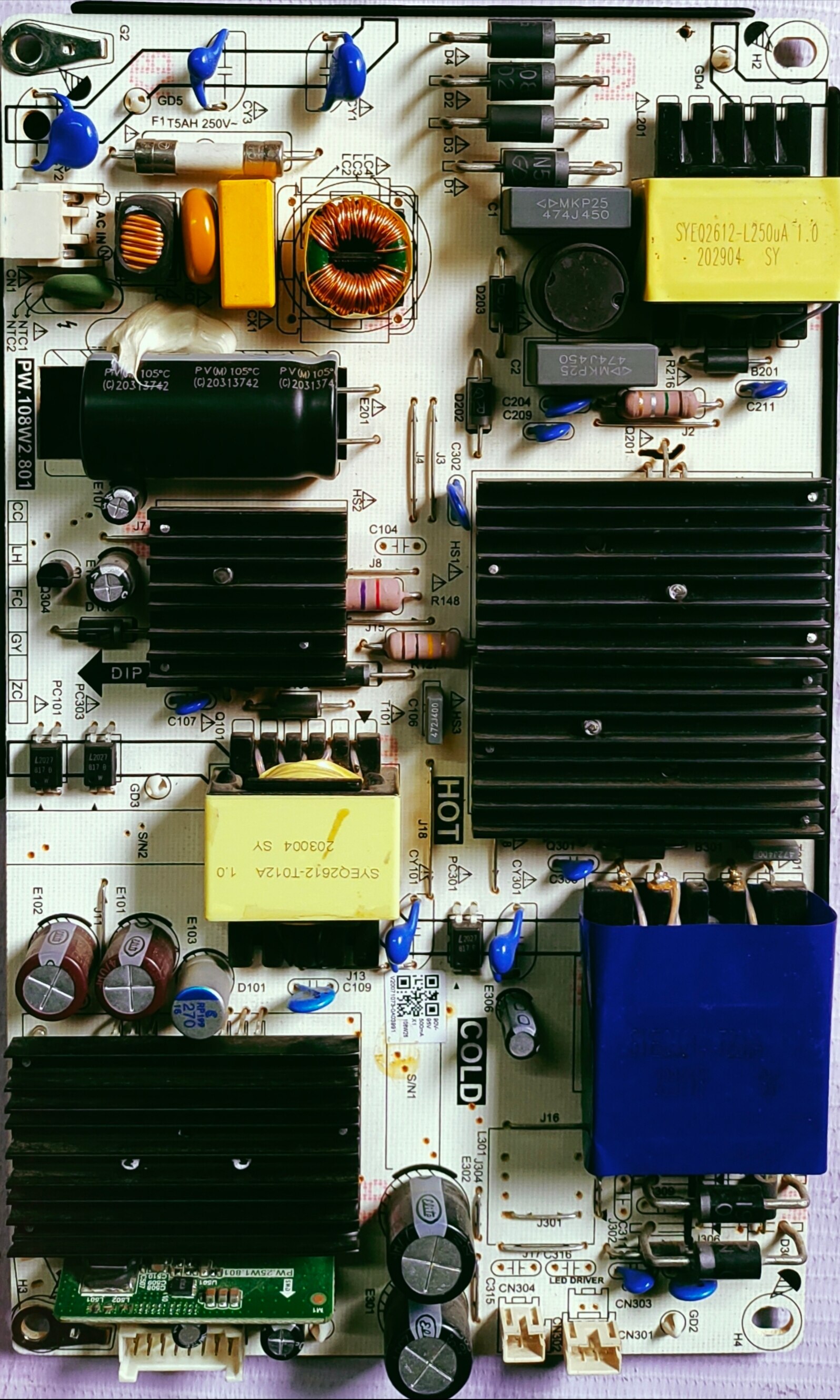

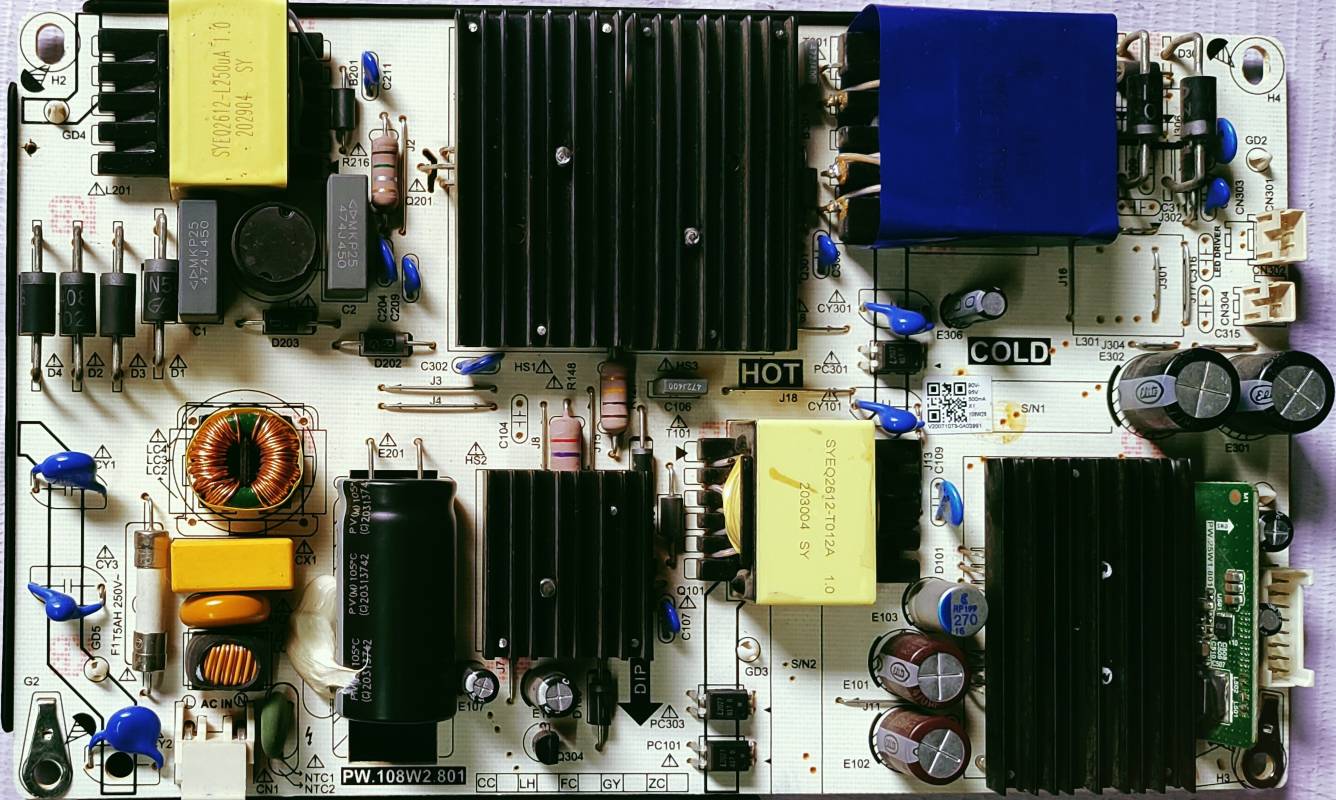

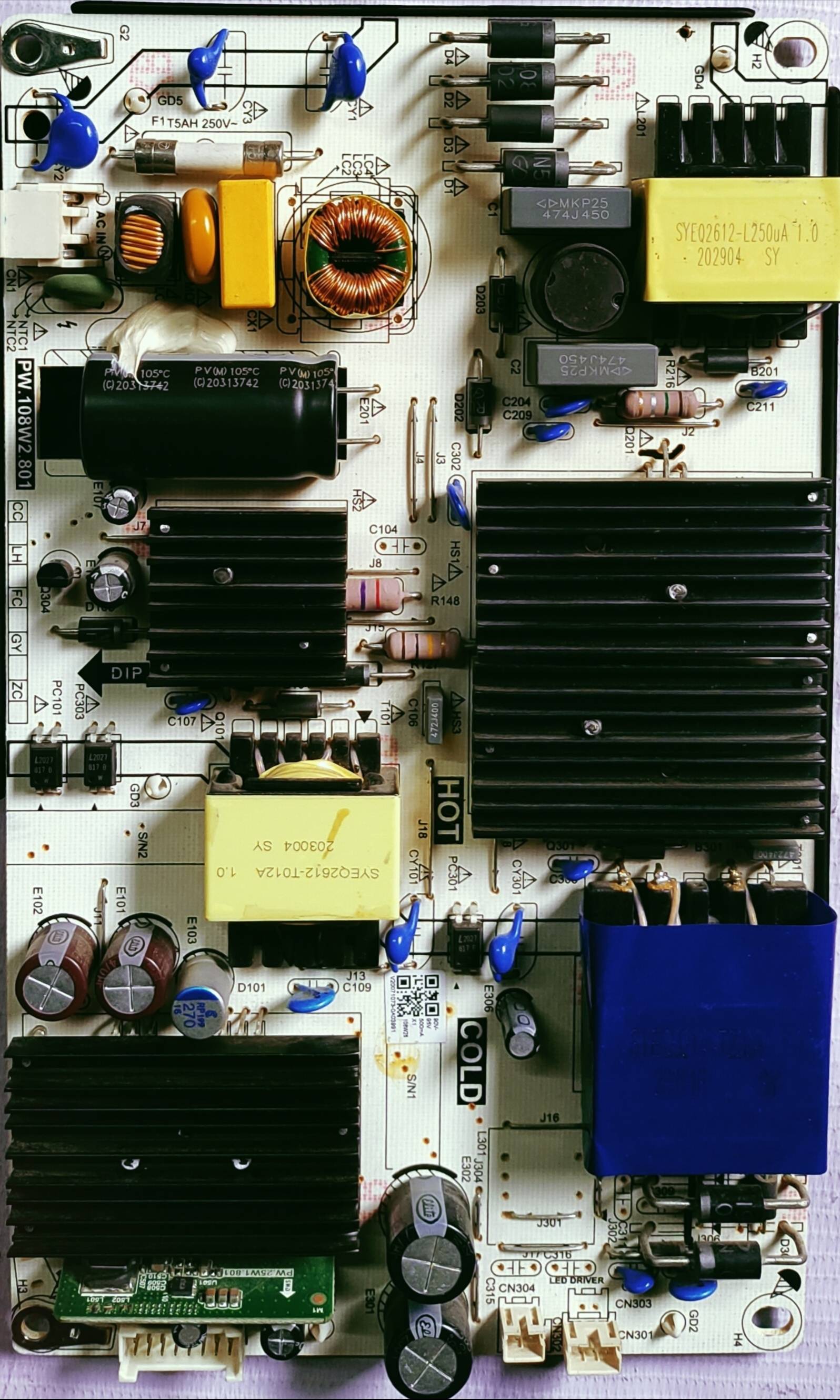

The image displays an SMPS (Switched-Mode Power Supply) board, identified as the "ONIDA 43 FIF POWER SUPPLY BOARD" based on the query and search results. This board is a crucial component in LED TVs, specifically in Onida 43-inch models like the "43 FIF". Details of the SMPS Board: Function: This board is responsible for converting the incoming AC power from the mains to regulated DC power supplies required by various components of the TV, such as the main board, LED backlight, and other internal circuits. Key Components: The board features various electronic components typical of an SMPS, including: Transformers: Large yellow and brown components that are central to power conversion. Capacitors: Cylindrical components (blue, grey, black) for energy storage and filtering. Heat Sinks: Black finned components designed to dissipate heat from power-intensive parts like integrated circuits or transistors. Connectors: White multi-pin connectors for connecting to other parts of the TV, such as the main board or LED strips. Part Numbers/Markings: The board exhibits various markings, including "SYE02612-L250uA 1.0" and "PW.108W2.801", which are likely board revision numbers or part numbers. Designated Areas: The board also clearly labels "HOT" and "COLD" sections, indicating the isolation barrier between the primary (high voltage) and secondary (low voltage) sides for safety and functiona
