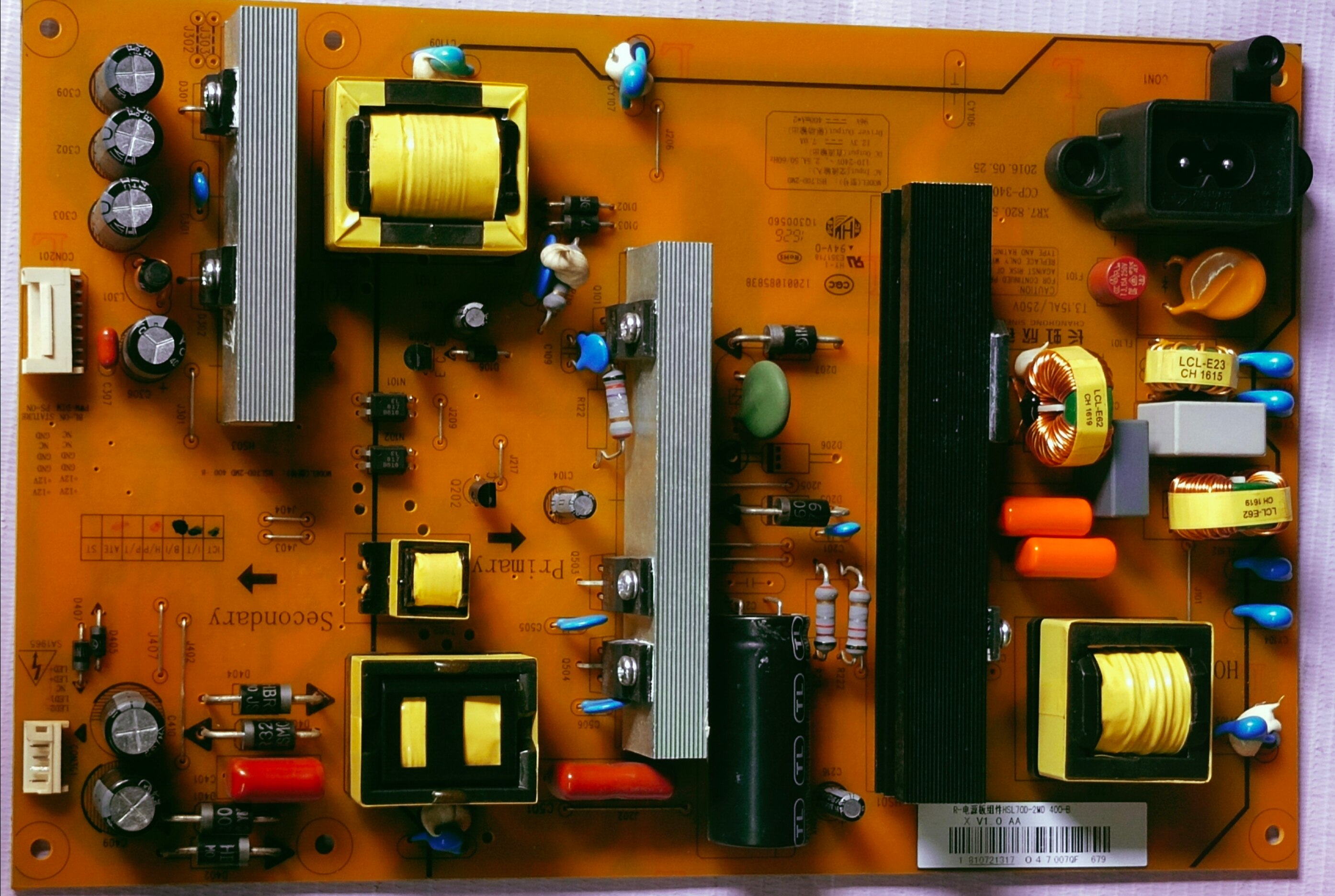

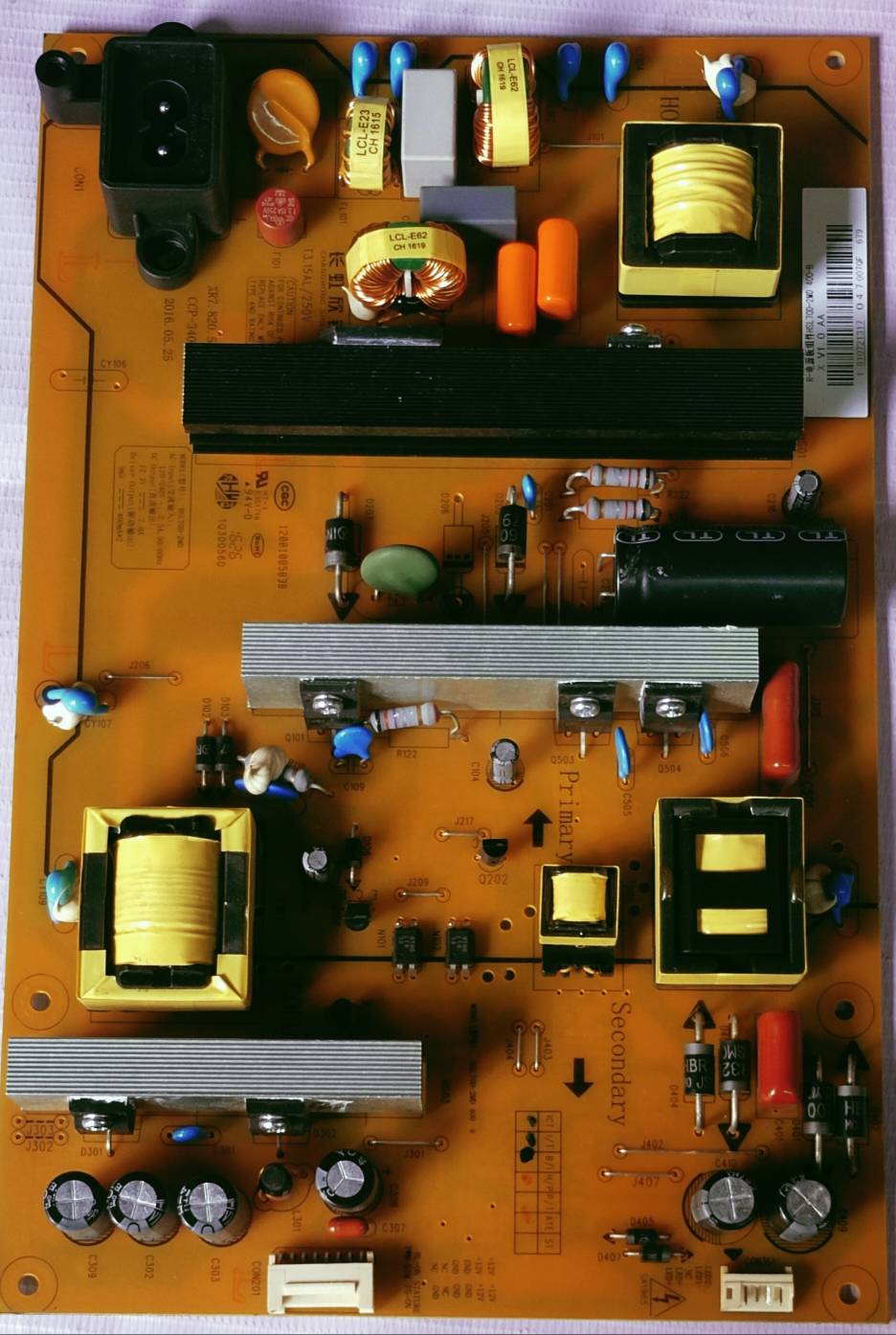

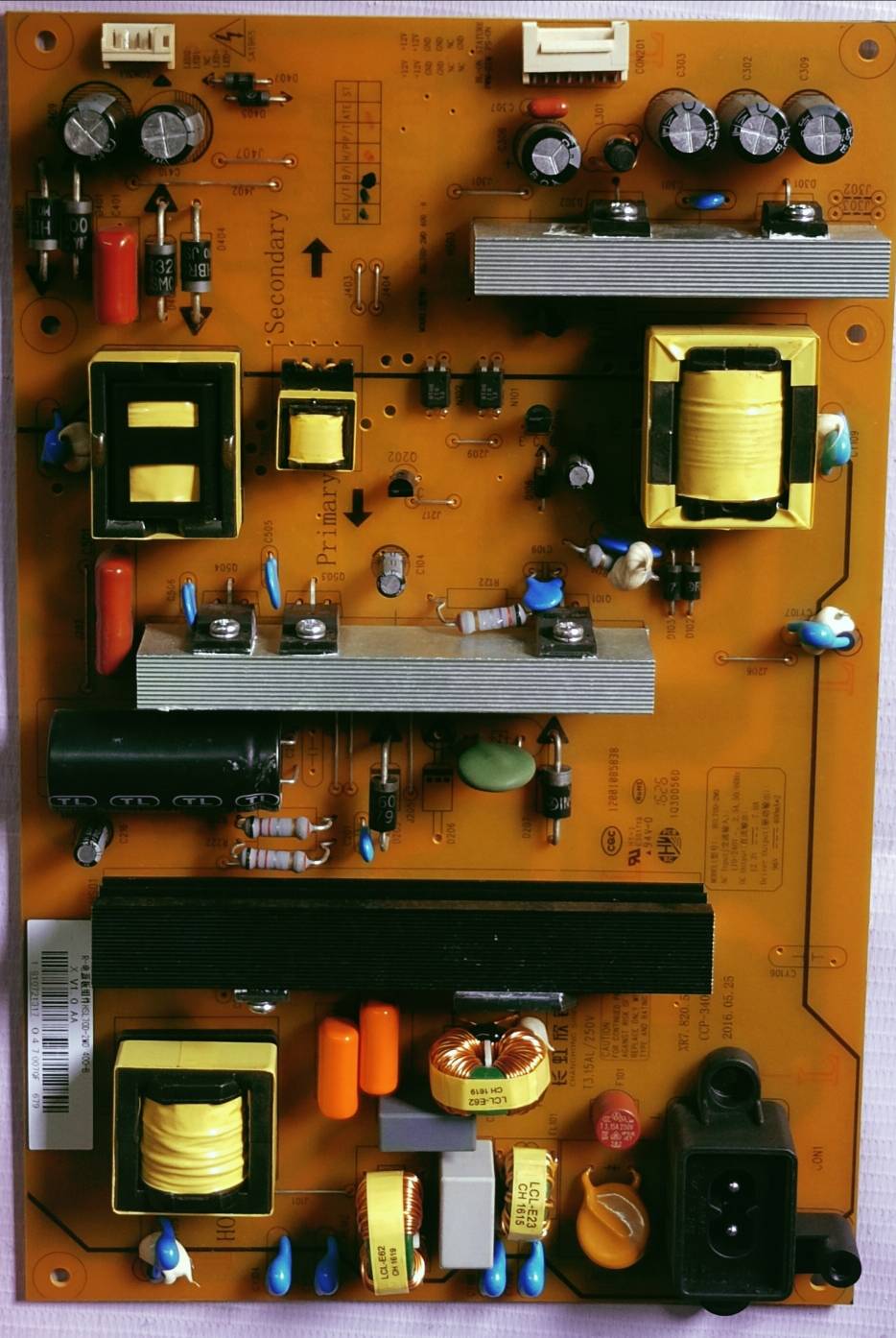

AKAI POWER SUPPLY BOARD MODEL NUMBER AKLT50-VD22CH The image displays a Switched-Mode Power Supply (SMPS) board, which is commonly found in electronic devices like televisions to convert AC power to DC power for various internal components. While the user's query specifies "AKLT50-UD22CH," the provided image and search results suggest it is an LG power supply unit, potentially related to models like LG 50LS4000-UA or 37LH5000-ZB. Details of the SMPS Main Board: Function: This board is responsible for regulating the voltage and current supplied to different parts of the electronic device, ensuring stable and efficient power delivery. Key Components: The board features various components typical of an SMPS, including: Transformers (yellow-wrapped coils): Used for voltage conversion and isolation between primary and secondary sections. Capacitors (cylindrical components): Store energy and smooth out voltage fluctuations. Heat Sinks (finned metal structures): Dissipate heat generated by power components like MOSFETs or diodes. Diodes and Resistors: Control current flow and provide resistance in circuits. Sections: The board is clearly divided into "Primary" and "Secondary" sections, indicating the input (AC) and output (DC) sides of the power conversion process. The primary side typically handles the rectification and initial voltage conversion, while the secondary side provides regulated DC outputs. Application: Boards like this are crucial for the operation of modern electronics, providing the necessary power for microprocessors, display panels, and other circuits.
