VU POWER SUPPLY BOARD
MODEL NUMBER
50CA

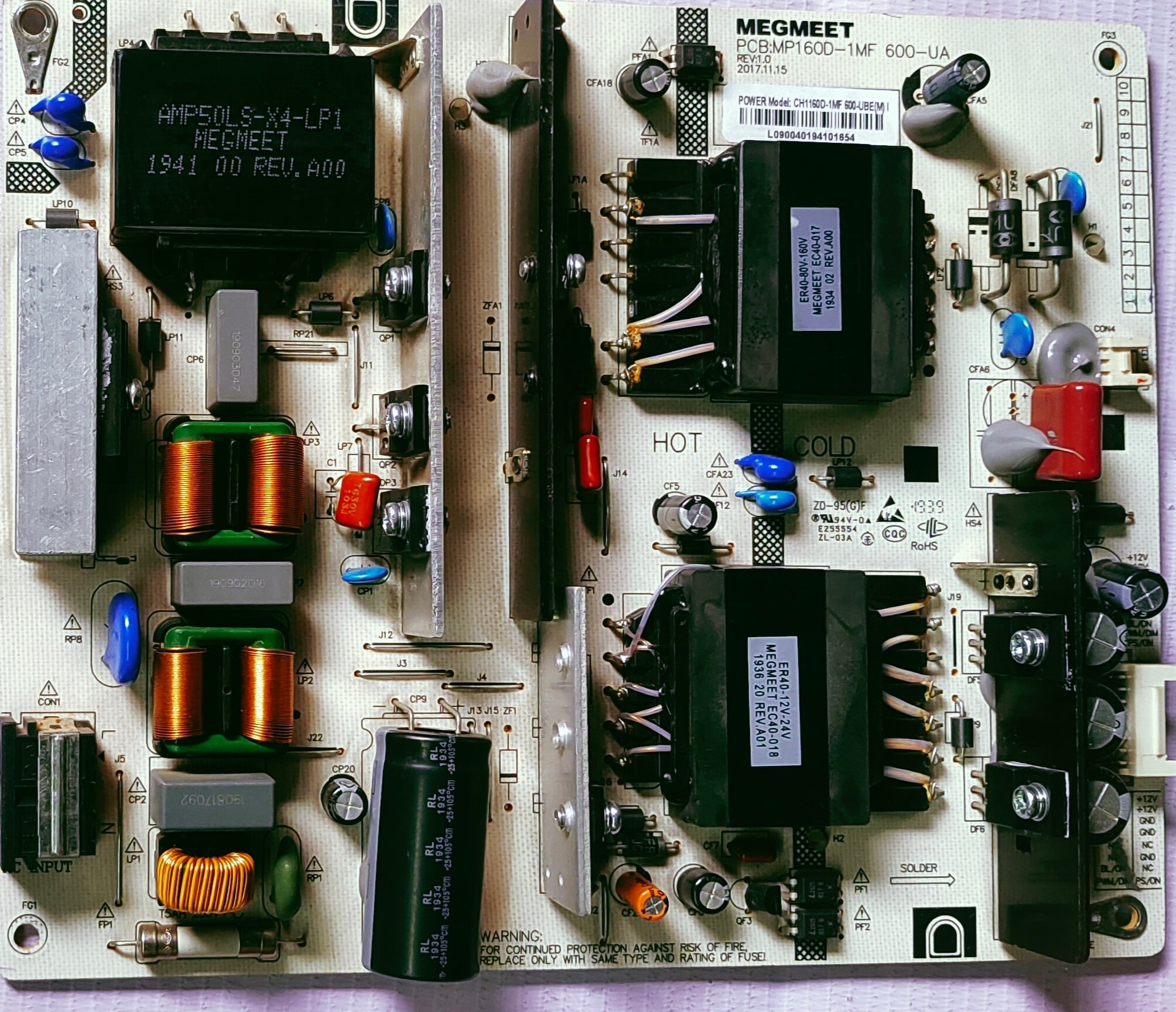

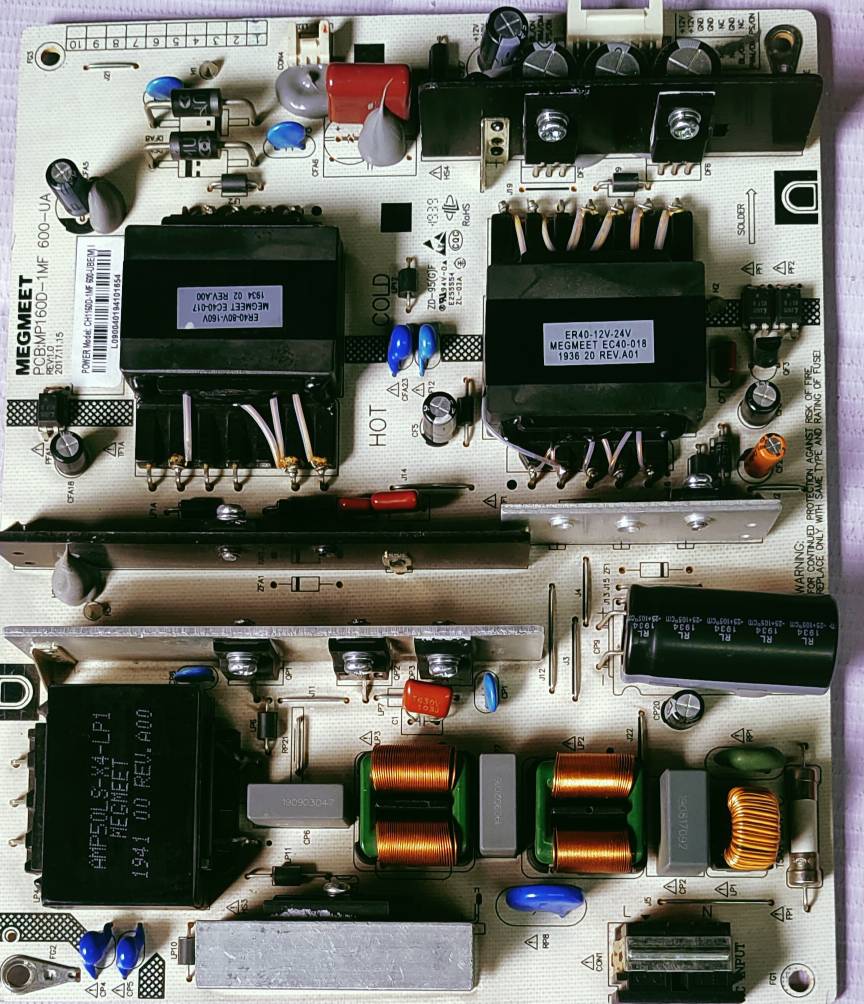

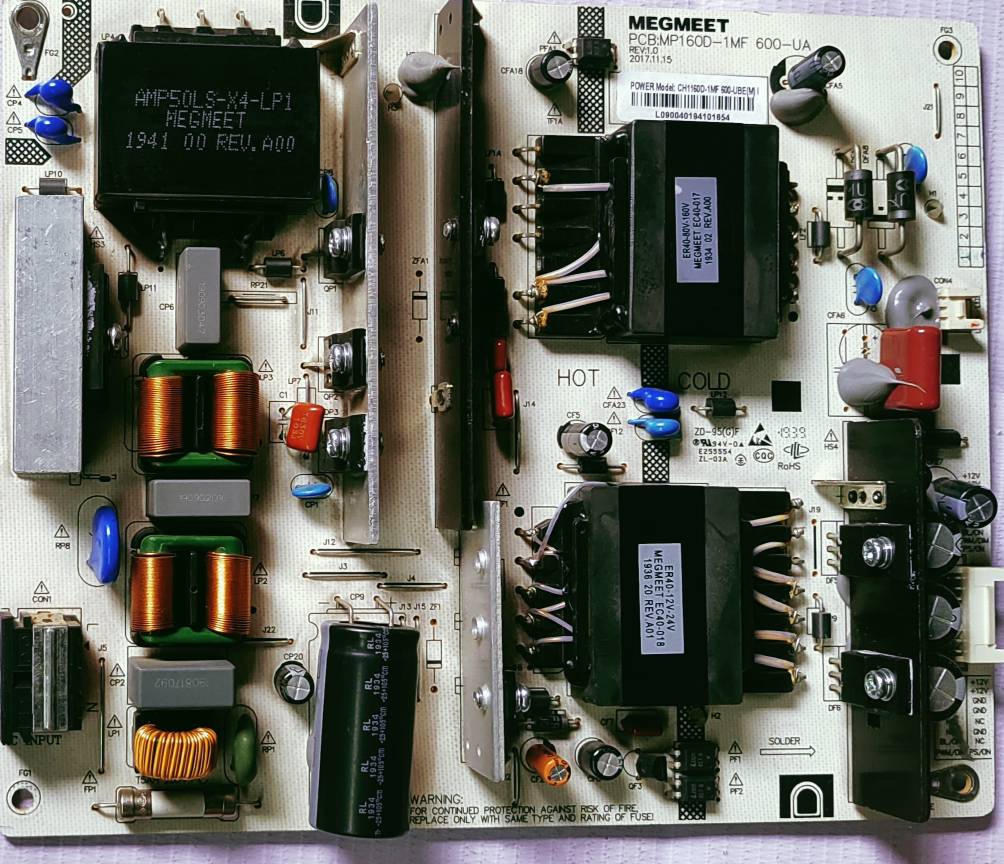

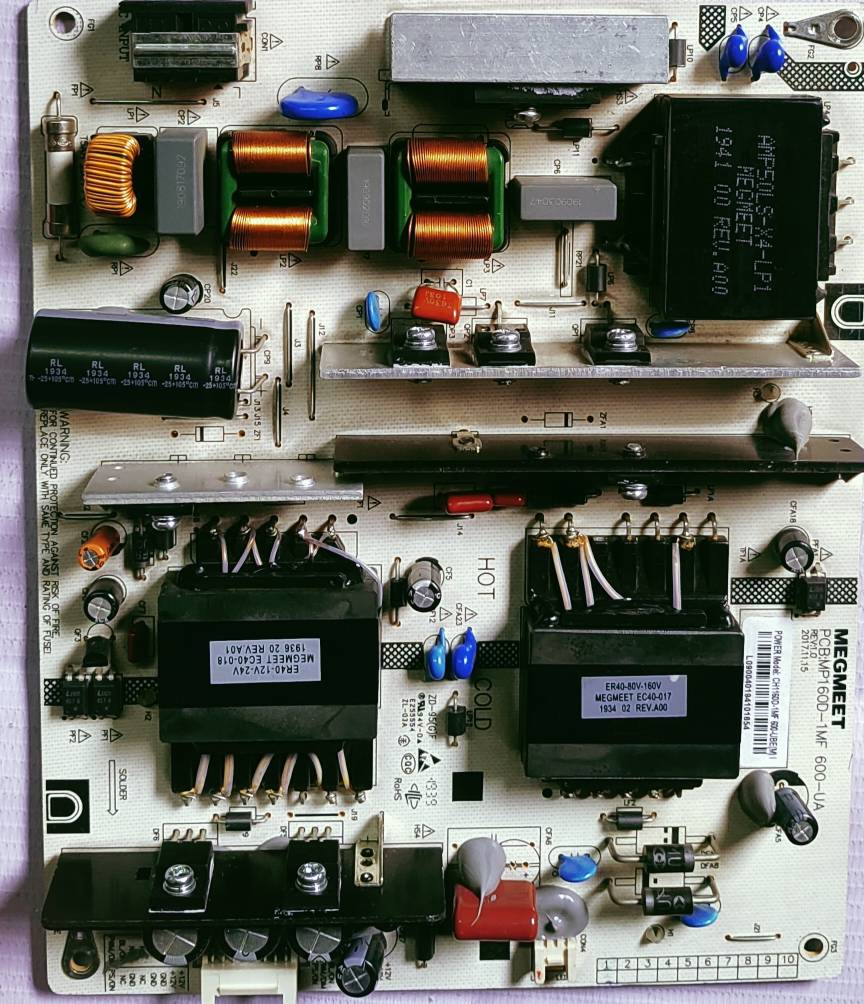

The image displays a Megmeet MP160D-1MF 600-UA power supply board, which is a type of Switched-Mode Power Supply (SMPS) board, not a "50ca smps board" as queried. While the query might be a mistype or refer to a different model, the details provided below pertain to the board shown in the image.
Megmeet MP160D-1MF 600-UA Power Supply Board Details:
Manufacturer and Model: Megmeet MP160D-1MF 600-UA.
Date of Manufacture: The PCB revision date is November 15, 2017.
Key Components:
Transformers: Includes two prominent transformers, one labeled "ER40-12V-24V MEGMEET EC40-018" and another "ER40-80V-160V MEGMEET EC40-017".
Capacitors: Features various capacitors, including large electrolytic capacitors.
Fuses: A warning label indicates the importance of replacing fuses with the correct rating for continued protection.
Design Features: The board clearly demarcates "HOT" and "COLD" sections, indicating isolation for safety.
Application: Typically found in electronic devices requiring power conversion, such as televisions or other display units, given the power supply nature and the presence of high-voltage components.
