VIDEOCON POWER SUPPLY BOARD
MODEL NUMBER
25 INCH LCD BOARD

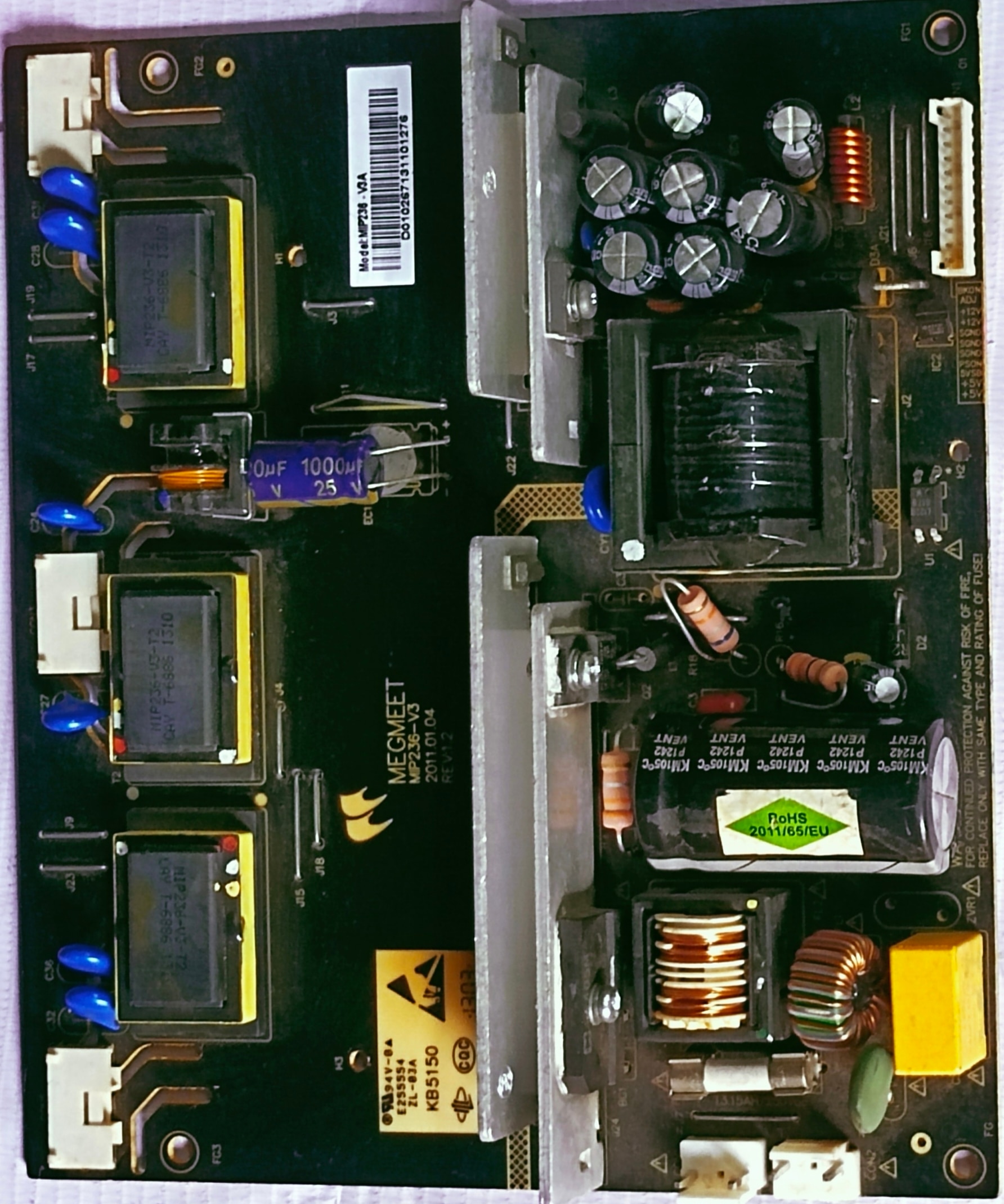

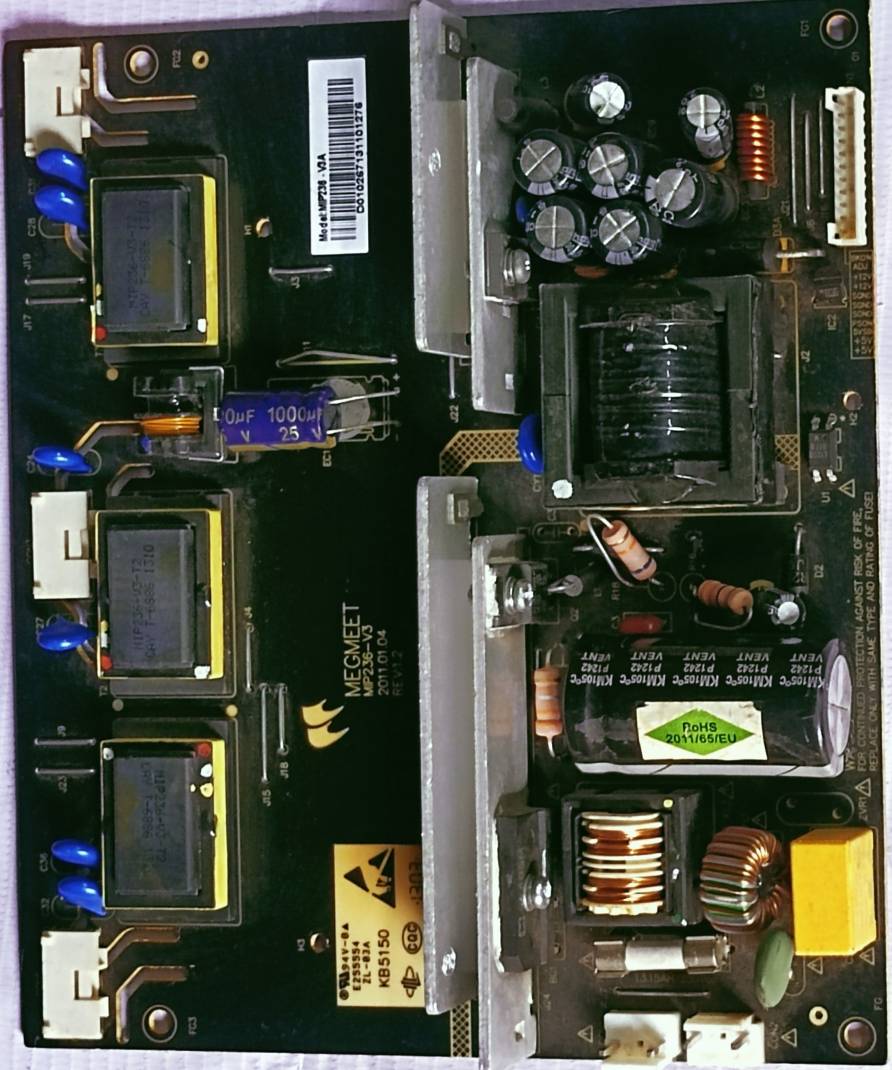

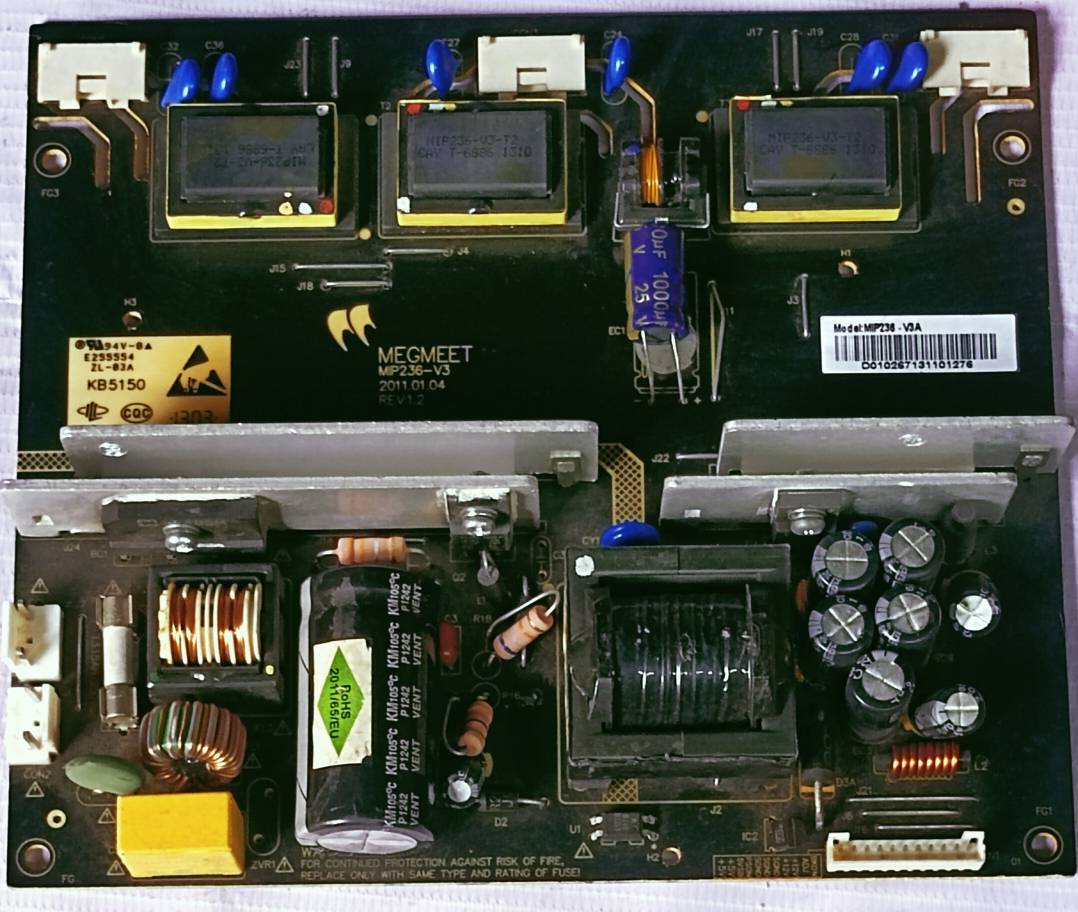

The image displays a Videocon LCD TV Power Supply board, specifically identified as the MEGMEET MIP236-V3 model, manufactured on January 4, 2011, with a REV12 revision.
Key details about this power supply board:
Function:
It converts the incoming AC power from the wall outlet into the various low-voltage DC currents required by the different internal components of the TV, such as the motherboard, display, and backlights.
Model Information:
The board is identified by the model number MIP236-V3 and also has a serial number 0010267131101276.
Safety Feature:
The board includes a warning stating "FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAVE TYPE AND RATING OF FUSE," emphasizing the importance of using the correct fuse for safety.
Components:
Visible components include capacitors (some labeled "KM105°C VENT"), transformers, and heat sinks, which are typical for power supply units.
RoHS Compliance:
The board is marked with "RoHS 2011/65/EU," indicating compliance with the Restriction of Hazardous Substances Directive.
