Description

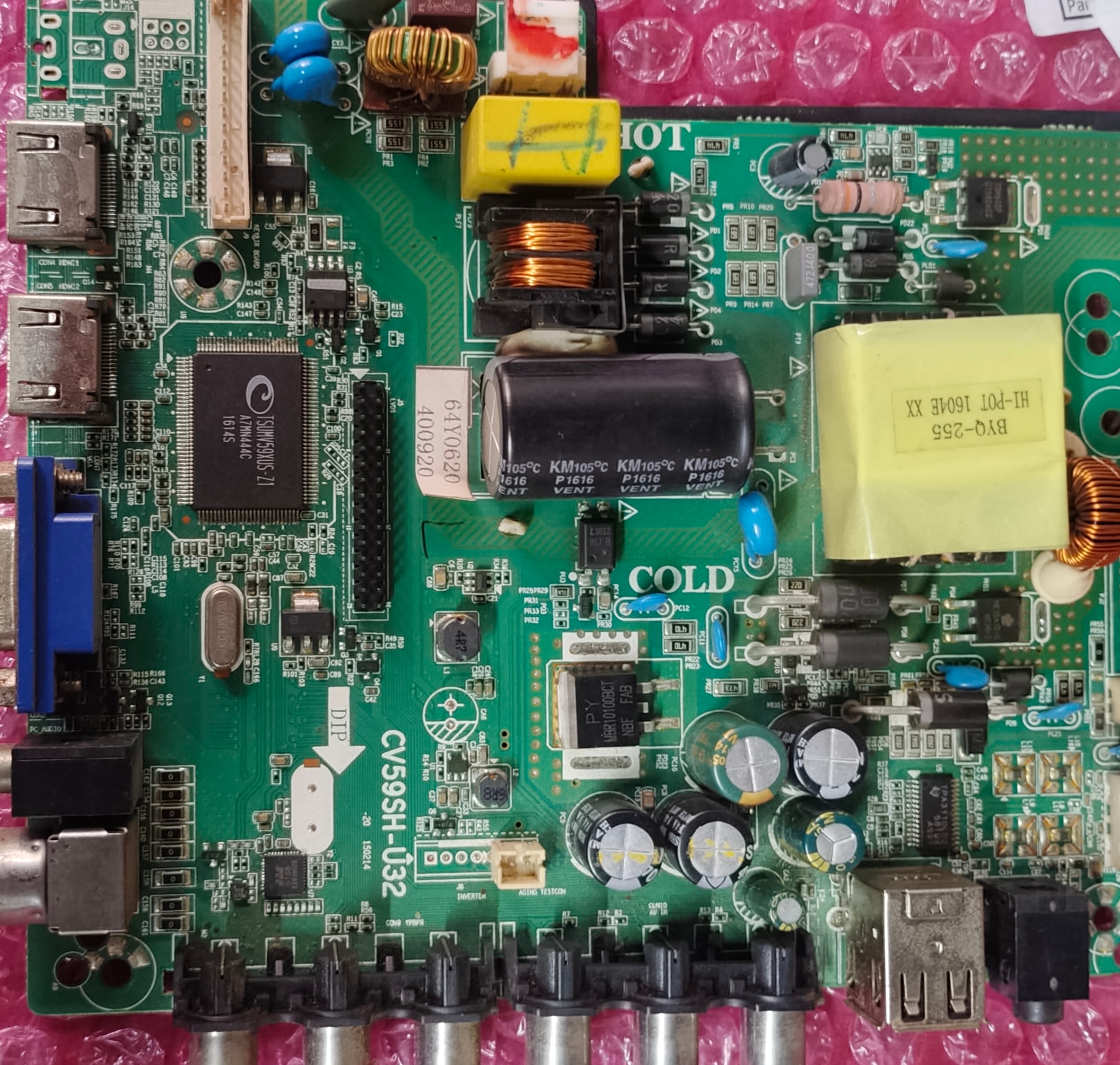

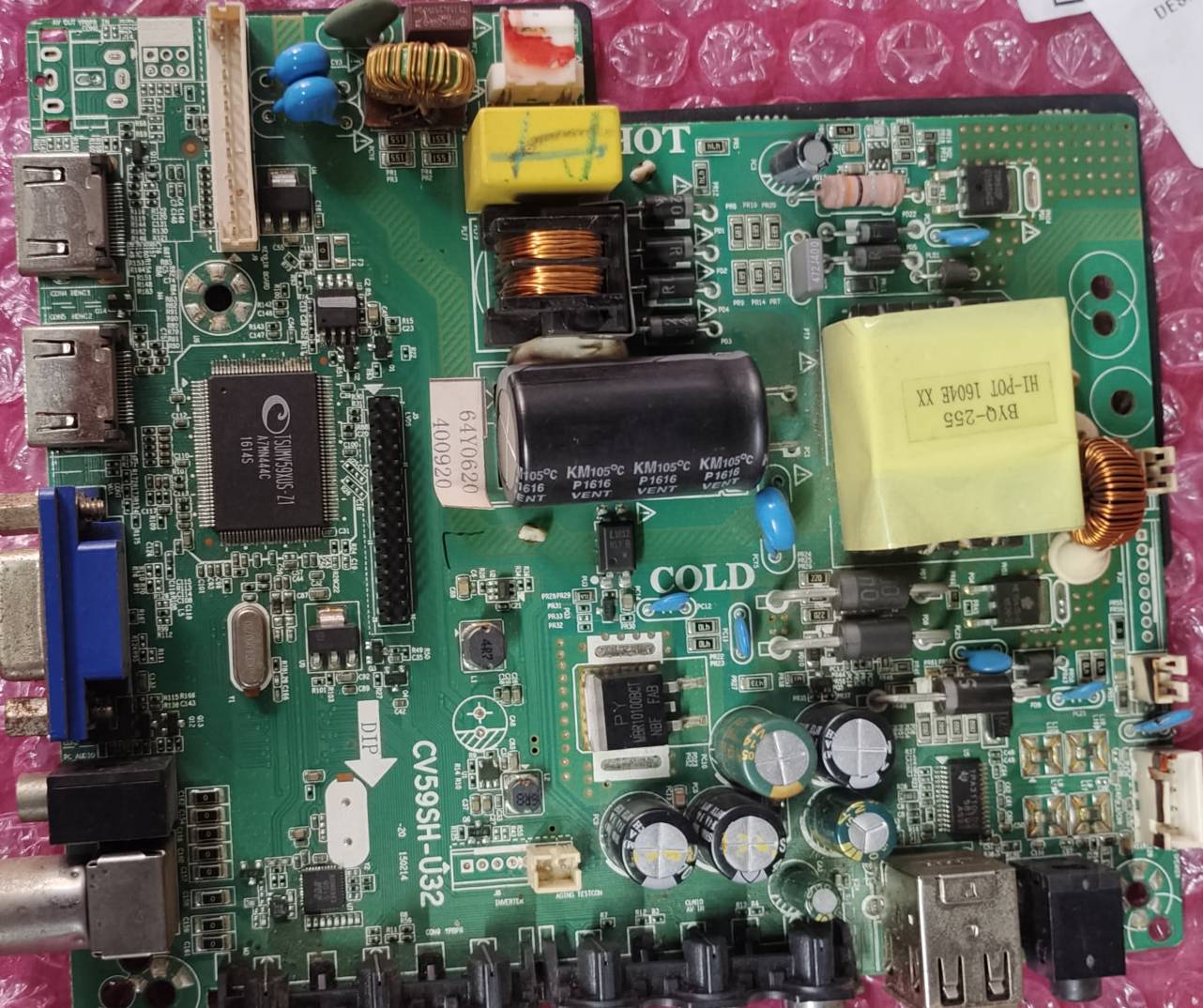

Universal LED CV59SH-U32 is a TV motherboard, specifically designed for China-made LED TVs. It's a three-in-one board, meaning it integrates multiple functions onto a single PCB. This particular model is known for its 1366x768 resolution, 34.8-39.6V voltage range, and 540mA current draw.
Key Features and Details:
Resolution:
The CV59SH-U32 supports a resolution of 1366x768, commonly found in 32-inch panels.
Voltage Range:
It can operate within a voltage range of 34.8 to 39.6V, ensuring compatibility with various power supplies.
Current Draw:
The board draws 540mA of current, indicating its power consumption characteristics.
Functionality:
It is a multi-functional board, potentially integrating power management, tuning circuits, and video processing.
Compatibility:
It's designed for use with China-made LED TVs and is compatible with models that utilize the CV59SH platform.
Originality:
Some vendors emphasize that the board is an original part, which can be important for maintaining TV performance and features.
Installation:
Proper installation requires technical knowledge, and it may be necessary to swap data chips or adjust screen parameters in factory mode, according to a seller on AliExpress.
Important Considerations:
Technical Expertise:
This board is typically sold to electronics technicians due to the need for specialized knowledge in installation and potential adjustments.
Potential Issues:
Sometimes, issues with the TV may require reprogramming the EEPROM or adjusting settings in the TV's factory mode.
Source and Testing:
When purchasing, it's beneficial to verify the seller's reputation, especially if they offer testing and technical support, according to Great.
