TOSHIBA POWER SUPPLY BOARD
MODEL NUMBER
40PX200T

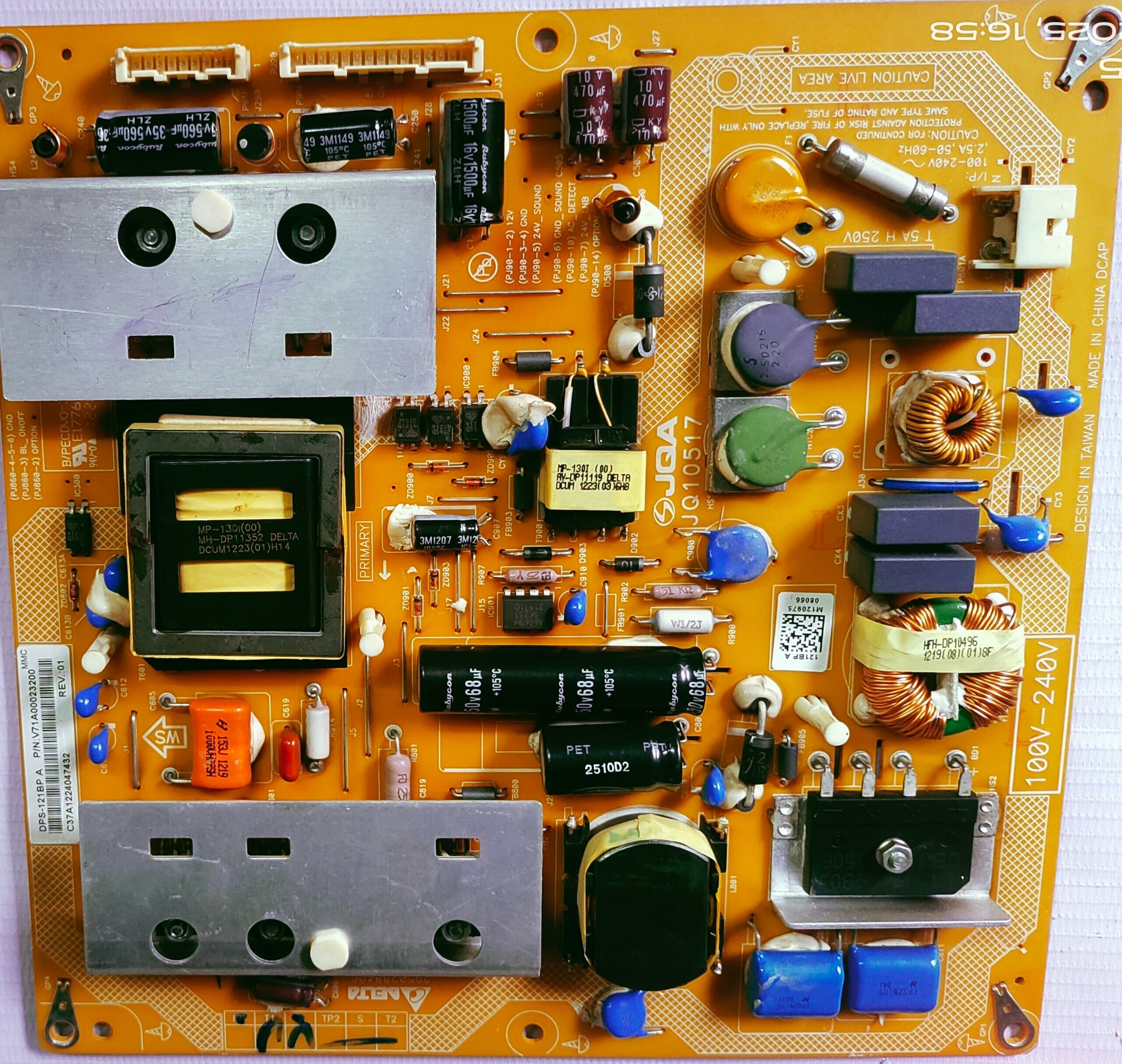

The image displays a power supply unit (PSU) for an electronic device.
Model Information:
The board is identified as a "DPS-1218P A" with a PIN "V71A00023200" and "REV 01".
Manufacturer:
It is manufactured by "DELTA" and has components marked with "bycon" and "Rubycon".
Power Specifications:
The input voltage range is "100V-240V" and it uses a "T5AH 250V" fuse.
Safety Warning:
There's a "CAUTION LIVE AREA" warning and a note about replacing the fuse with the "SAME TYPE AND RATING OF FUSE" for continued protection against fire risk.
Output Connectors:
Labels near connectors indicate various outputs, including "12V", "GND", "24V SOUND", and "DETECT".
