TCL / IFFALCON 4K LED TV 55K2A MOTHER BOARD

TCL / IFFLACON 4K MOTHER BOARD

MODEL NUMBER

55K2A

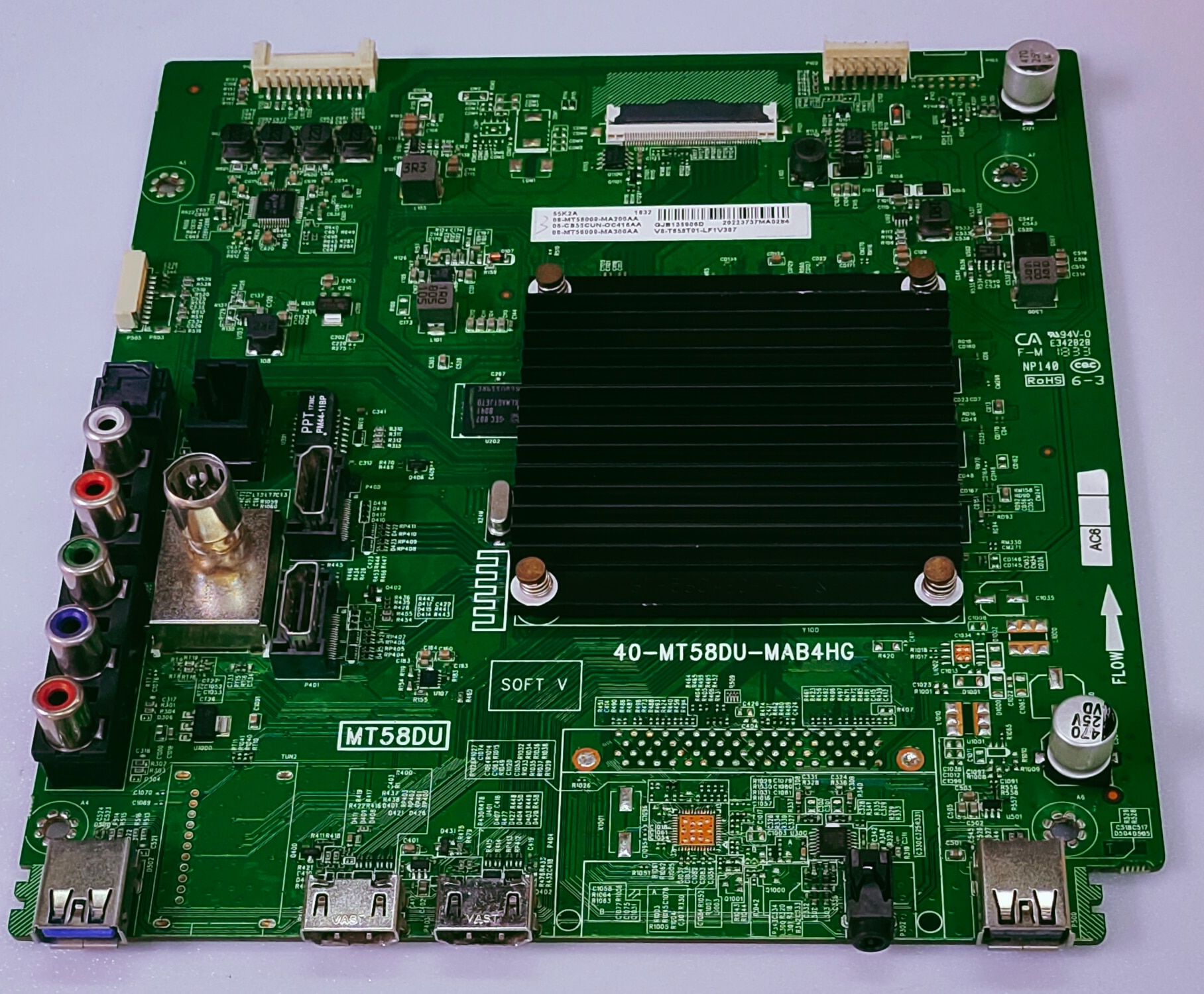

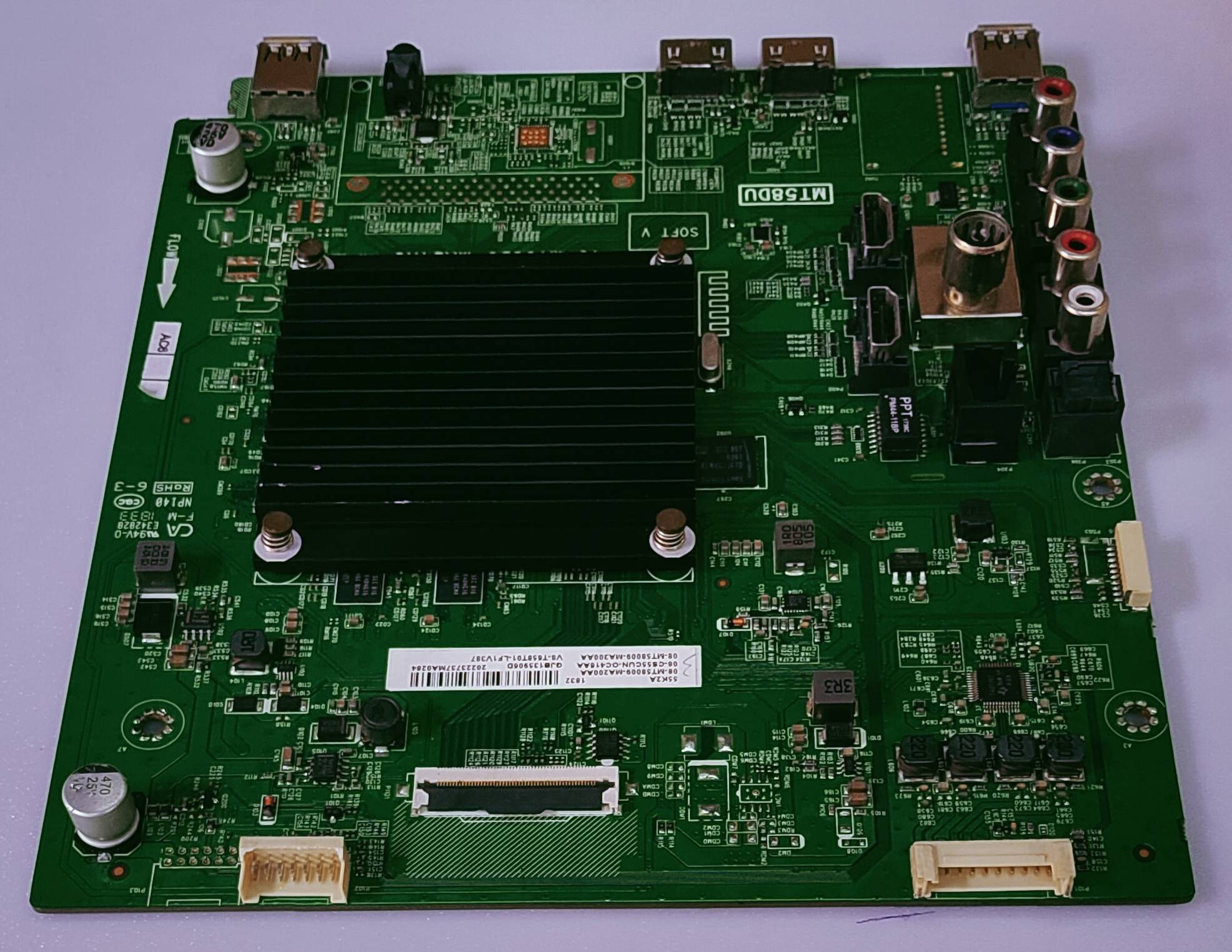

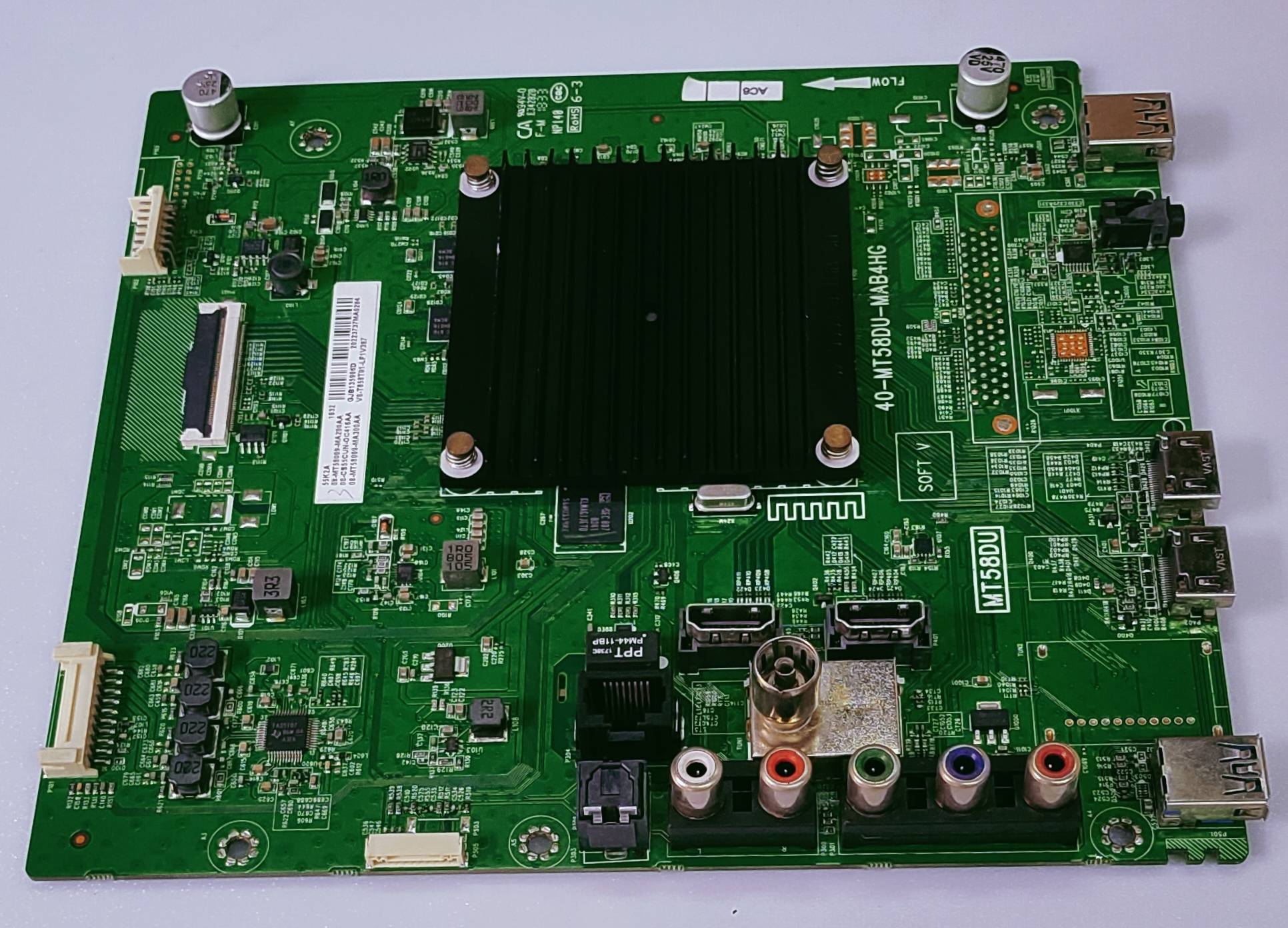

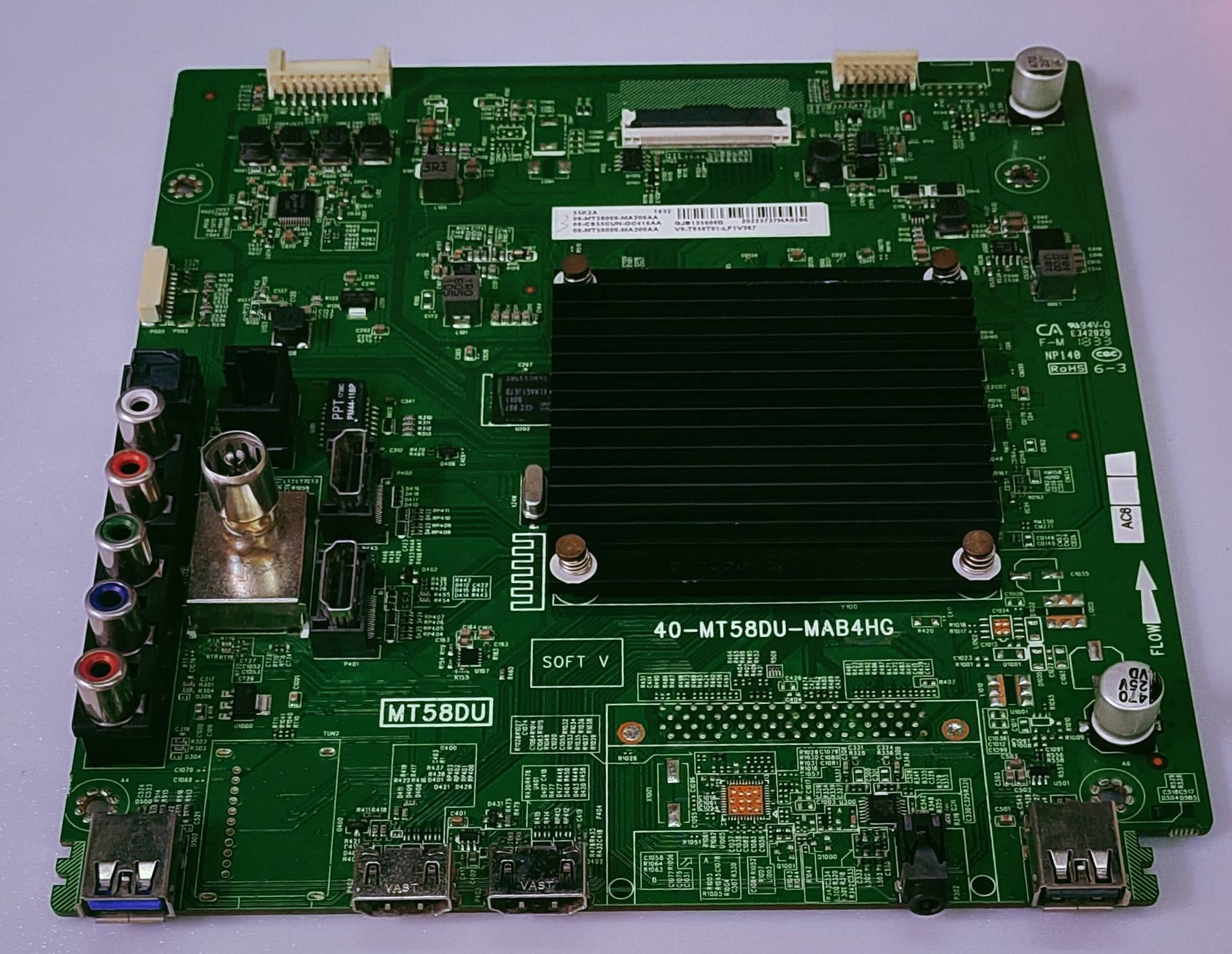

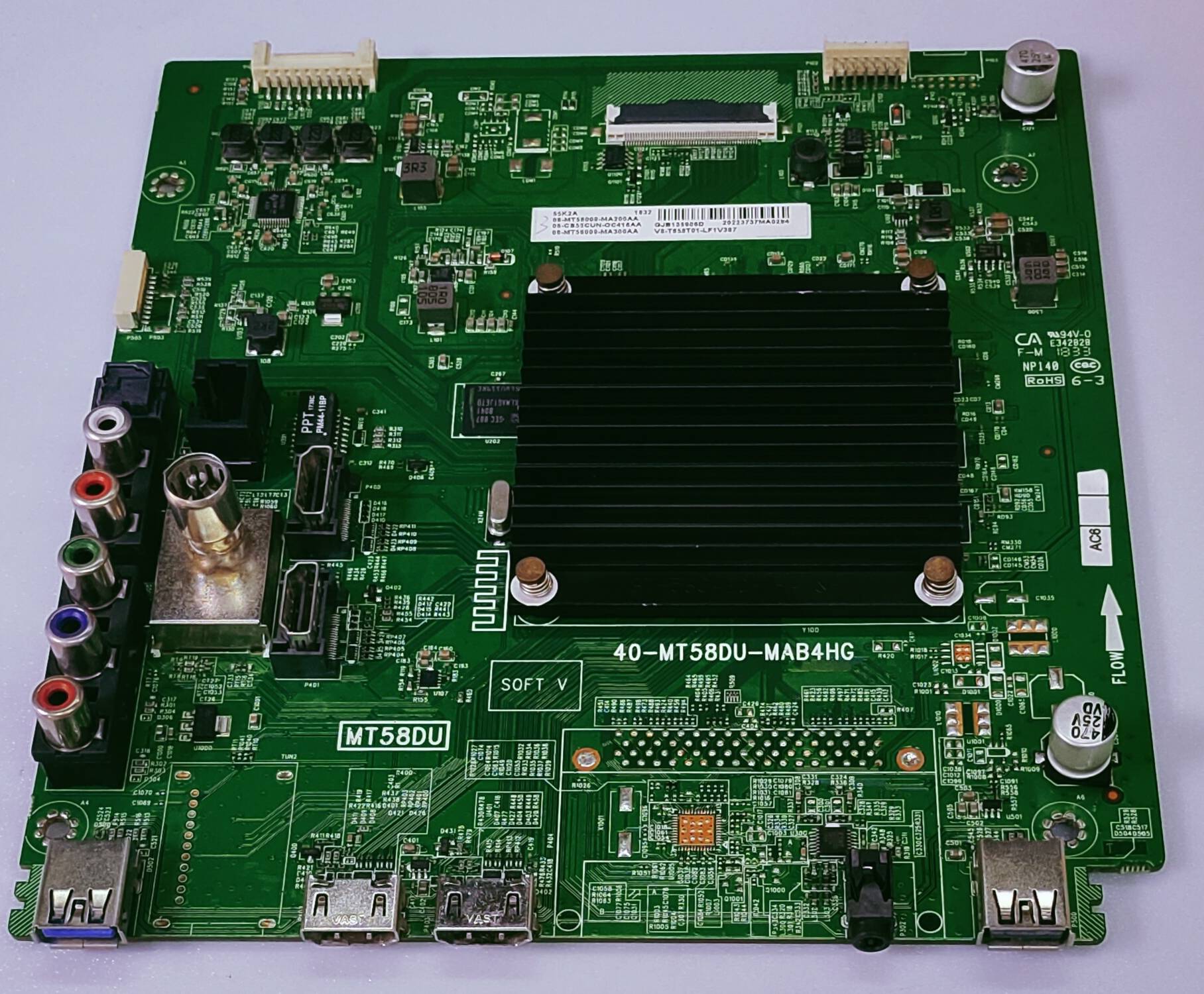

The iFFalcon 55K2A main board is a Google-certified Android TV motherboard with the manufacturer part number 40-MT58DU-MAB4HG. It features a quad-core processor and integrated connectivity.

Key Specifications of the Main Board

Operating System: Official Android TV (shipped with Android 7.0 Nougat, upgradable).

Processor (CPU): Quad-core A53 64-bit, clocked at 1.1 GHz.

Graphics Processor (GPU): Dual-core Mali T860 MP2, clocked at 480 MHz.

RAM: 2.5 GB.

Storage: 16 GB internal memory.

Connectivity:

Wi-Fi (Dual-band: 2.4 GHz and 5 GHz).

Bluetooth.

Ethernet (LAN) port.

4 x HDMI ports.

2 x USB 2.0 ports.

AV input, Headphone jack, Digital Audio Output (SPDIF).

Compatibility: Designed specifically for the iFFalcon 55K2A 55-inch 4K UHD LED TV model.

Features: Supports Google Assistant, Chromecast built-in, Netflix, YouTube, and other apps available via the Google Play Store.

The board is a complete system-on-chip solution for the television, handling all video processing, audio output (with Dolby and DTS support), and smart functionality.
