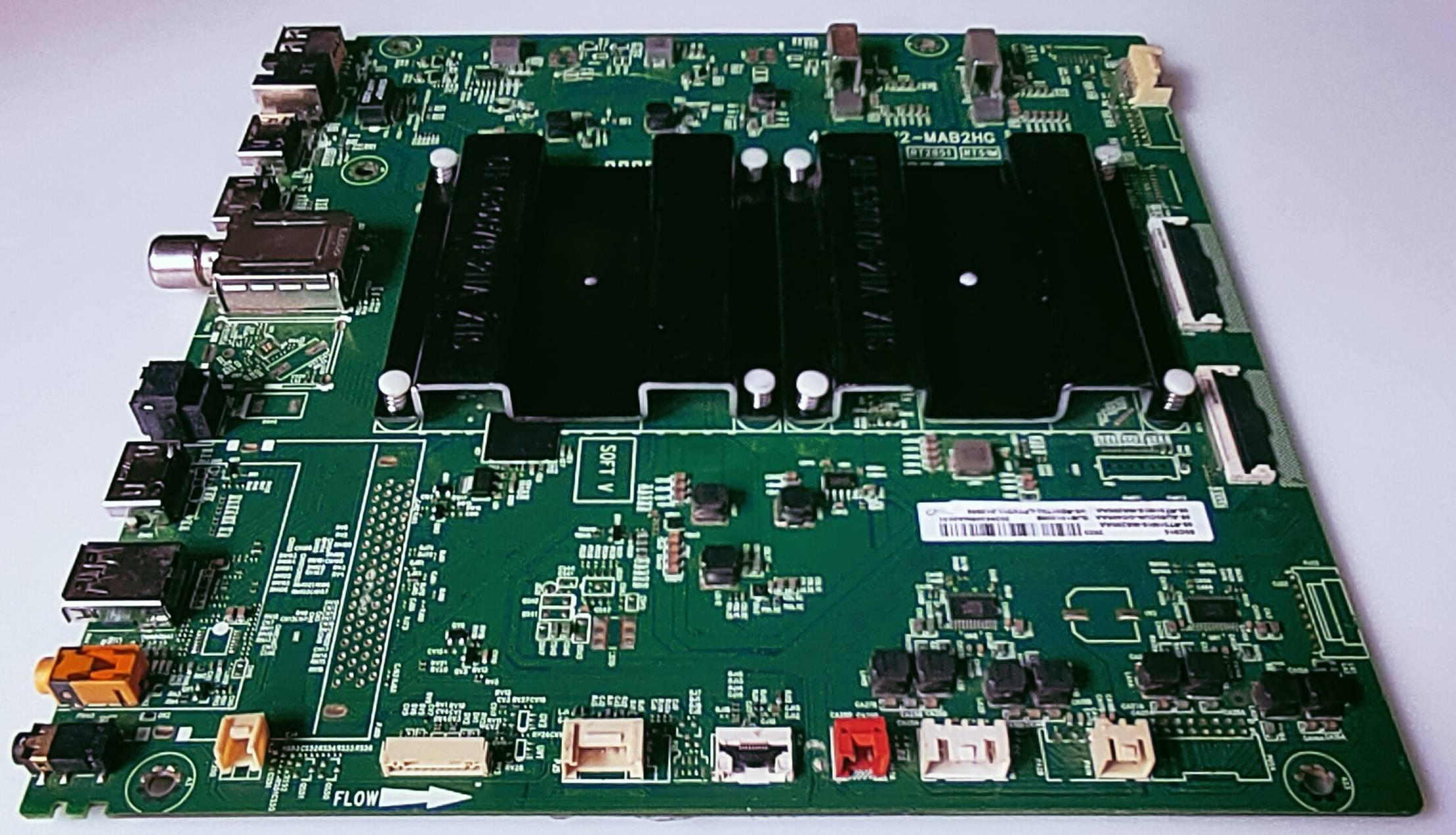

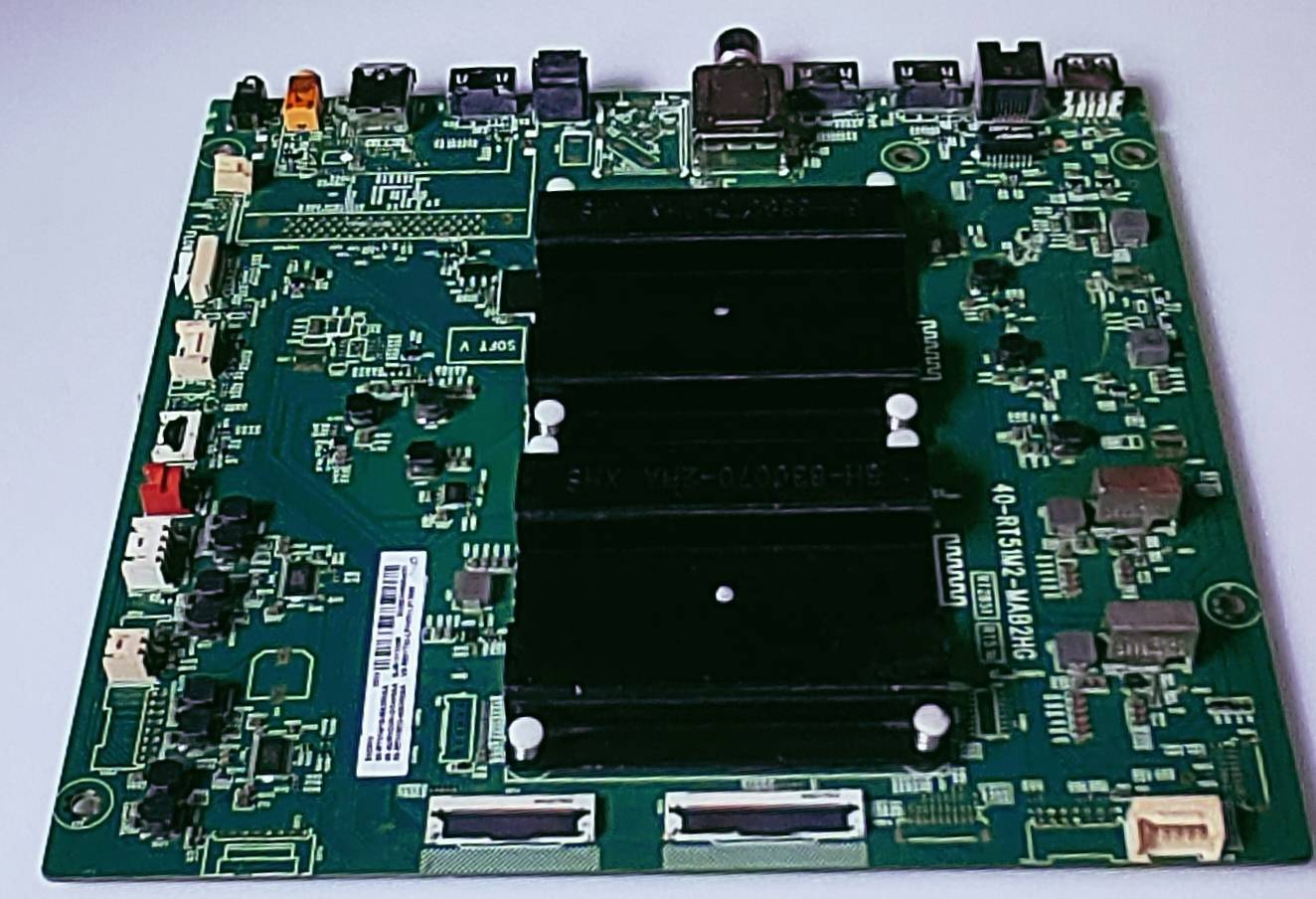

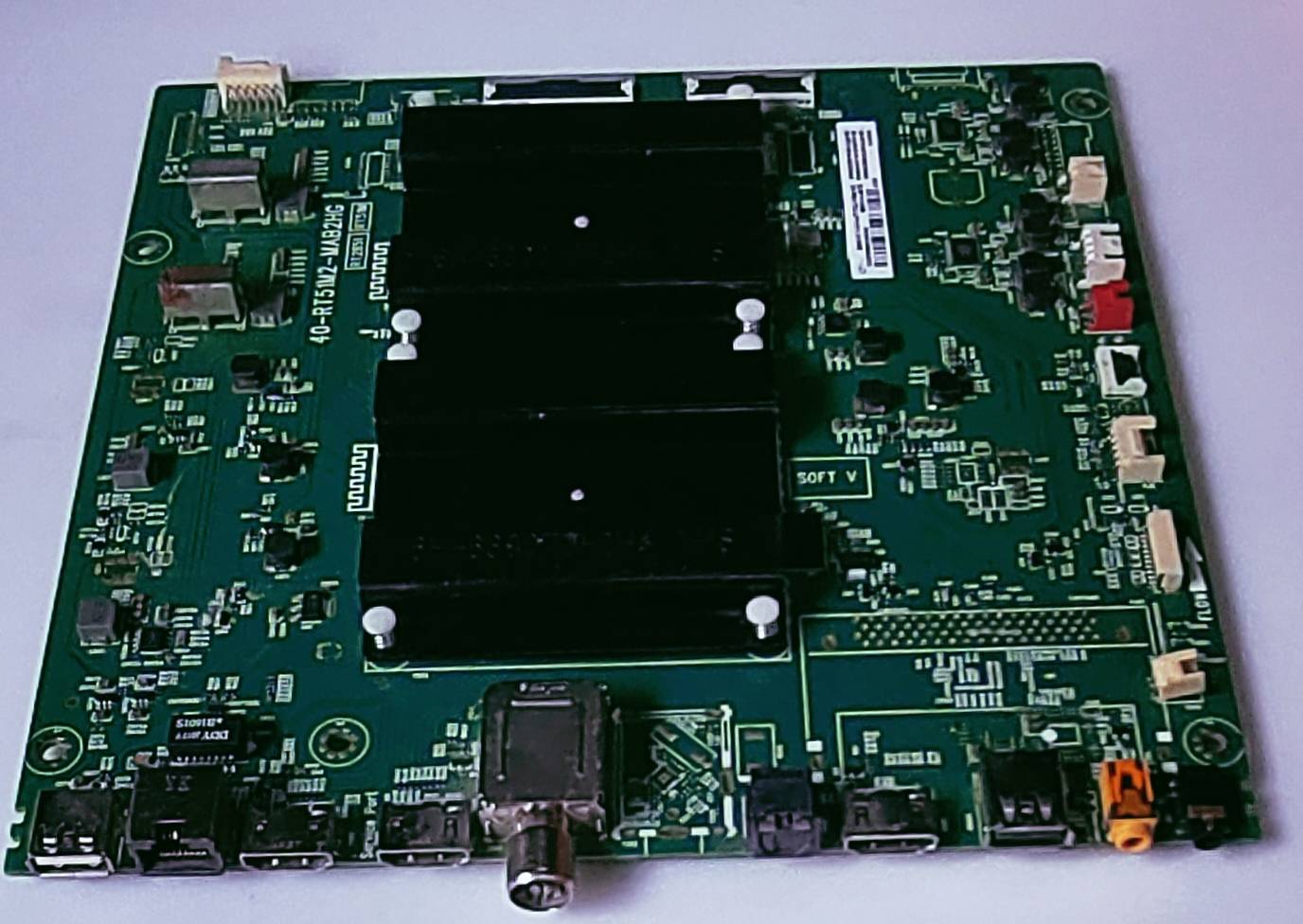

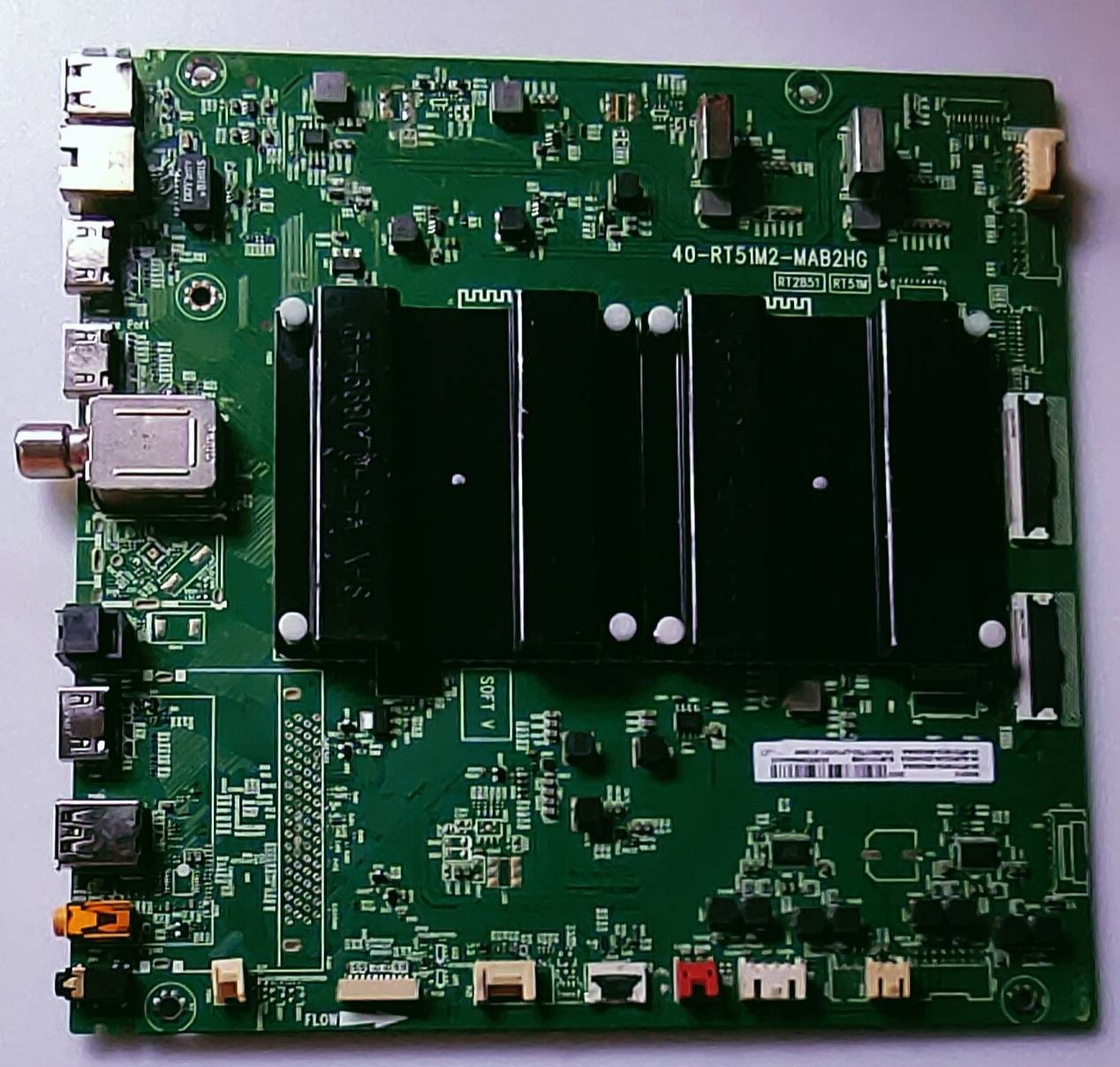

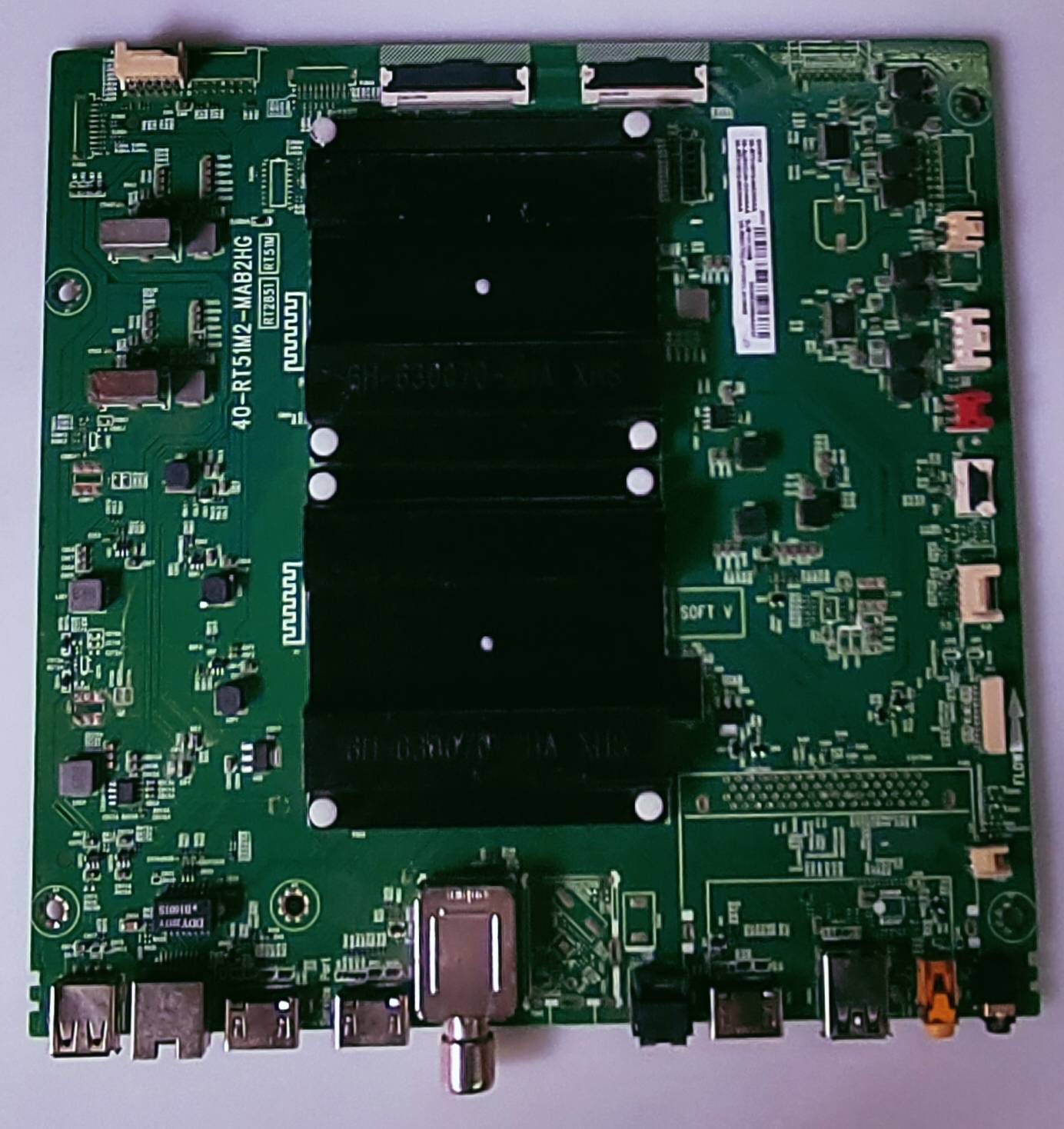

TCL 65C815 4K QLED Google TV NEW MOTHER BOARD

TCL 4K QLED GOOGLE TV NEW MOTHER BOARD

MODEL NUMBER

65C815

BOARD PART NUMBER

40-RT51M2-MAB2HG

The "65C815 main board" refers to the main circuit board for the TCL 65C815 4K QLED Android TV, often identified by part numbers like 40-RT51M2-MAB2HG or compatible power boards such as 40-L302W4-PWB1CG, featuring Wi-Fi 5, Bluetooth 5.0, and 16GB storage, crucial for its Android TV functions, picture processing, and network connectivity.

Key Details & Characteristics:

Compatibility: Used in TCL 65C815 models and sometimes cross-compatible with other TCL models like 75D6, 75V2, 75U6800C.

Function: Manages all core TV functions, from picture display (driving the panel) to smart features (Android OS, apps) and audio processing.

Internal Components:

Processor: Unknown specific SoC model, but handles fast response and stable operation.

Memory: Includes 16GB ROM (storage).

Connectivity: Supports Wi-Fi (802.11ac, Wi-Fi Direct), Bluetooth 5.0, LAN, DLNA.

Smart Features: Runs Android TV with built-in Google Assistant & Alexa voice control.

Power Supply: Works with specific power boards (e.g., 40-L302W4-PWD1CG) for stable energy conversion.

T-Con Board: Paired with a T-Con board (e.g., CSC06-1 for certain panels) for video signal processing.
