Sony 43W950D, T550HVN08.2 CTRL BD/55T23-C03 Tcon Part No.TT- 5543T02 C02

Sony Tcon board

Model No.

43W950D, T550HVN08.2 CTRL BD

part No.

TT5543T02 C02

Digital Electronics Services

pune maharashtra

9850791757

9763720390

(All India (COD) Cash on Delivery Service Available)

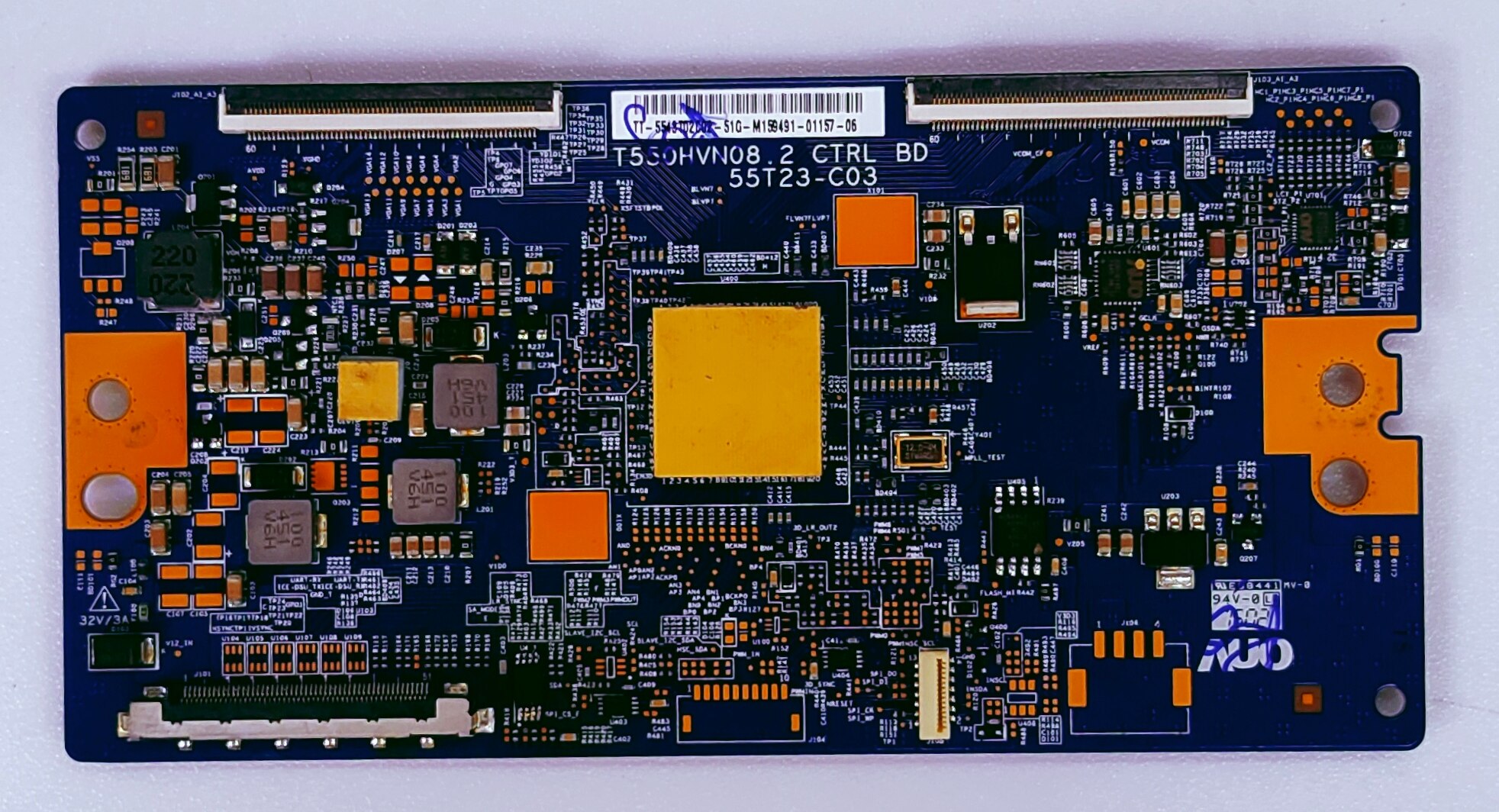

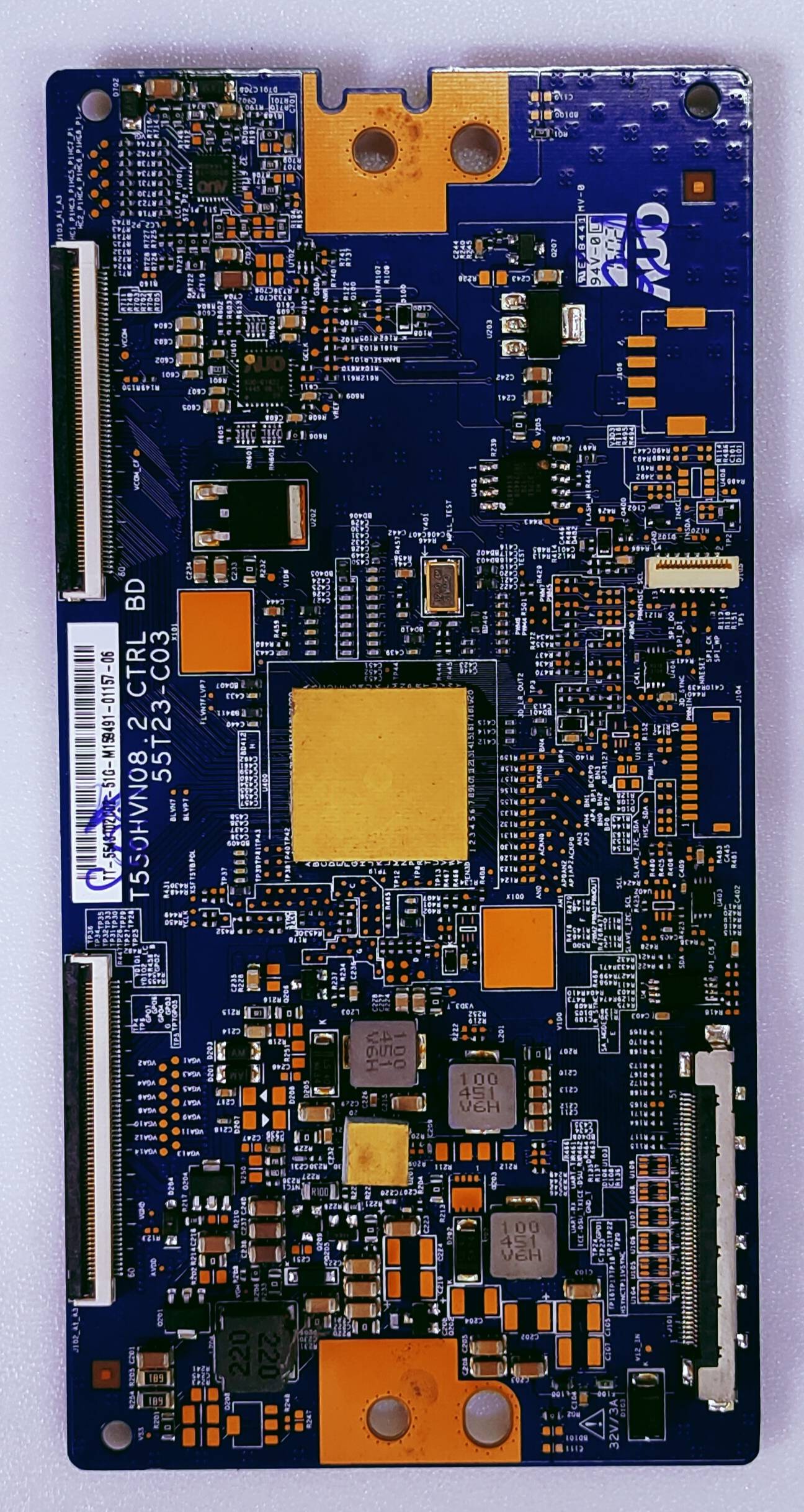

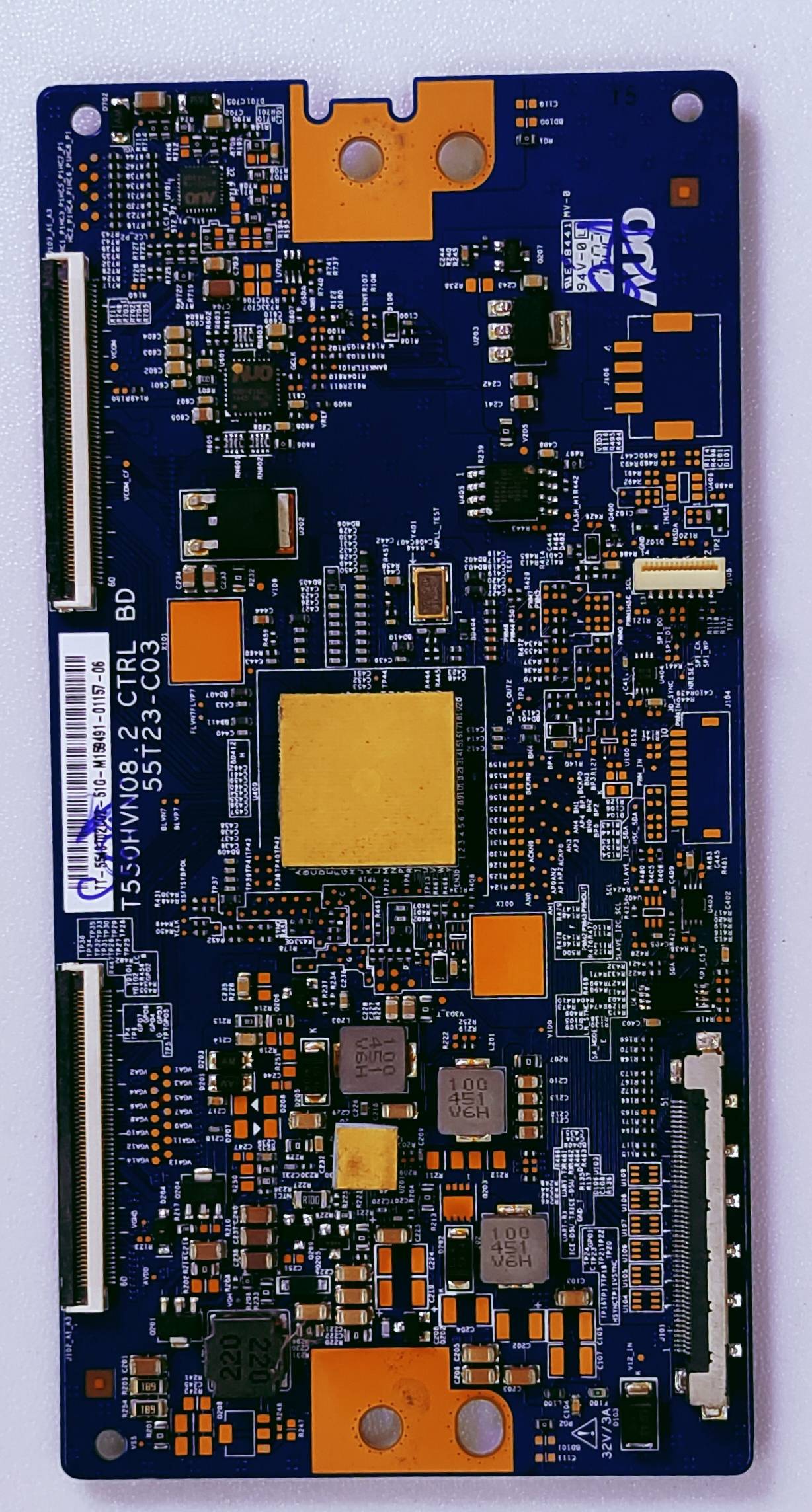

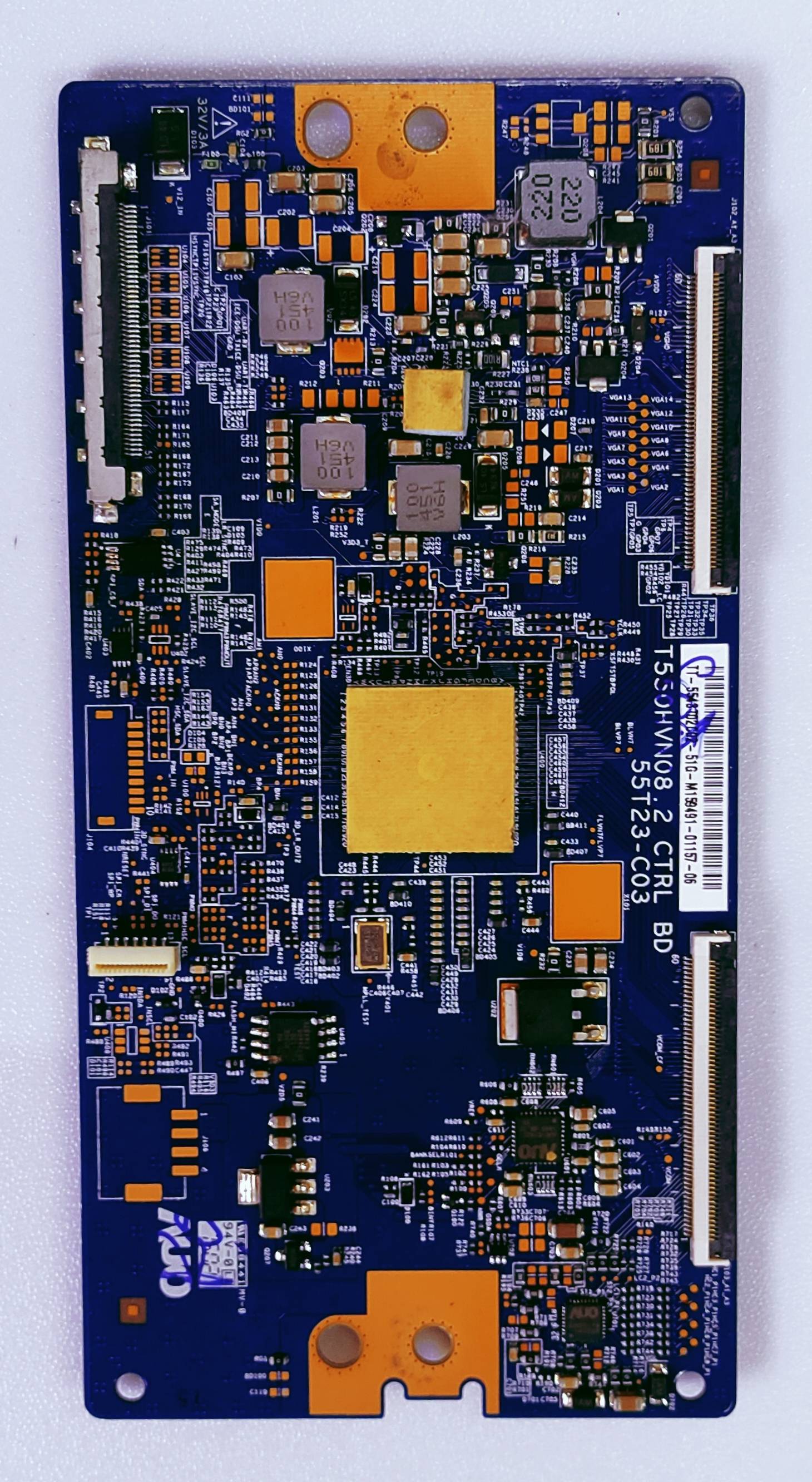

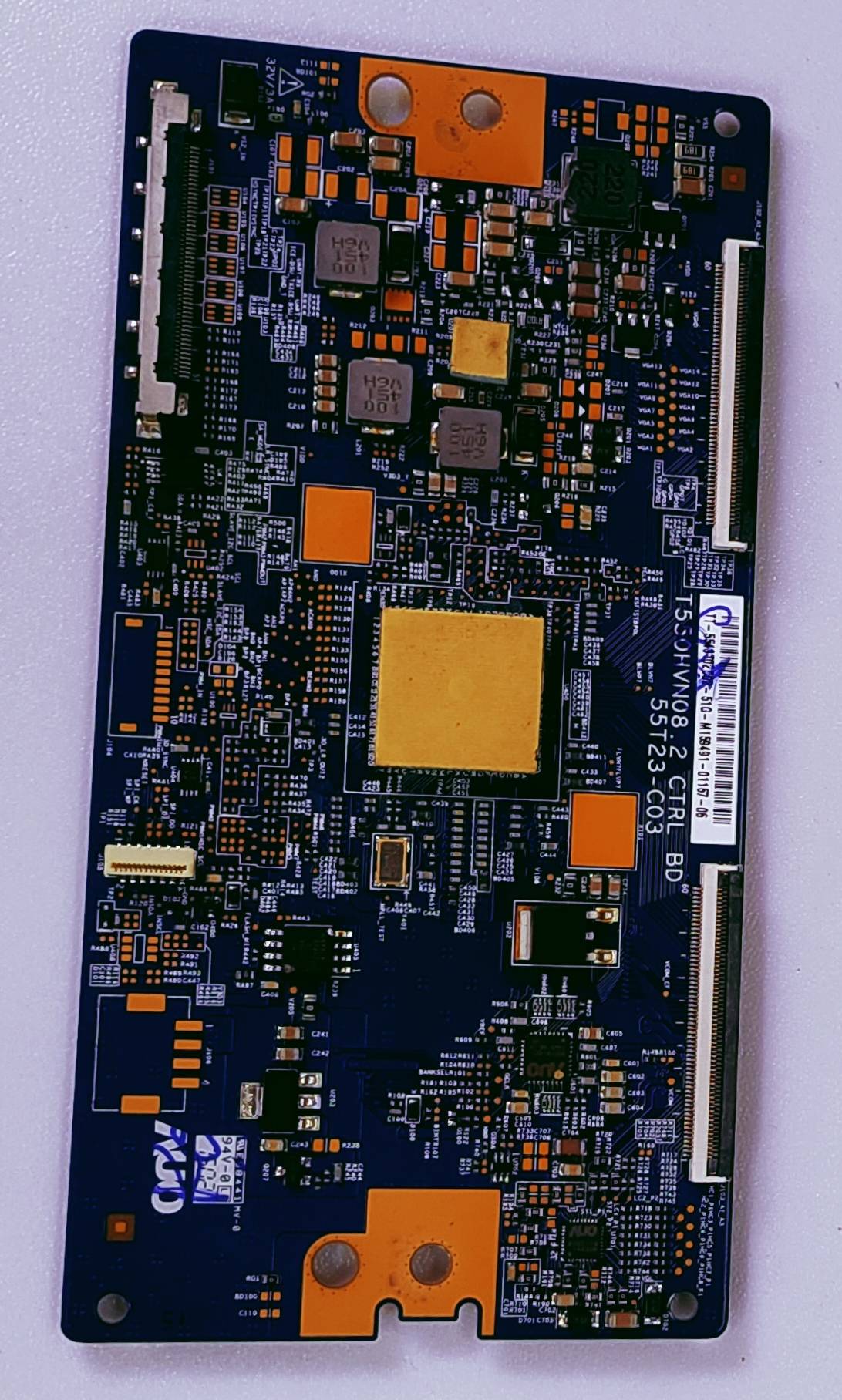

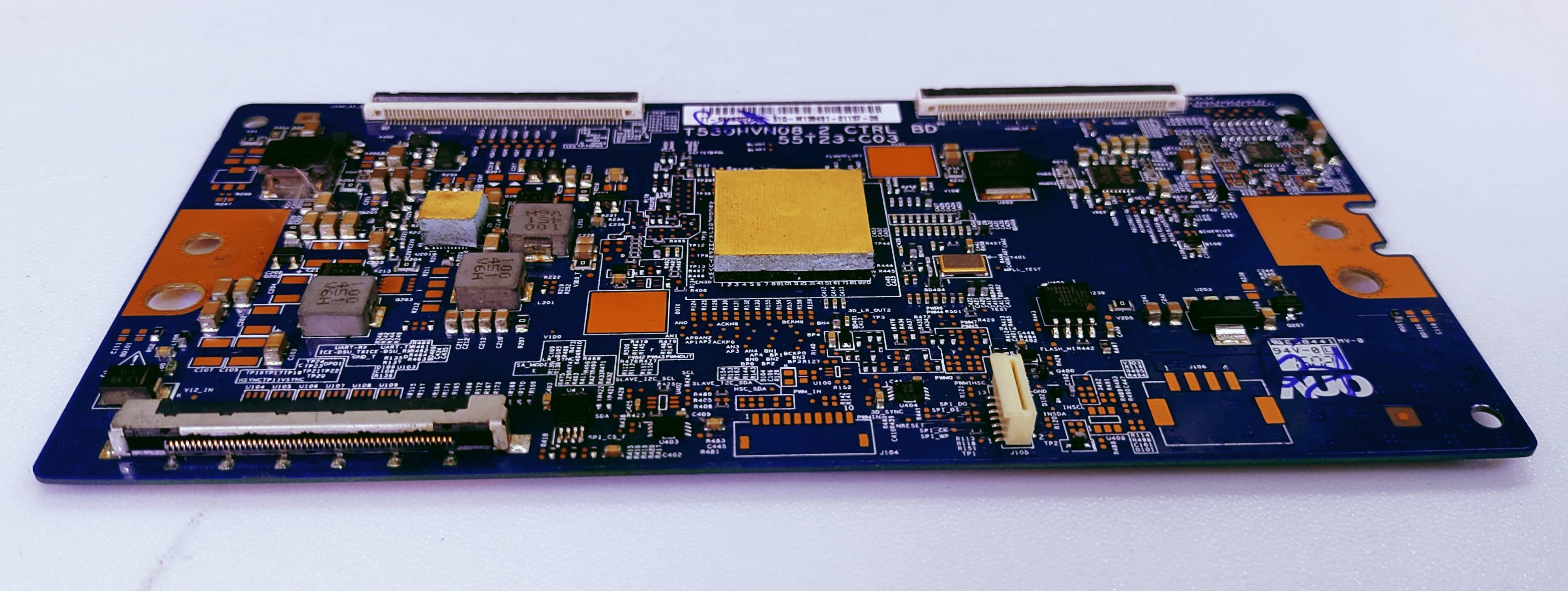

This electronic component is a T-Con (Timing Controller) Board primarily used in Sony LED TVs.

Technical Specifications

Part Numbers: T550HVN08.2, 55T23-C03

Compatible TV Sizes: 43-inch, 50-inch, and 55-inch models

Compatible TV Series: Frequently used in Sony KDL-W800C and W85 series

Voltage: 32V

Common Uses and Troubleshooting

Function: This board manages the timing of signals sent to the TV panel to display images.

Symptoms of Failure: A faulty T-Con board may cause vertical lines on the screen, faded colors, a white display, or a "5 times red light blinking" error on Sony TVs.

Replacement Advice: It is critical to match the exact part number (e.g., T550HVN08.2) printed on the board rather than relying solely on the TV model number to ensure compatibility.
