SAMSUNG UA49MU6303KXXM 4K POWER SUPPLY BOARD
Description
SAMSUNG 4K LED TV SMPS BOARD
MODEL NUMBER
UA49MU6303KXXM
Digital Electronics Services
pune maharashtra
9850791757
9763720390
(All India (COD) Cash on Delivery Service Available

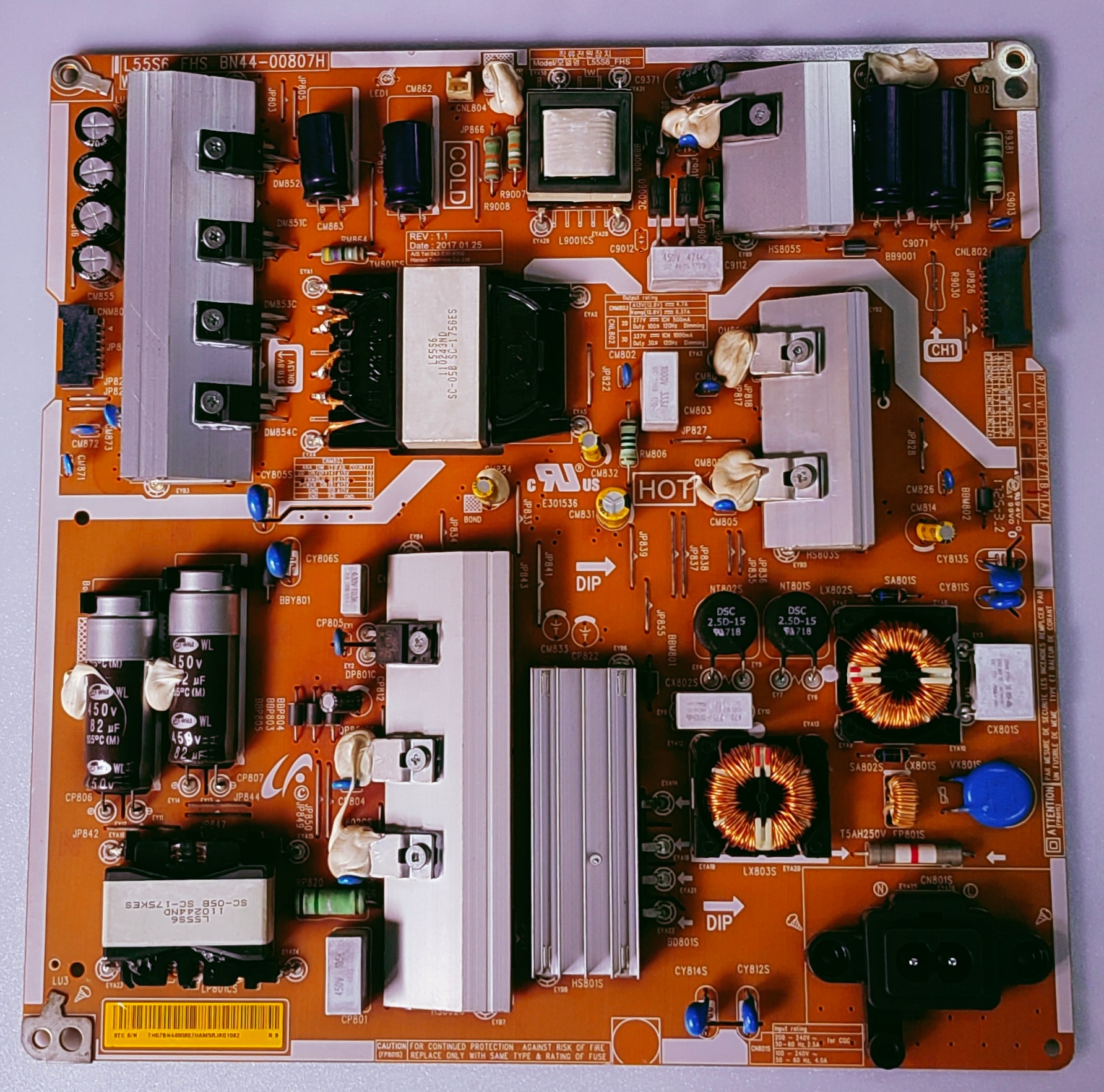

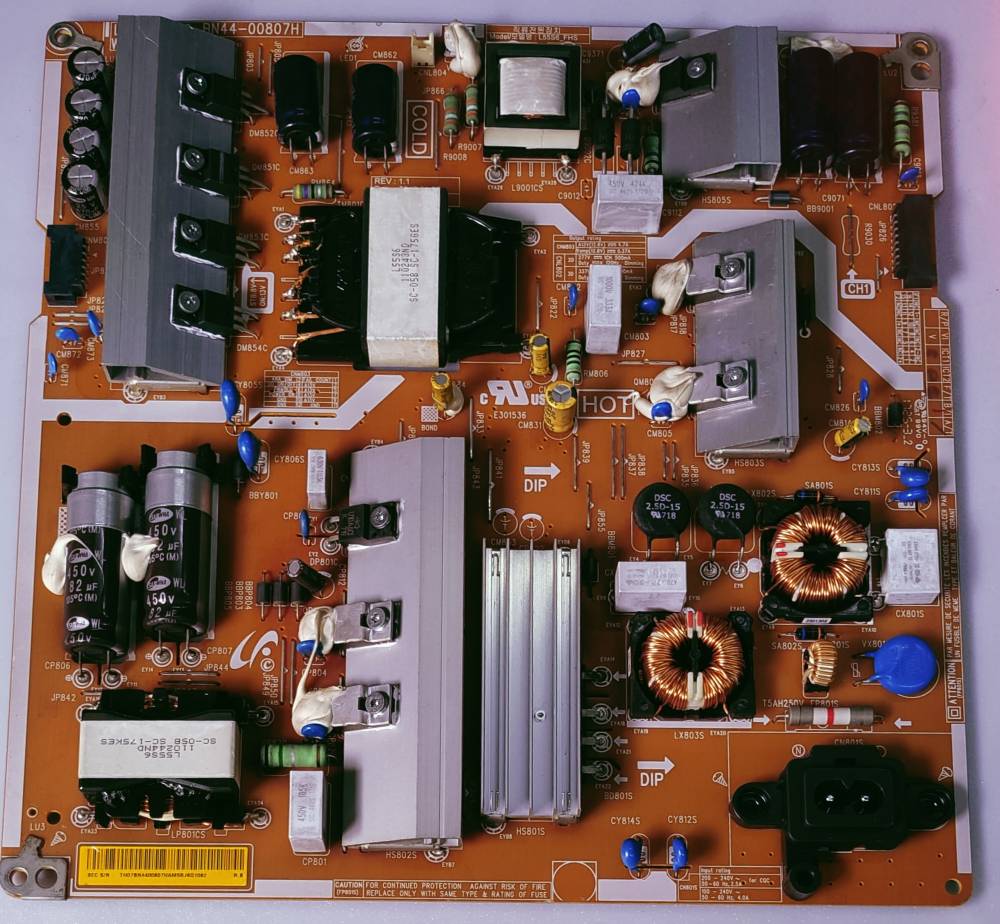

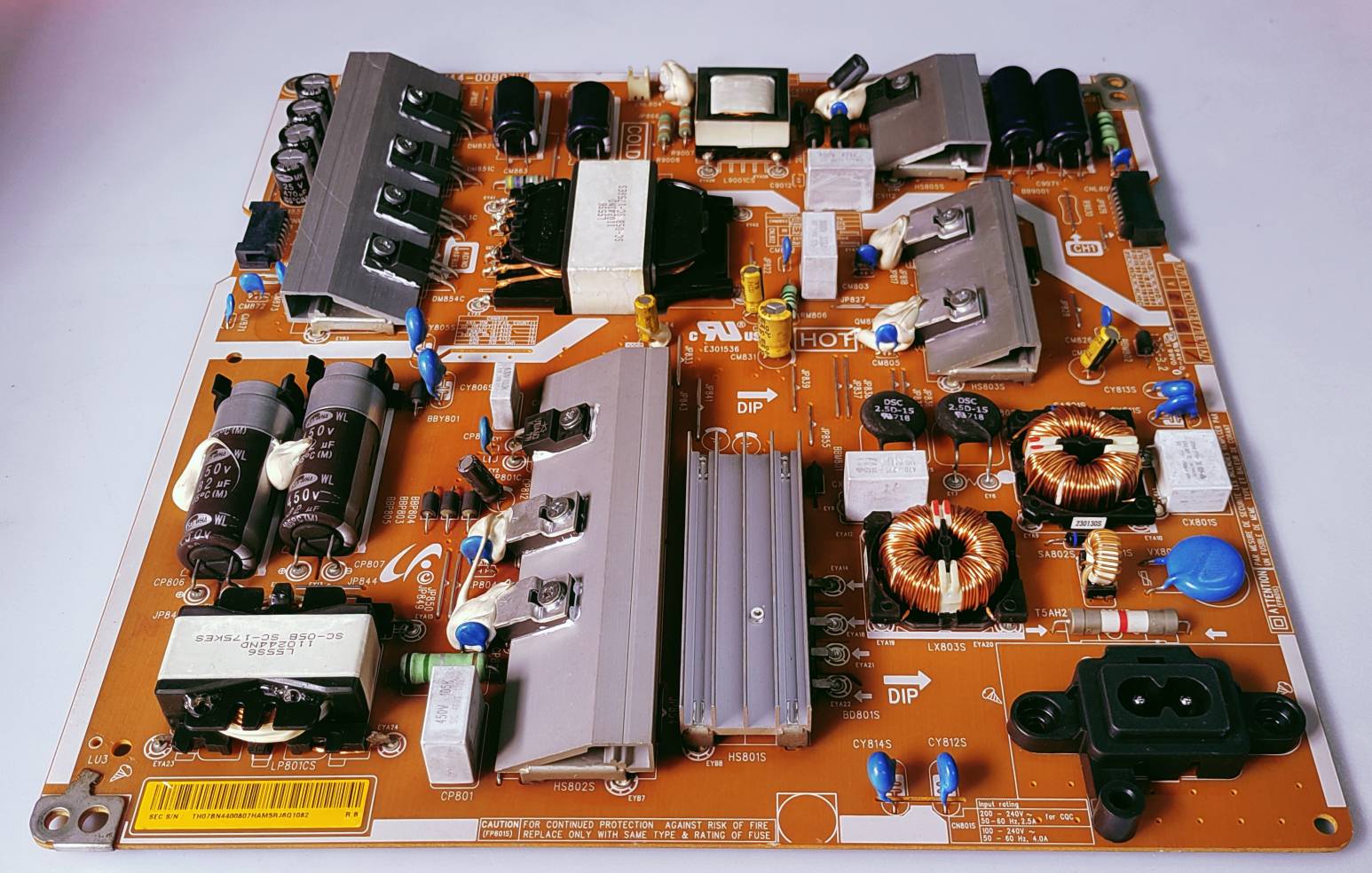

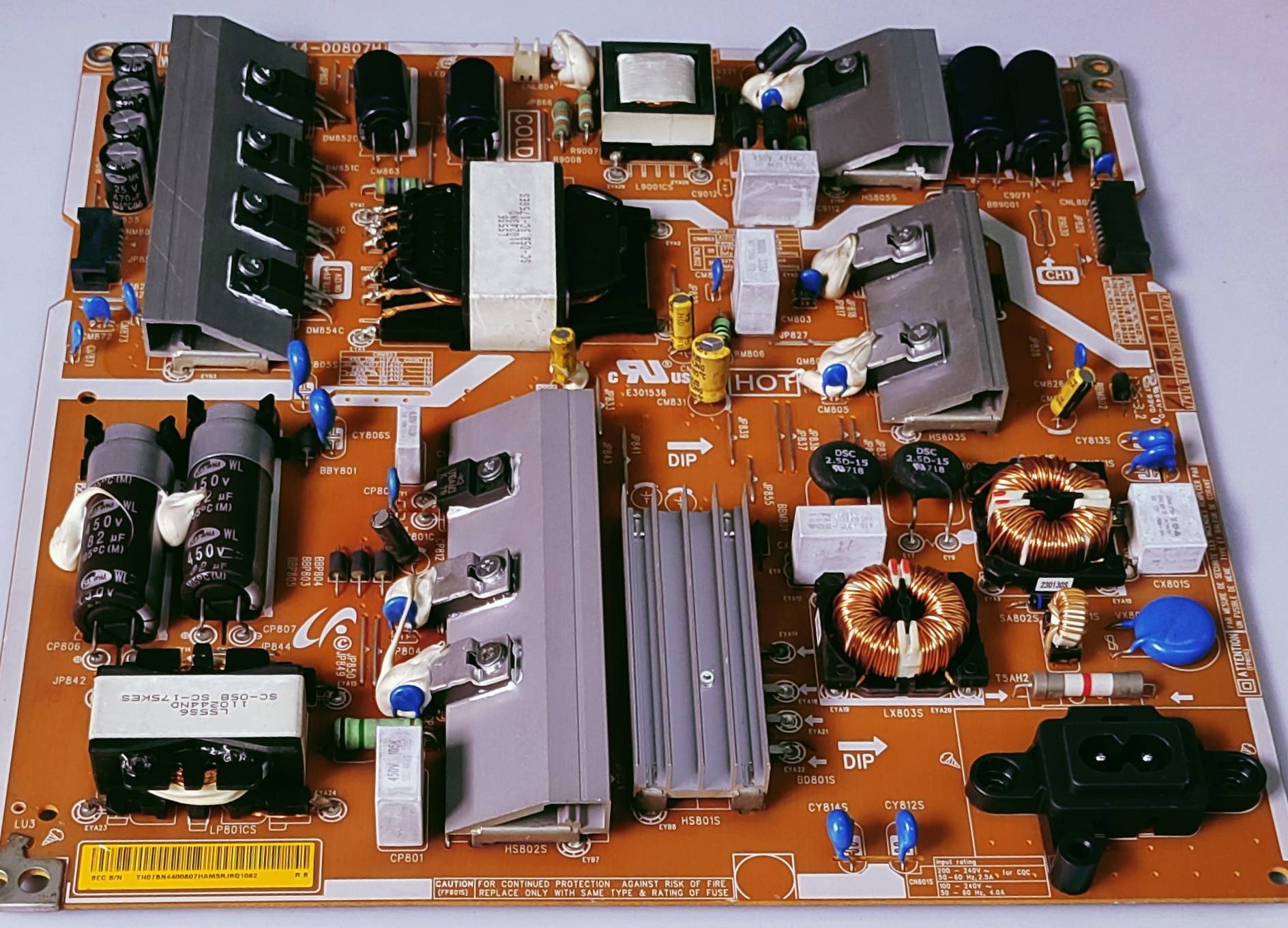

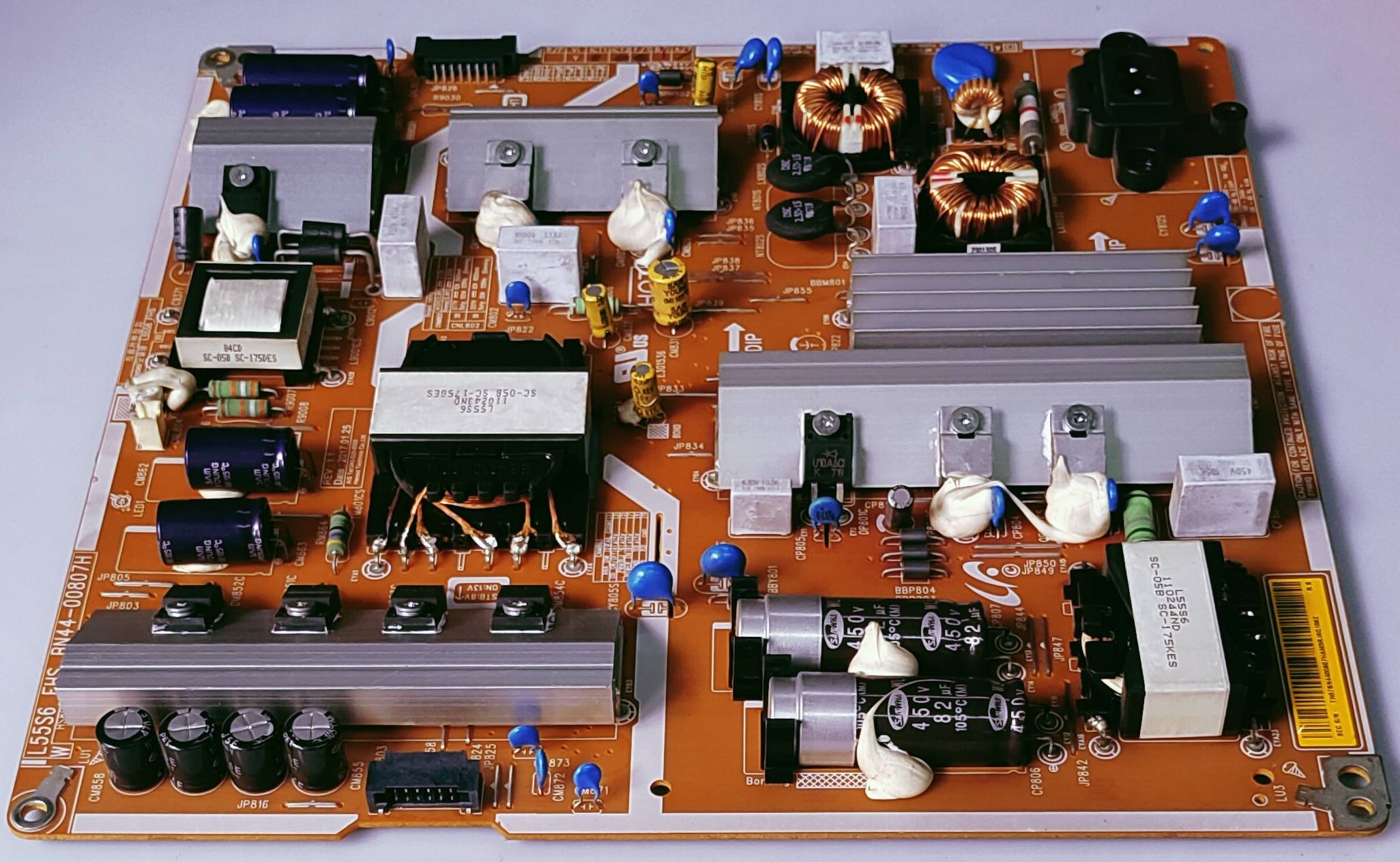

The Samsung UA49MU6303KXXM 49-inch curved LED TV typically uses a power supply board with the part number BN44-00807H. This board is also known by the board number L55S6_FHS.
Key Details and Specifications
Part Numbers: BN44-00807H, BN44-00807A, BN44-00807C, BN44-00807D, BN44-00807E, BN44-00807F.
Board Type: Single-layered switch mode power supply (SMPS) combined with a LED driver board.
Compatibility: Designed for 49-inch (and some 55-inch) Samsung MU/KU series curve and flat TVs, including UA49MU6300K, UA49MU6303K, and UA49K6300A.
Input Voltage: 100-240V AC.
Approxima INR (approx. $40-$55 USD).
Common Symptoms of Failure
TV will not turn on (no standby light).
Clicking sound when plugging in but no picture.
Screen flickers or has no backlight.
Visible damage on the board, such as blown capacitors or resistors.
Replacement Information
Installation: Involves removing the back cover, disconnecting cables, and unscrewing the board from the panel.
Alternative Parts: If the BN44-00807H is unavailable, equivalents include BN44-00807A or F, though it is best to verify with the board number (L55S6_FHS).
