SAMSUNG UA43M5100DRLXL Power Supply Board #wb 32

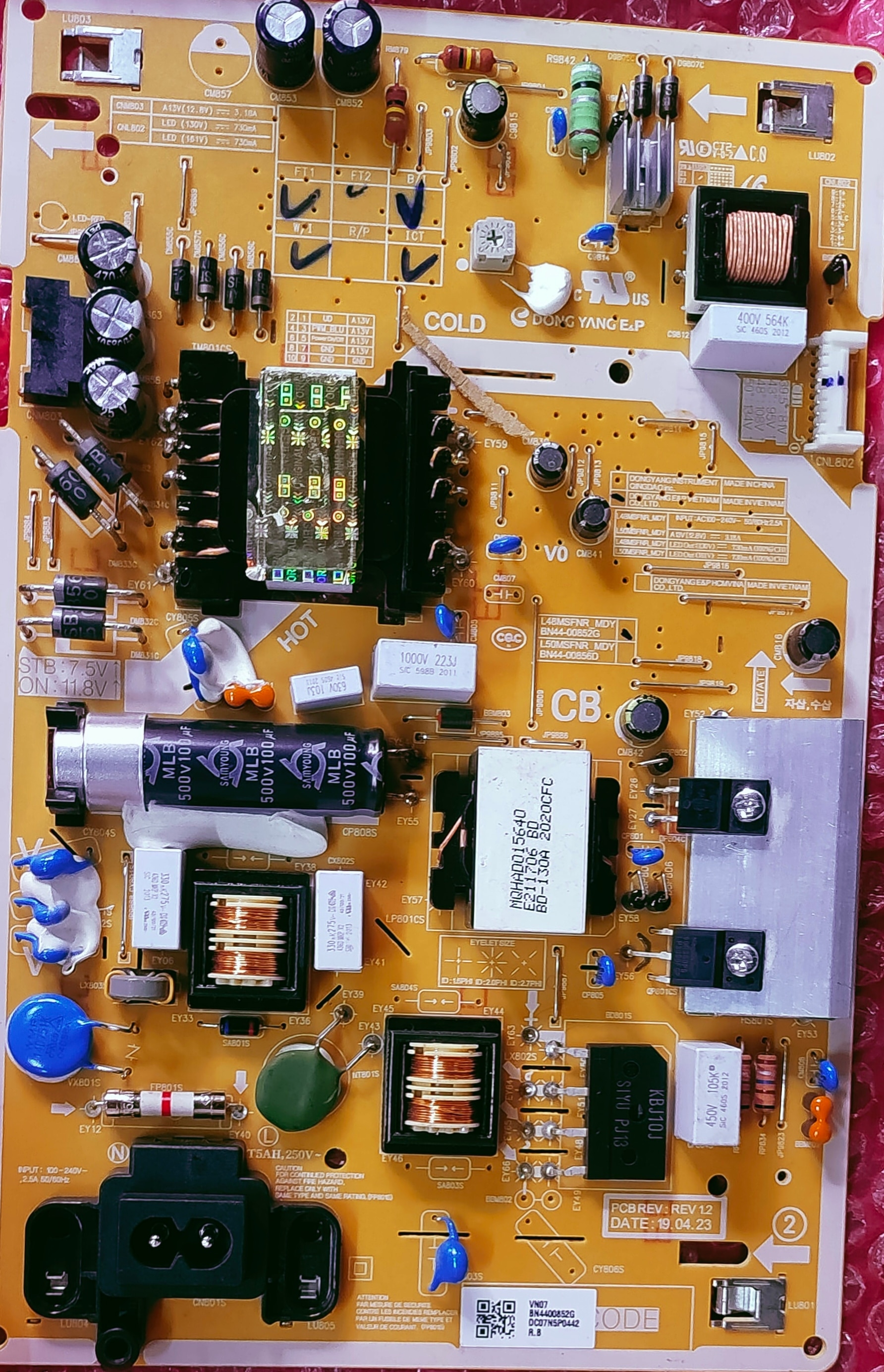

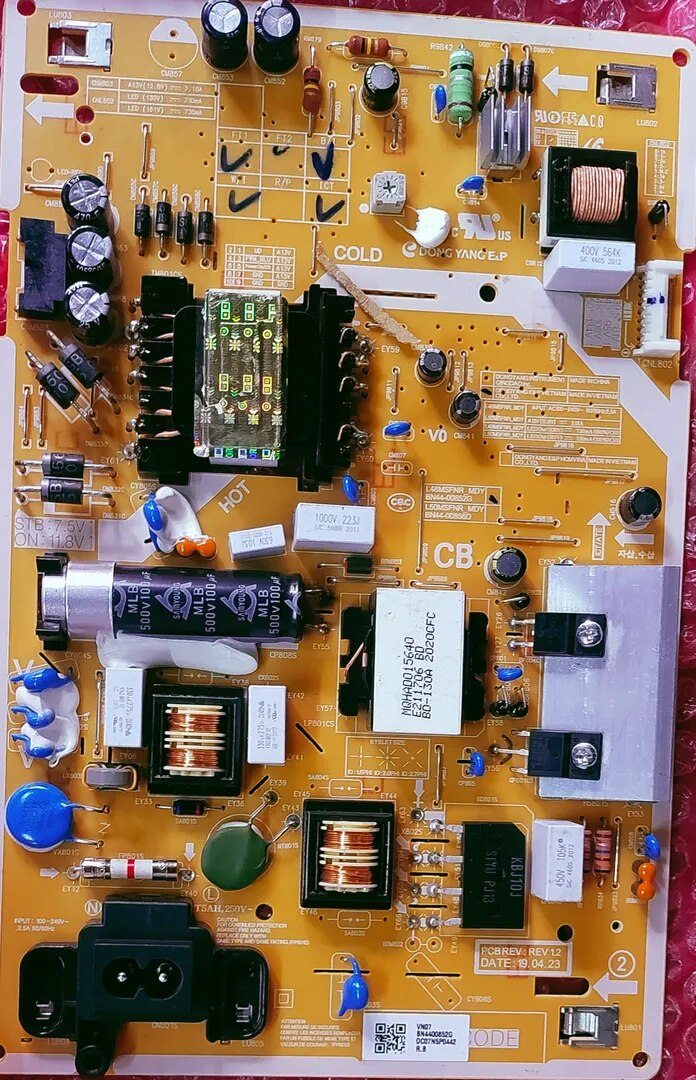

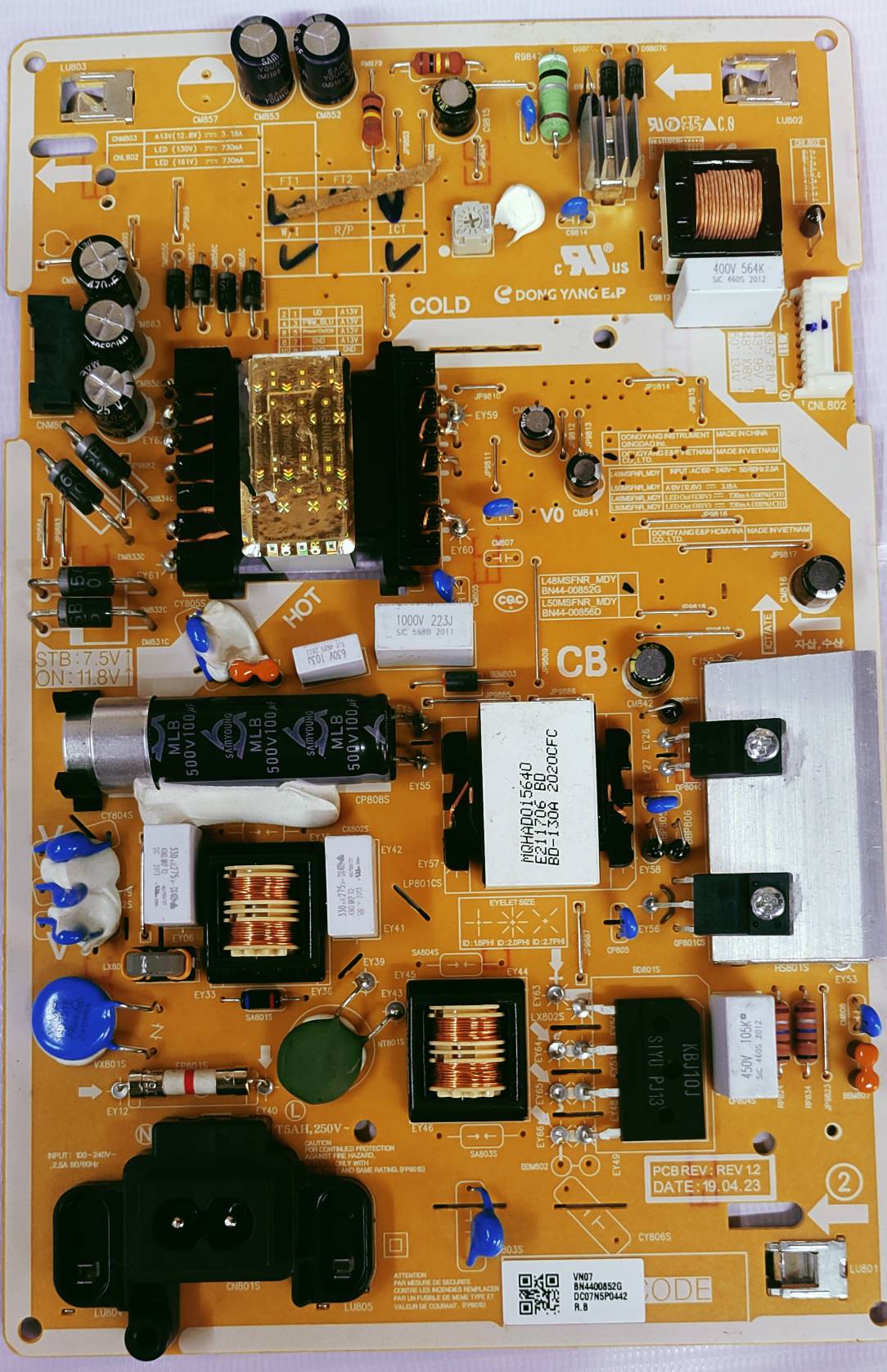

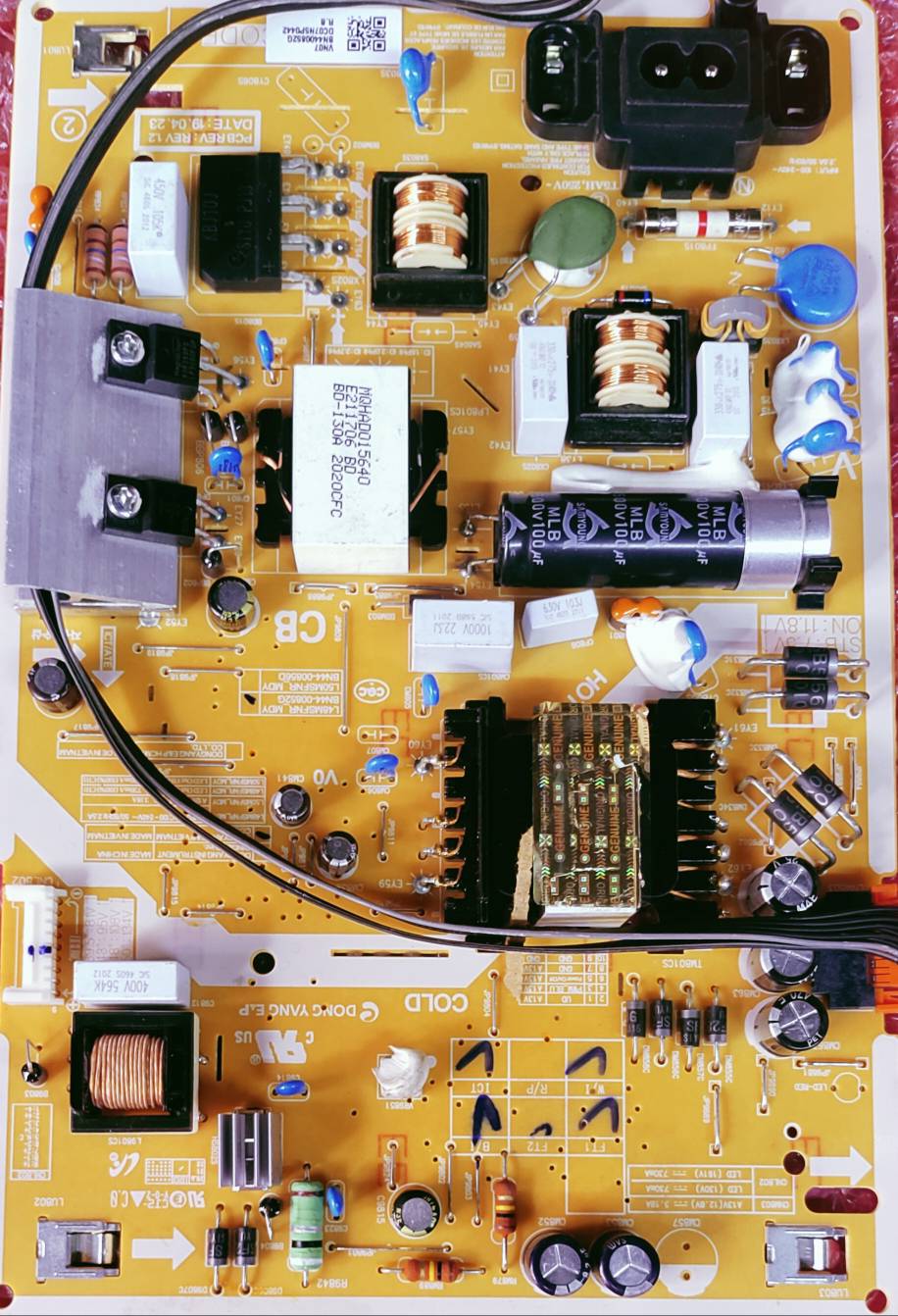

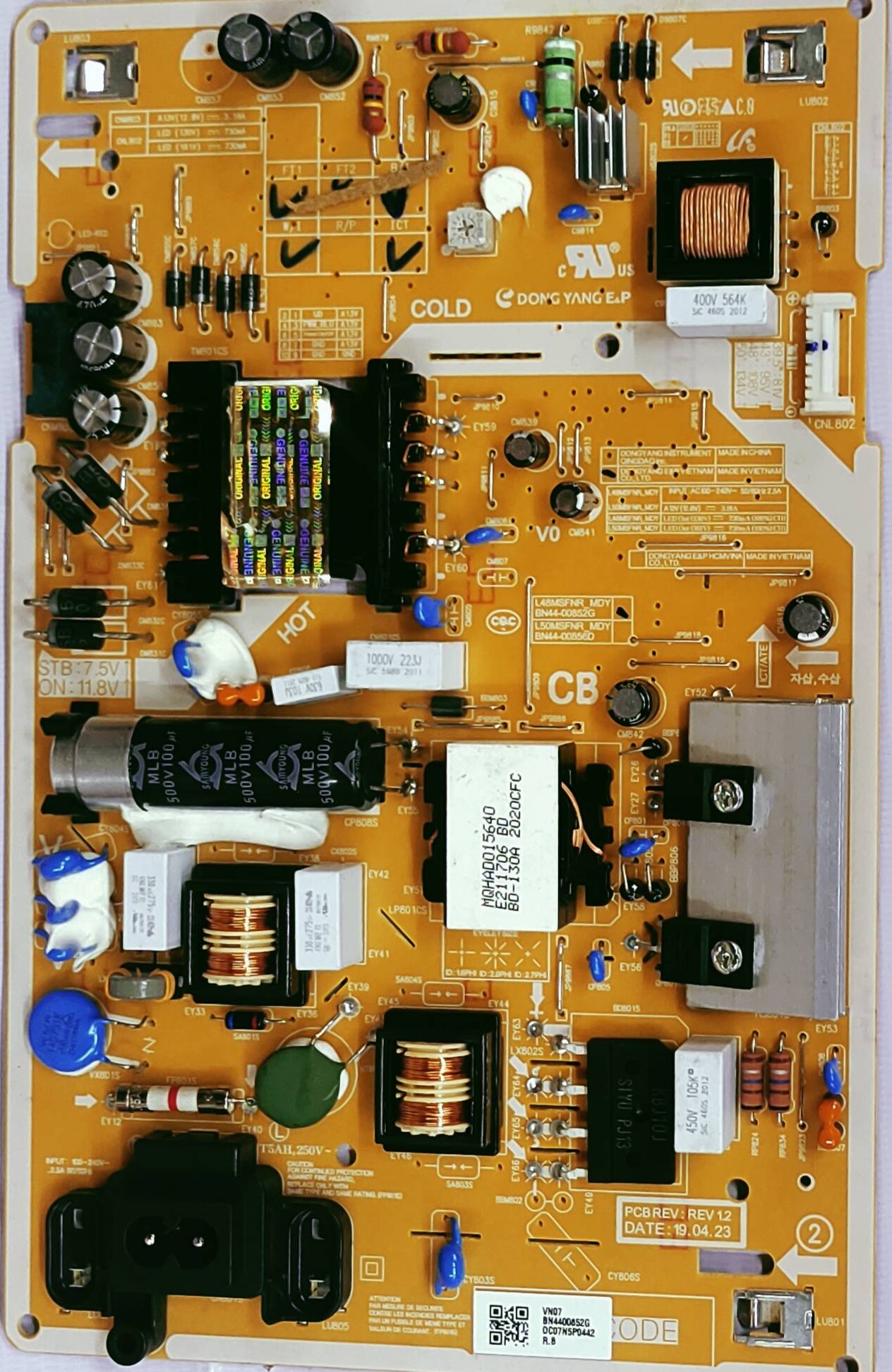

The image displays a power supply board, specifically identified as a Samsung BN44-00852F, which is compatible with models like the Samsung UA43M5100DRLXL TV.

Details of the SMPS Board:

Model Number:

BN44-00852F.

Application:

This board functions as the Switched-Mode Power Supply (SMPS) in Samsung TVs, including the UA43M5100DRLXL model.

Key Components:

The board features various components typical of a power supply unit, such as capacitors (e.g., 500V100 MLB), transformers, inductors, heatsinks, and integrated circuits, designed to regulate and deliver power to different sections of the television.

Input/Output Specifications:

Markings on the board indicate power specifications, such as "STB 7.5V ON:11.8V" for standby and operational voltages, and capacitor ratings like "400V 564K" and "450V 105uF".

Revision and Date:

The board shown has a "PCBREV: REV 12" and "DATE: 19.04.23" (likely referring to April 23, 2019).
