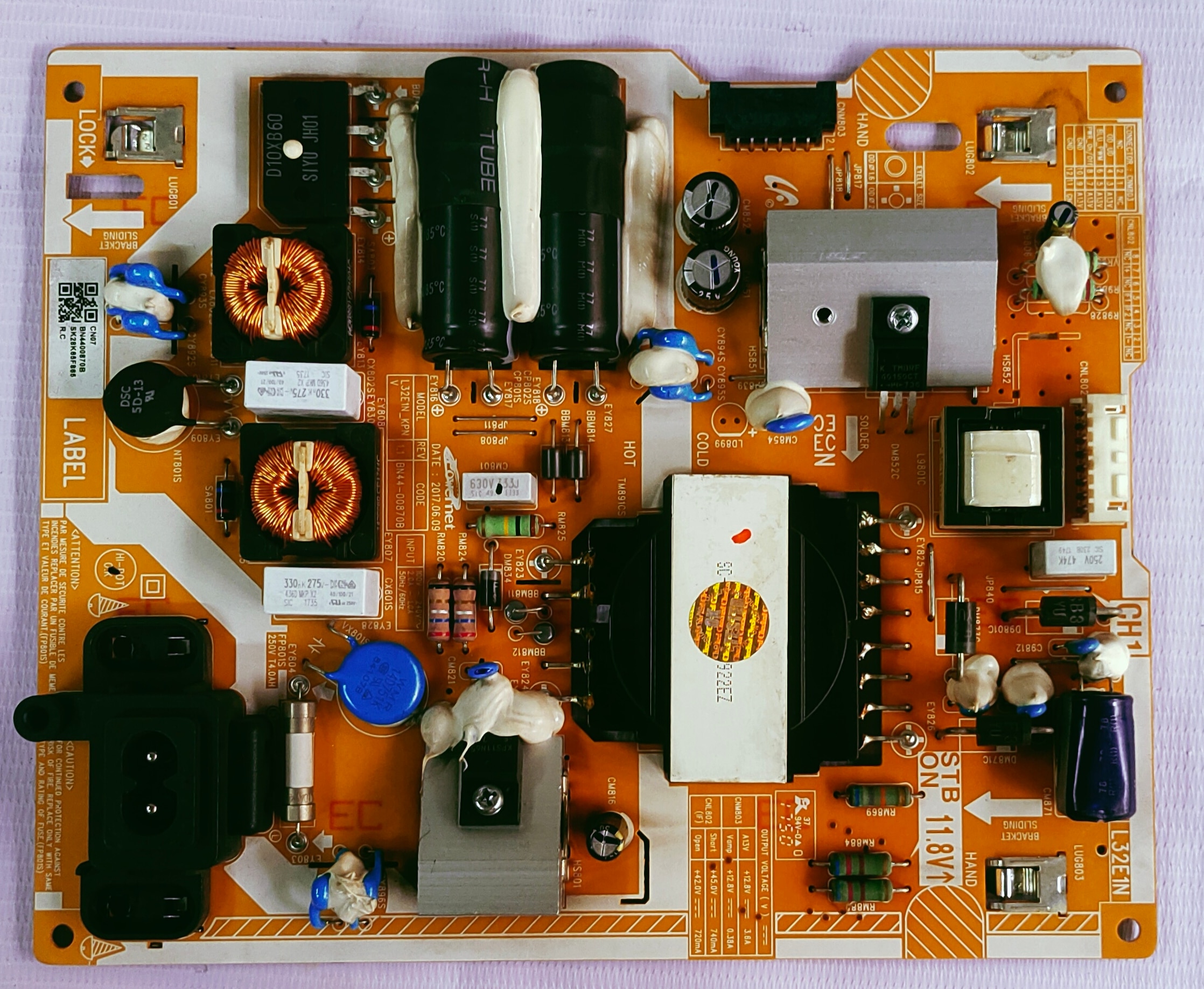

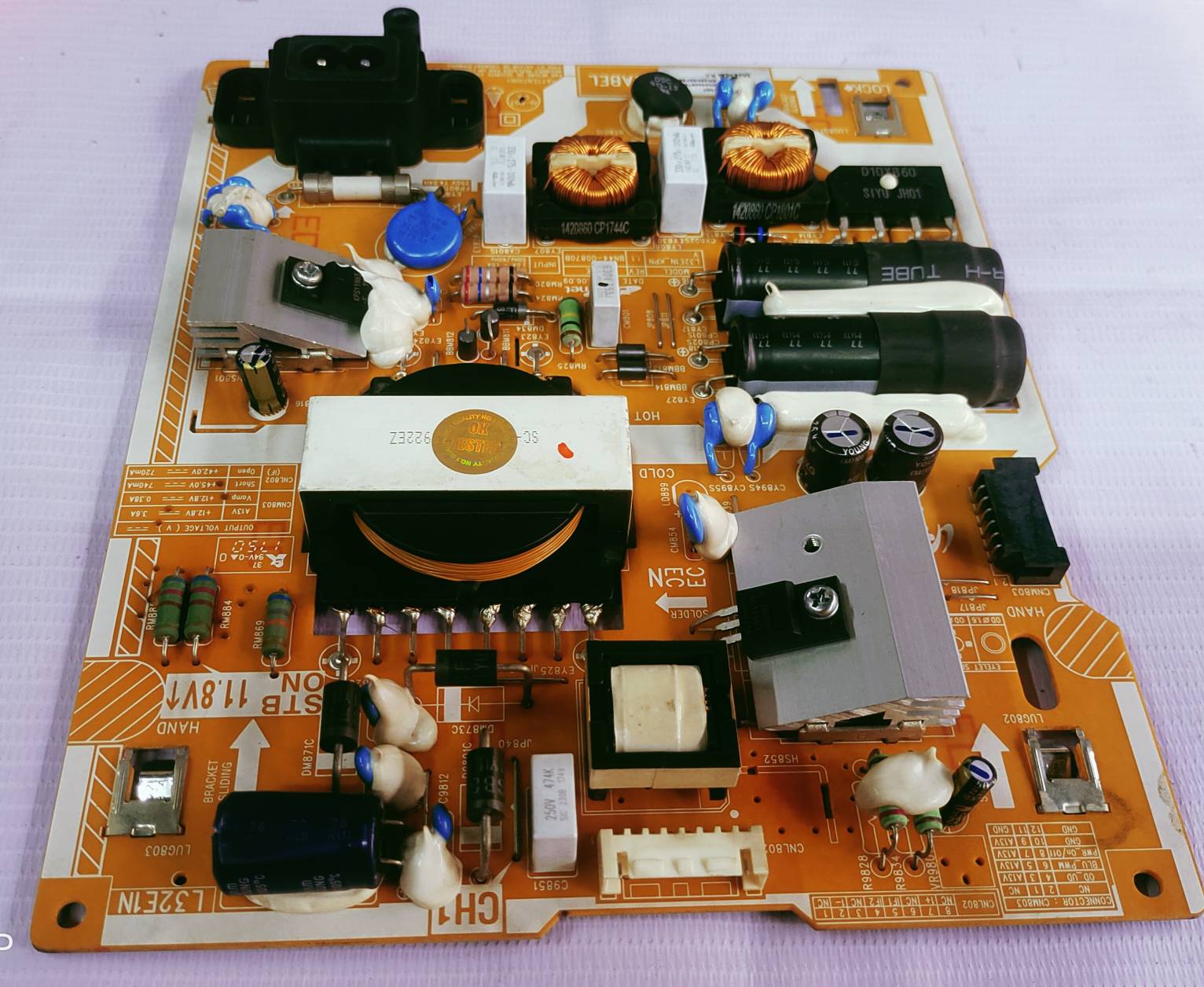

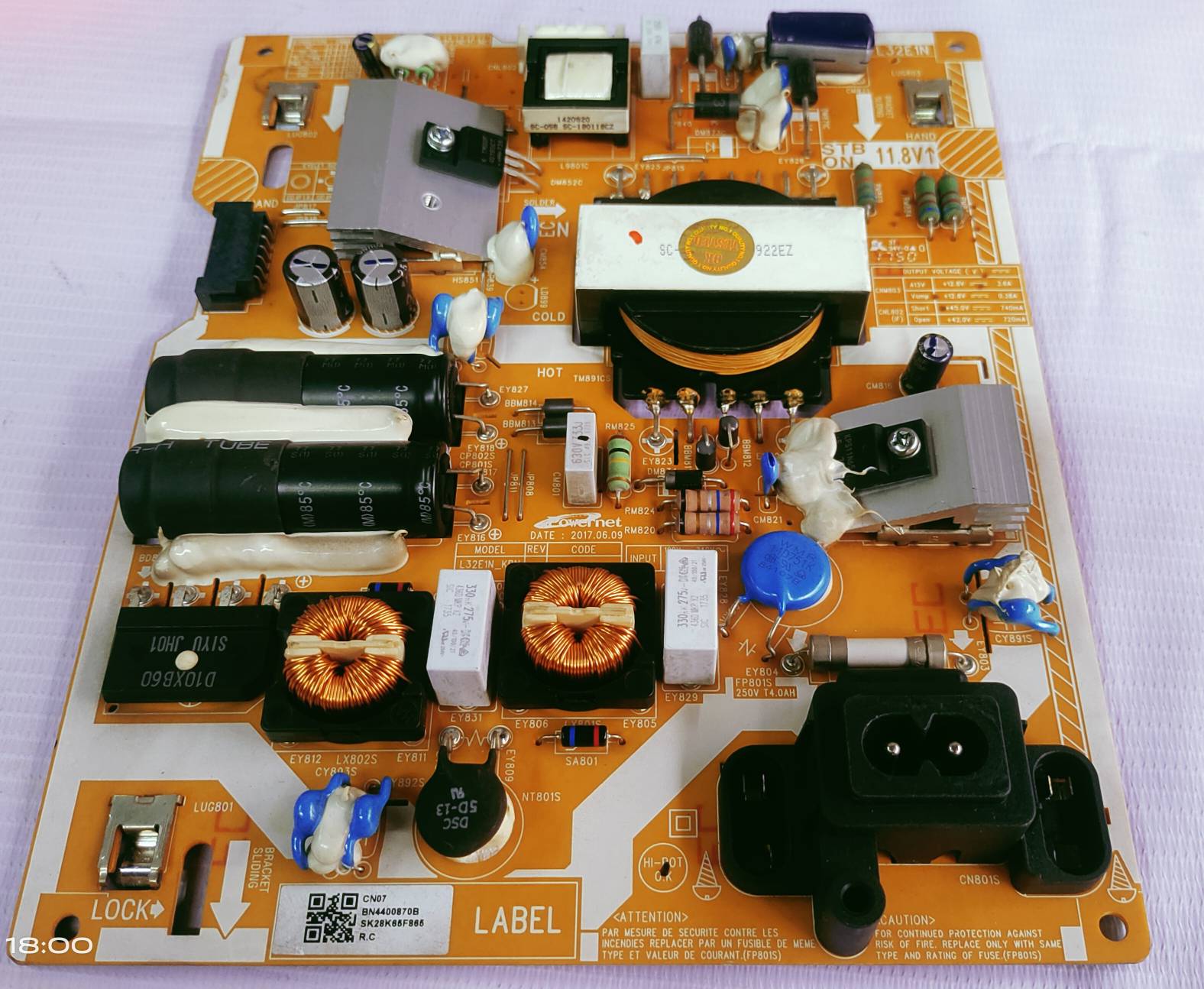

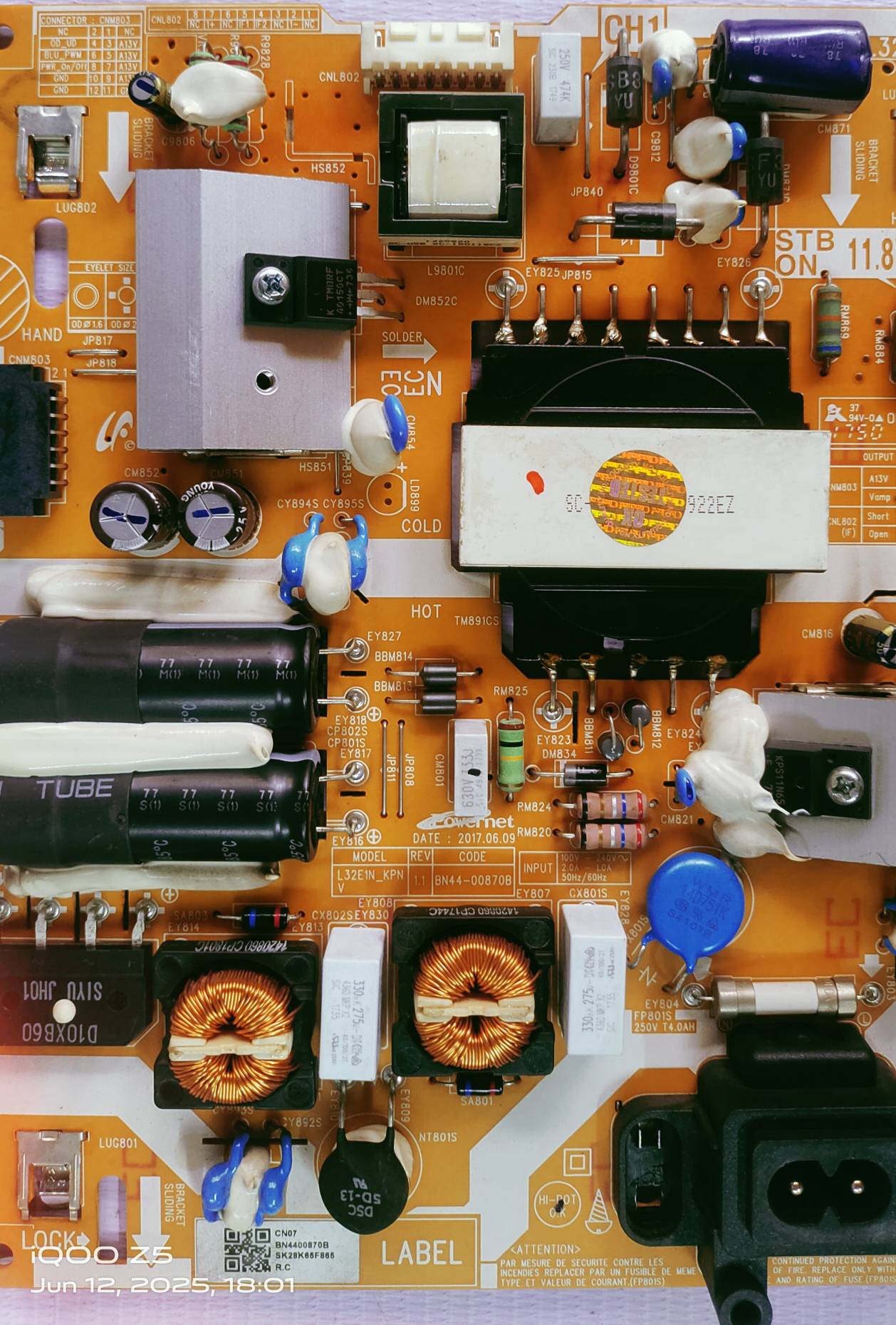

Samsung UA32K5300 POWER SUPPLY Board

Samsung power supply

model number

UA32K5300

The Samsung UA32K5300's power supply board, also known as the SMPS (Switching Mode Power Supply) or PSU (Power Supply Unit), is a crucial component that converts AC power from the wall outlet to the DC power required by the TV's internal circuitry. It's typically a single-layered board with specific input and output voltages.

Here's a more detailed breakdown:

Key Features and Functions:

Power Conversion:

The primary function is to convert the household AC power (typically 240V) into lower DC voltages (like 9V or 12V) needed by the TV's various components.

Voltage Regulation:

The board regulates the DC voltage to ensure it's stable and within the required range for proper TV operation.

Protection:

The power supply board often includes protective circuitry to safeguard the TV from overvoltage, undervoltage, overcurrent, and other potential issues.

Compatibility:

It's designed to be compatible with specific Samsung LED TV models, like the UA32K5300.

SMPS (Switching Mode Power Supply):

The power supply board uses a switching mode technology to efficiently convert the AC power, making it smaller and more efficient than older linear power supplies.

Common Issues and Troubleshooting:

TV Not Powering On:

If the TV doesn't turn on at all, a faulty power supply board could be the cause.

Intermittent Power:

If the TV powers on and then off intermittently, the power supply may be struggling to provide stable power.

Visual Issues:

A malfunctioning power supply can also affect the display (e.g., flickering, dark screen).

Troubleshooting:

If you suspect the power supply is faulty, you can try unplugging the TV, checking the power cord, and testing with a different power outlet.

Replacement:

If you need to replace the power supply board, it's essential to ensure you get a compatible board for your specific TV model (UA32K5300). You can find replacement boards from electronics retailers or
