Samsung UA32F5100AR T-con Part No.BN96-25509A

Samsung Led Tv T-con

Model No.

UA32F5100AR

Part No.

BN96-25509A

Digital Electronics Services

pune maharashtra

9850791757

9763720390

(All India (COD) Cash on Delivery Service Available)

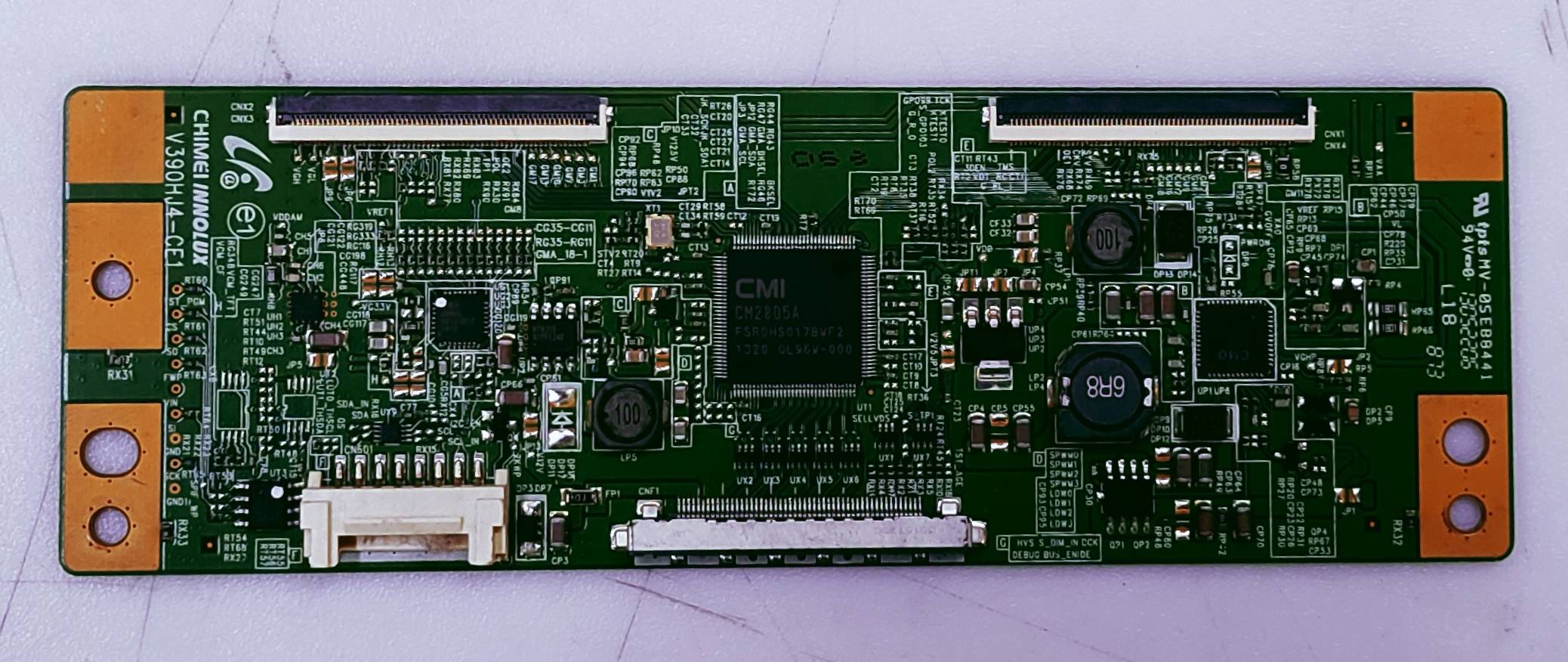

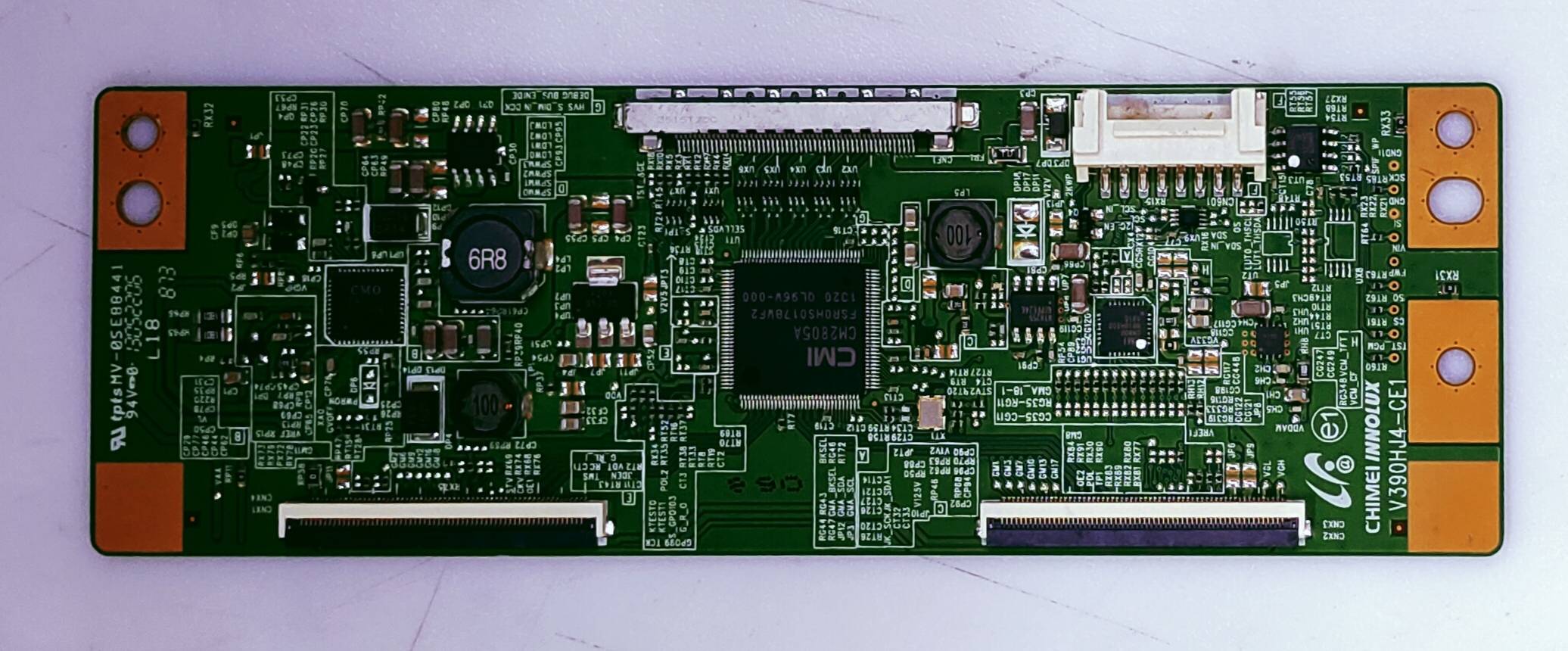

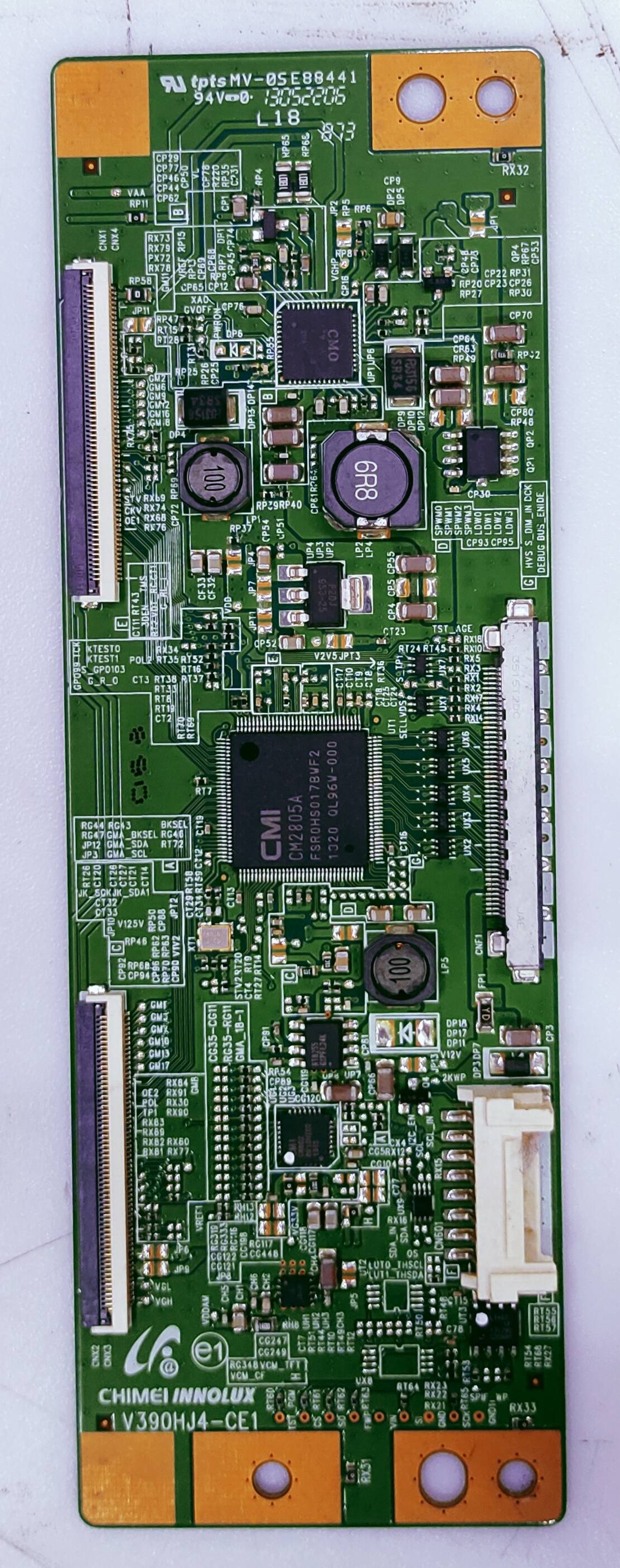

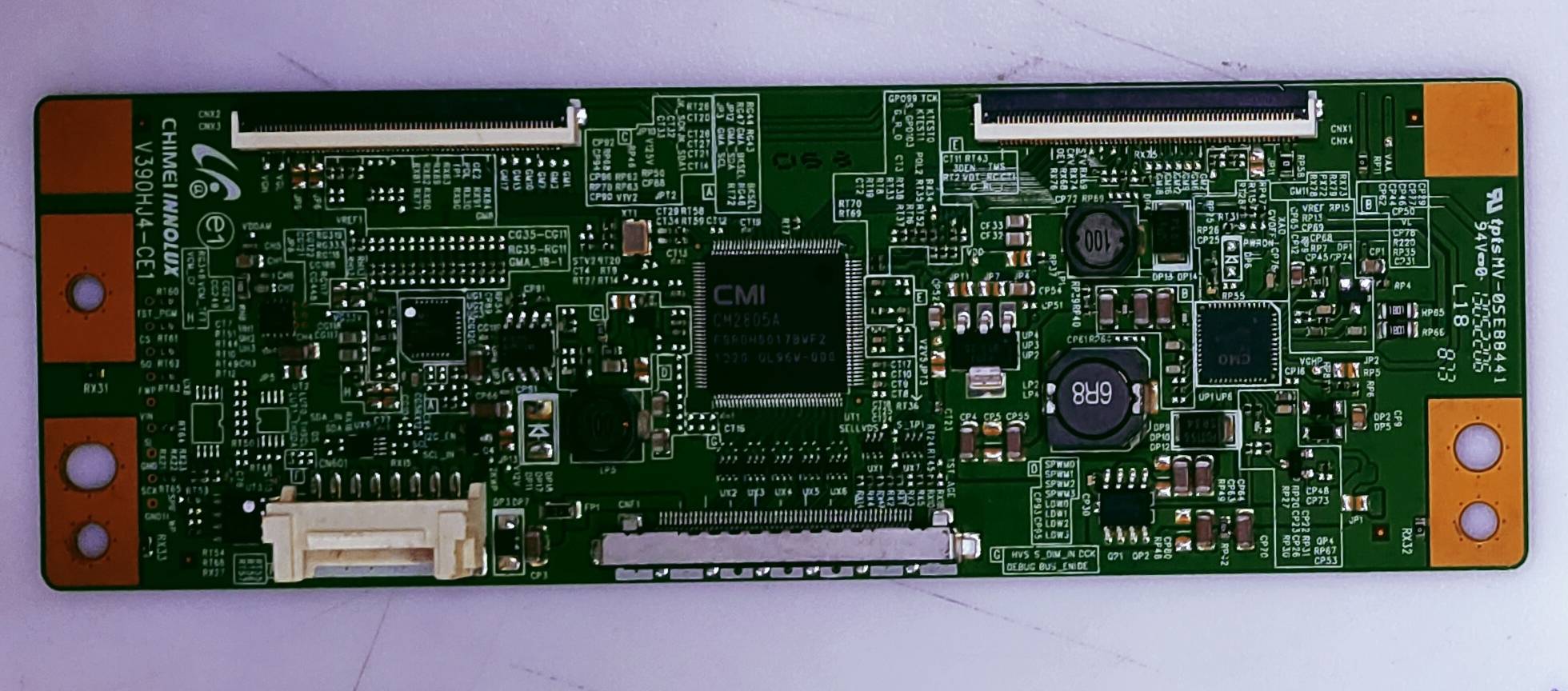

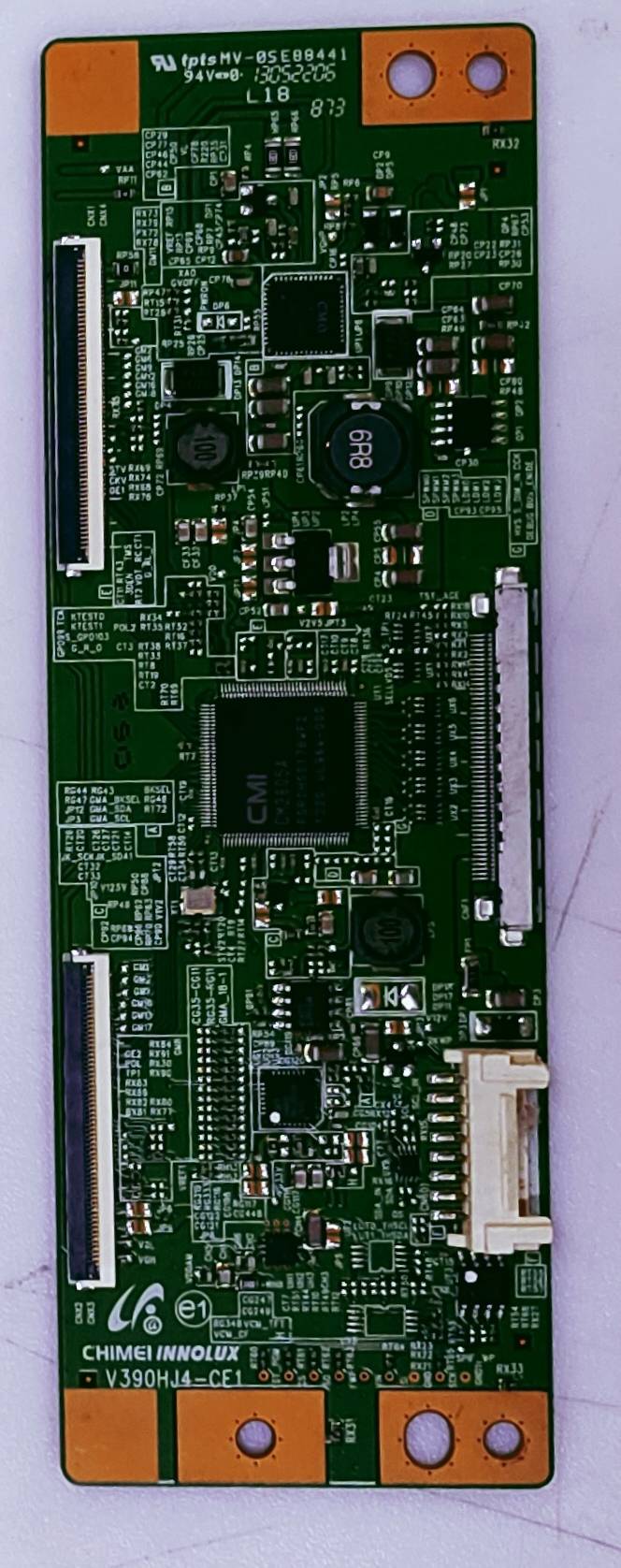

This is a Chimei Innolux V390HJ4-CE1 T-Con (Timing Controller) board, which is a critical component used in LED television panels to translate video signals into pixel driving signals.

Key Specifications & Features

Part Number: V390HJ4-CE1.

Manufacturer: Chimei Innolux.

Compatibility: This board is specifically compatible with various television models, including certain Samsung units such as the UA32F5100AR.

Function: It serves as the intermediary between the TV's mainboard and the LCD panel, controlling the logic signals for gate and source drivers.

Repair and Troubleshooting

Symptoms: A faulty T-Con board can cause issues like lines on the screen, ghosting, flickering, or a completely black display despite having sound.

Testing: These boards are highly sensitive and are often misdiagnosed; it is recommended to ensure the issue is not with the mainboard or panel before replacing.
