Samsung Plazma PS43E5701R Logic Board Part No. JL 849A A1 21F 3HS- AA1

LG Plazma Logic

Model No.

PS43E5701R

Part No.

JL 849A A1 21F 3HS- AA1

Digital Electronics Services

pune maharashtra

9850791757

9763720390

(All India (COD) Cash on Delivery Service Available

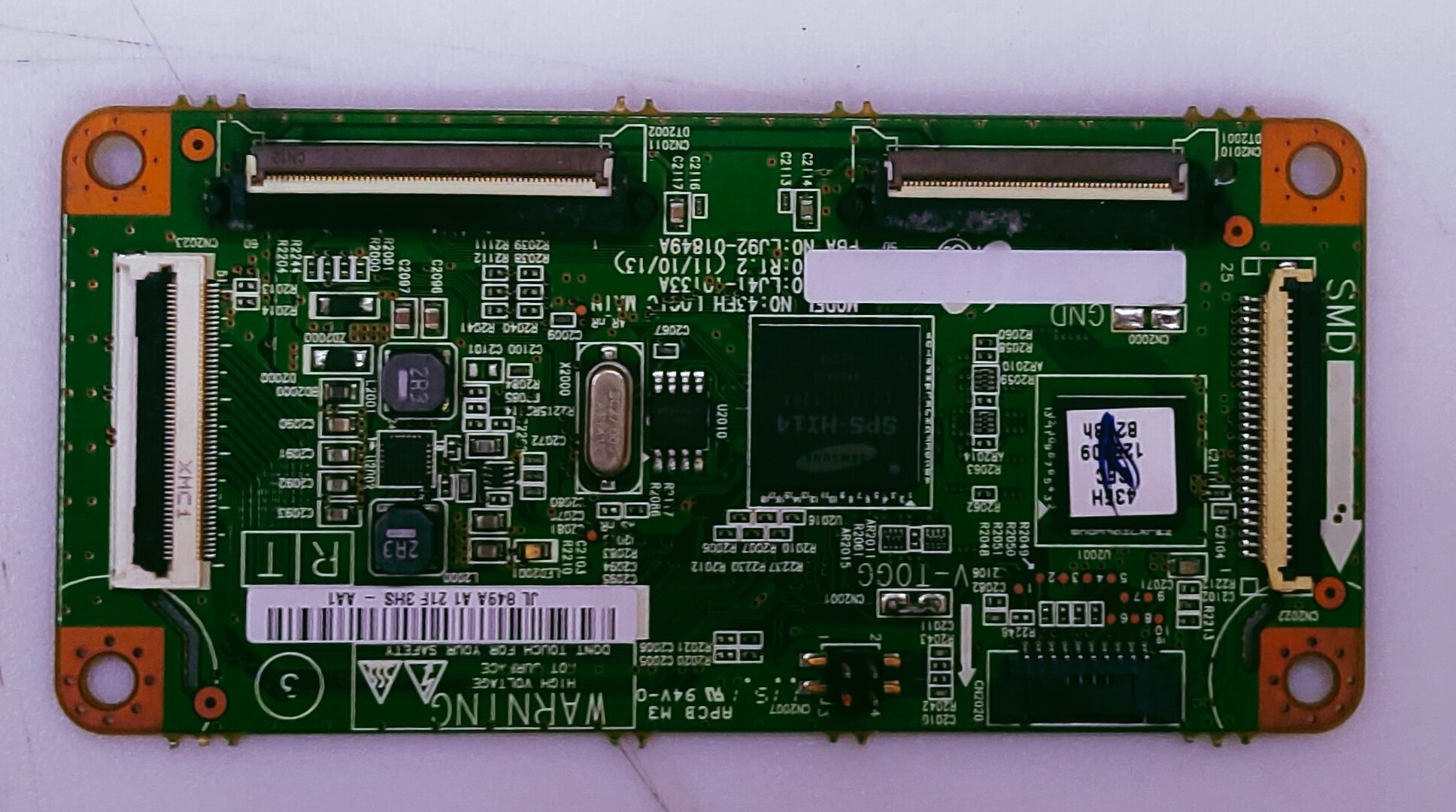

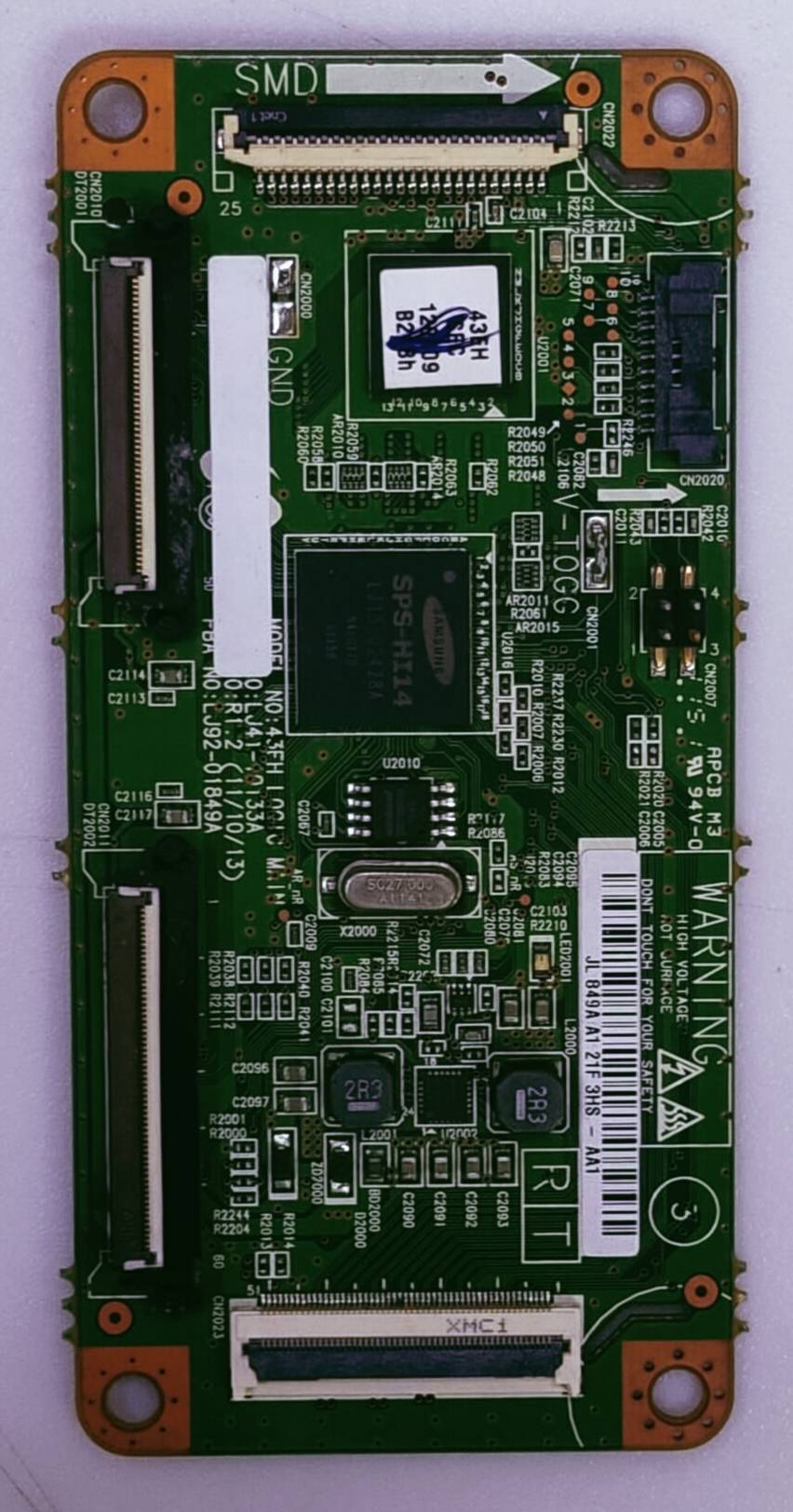

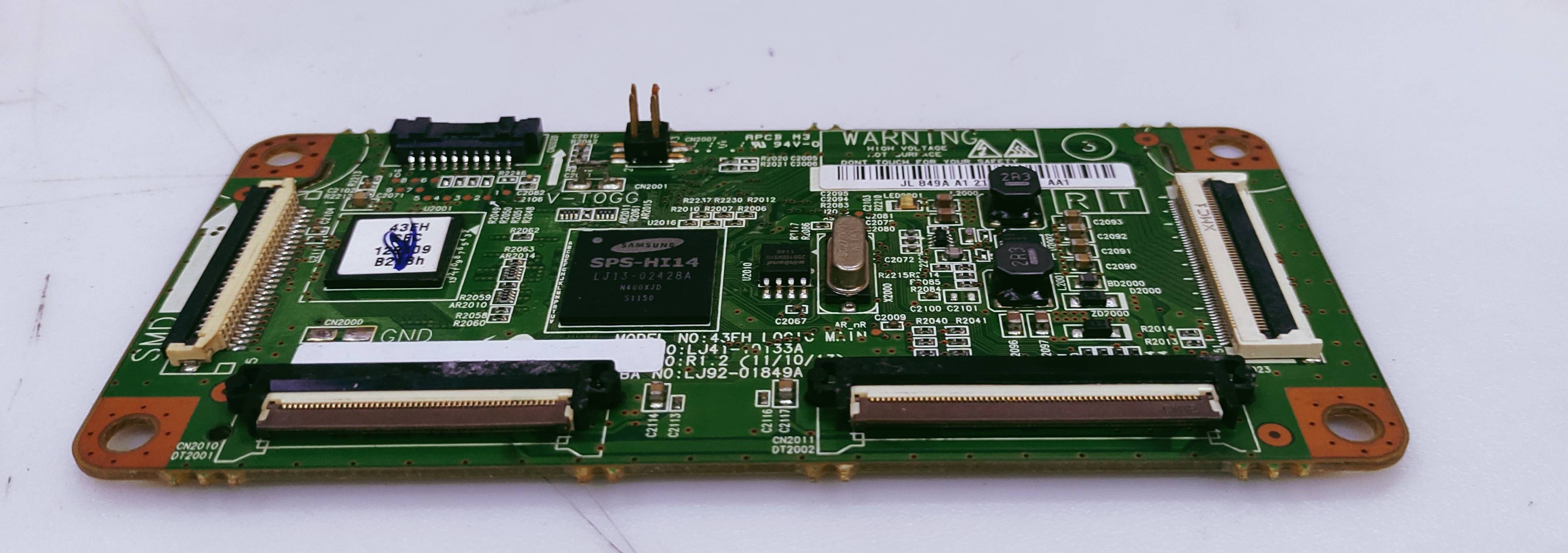

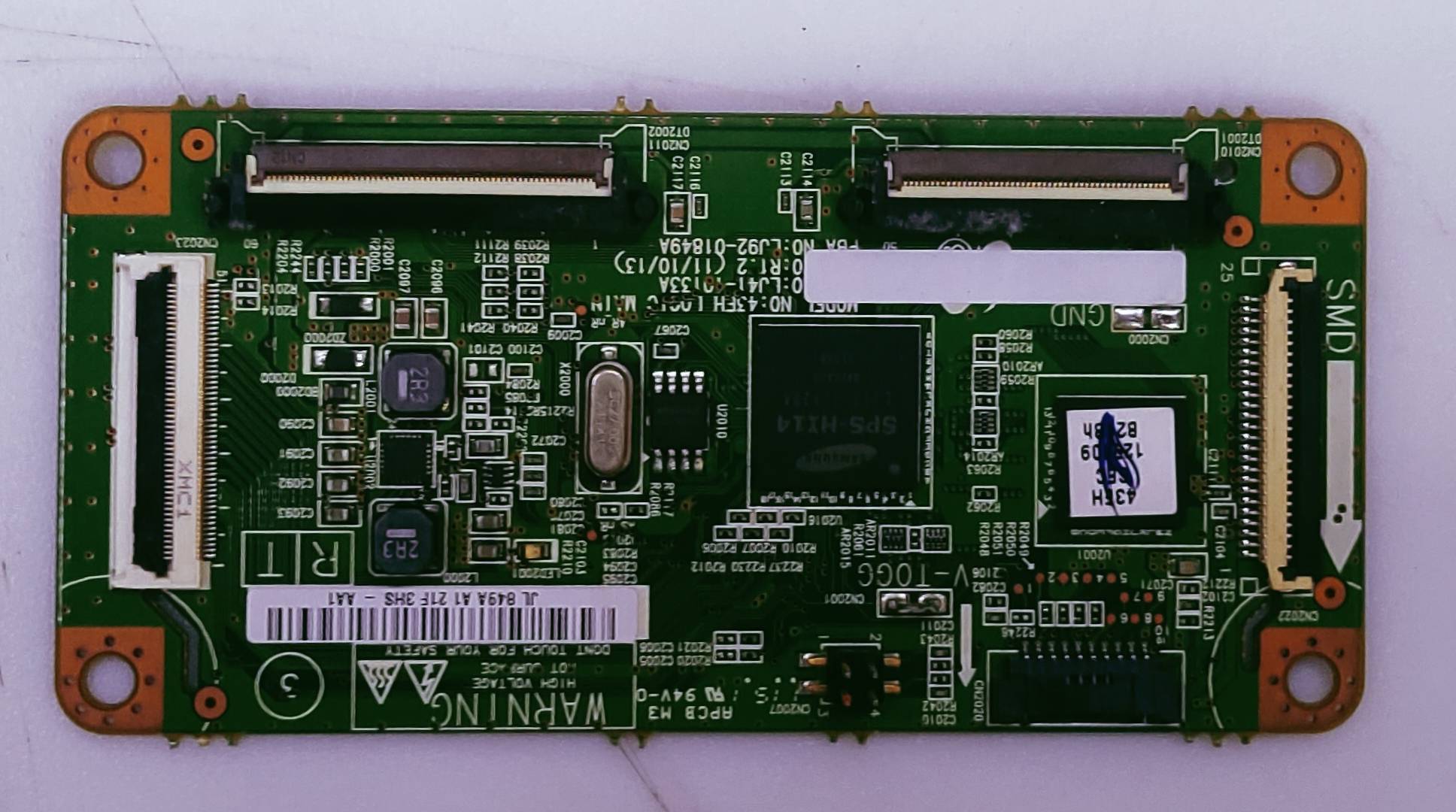

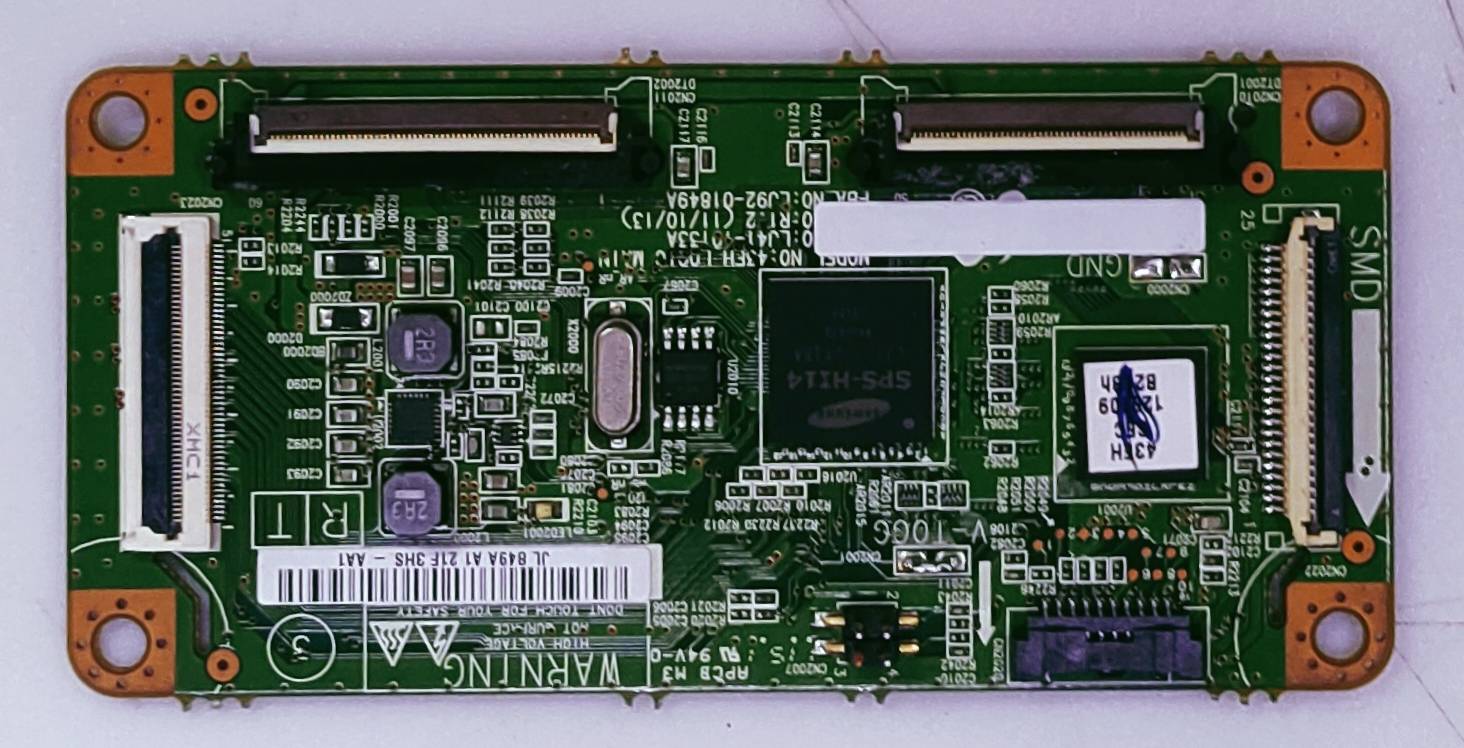

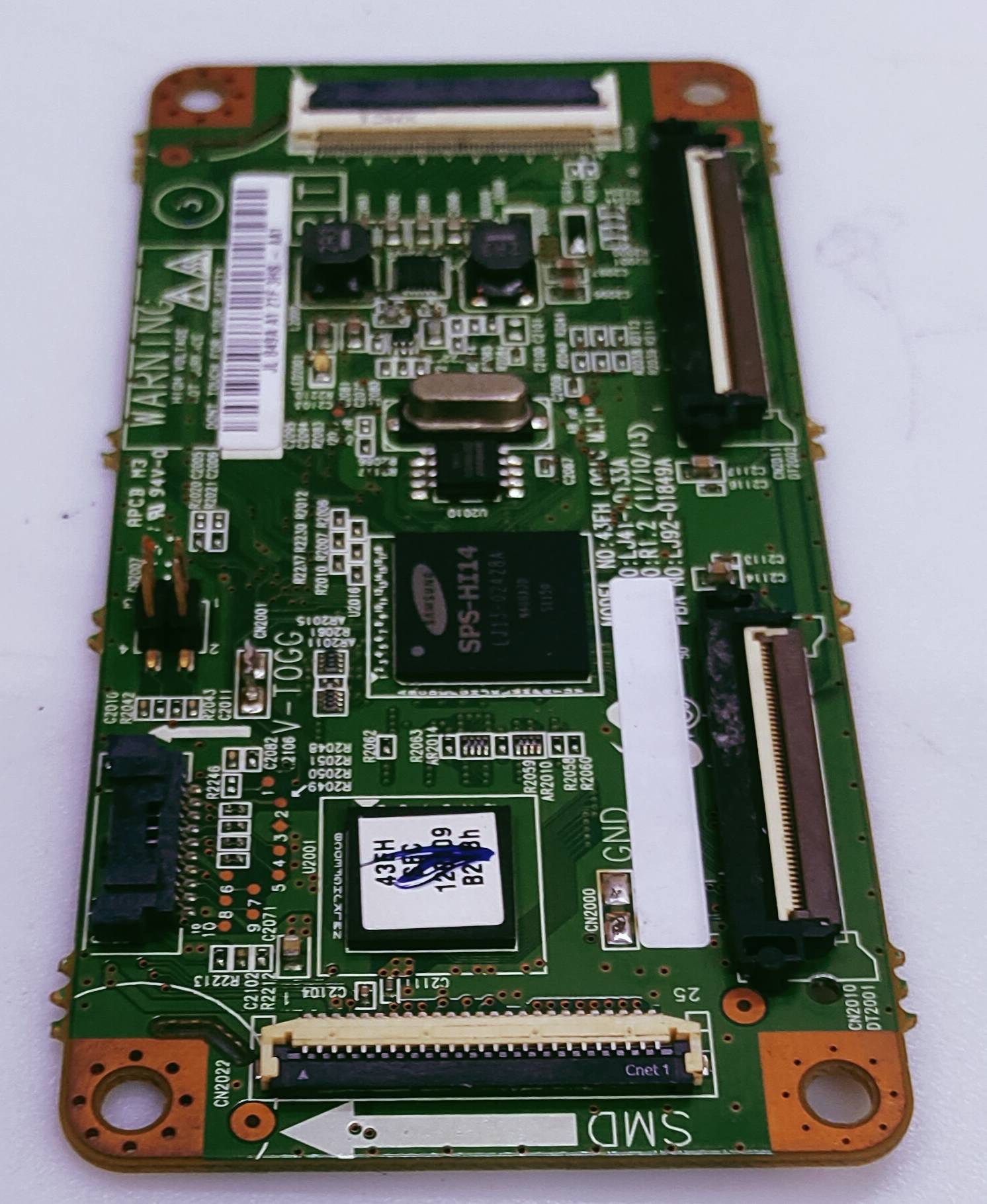

Based on the visual information, this component is a Samsung plasma TV logic controller board, specifically identified by part numbers such as LJ41-10184A and LJ92-01849A.

Product Details

Part Type: Plasma T-Con Board / Logic Main Board

Manufacturer: Samsung

Compatibility: This board is used in various Samsung plasma television models, including 43-inch and 51-inch models.

Function: It is essential for processing images sent to the plasma display panel.

Technical Specifications & Features

Main Chip: Features a "SPS-HI14" Samsung branded controller chip.

Connectors: Includes multiple ribbon cable connectors for interfacing with the display panel.

Safety: Marked with high voltage warnings.

Troubleshooting Note

T-Con boards are highly sensitive components. While they are often replaced to fix picture problems, it is common to misdiagnose the issue, which might instead lie with other components like the panel itself or power supply.
