Samsung LA32B530, 320HAC2L V0. 4 T-con Part No. K2296R9E06BO 008196

Samsung T-con board

Model No.

LA32B530, 320HAC2L V0

part No.

K2296R9E06BO 008196

Digital Electronics Services

pune maharashtra

9850791757

9763720390

(All India (COD) Cash on Delivery Service Available)

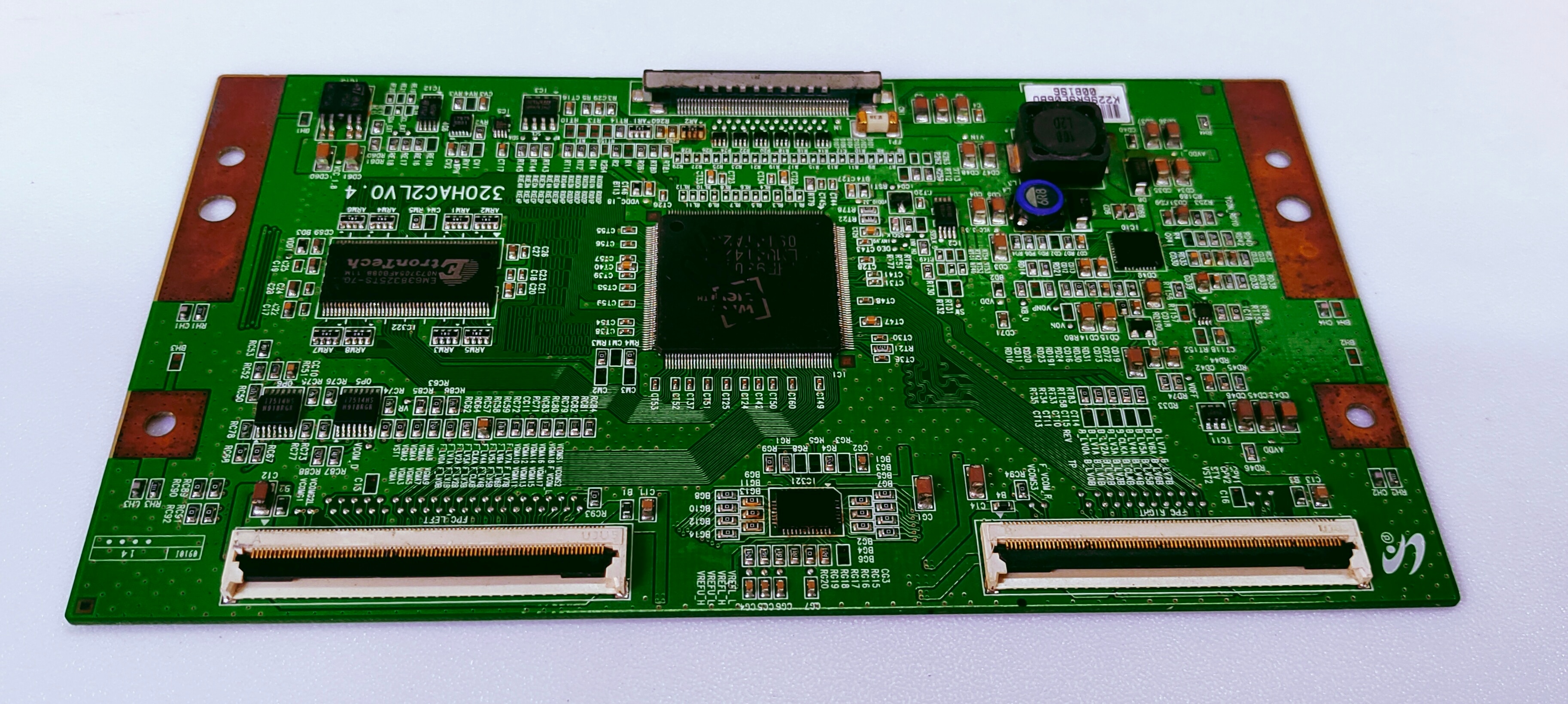

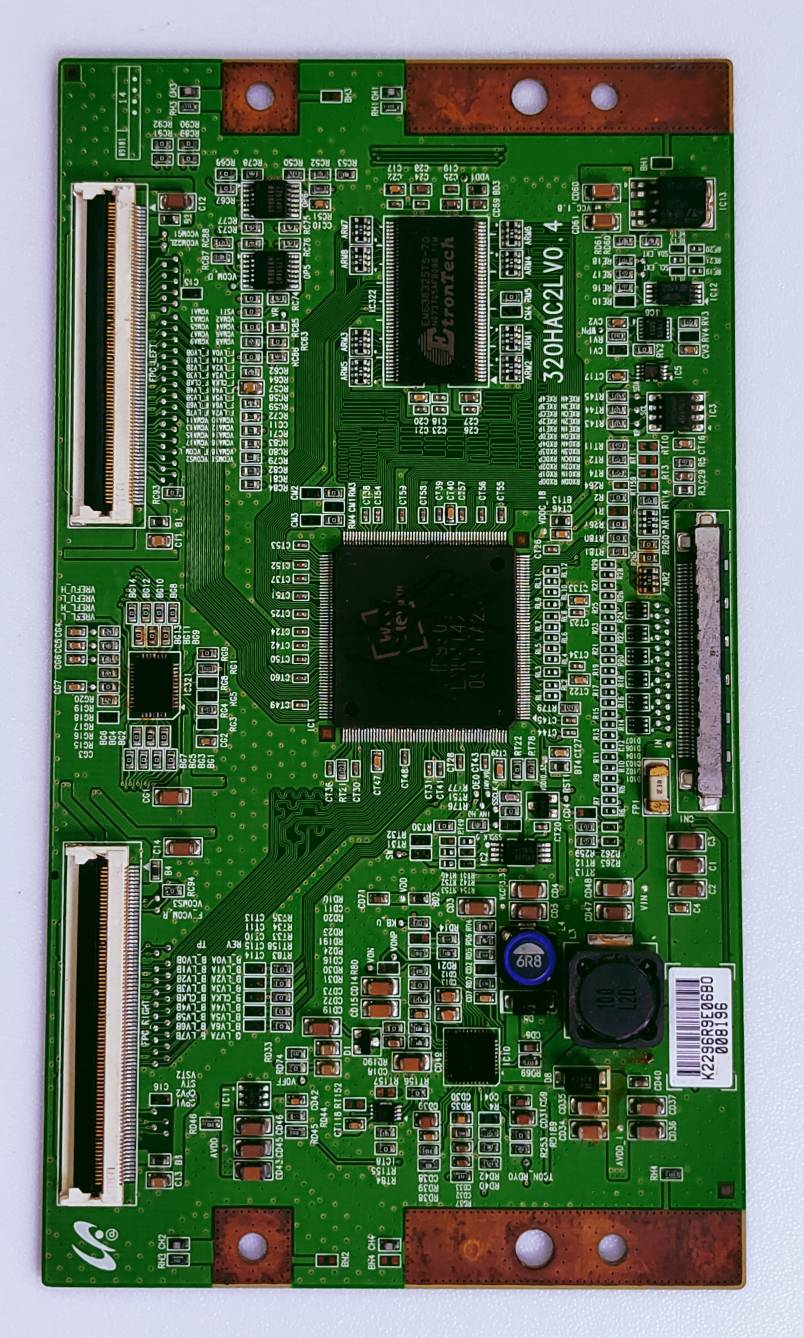

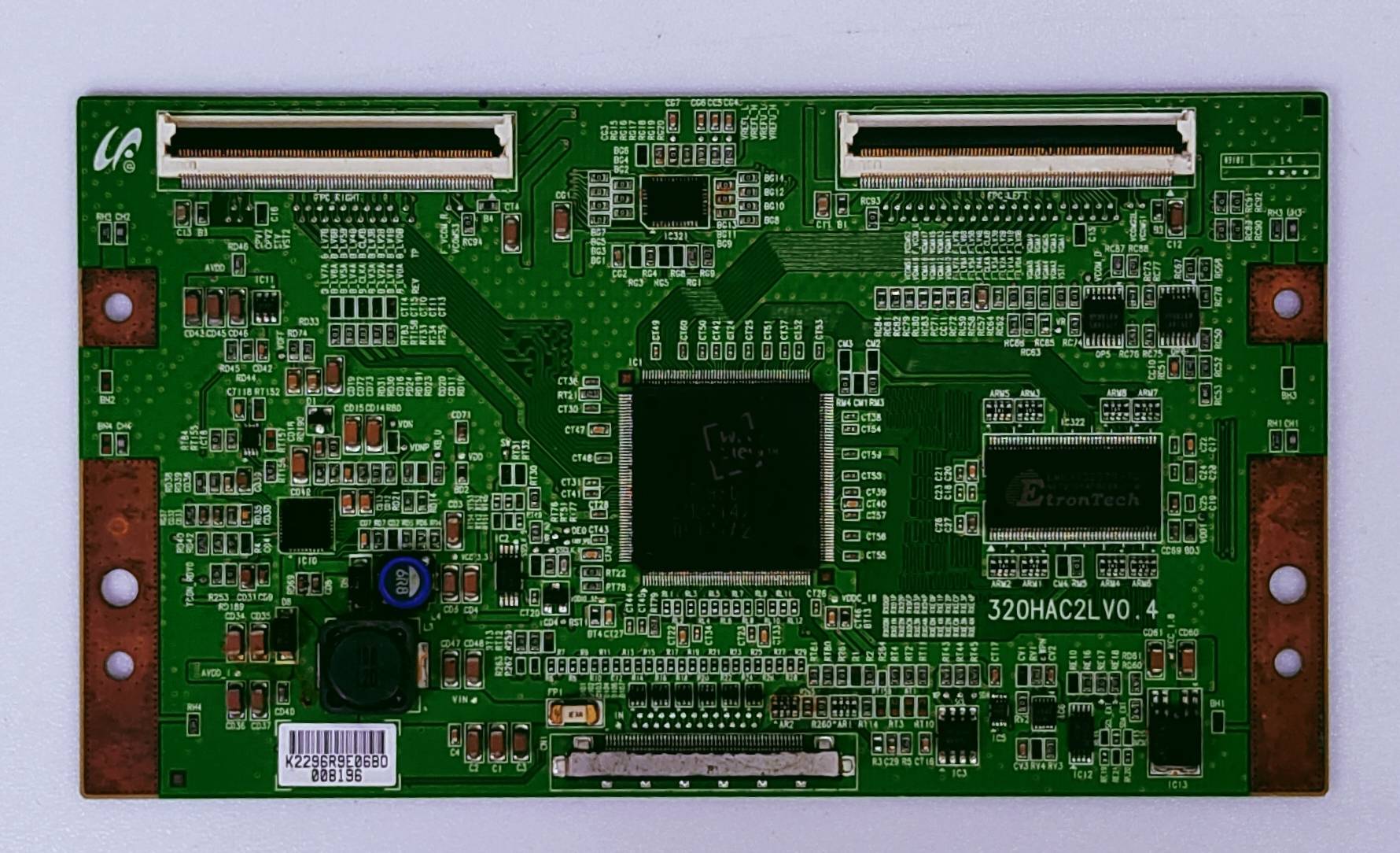

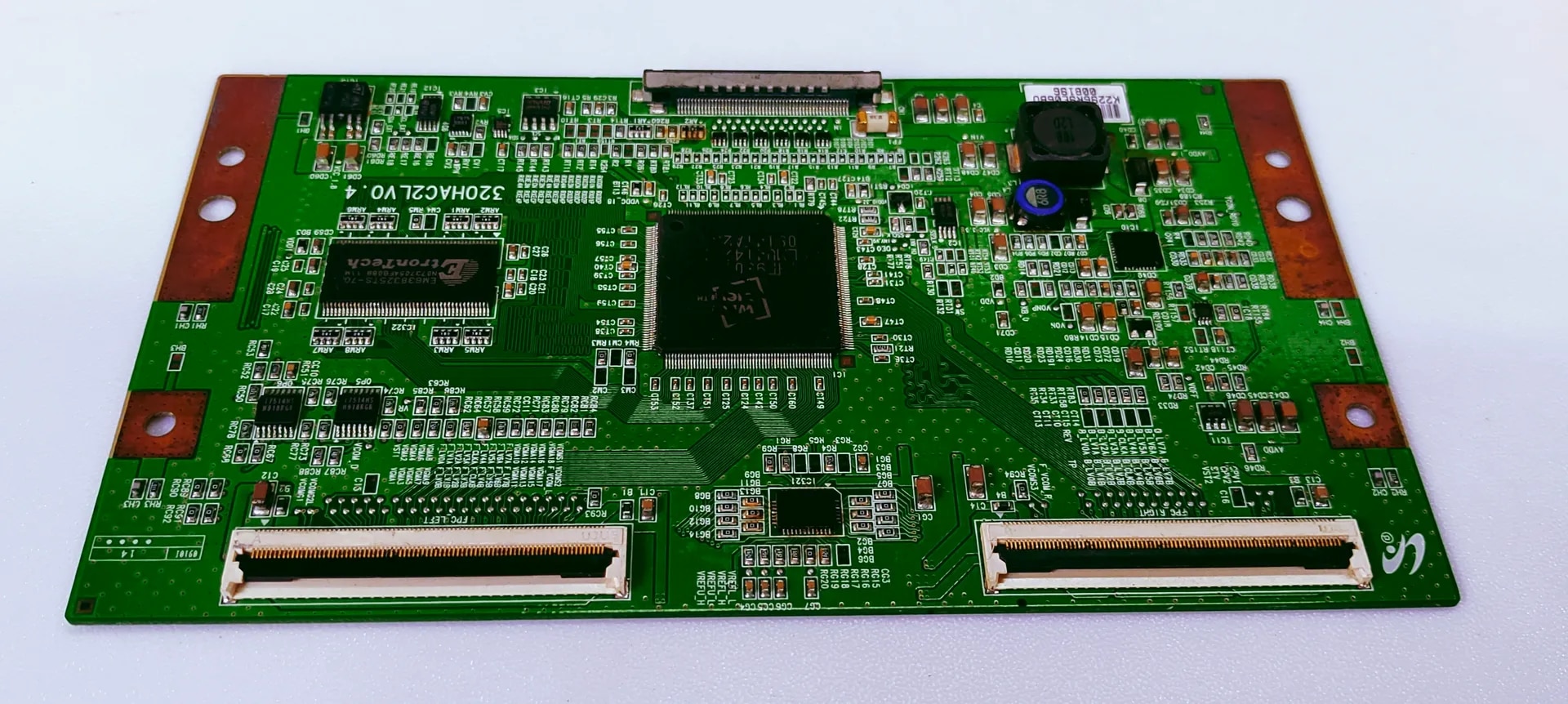

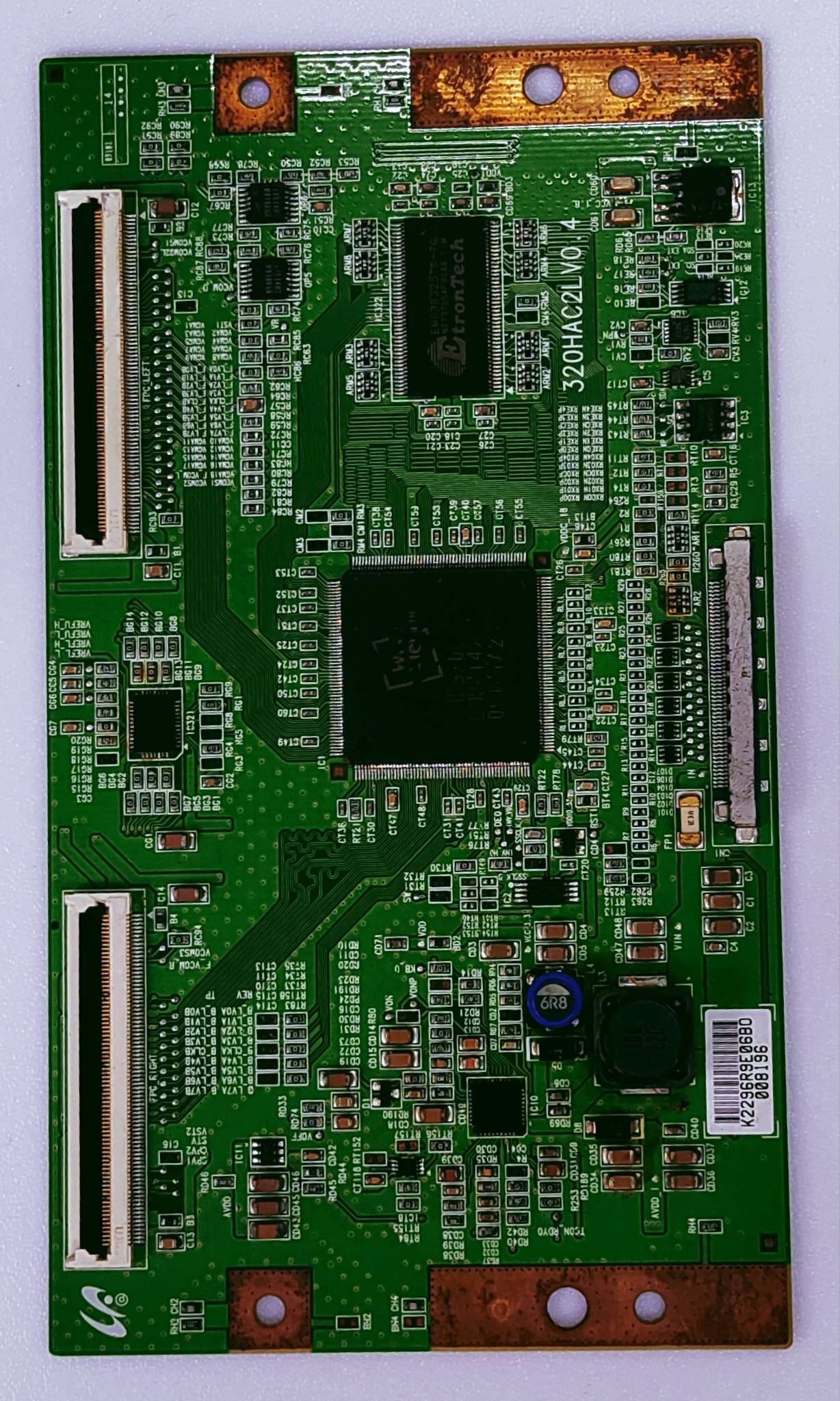

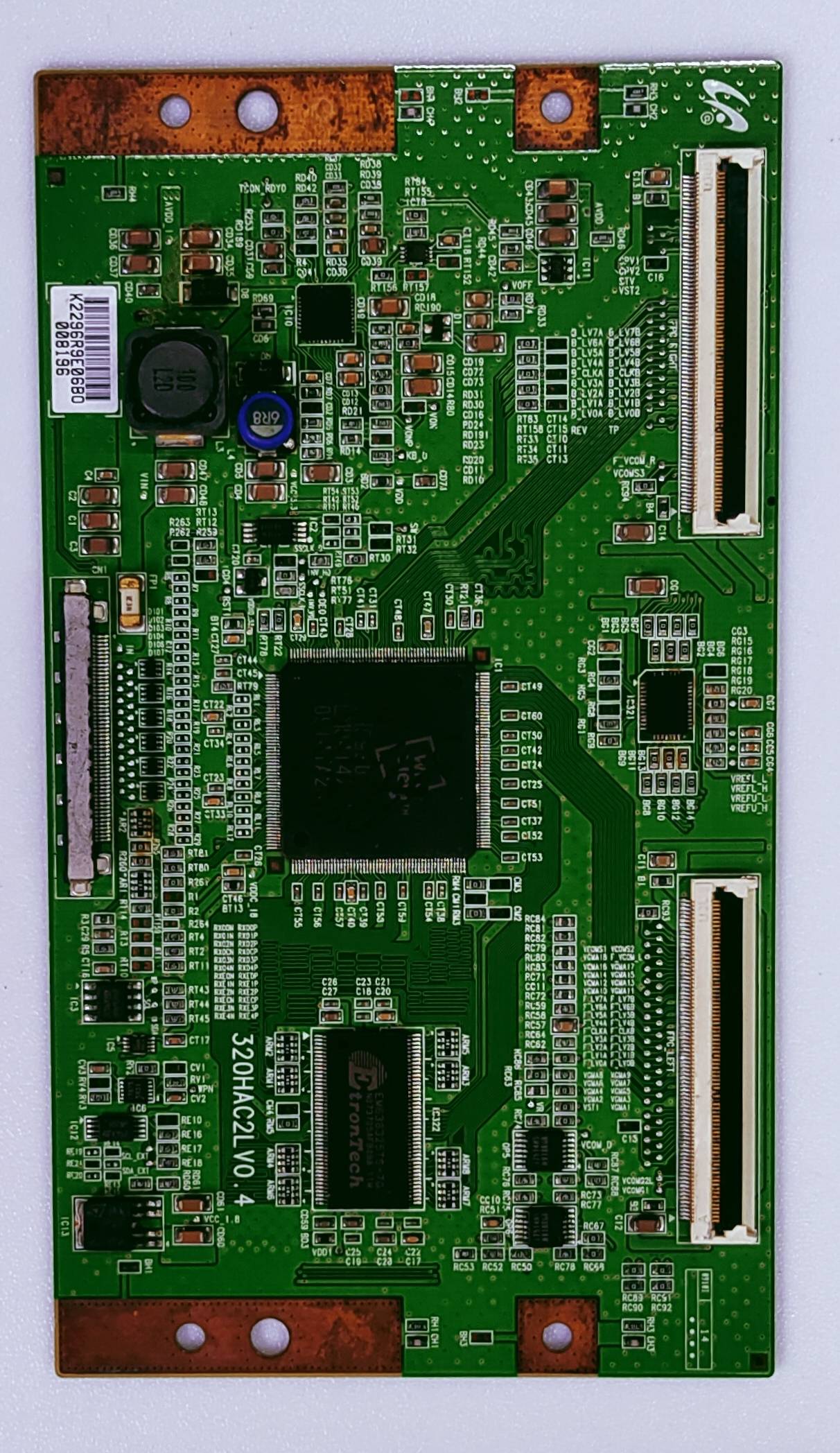

Based on the provided image, this component is a T-Con (Timing Controller) Board, specifically identified as part number 320HAC2LV0.4.

Key Specifications & Identification

Board Type: LCD Controller / Timing Control Board.

Part Number: 320HAC2LV0.4.

Associated Samsung Part Numbers: LJ94-03308C, LJ94-03268D, or LJ94-02296R.

Compatibility: This board is typically used in 32-inch television panels, such as those found in the Samsung LA32B550 model

Functional Details

Purpose: The T-Con board processes video signals and directs the LCD panel on how to display the image.

Symptoms of Failure: A faulty T-Con board often causes issues such as no display, flickering, or vertical lines on the screen.

Note on Diagnosis: While this board controls the display, horizontal lines are rarely caused by a T-Con board failure, often indicating a defective LCD panel instead.
