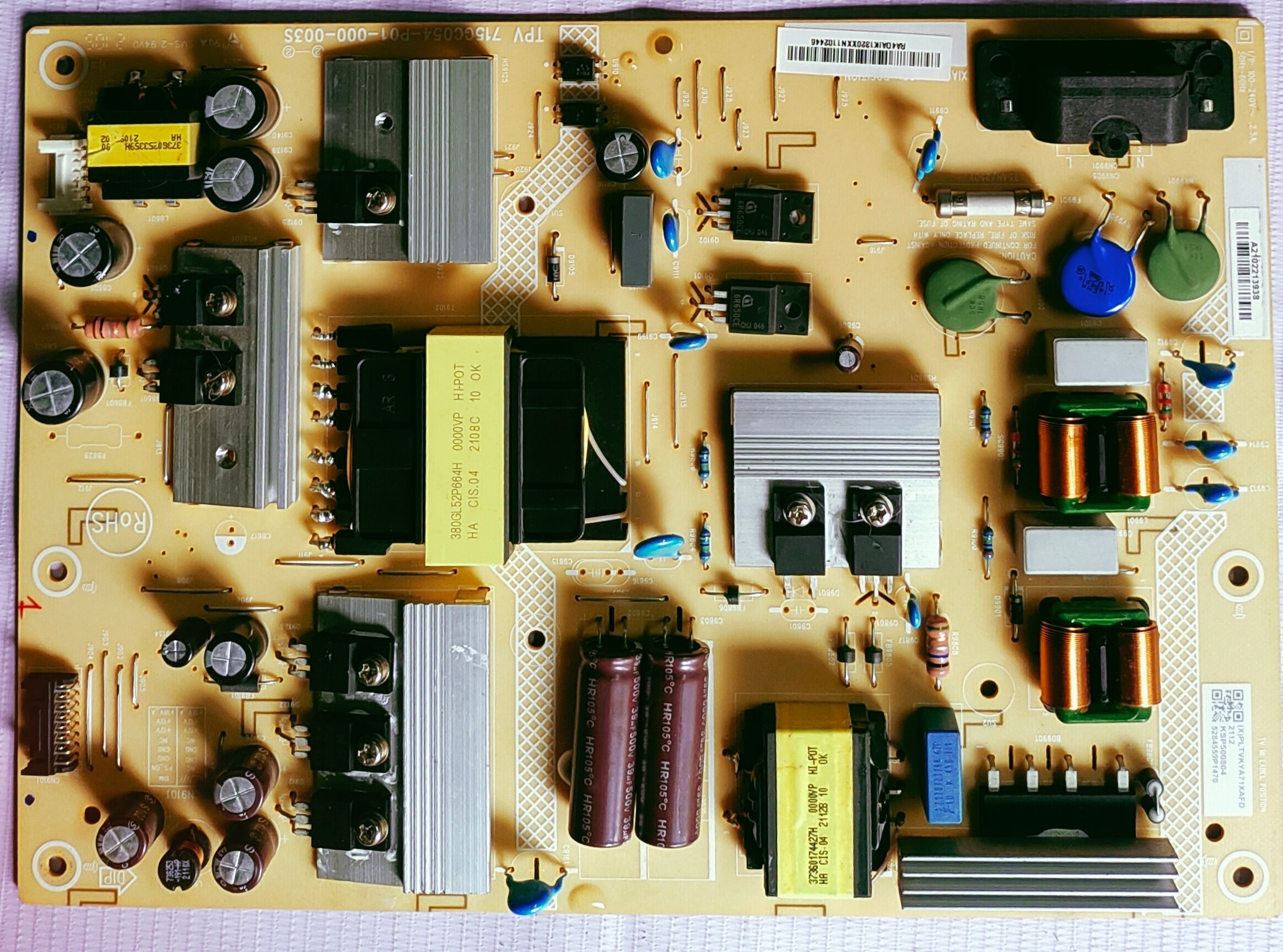

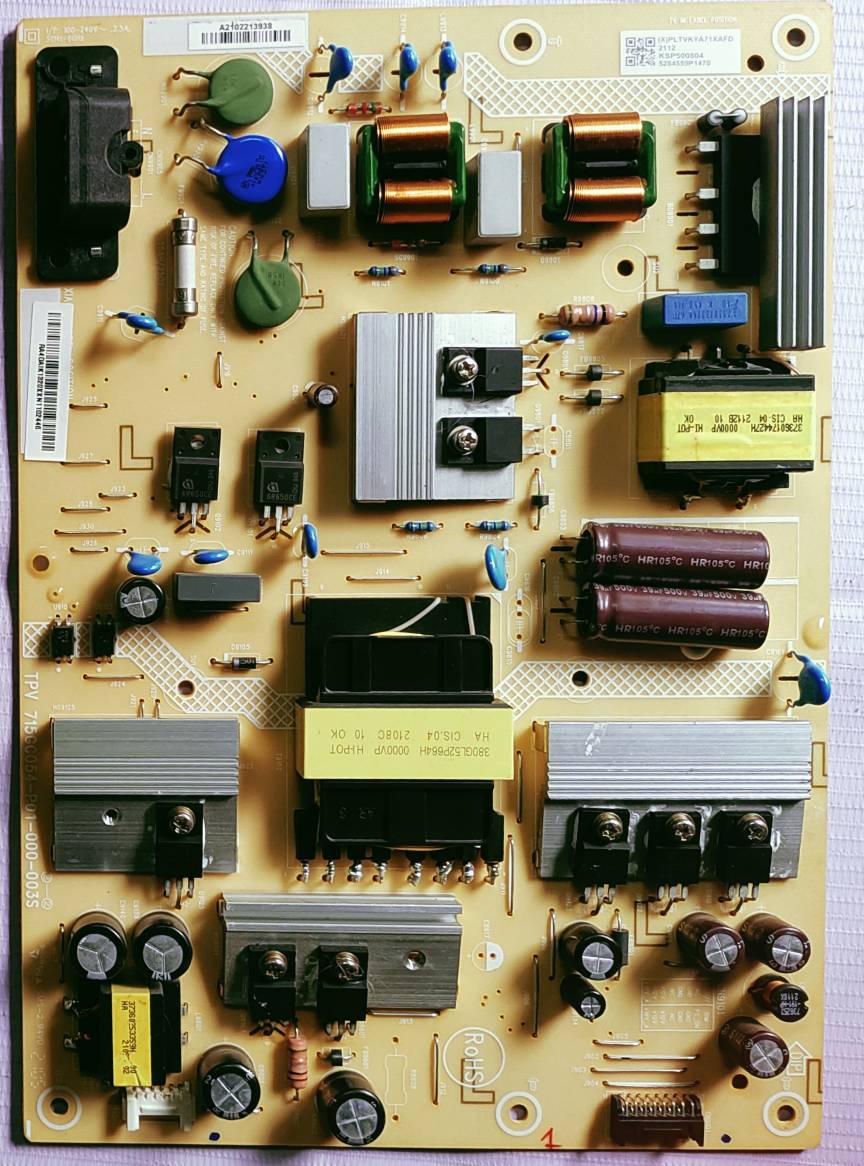

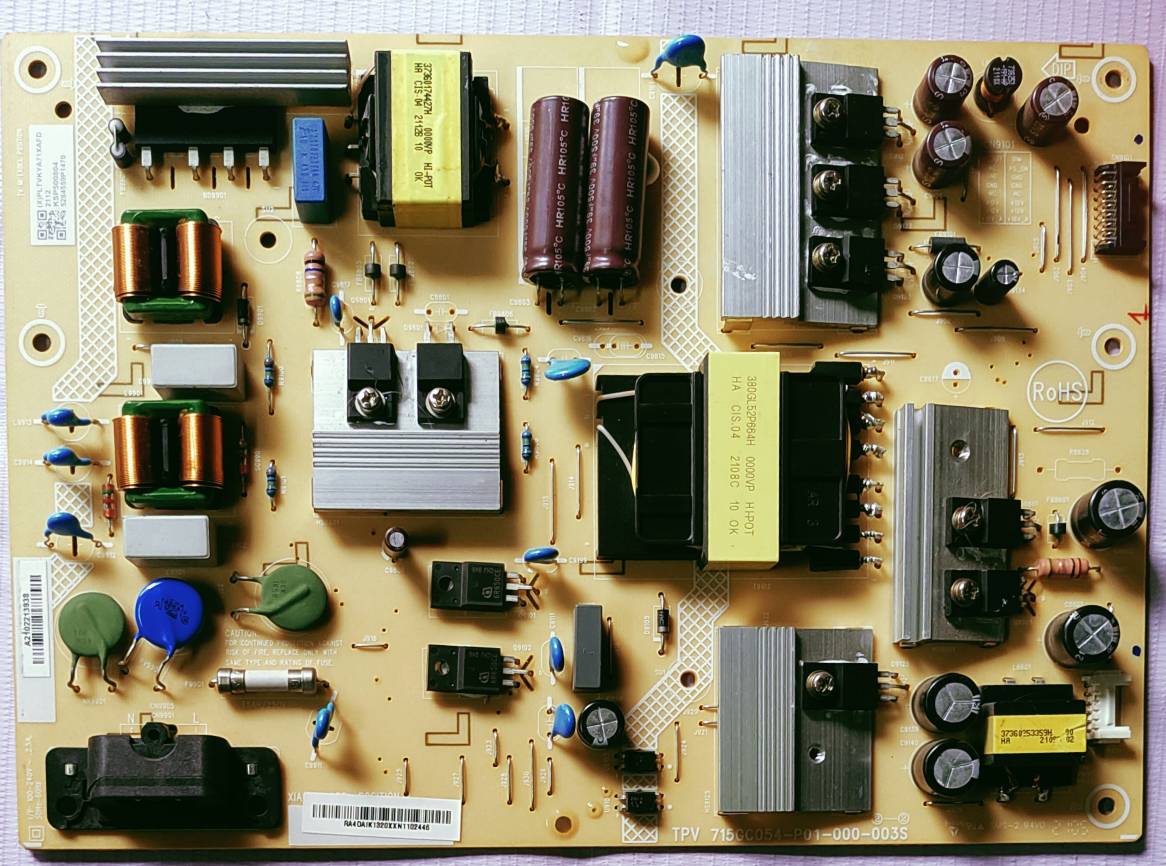

REDMI L50M6-RA POWER SUPPLY BOARD, SMPS BOARD #Wb29

REDMI POWER SUPPLY BOARD

MODEL NUMBER

L50M6-RA

The L50M6-RA SMPS (Switched-Mode Power Supply) board is a crucial component in the Redmi L50M6-RA LED TV, responsible for converting AC power to the stable DC voltage needed to operate the TV's various circuits and components. It essentially acts as the TV's power source. The SMPS board receives AC power from the wall socket, rectifies it into DC, and then uses high-frequency switching to produce the specific DC voltages required by the TV's different sections, such as the backlight, main board, and other circuits.

Here's a more detailed breakdown:

Function:

The SMPS board's primary role is to efficiently and safely convert the incoming AC power into the various DC voltages required by the TV.

Key Components:

The SMPS board typically includes components like rectifiers, filters, switching transistors, transformers, and voltage regulators.

Importance:

A faulty SMPS board can lead to a range of issues, including the TV failing to power on, a blank screen, or inconsistent performance.

Troubleshooting:

When troubleshooting a TV that won't turn on, the SMPS board is often a suspect, and checking its output voltage with a multimeter is a common diagnostic step.

Originality and Compatibility:

When replacing the SMPS board, ensuring it is an original part for the L50M6-RA model is important to maintain picture quality and overall system reliability.

Installation:

Always disconnect the TV from the power source before attempting any
