PHILIPS 42PFL3040/T3 POWER SUPPLY BOARD, SMPS BOARD,#wb29

PHILIPS POWER SUPPLY BOARD

MODEL NUMBER

42PFL3040/T3

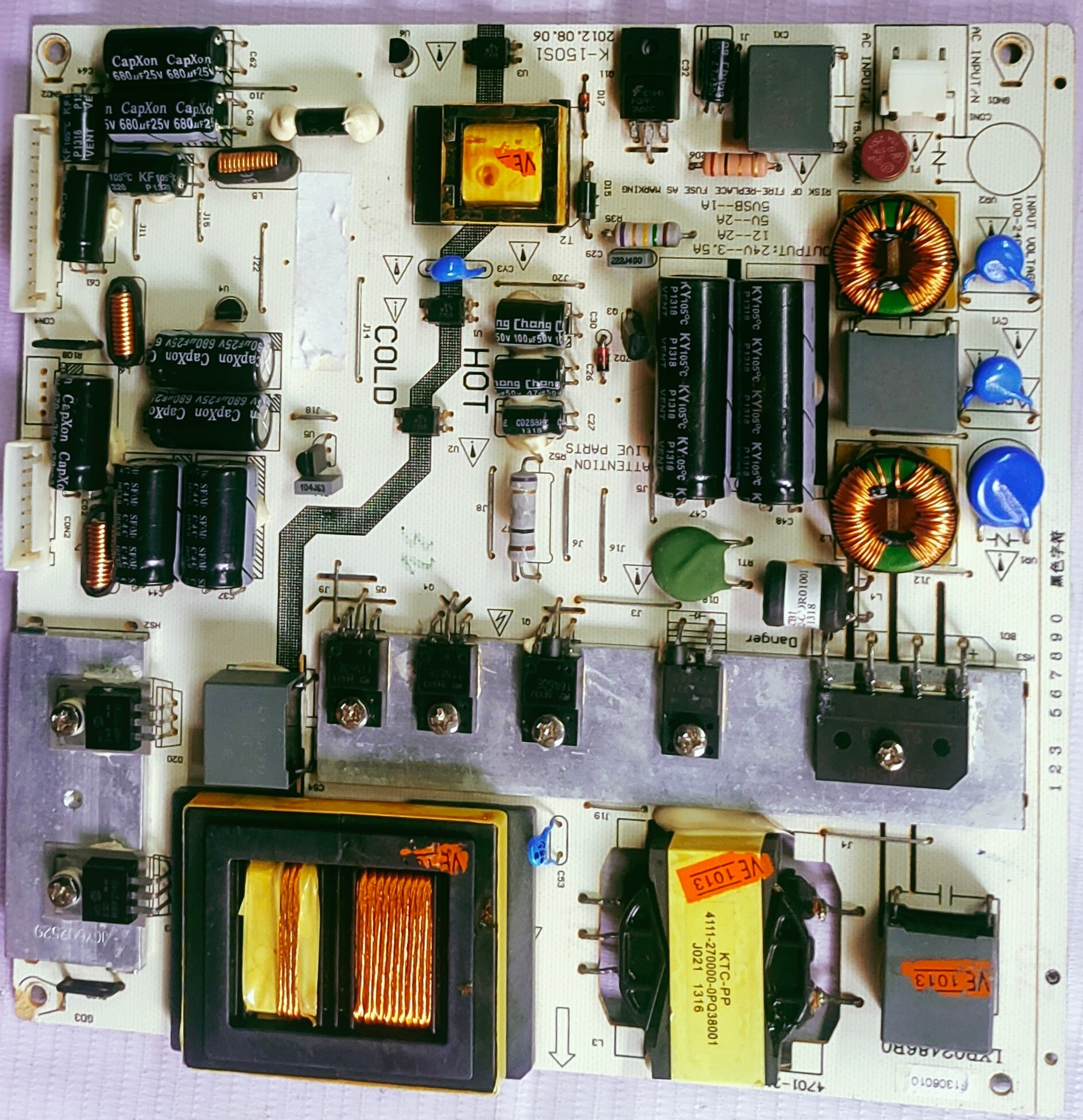

The image displays a power supply board, specifically identified as a K-150S1 model, which is used in various electronics like Philips 42PFL3040/T3 and AOC LE42A3030/80 televisions.

Here's a breakdown of its features and purpose:

Function:

This board converts incoming AC power (100-240V) into the regulated DC voltages required by the connected electronic device, including 210V, 12V, 5V, and 5USB outputs.

Safety:

It includes a warning about the "RISK OF FIRE" and the need to "REPLACE FUSE AS PARKING" (likely meaning "per marking") for safety.

Components:

The board features various electronic components such as capacitors (CapXon), transformers, and other integrated circuits, essential for its power conversion functions.

Origin:

The board is identified as a K-150S1 model, with a manufacturing date of 2012.08.06.
