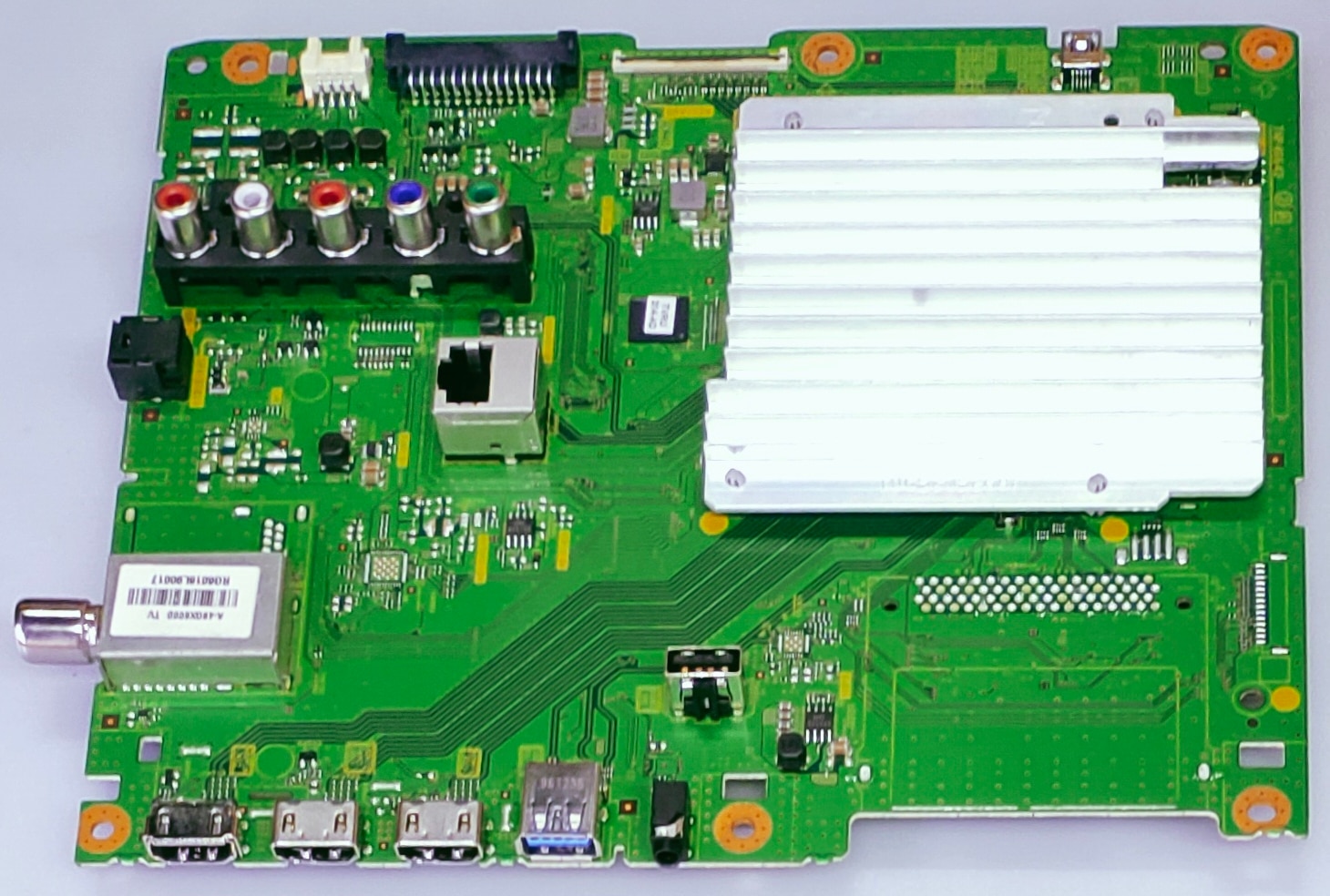

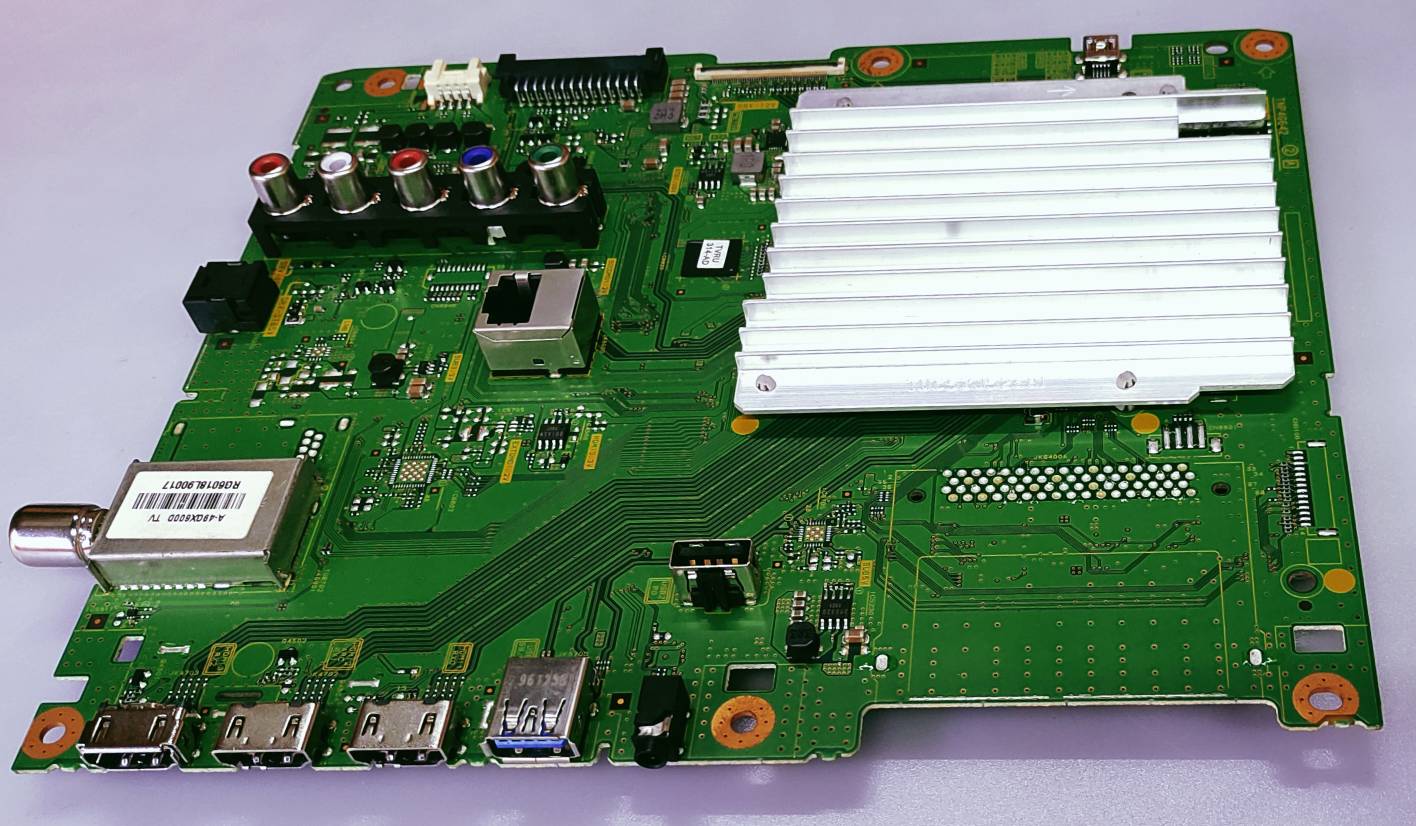

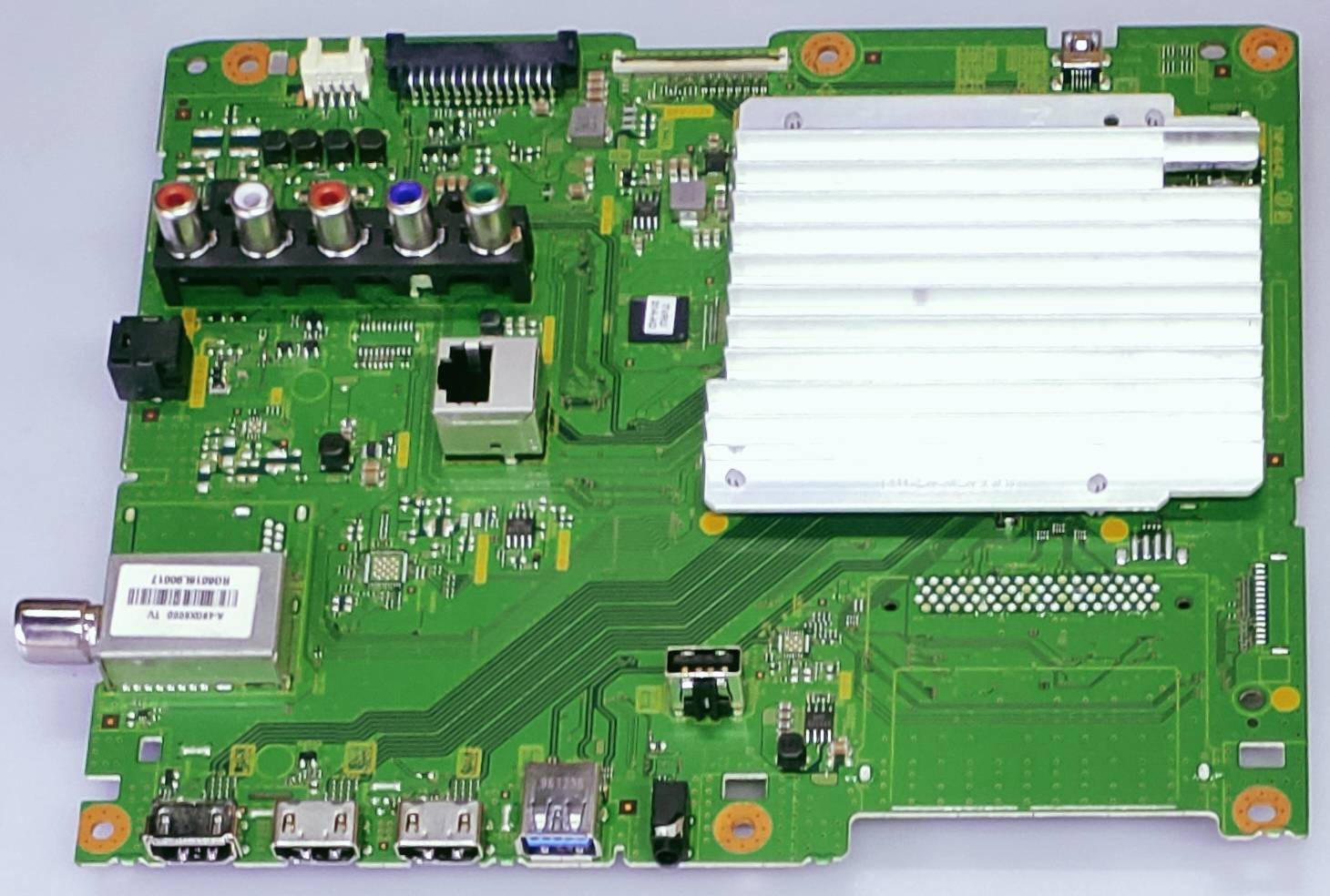

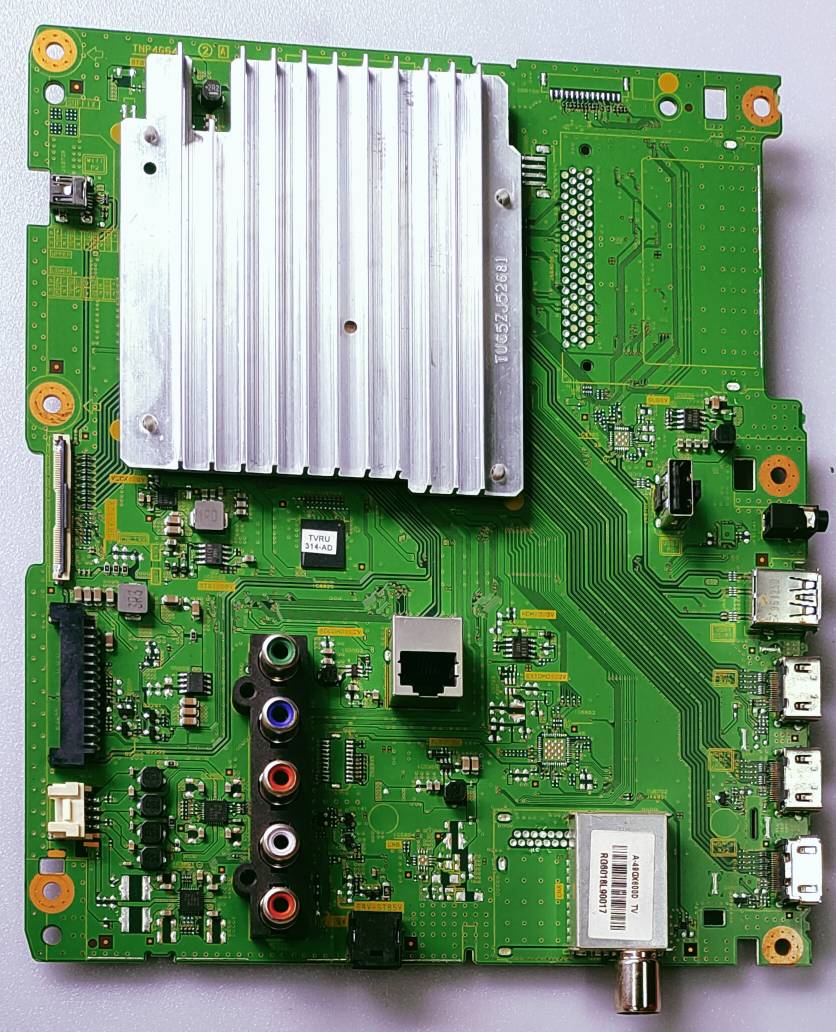

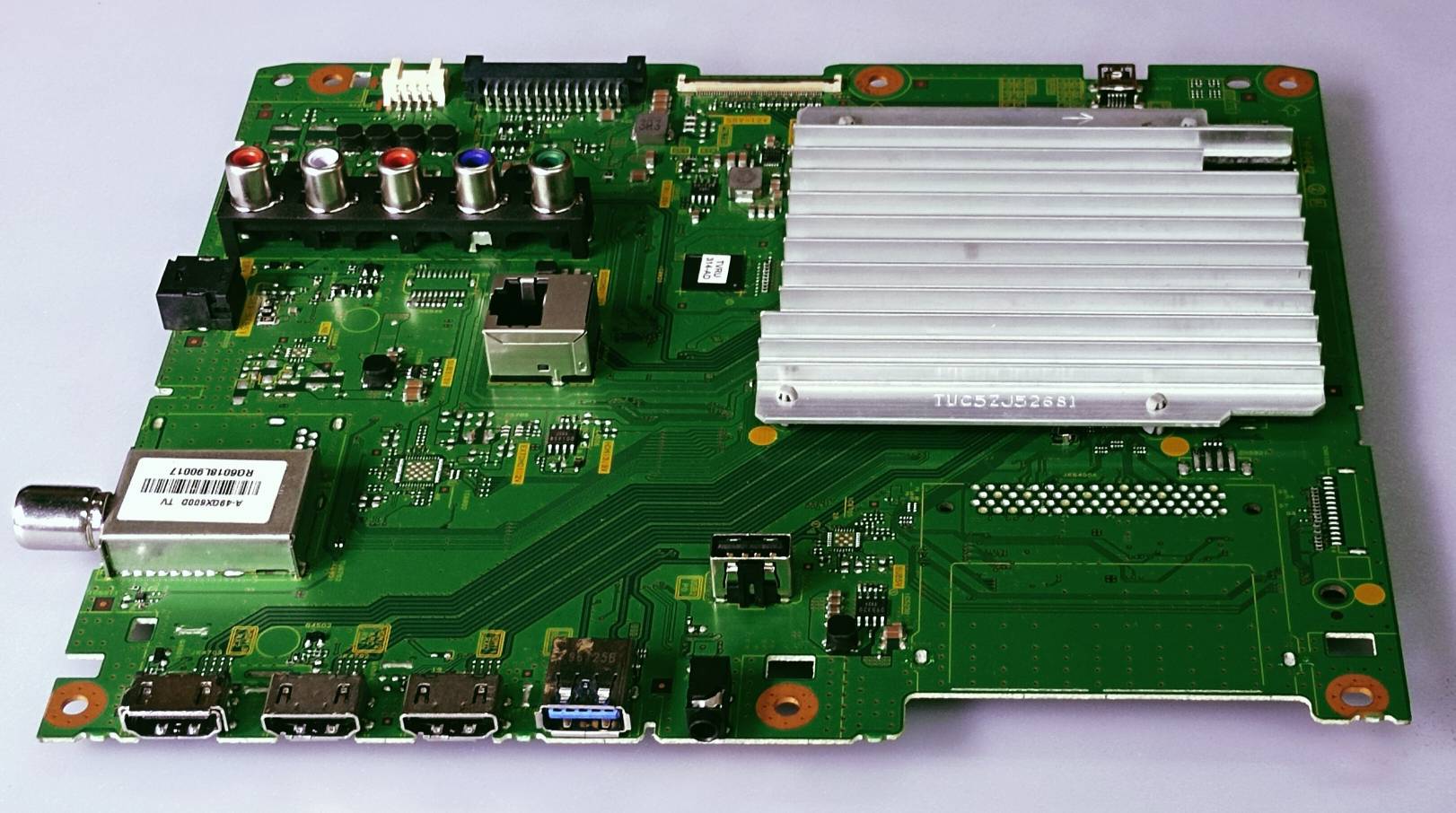

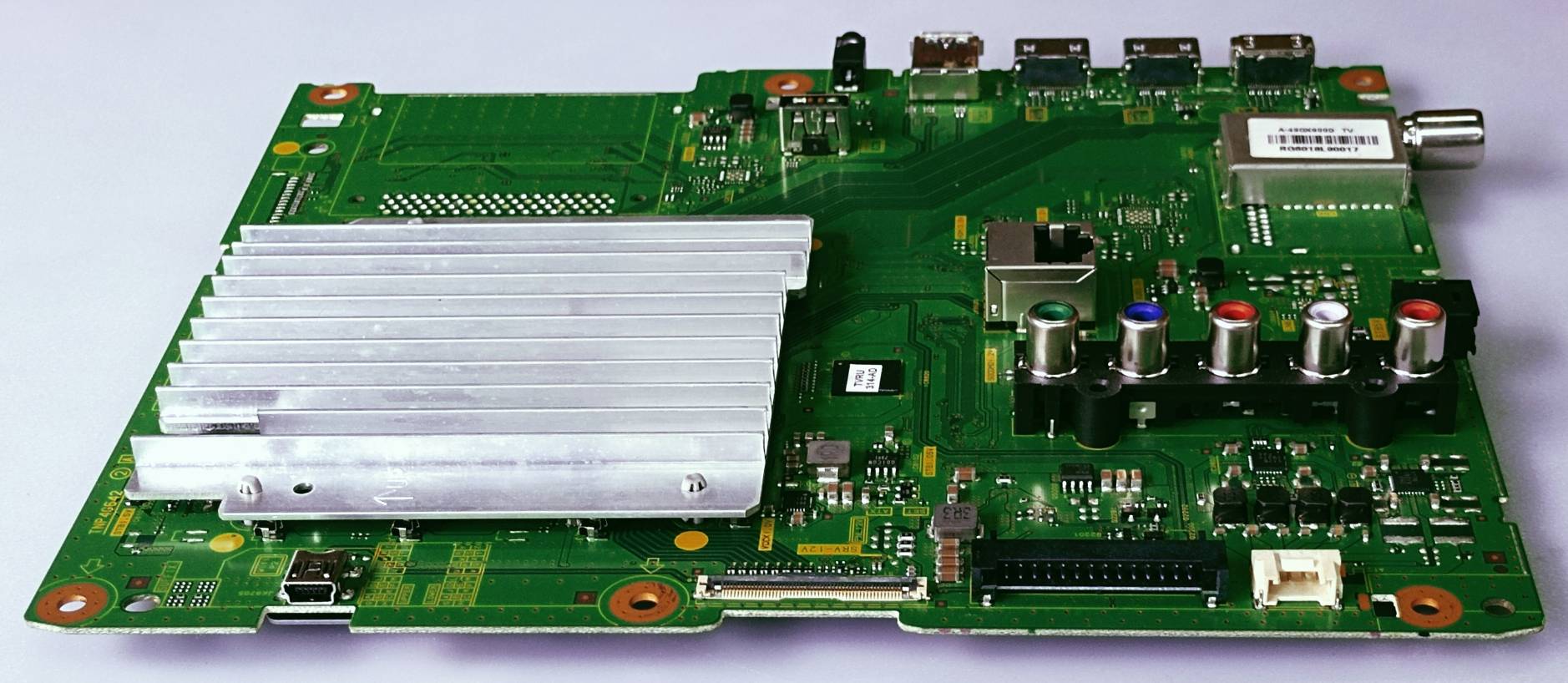

PANASONIC 4K LED TV ANDROID MOTHER BOARD MODEL NUMBER TH-49GX600D

PANASONIC 4K LED TV ANDROID MOTHER BOARD MODEL NUMBER

TH-49GX600D

For the Panasonic TH-49GX600D, the main board is responsible for processing video, audio, and smart TV functions, all running on the proprietary "HomeOS" operating system.

Key components and features

Central processing: The board uses Panasonic's proprietary HCX Intelligent processor to handle image and system processing.

Operating system: The smart TV functions, including built-in apps like Netflix and YouTube, run on the HomeOS platform.

Video processing: The main board manages the TV's core picture quality features, which include:

Hexa Chroma Drive: A technology for wide color reproduction.

HDR10+ support: For high-dynamic-range content.

4K upscaling: To enhance lower-resolution content.

Connectivity: The board integrates all inputs and outputs:

3 HDMI ports for media players, consoles, and set-top boxes.

3 USB ports (2 USB 2.0 and 1 USB 3.0).

Built-in Wi-Fi and Ethernet (RJ45).

Audio processing: Features managed by the main board include:

A 30W stereo audio output.

Bluetooth 2-way audio link.

Sourcing and replacement

For servicing or replacement, the main board is often listed by parts retailers with the TV's model number, TH-49GX600D.

Service manuals: Technical details, including block and wiring diagrams for the TH-49GX600D, can be found in service manuals available on technical documentation websites.

Caution: When replacing the board, manufacturers and parts suppliers advise using an original component and taking anti-static precautions during installation to avoid damaging the sensitive circuits.
