MOTOROLA 4K LED ANDROID MOTHER BOARD, #wb34

MOTORALA 4K ANDROID MOTHER BOARD

MODEL NUMBER

43" SMART LED TV BOARD

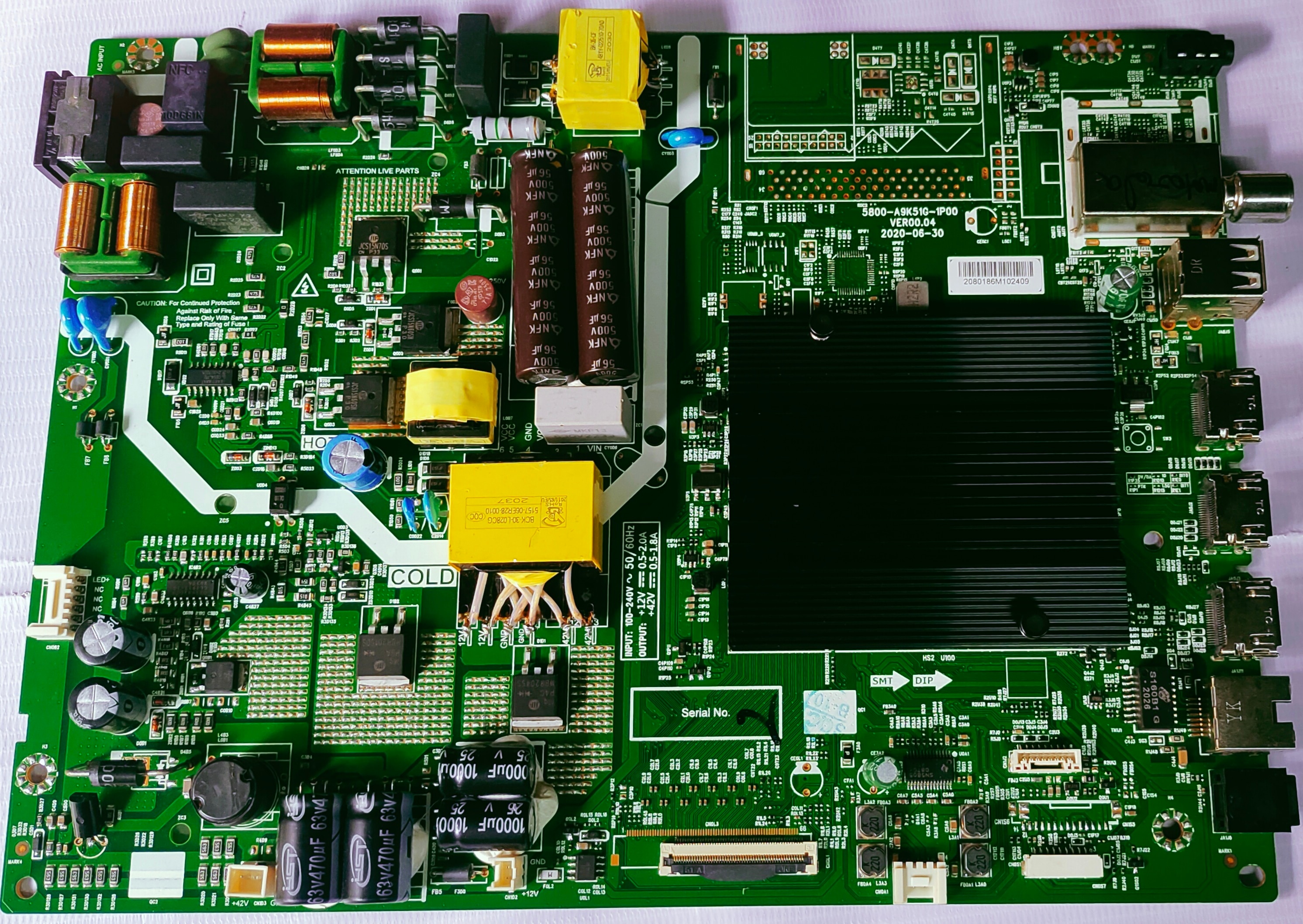

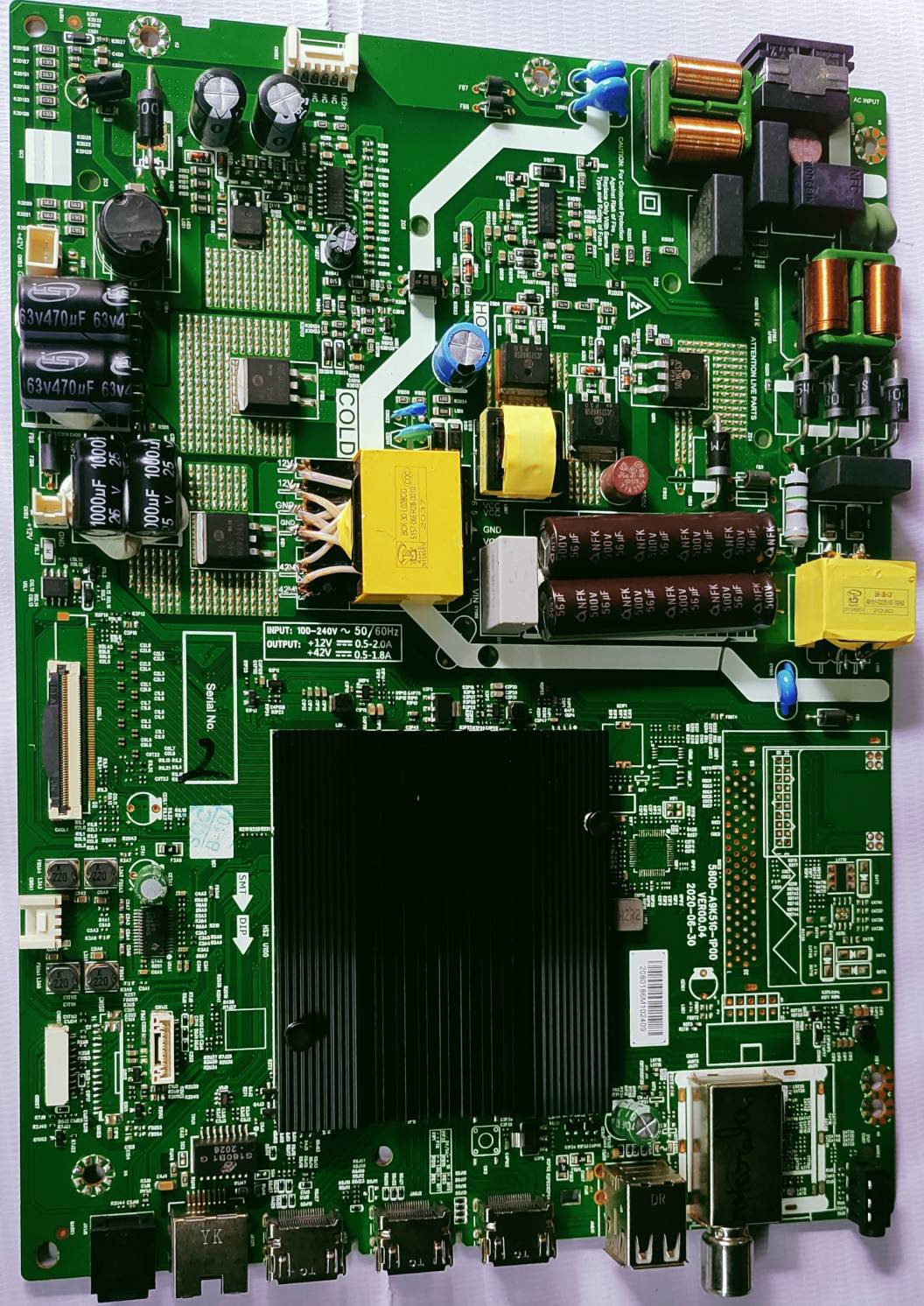

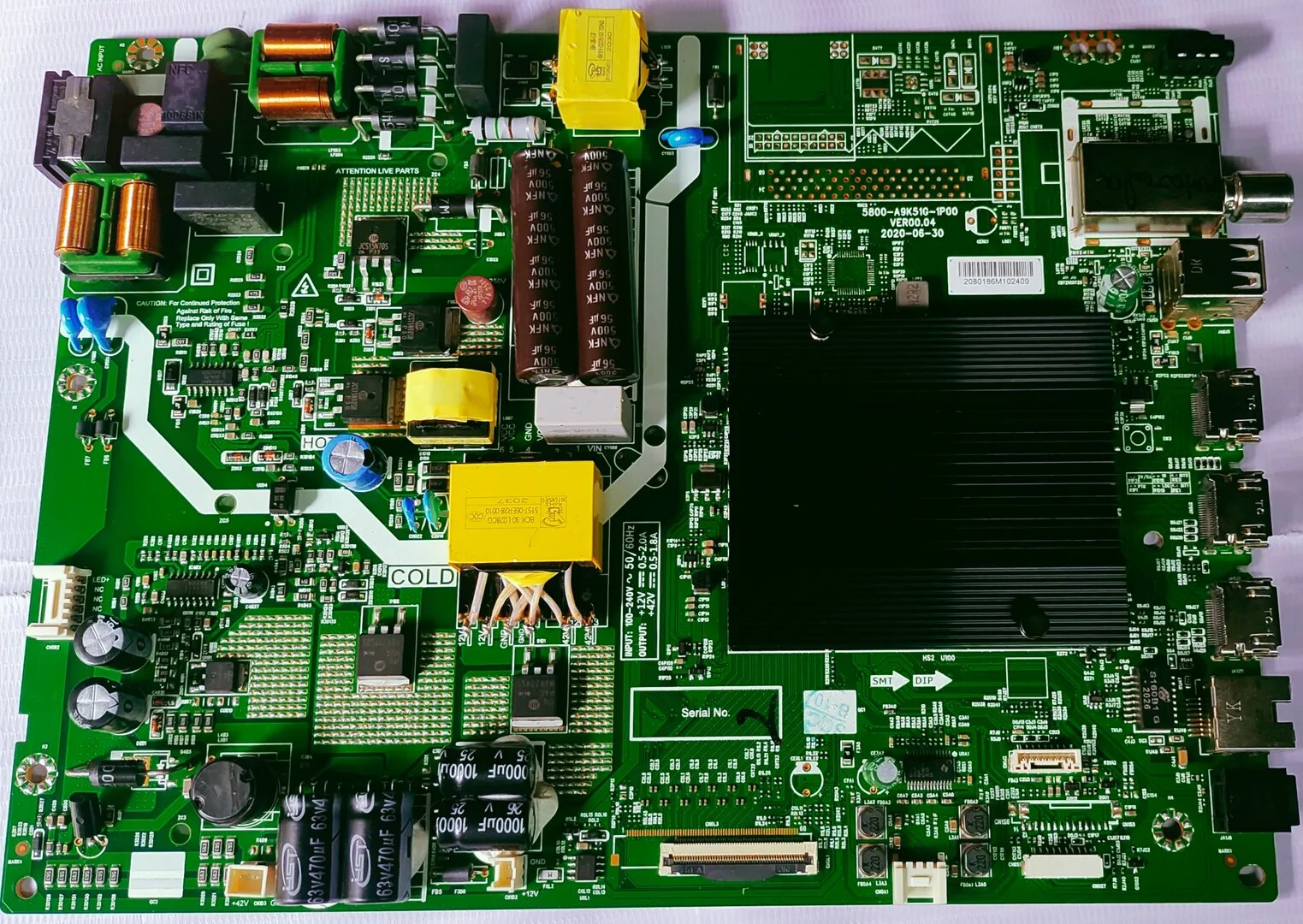

The image displays a circuit board with the model number 5800-A9K510-IP00, manufactured on June 30, 2020 (2020-06-30). This board is identified as a power supply board based on the input/output specifications visible on the board itself.

Details of the Board:

Model Number: 5800-A9K510-IP00

Manufacturing Date: June 30, 2020

Input Specifications: 100-240V AC at 50/60Hz

Output Specifications:

+12V DC at 0.5-2.0A

+42V DC at 0.5-1.8A

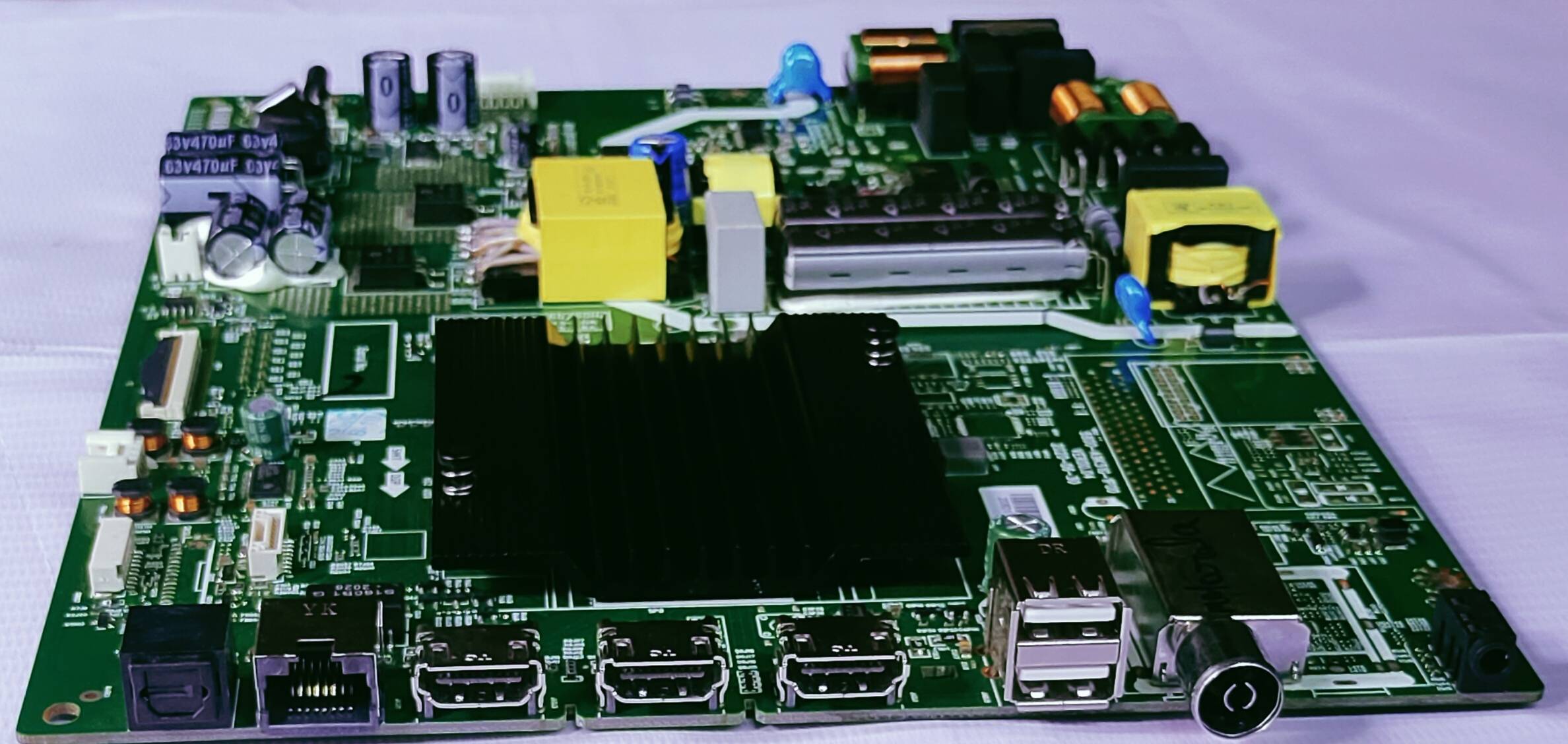

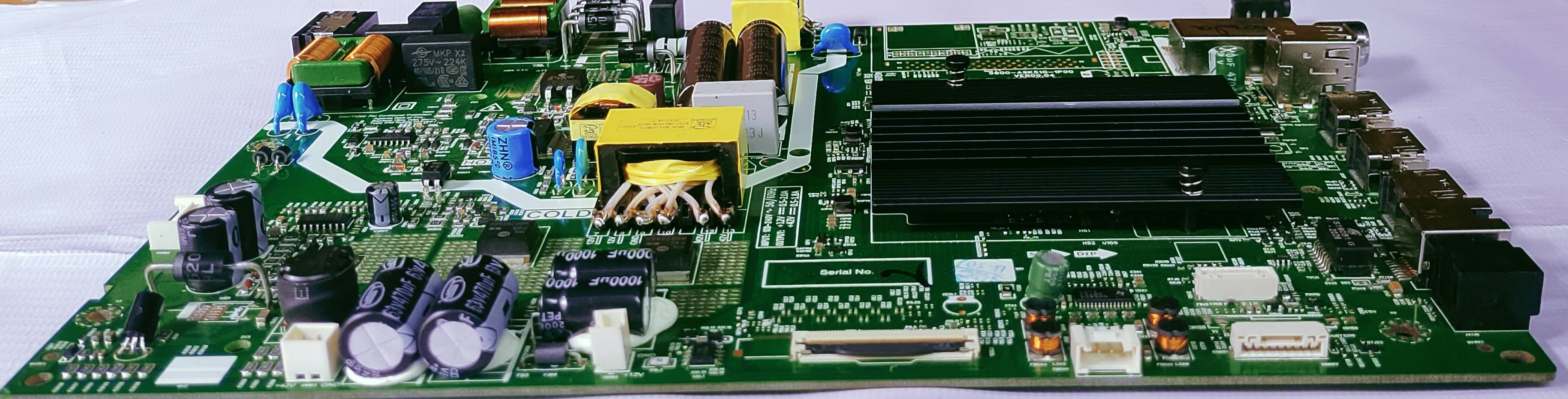

Components: The board features various electronic components including capacitors (e.g., 63v470uF, 1000uF), transformers, integrated circuits, and connectors (e.g., HDMI ports, USB ports, serial port).

Functionality: Based on the input and output specifications, this board likely serves as a power supply unit for an electronic device, converting AC power to multiple DC voltages required by other components. The presence of HDMI and USB ports suggests it could be part of a display device or a multimedia system.
