LLOYD L43U2A0KA POWER SUPPLY BOARD, SMPS BOARD #Wb29
Description
LLOYD POWER SUPPLY BOARD
MODEL NUMBER
L43U2A0KA

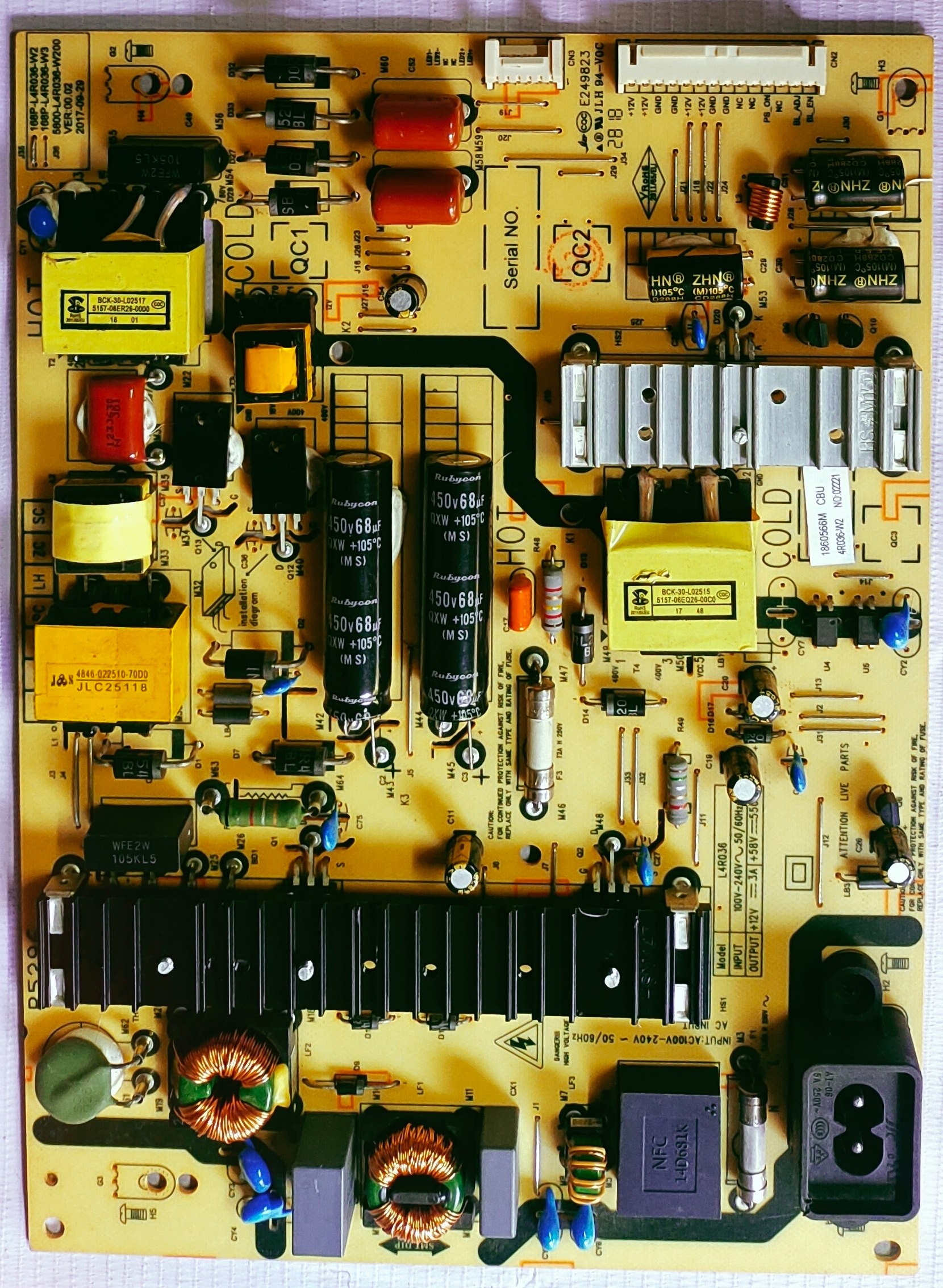

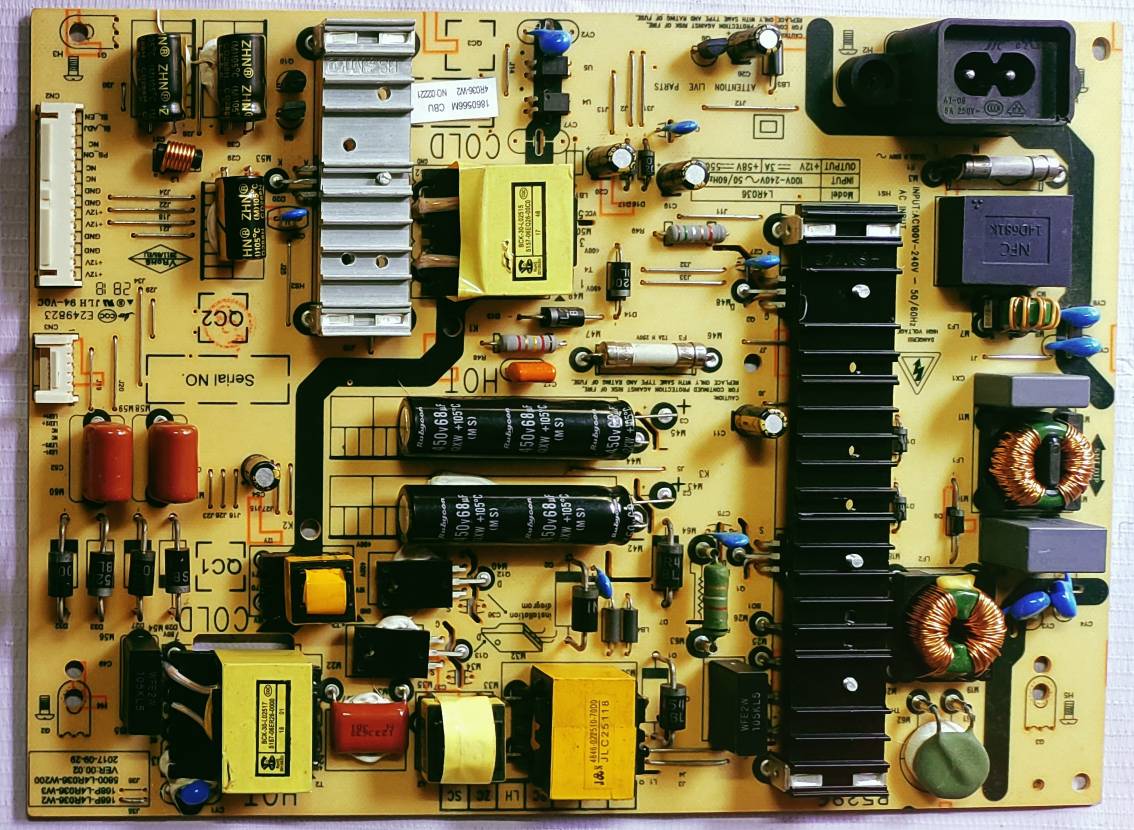

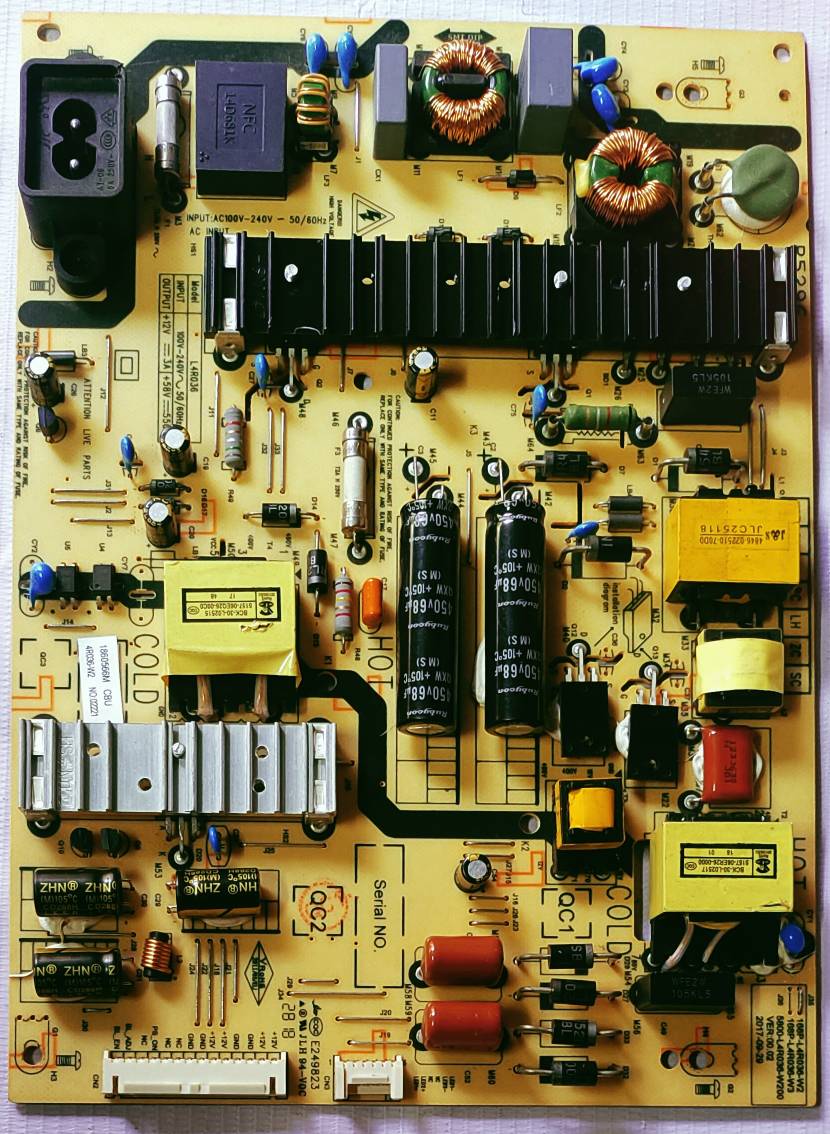

The image displays a power supply board for a Lloyd LED TV. Specifically, the board is identified by the model number L4R036, with variations like L4R036-W2, L4R036-W3, and L4R036-W200 also mentioned on the board itself.
Key features and information about this type of power supply board include:
Function:
It is a Switching Mode Power Supply (SMPS) designed to convert AC input voltage (100V-240V, 50/60Hz) into stable DC output voltages for the TV, typically +12V and +58V as indicated on the board.
Components:
The board features various electronic components, including large capacitors (e.g., 450V 150uF), transformers, and heatsinks for thermal management, essential for its operation.
Compatibility:
This specific board is compatible with certain Lloyd LED TV models, such as the L43U2A0KA, and is used for power supply replacement.
Origin and Quality:
These boards are often described as original Lloyd components, tested for performance and reliability, and are available from various electronics parts suppliers.
