LG 4k SMART 43UH650T MOTHER BOARD #WB 38

LG 4k SMART MOTHER BOARD

model number

" 43UH650T"

The LG 43UH650T model is associated with main AV boards like EAX66804605 (version 1.1). While the specific "TB pdf" (likely referring to a Technical Bulletin or Service Manual) for the LG 43UH650T was not directly found in the search results, information regarding the mainboard and its components is available.

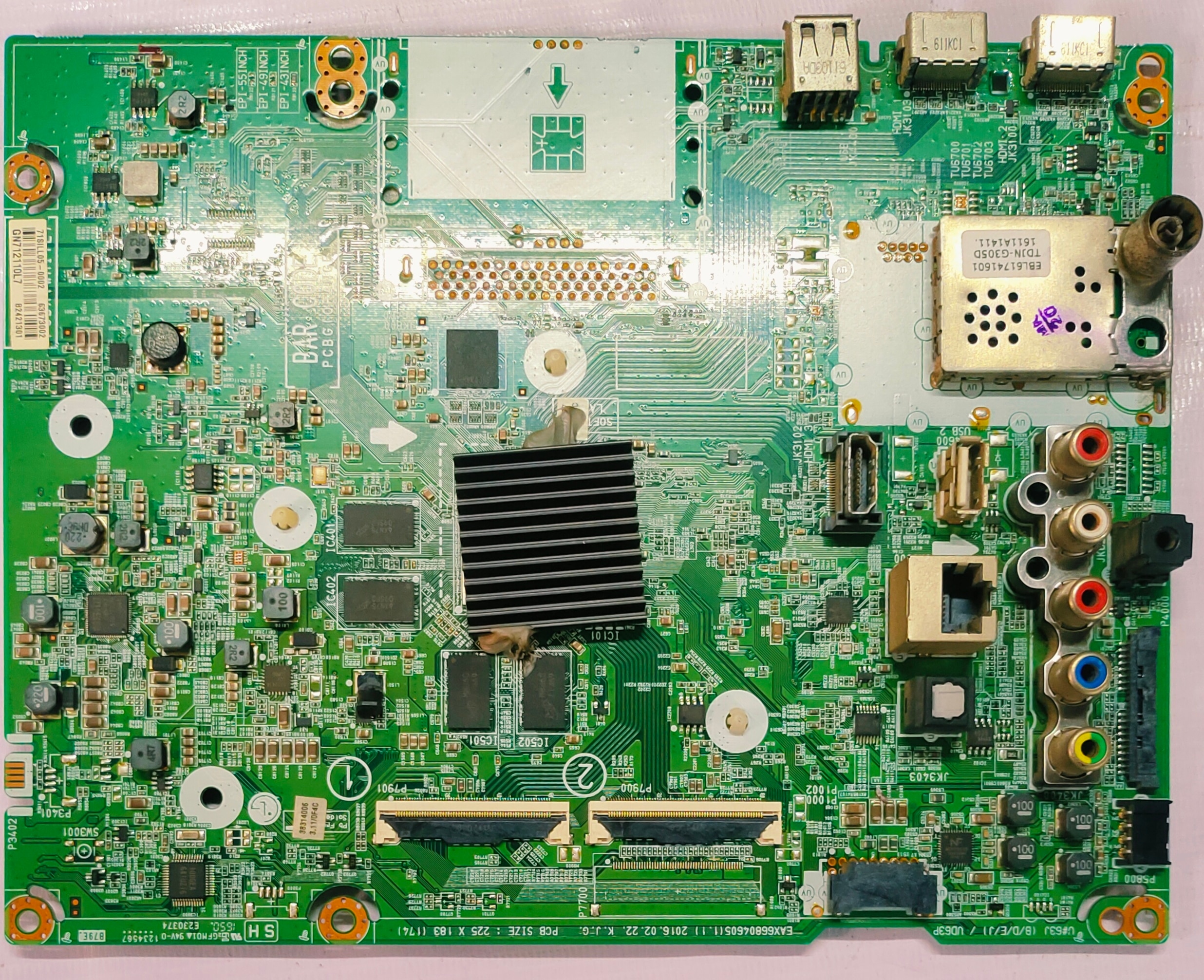

The mainboard shown in the image is likely the EAX66804605 (version 1.1), which is a main AV board used in LG TVs, including models like the 43UH650V (which is a variant of the 43UH650T). This board contains various integrated circuits and components, as indicated by the text on the board itself, such as "IC101" and "TDJN-G305D".

For detailed technical specifications, troubleshooting guides, or service manuals (which may be referred to as "TB" in some contexts), searching for "LG 43UH650T service manual pdf" or "LG 43UH650T schematic diagram" may yield more specific results from LG's official support resources or electronics repair forums
