LG 49UH770T Led 4k T-con No. V16, TM240 UHD, (DESC.V16, 49/55 UHD, P/N.(DESI GNED:2015-08-30

LG Tv 4k T-con Board

Model No.

49UH770T

P/N.

(DESI GNED:2015-08-30

Digital Electronics Services

pune maharashtra

9850791757

9763720390

(All India (COD) Cash on Delivery Service Available)

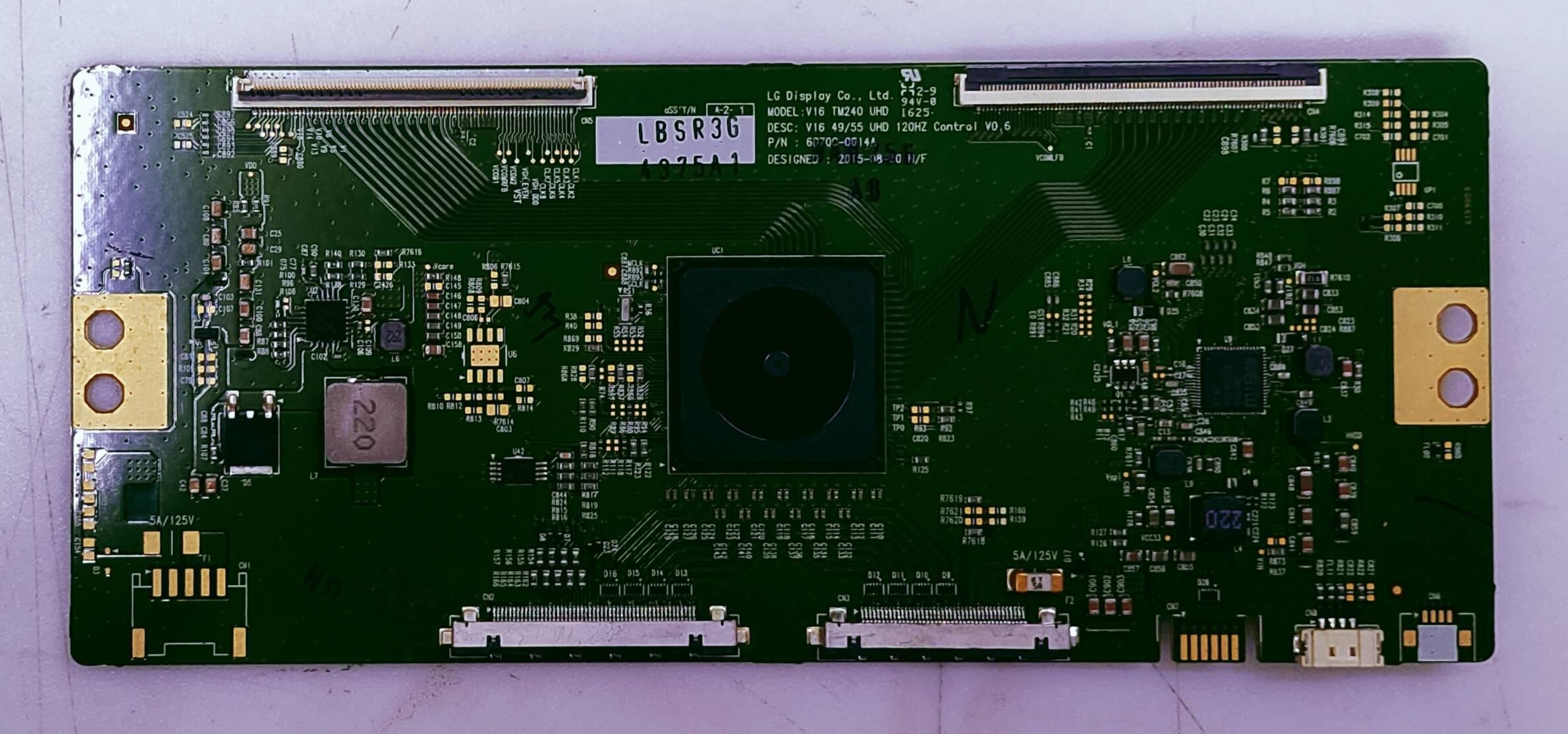

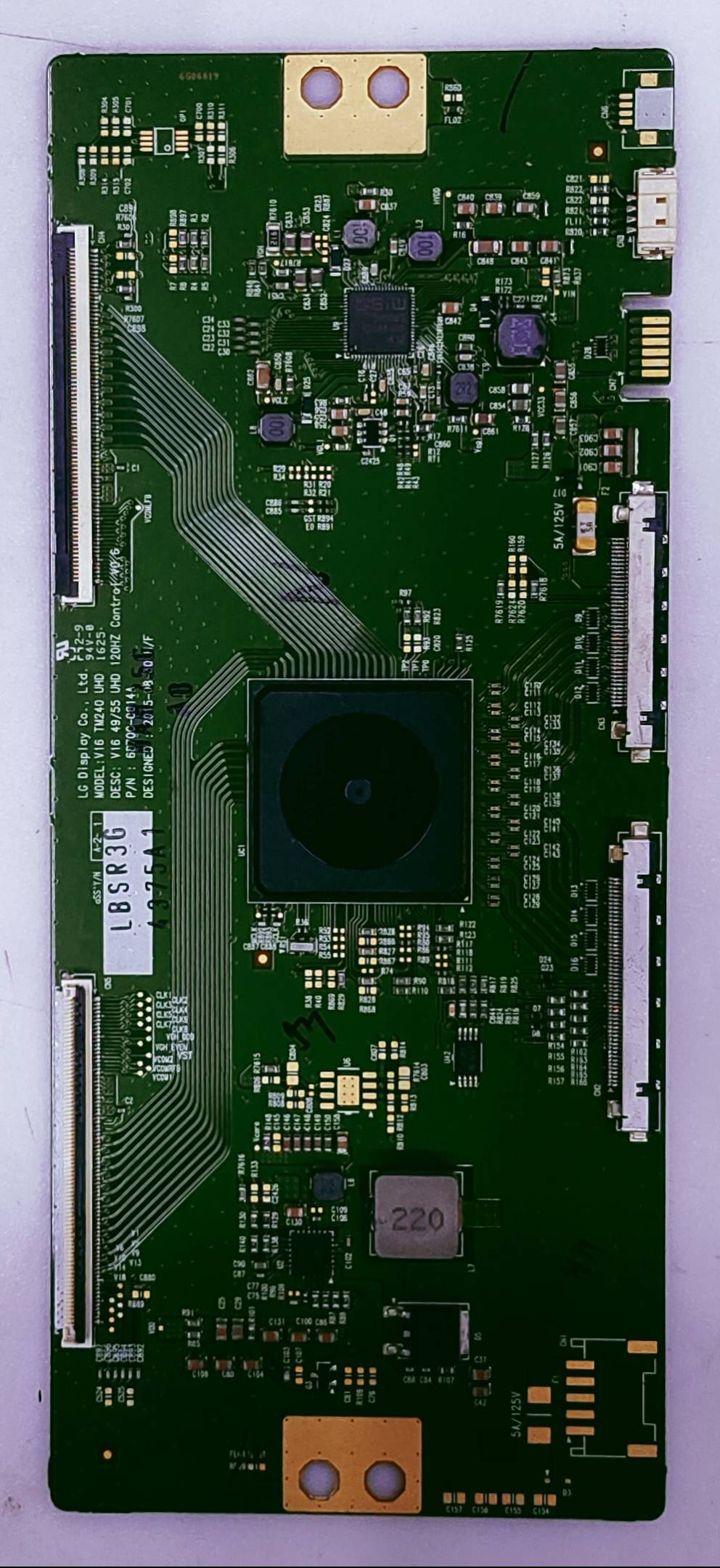

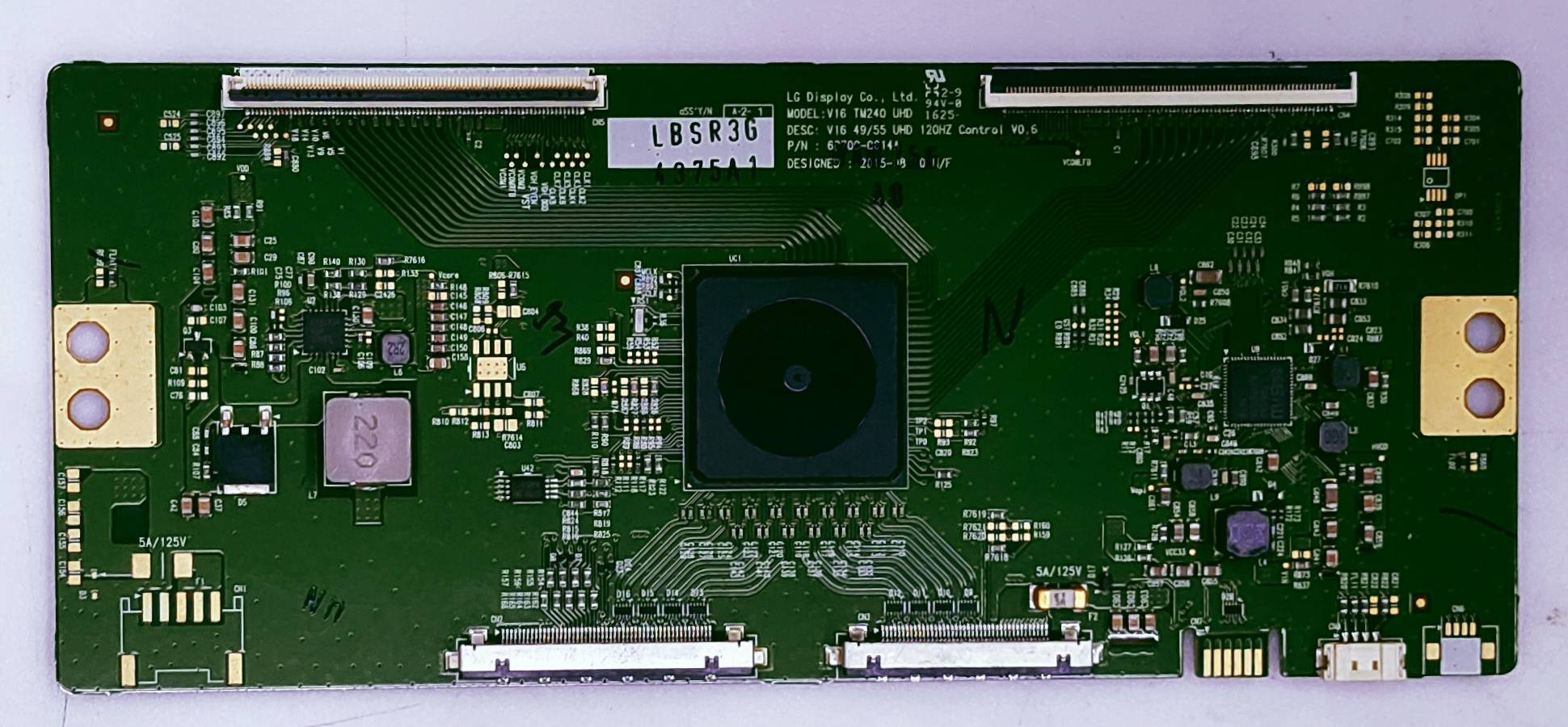

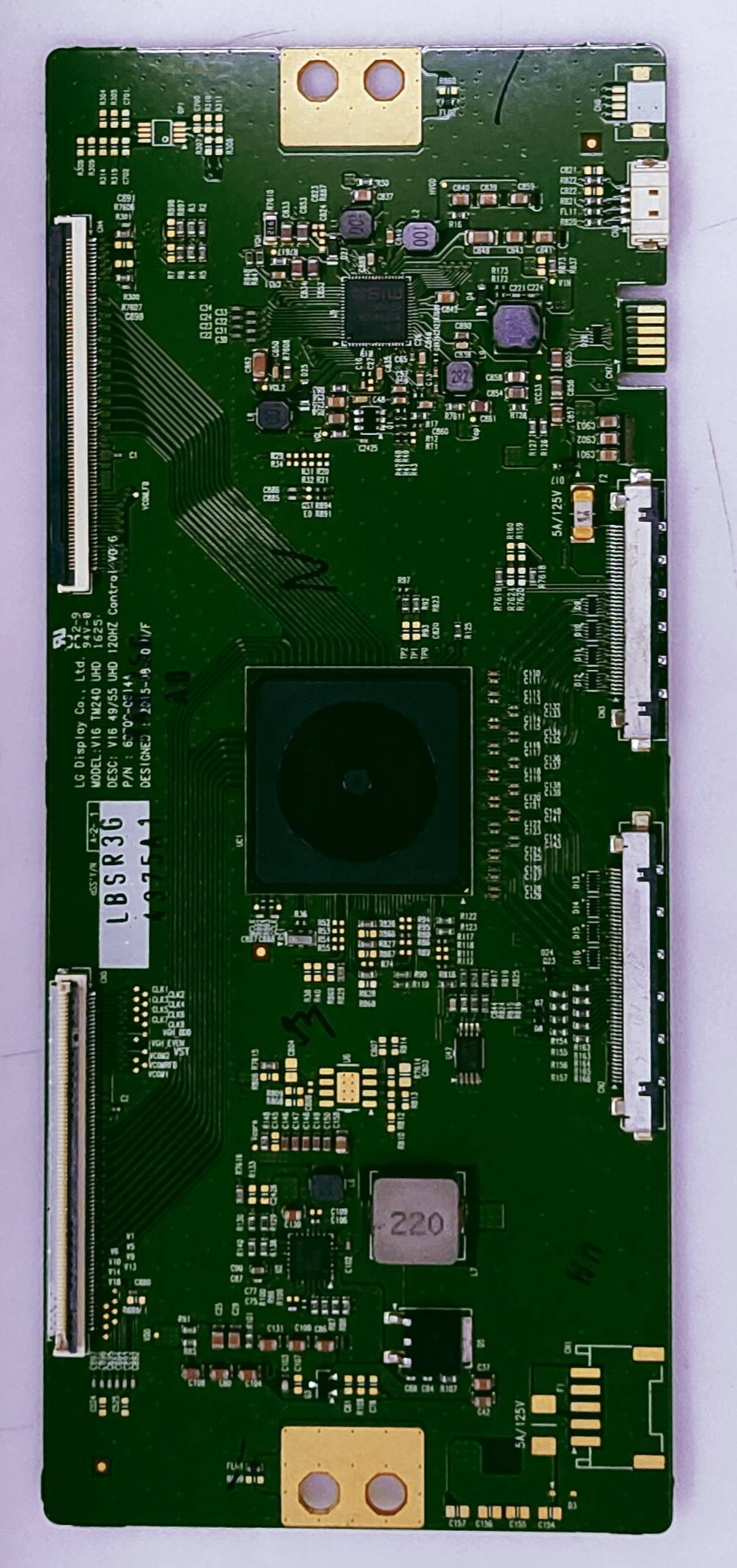

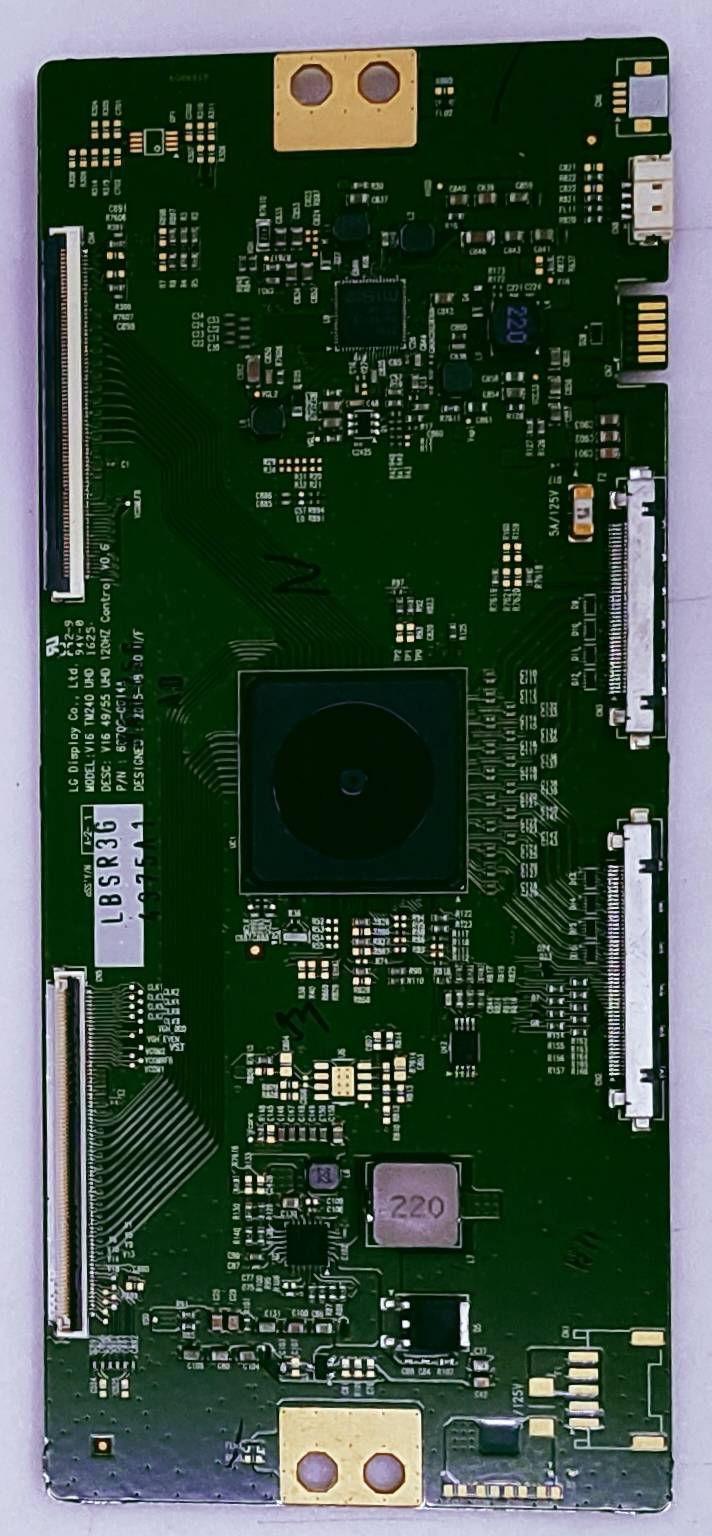

Based on the markings, this is an LG Display T-Con (Timing Controller) Board.

Product Details

Model/Part Number: The board is labeled 6870C-0603A (often associated with LG part number 6871L-4430C).

Specifications: It is designed for 49-inch or 55-inch UHD panels with a 120Hz refresh rate.

Function: This board translates signals from the TV's main motherboard into the specific timing signals needed to drive the LCD display panel.

Common Troubleshooting Tips

If your TV is experiencing a black screen with sound, vertical lines, or a washed-out picture, this board may be at fault.

Check Power: Verify the board is receiving either 5V or 12V from the mainboard.

Inspect Signals: Ensure signals are being transmitted from the motherboard to the main chip on the T-Con board.
