LG 47LN5710-TE Led Tv Fhd Tcon No.LC4700UE-SFRL Control Ver1.0 P/N.6870C-0444A

LG Led Tv T-con

Model No.

47LN5710-TE

Part No.

6870C-0444A

Digital Electronics Services

pune maharashtra

9850791757

9763720390

(All India (COD) Cash on Delivery Service Available)

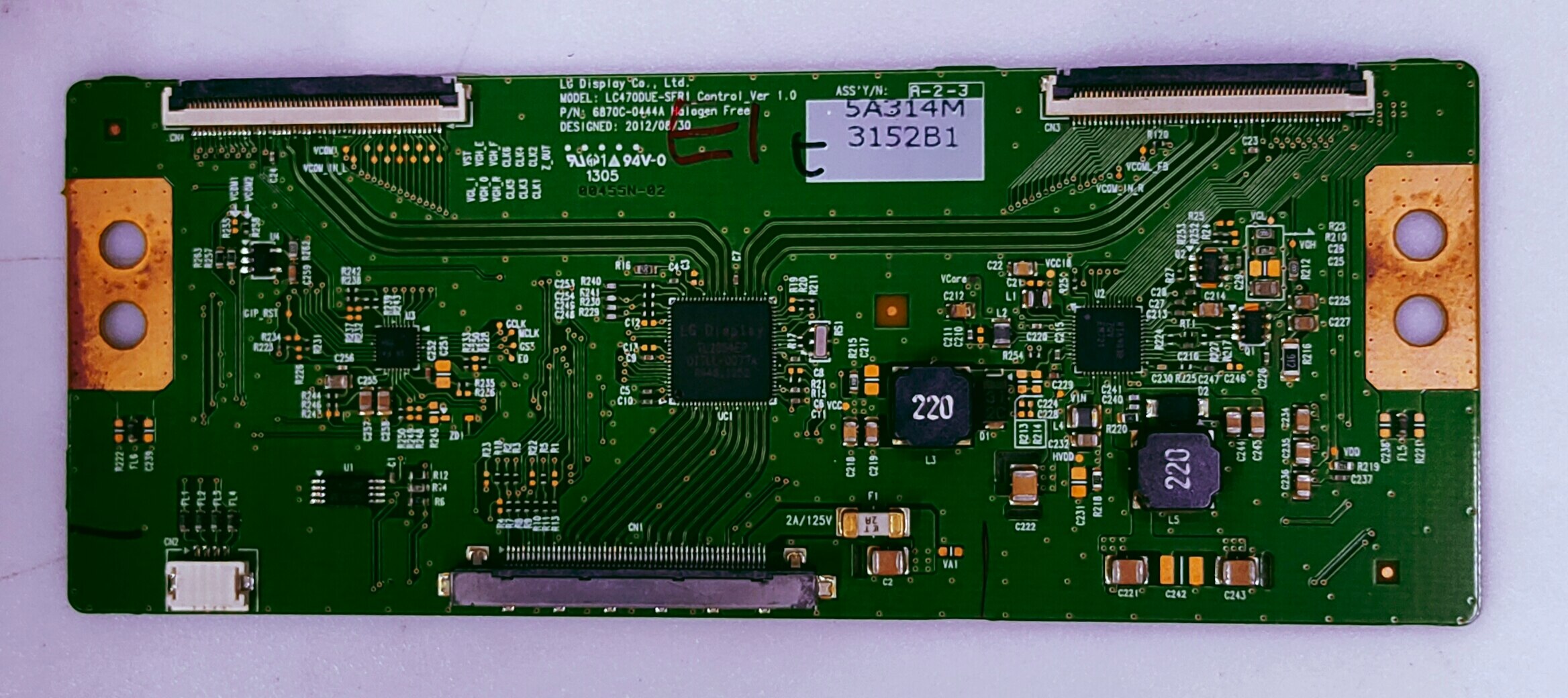

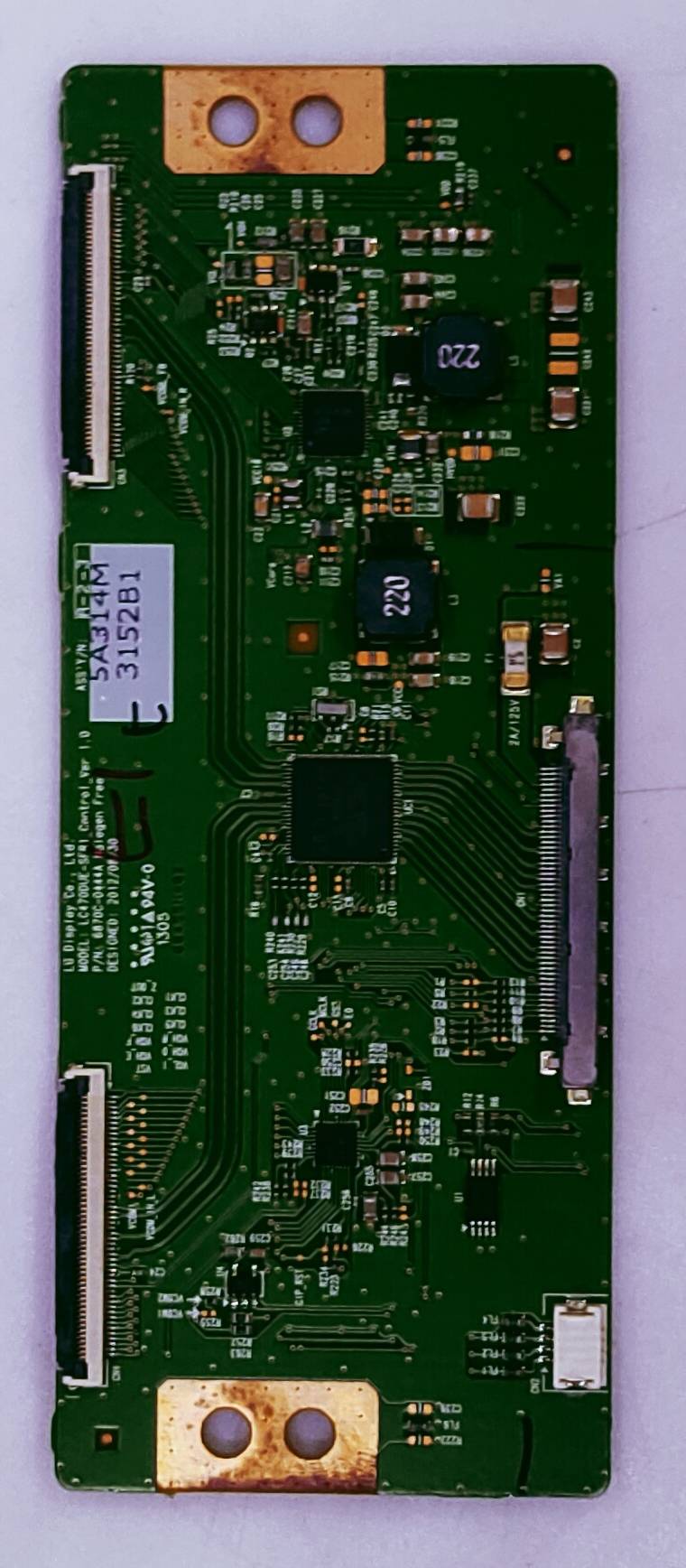

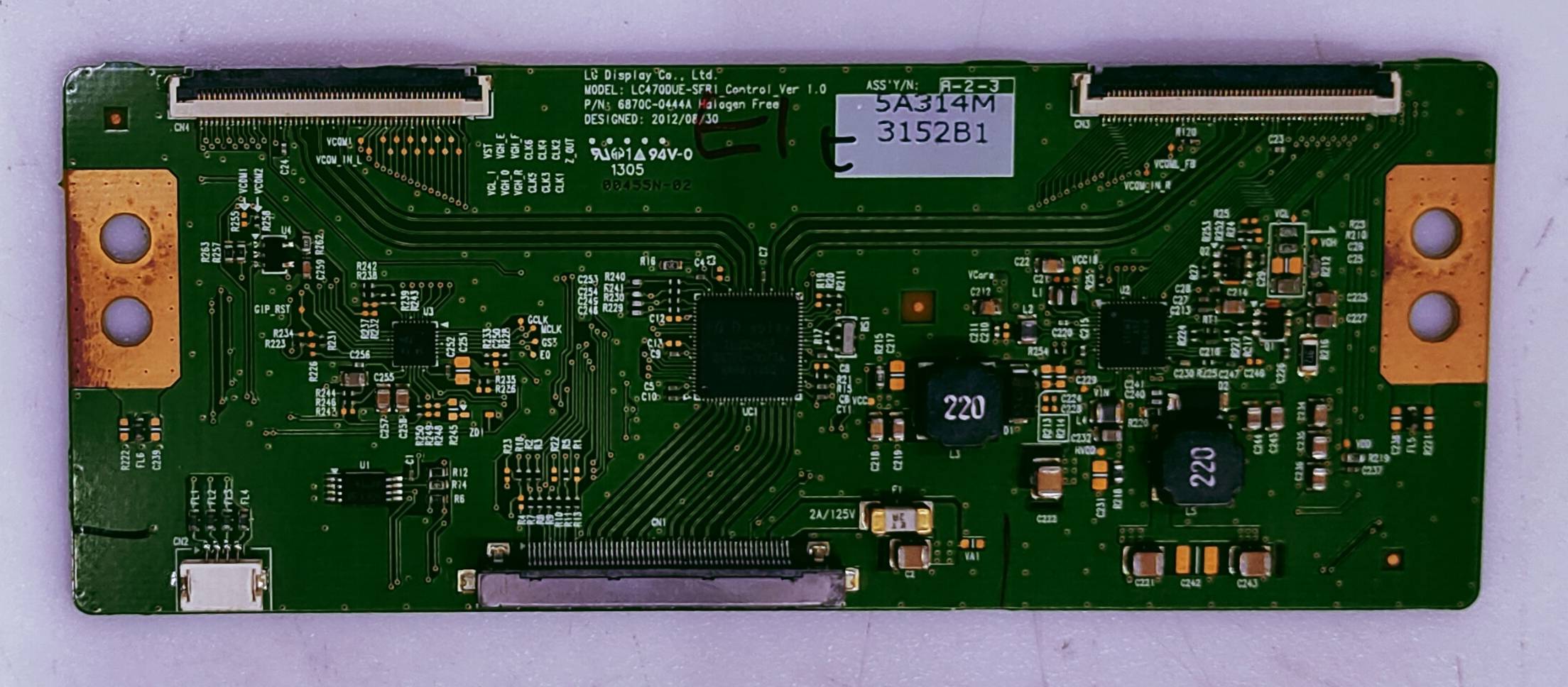

Based on the provided image, this is an LG Display T-CON (Timing Controller) board, specifically model LC470UE-SFR1 Control Ver 1.0.

Key Specifications

Part Number (P/N): 6870C-0444A

Assy Number (ASS'Y/N): 5A314M 3152B1

Design Date: 2012/08/30

Function and Details

This board is responsible for controlling the timing of the display panel, ensuring correct image data is sent to the pixels. It is generally used in LG and other brand LCD/LED televisions, with similar boards supported in screen sizes ranging from 32 to 55 inches.

Major Components: Includes a main controller chip, voltage regulators, and capacitors.

Common Voltages: Key reference points on this board include:

V IN: 12V (Main input)

VGH: +20V~+30V (Gate High Voltage)

VGL: -5V~-12V (Gate Low Voltage)

VCOM: +4V~+6V (Common Voltage).
