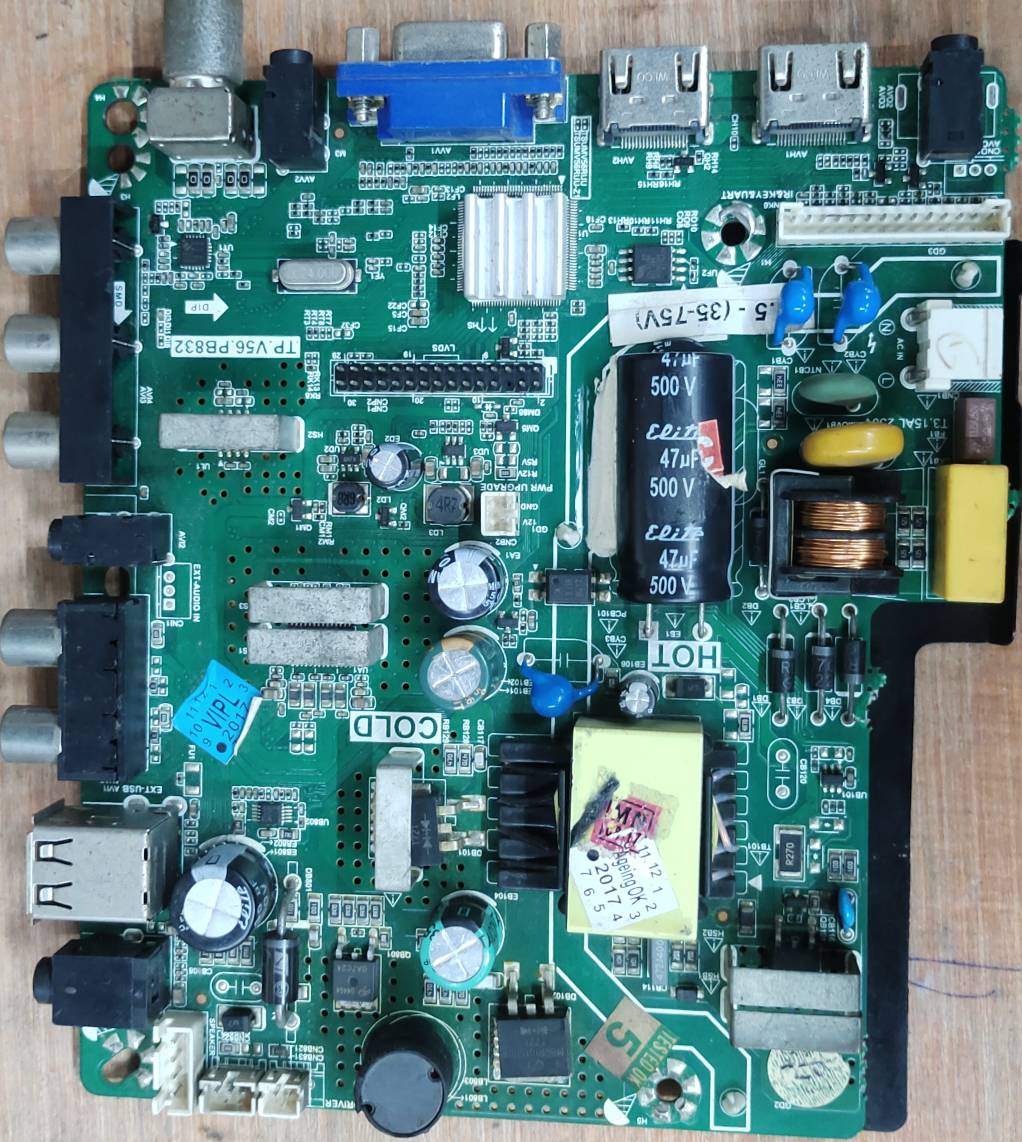

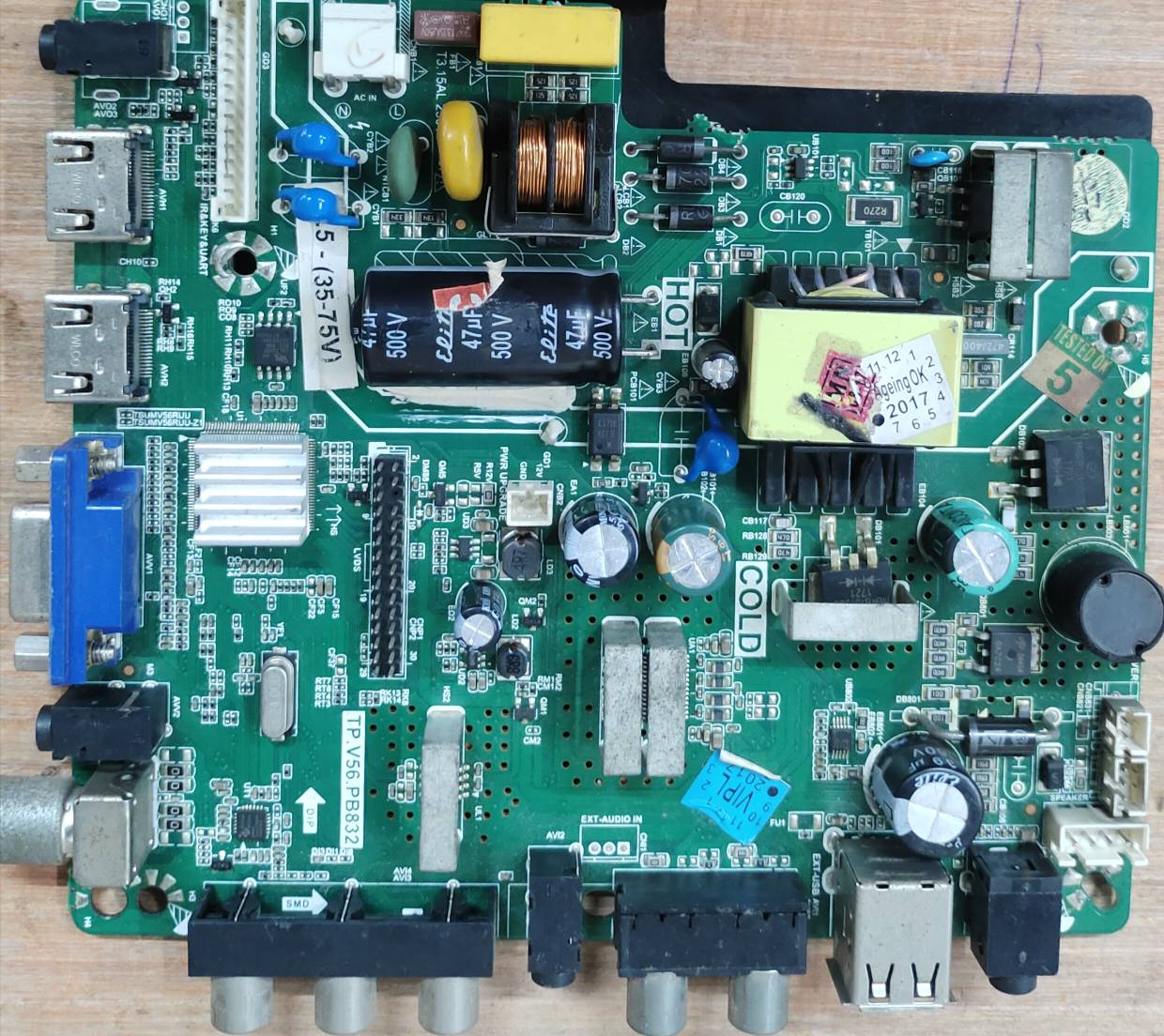

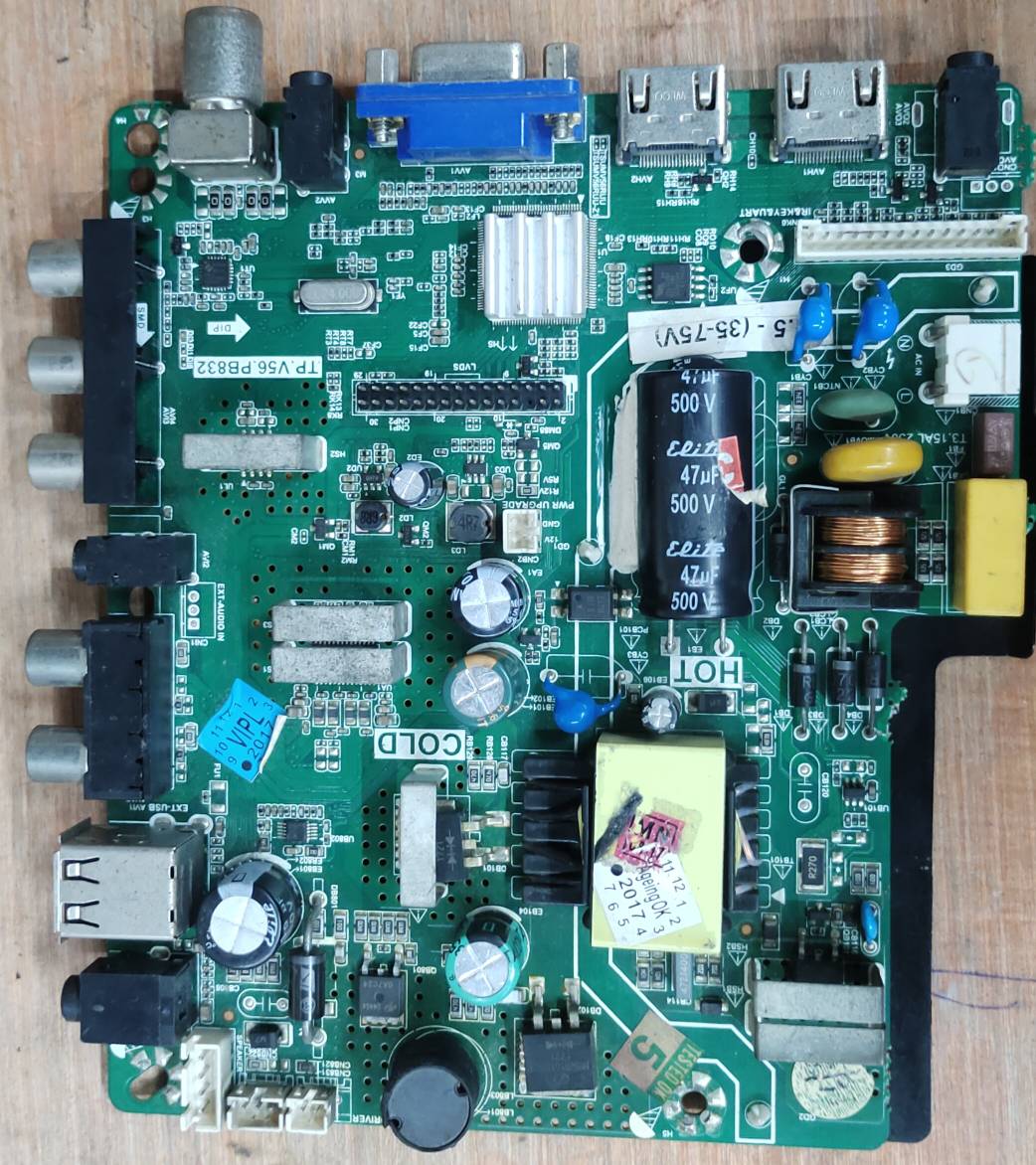

The LDE universal TP.V56.PB832 is a 3-in-1 driver board for LCD/LED TVs, supporting various input interfaces and resolutions. It's a common replacement board for other TP.V56 series boards and is often used in 32-inch TVs. The board features HDMI, VGA, AV, TV, and USB inputs, and can be programmed via USB for different screen resolutions.
Key Features:
Universal Compatibility: Designed to be compatible with a wide range of LCD/LED TV panels.
Multiple Input Interfaces: Supports PC (VGA), HDMI, AV, TV (antenna), and USB inputs.
USB Programming: Allows for firmware updates and resolution adjustments via a USB flash drive.
LVDS Interface: Supports both single and dual LVDS screen connections.
Screen Voltage Support: Can handle 3.3V, 5V, and 12V screen voltages.
Resolution Support: Can handle high-resolution screens up to 1920x1080.
Replaces other TP.V56 boards: Can be used as a replacement for TP.V56.PB816, SKR.PB816, TP.RD8503.PB816, and others.
You can watch this video to learn how to change the software, set mirror mode, and map the LVDS on an LED TV combo board:
