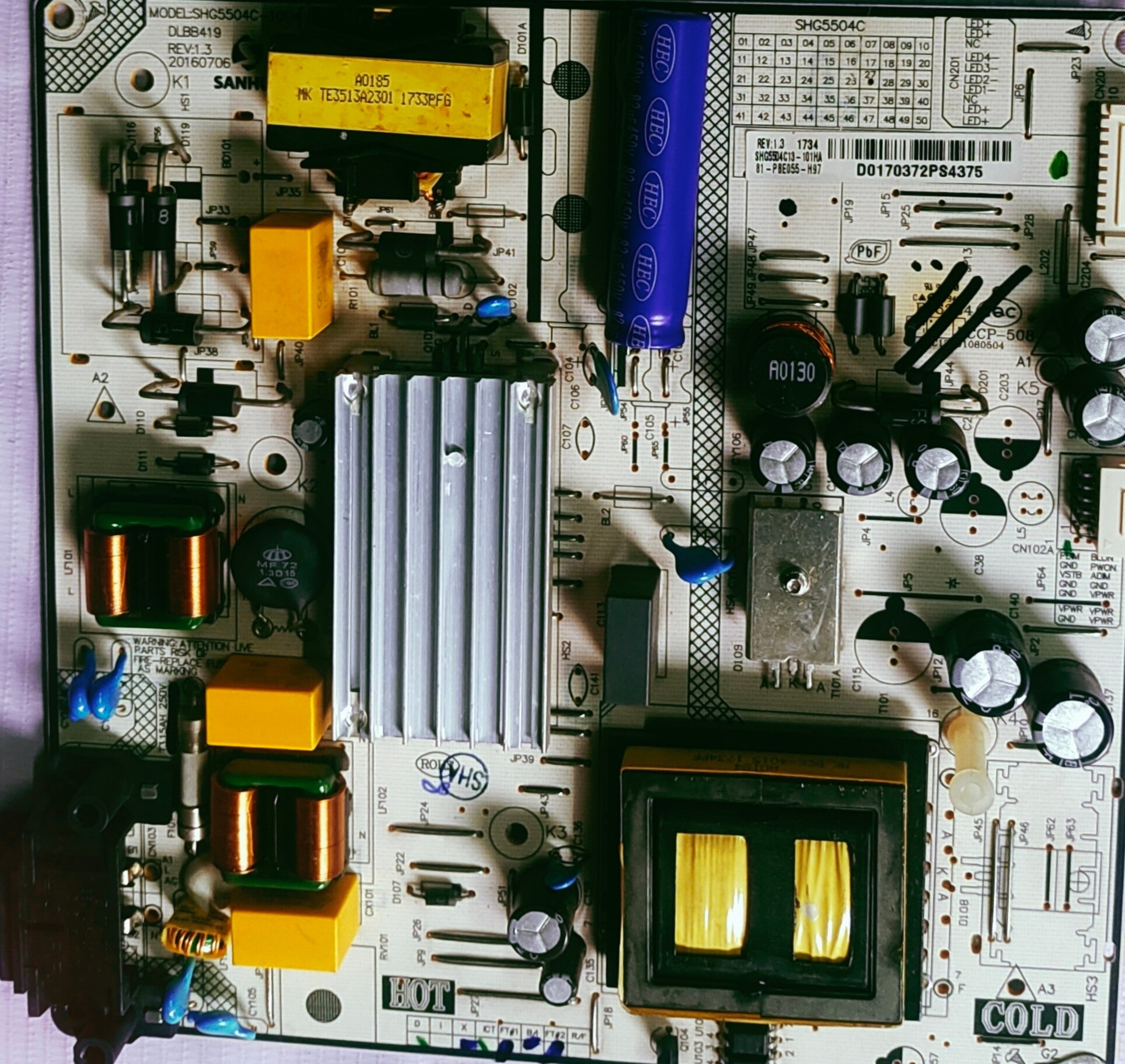

INTEX POWER SUPPLY BOARD MODEL NUMBER LED5001FHD The LED5001FHD SMPS (Switched-Mode Power Supply) board is the power supply for the Intex LED 5001FHD TV. It converts the AC input voltage to the DC voltages needed to power the various components of the TV, including the main board, backlight, and other circuitry. Here's a more detailed breakdown: Function: The SMPS board takes the incoming AC power from the wall socket and converts it into multiple DC voltages (e.g., 12V, 24V, 5V) required to operate the TV's different sections. Key Components: SMPS boards typically include components like transformers, rectifiers, filters, switching transistors, and control ICs. Failure Symptoms: A faulty SMPS board can cause a variety of issues, such as the TV not turning on, a blinking power LED, or the TV shutting off after a short period. Replacement: If the SMPS board fails, it will likely need to be replaced with an identical or compatible one. Compatibility: SMPS boards are specific to TV models and must be compatible with the TV's main board and other components. When troubleshooting or replacing an SMPS board, it is crucial to: Identify the exact model number: The model number (e.g., LED5001FHD) is important for finding a compatible replacement. Refer to the part number: The part number (if available) will help identify the correct replacement part. Seek professional help: If you are not experienced with electronics repair, it is recommended to seek assistance from a qualified technician. For the Intex LED5001FHD, the SMPS board is responsible for providing the necessary power to the TV's main board, which handles the processing of video and audio signals, as well as the smart features.
