HITACHI POWER SUPPLY BOARD
MODEL NUMBER
LD55VRSOLU

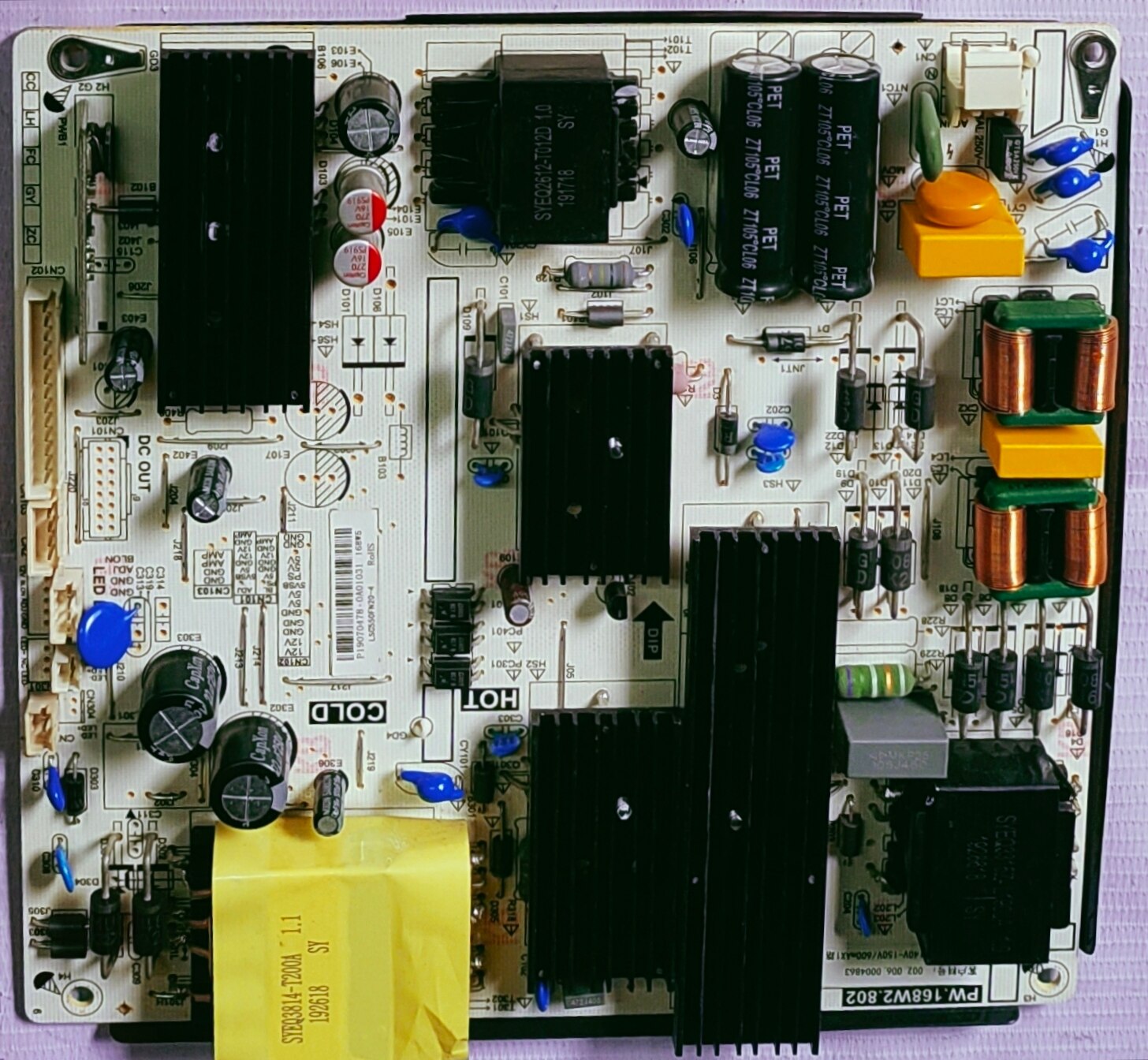

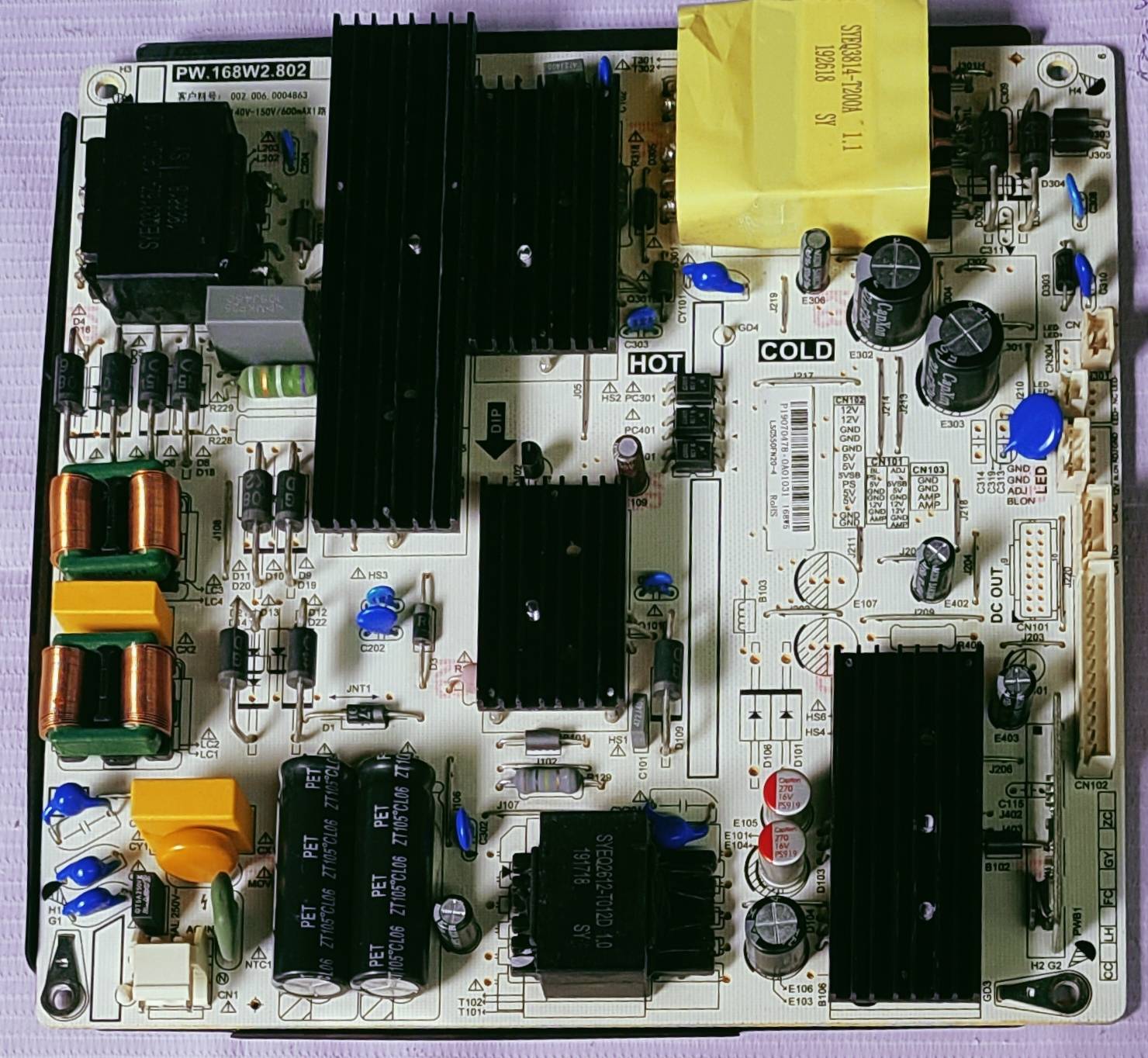

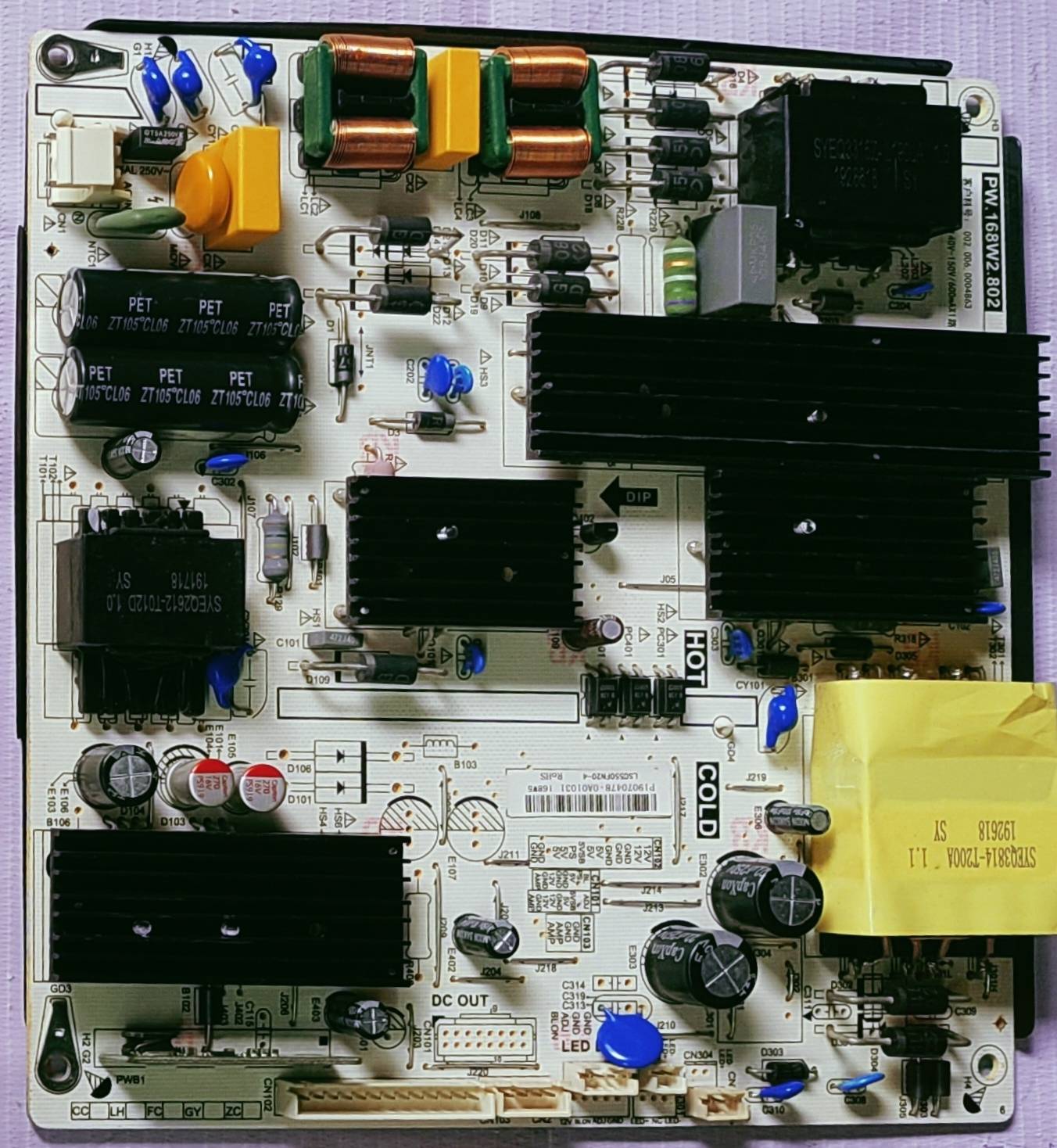

The image displays a circuit board, likely a power supply board for an electronic device, indicated by the text "PW.168W2.802" and "DC OUT".
Components:
The board features various electronic components, including capacitors (labeled "PET"), inductors (the green and yellow rectangular components), heat sinks (the black finned components), and integrated circuits.
Designations:
Sections are marked "HOT" and "COLD," indicating separation for safety and thermal management.
Connectors:
Several connectors are visible, such as "CN101," "CN102," and "CN103," which are used for input power, output to the device, and potentially other connections like LED indicators.
Model Information:
The text "STEQ3814-T200A 1.1" and "PW.168W2.802" likely represent model or part numbers for the board.
Application:
Given the components and designations, this board likely converts AC power to DC power for use in a television or similar electronic
