HAIER LED TV TCON N2TP430FHDLV2D-F_K0 Panel Number CC430LV1D CC430LV2D

HAIER LED TV TCON

TCON PART NUMBER

N2TP430FHDLV2D-F_K0

PANEL NUMBER

CC430LV1D CC430LV2D

Digital Electronics Services

pune maharashtra

9850791757

9763720390

(All India (COD) Cash on Delivery Service Available

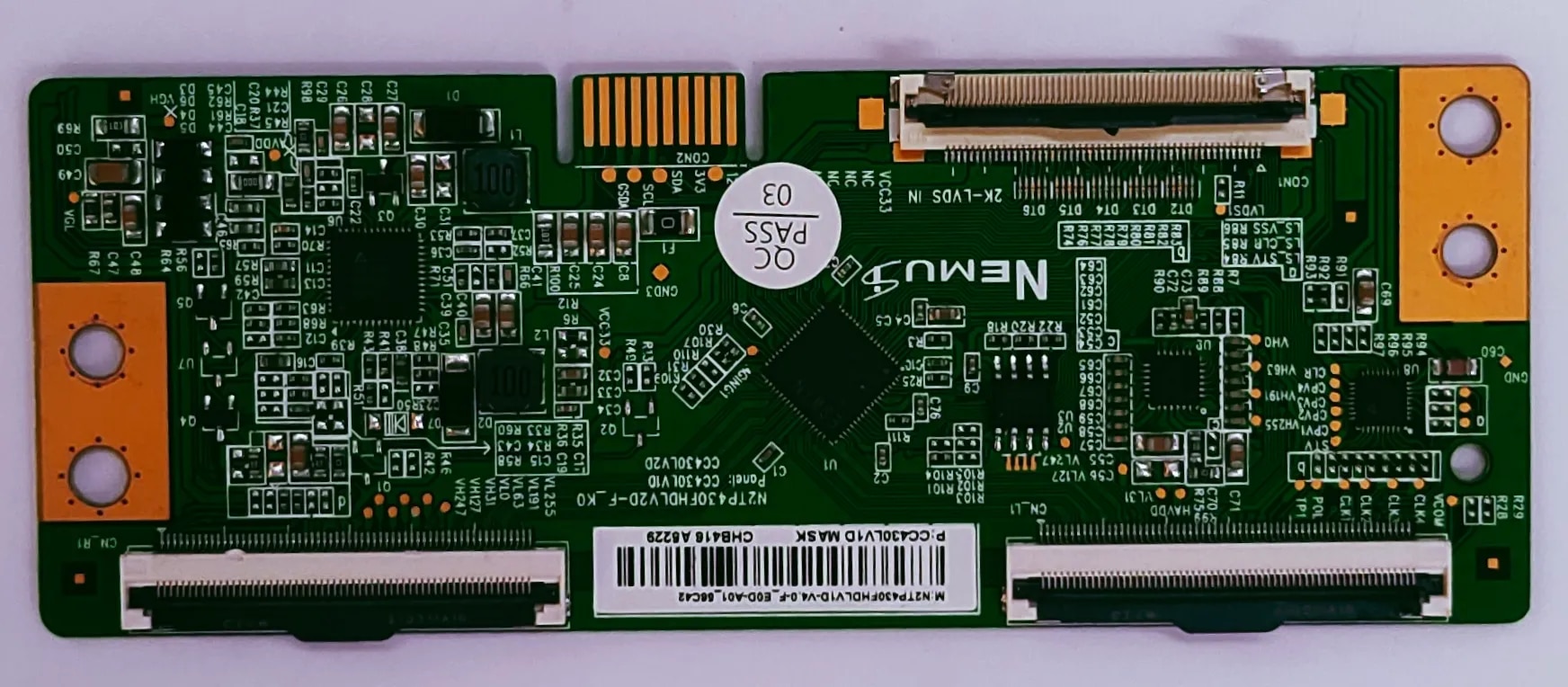

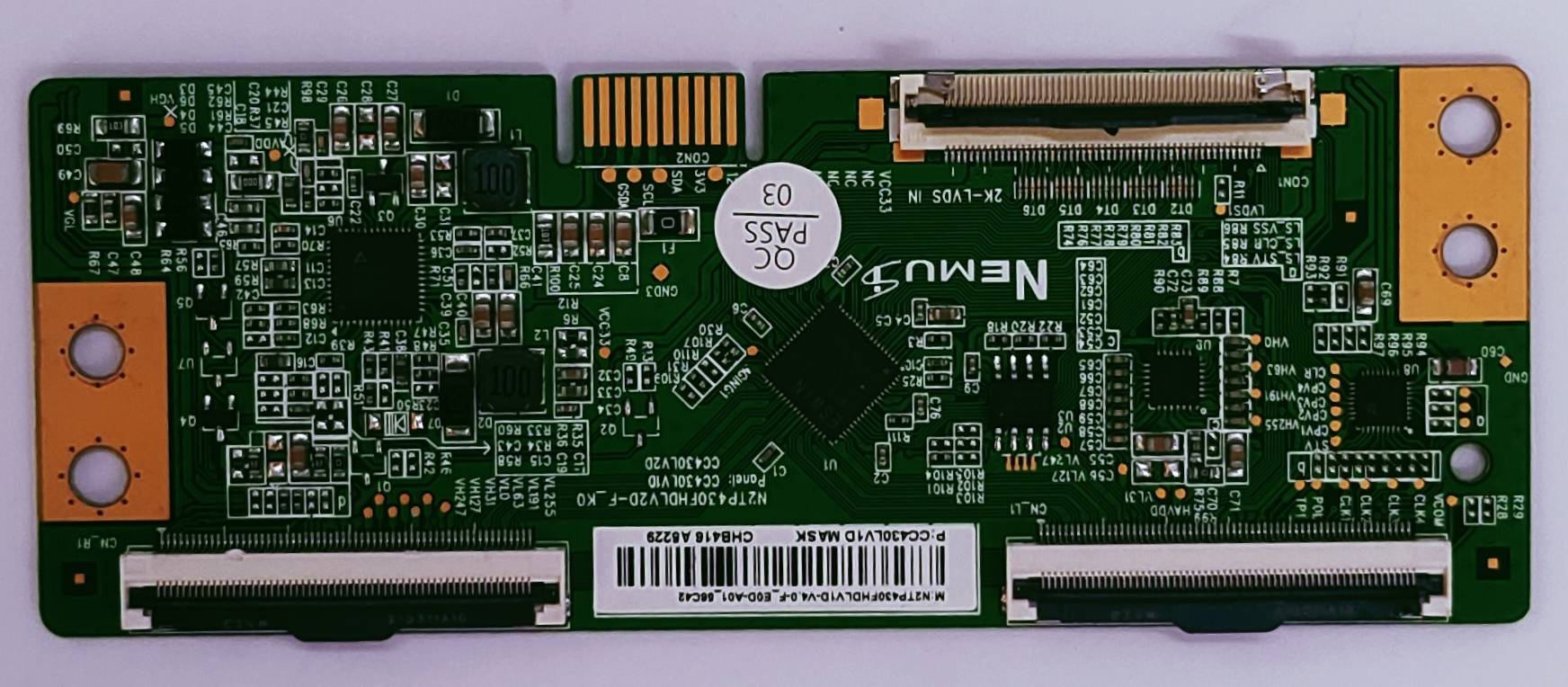

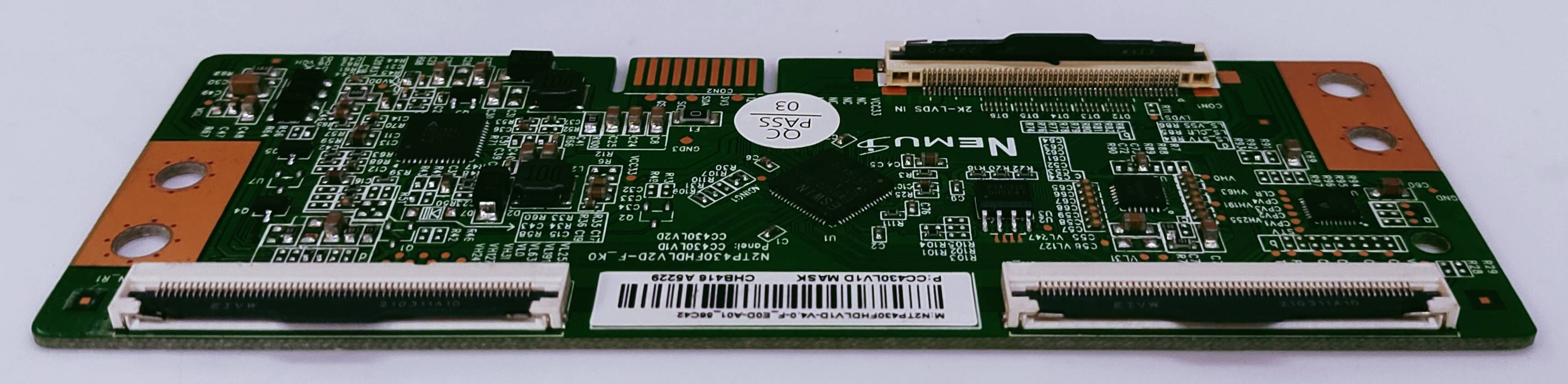

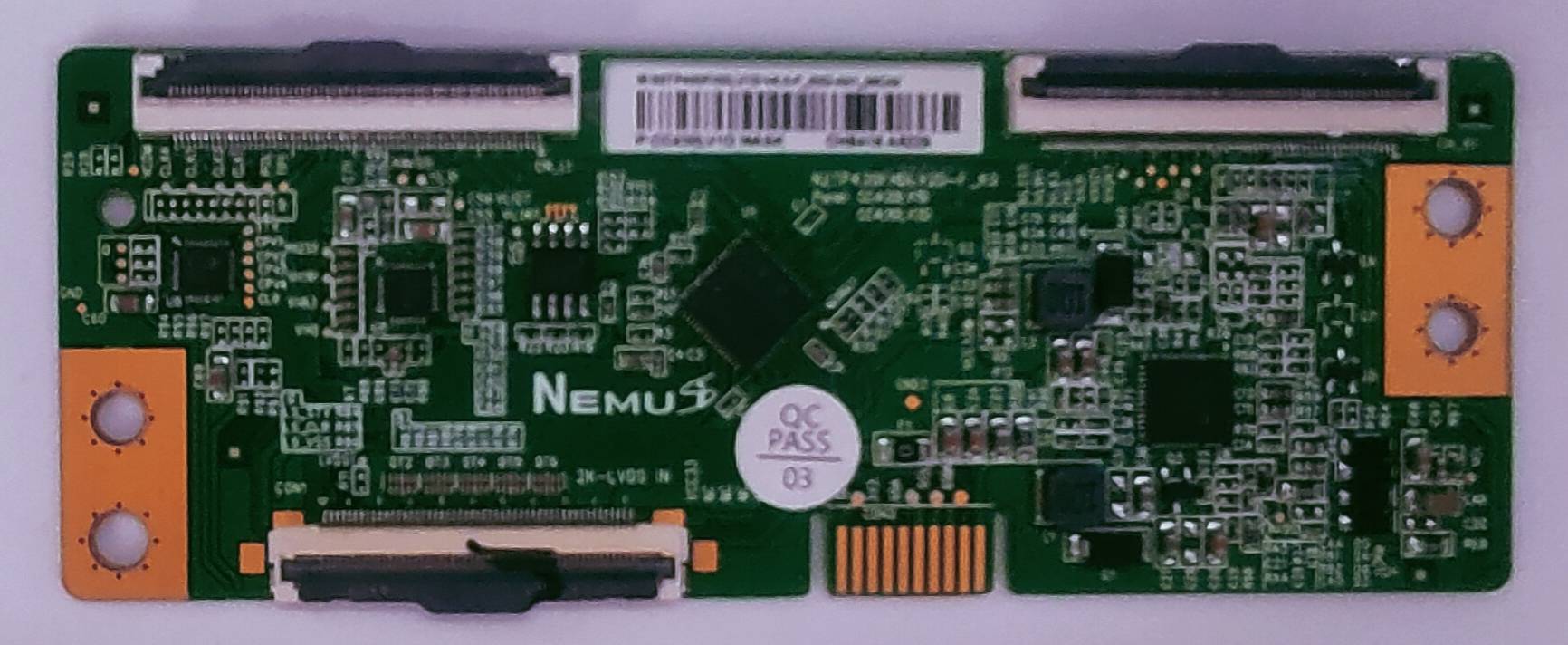

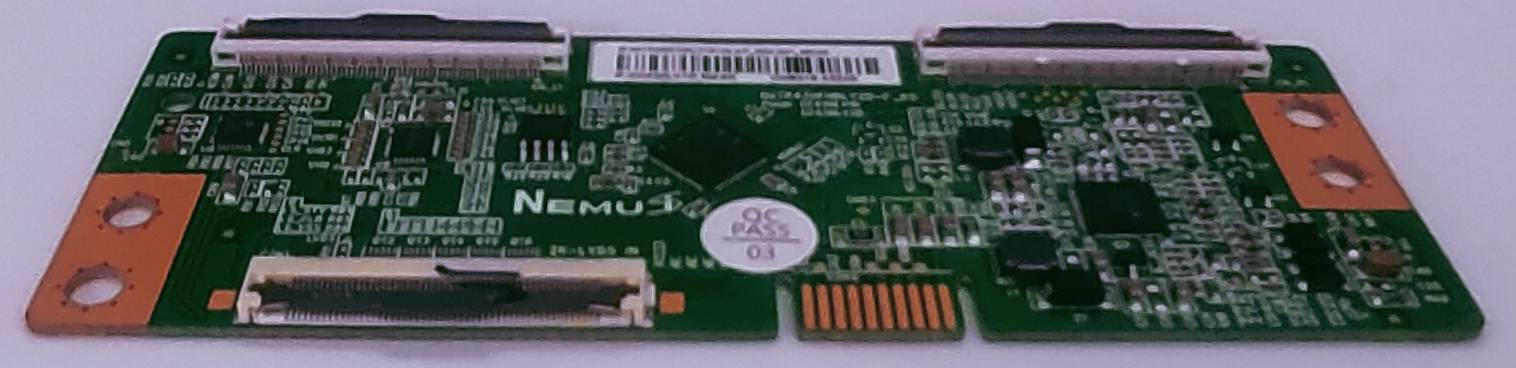

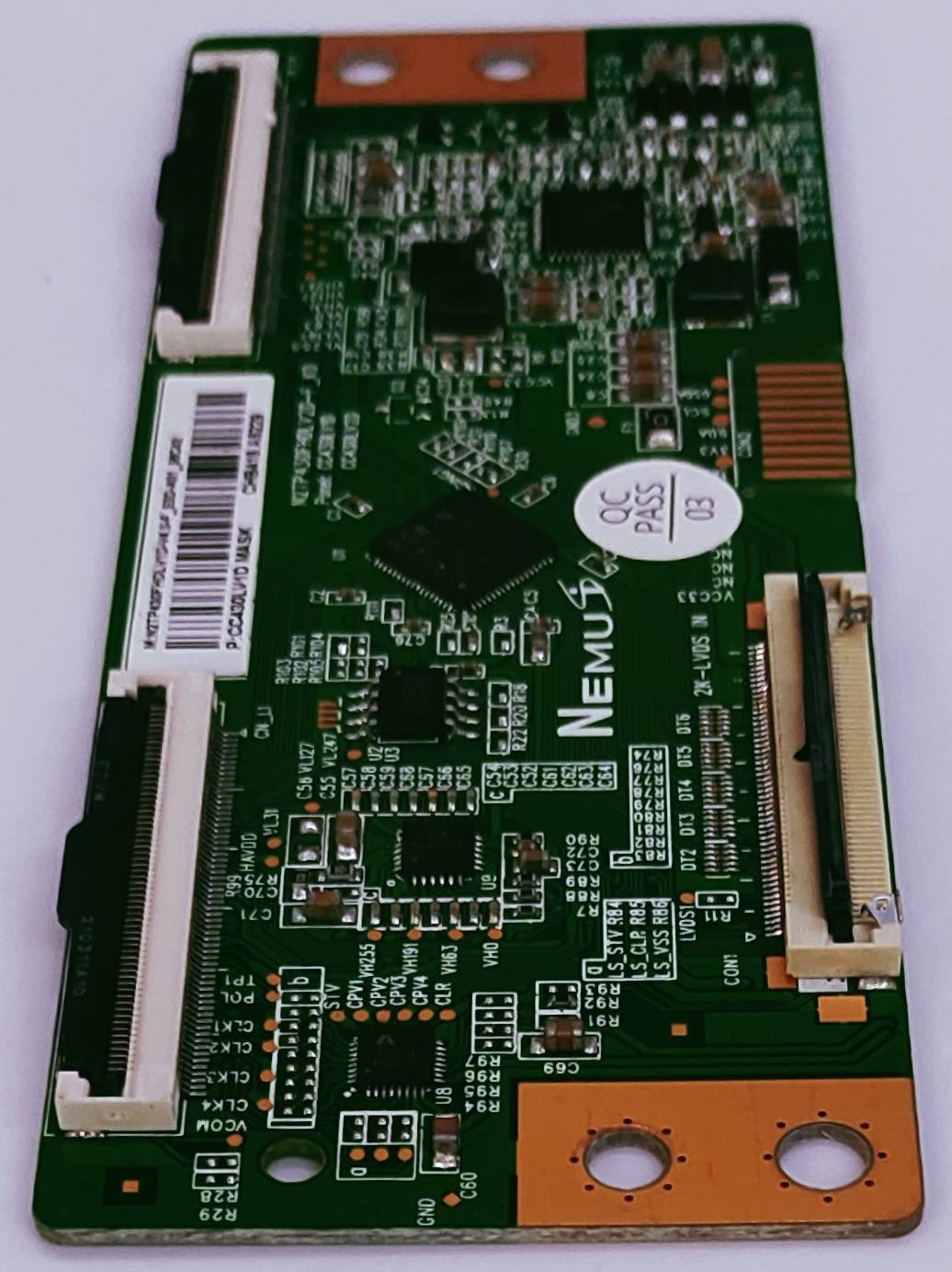

The T-CON (Timing Controller) board shown in the image is a critical component for driving 43-inch LED TV display panels. It acts as the "brain" of the display, converting video signals from the main board into a format the LCD panel can read

Board Specifications

Based on the markings in your image, here are the key identifiers for this specific board:

Model Number: N2TP430FHDLV2D-F_K0

PCB/Mask Version: CC430LV1D MASK (as seen on the white label)

Brand: NEMUS (a universal brand for T-CON boards)

Panel Compatibility: Specifically designed for 43-inch smart TV panels, including DX Light models.

Compatibility and Common Applications

This board is a common replacement part for various 43-inch smart TVs. Known compatible brands and models include:

Haier: 43-inch Smart TV models with DX Light panels.

Xiaomi (Mi): Model L43M6-ES and other 43-inch variations.

Other Brands: Often found in televisions from Intex, TCL, Croma, and Micromax.

Troubleshooting & Symptoms

If you are looking for these details due to a TV fault, a failing T-CON board typically causes the following issues:

No display while the sound still works.

Vertical or horizontal lines appearing on the screen.

Double images, flickering, or distorted colors.

White screen or half-screen display issues.
