HAIER 43" LED TV TCON PART NUMBER CC430LV1D.2K

HAIER LED TV TCON

MODEL NUMBER

43" INCH TCON

TCON PART NUMBER

CC430LV1D.2K

Digital Electronics Services

pune maharashtra

9850791757

9763720390

(All India (COD) Cash on Delivery Service Available

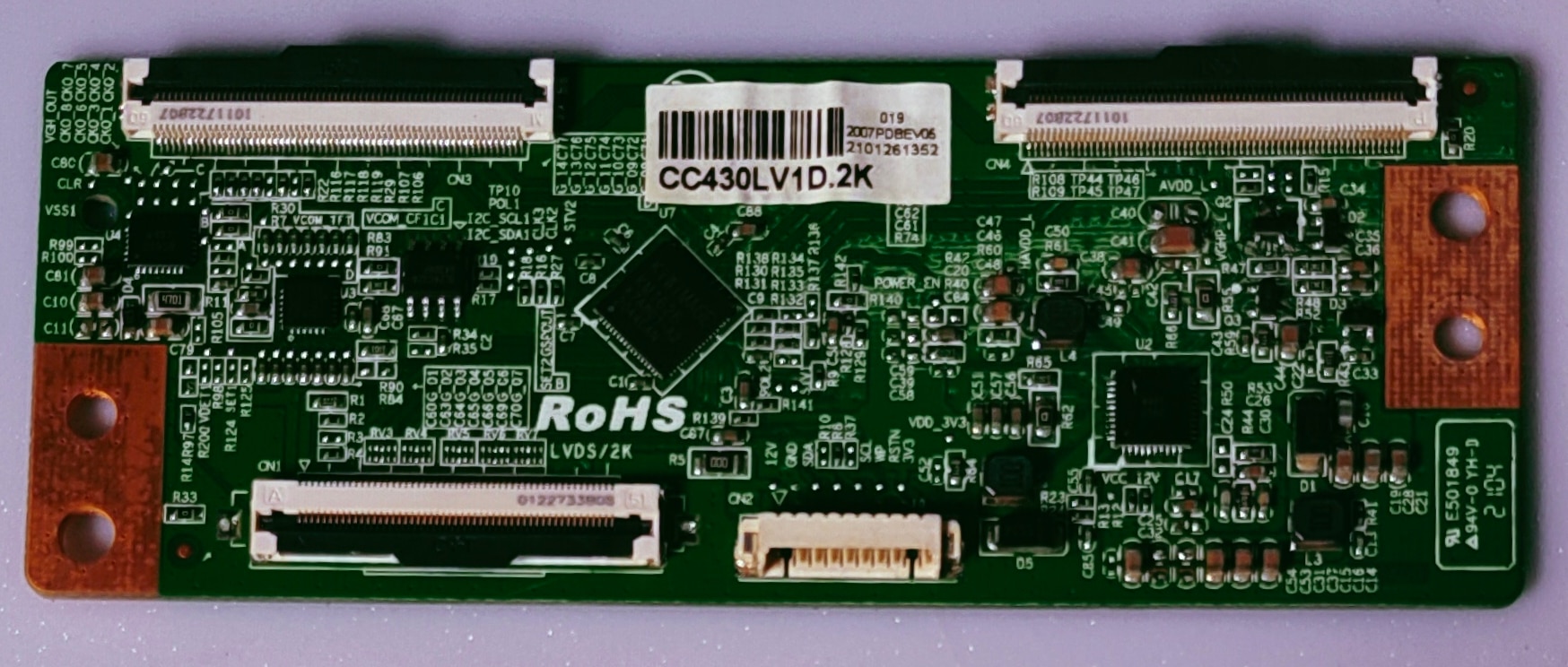

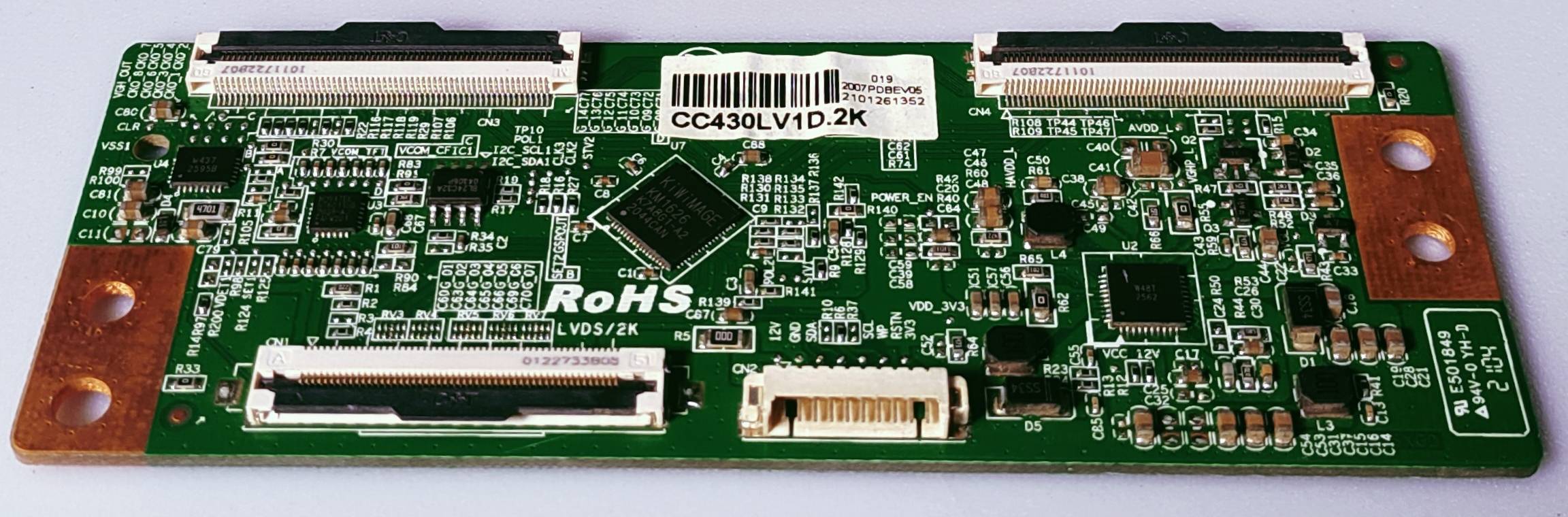

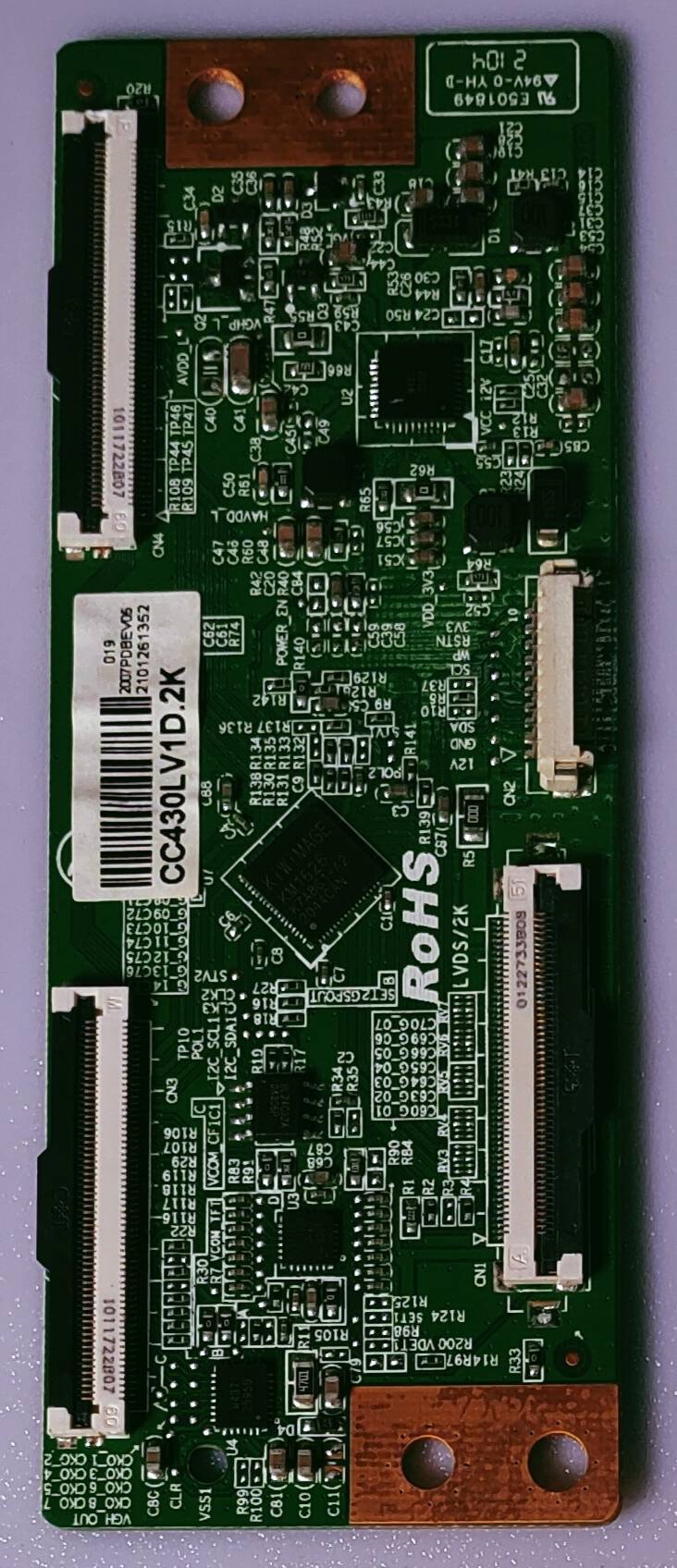

The T-Con board in the image is a Vizio T-Con board with the board number CC430LV1D.2K (also associated with CC430LV2D and part number BOE_CC430LV2D_43001).

Here are details about this specific T-Con board and T-Con boards in general:

Function: A T-Con (timing control) board converts the video signal received from the main board and sends it to the LCD panel to display the image correctly.

Compatibility: This specific board is designed for use in Vizio 43-inch LED TVs, such as model D43f-J04.

Role in Picture Quality: The T-Con board significantly affects picture quality by managing how signals are sent to the screen, ensuring vivid colors and sharp images.

Troubleshooting Symptoms: Issues such as distorted images, visible lines (horizontal lines are usually not the T-con's fault), frozen frames, or a picture that doesn't appear despite a working backlight often point to a T-Con board problem.

Technology: The board uses LVDS (low voltage differential signaling) to communicate with the panel.
