AUO TCON T420XW01 V5 CTRL BD LED TV FHD PART NO. TT-5542T01046
Description
AUO TCON LED TV FHD
MODAL NO.
T420XW01 V5 CTRL BD
PART NO.
TT-5542T01046
Digital Electronics Services
pune maharashtra
9850791757
9763720390
(All India (COD) Cash on Delivery Service Available

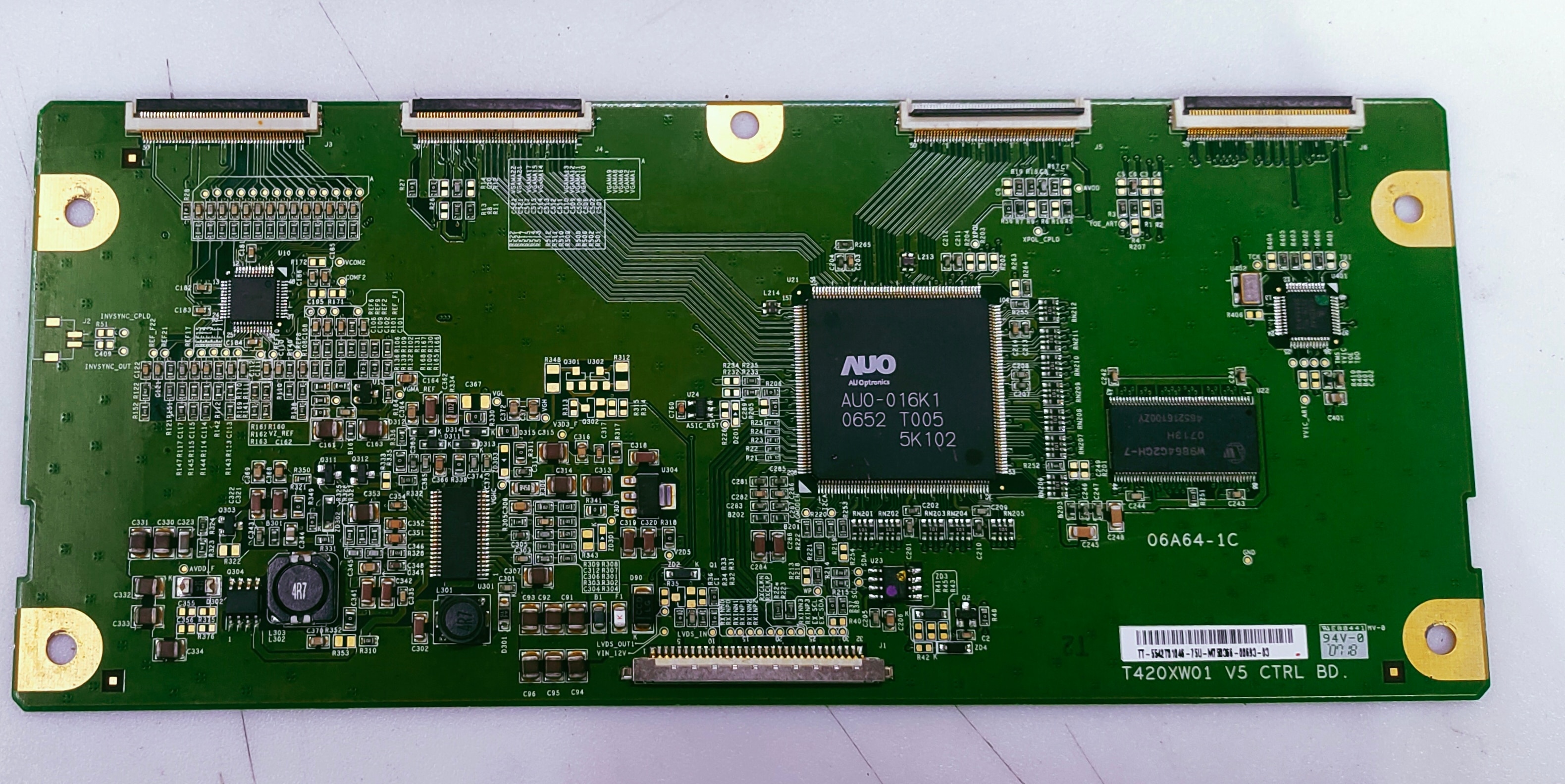

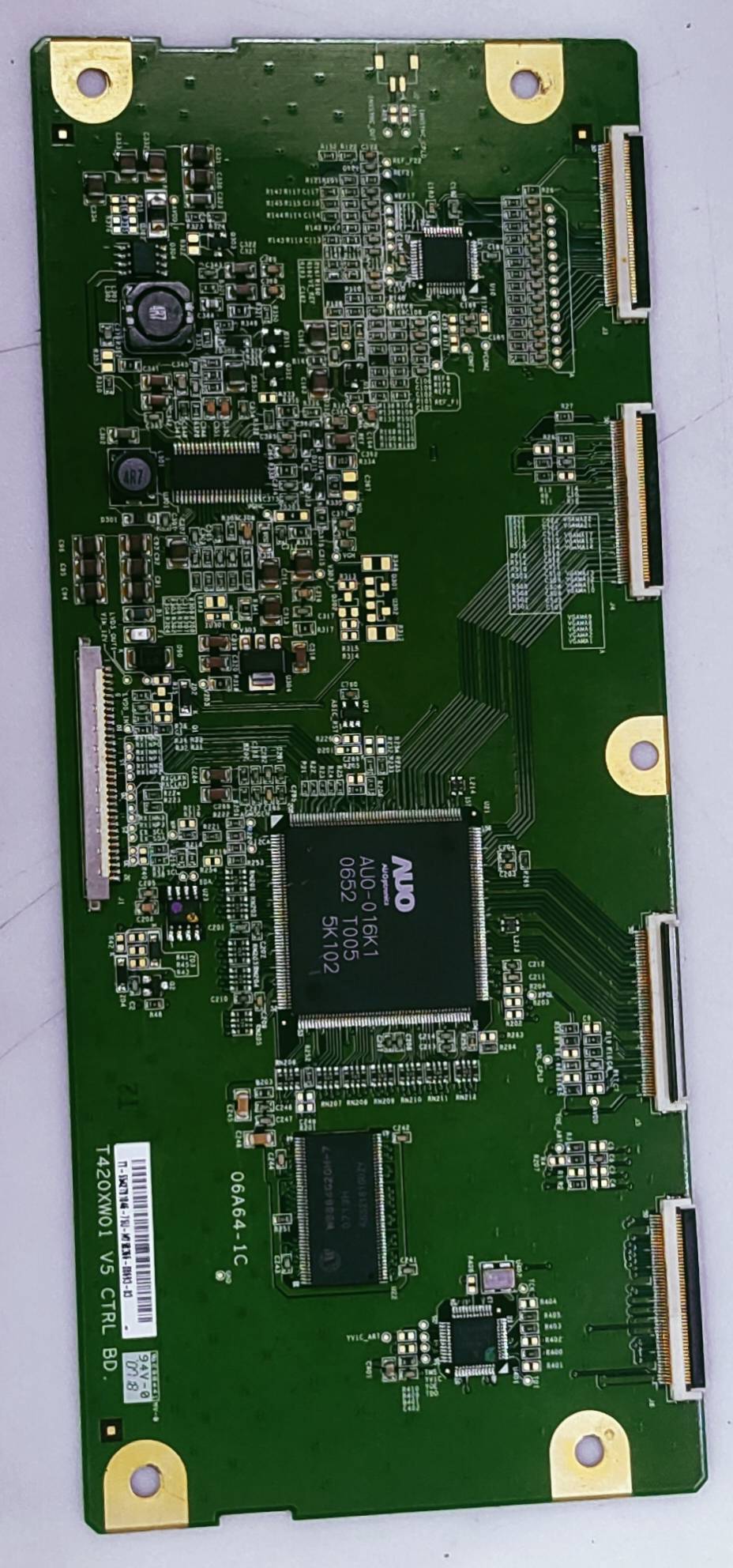

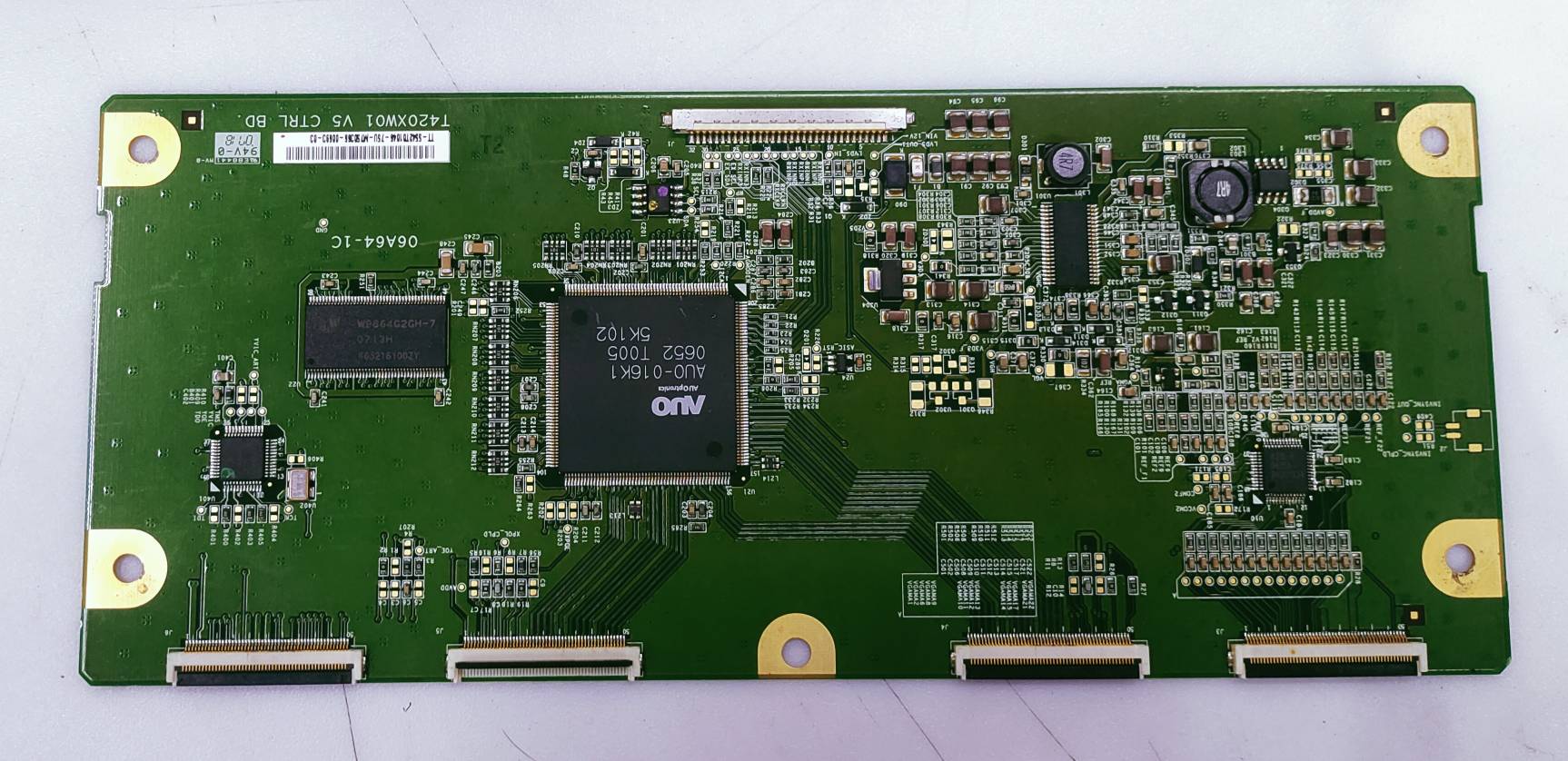

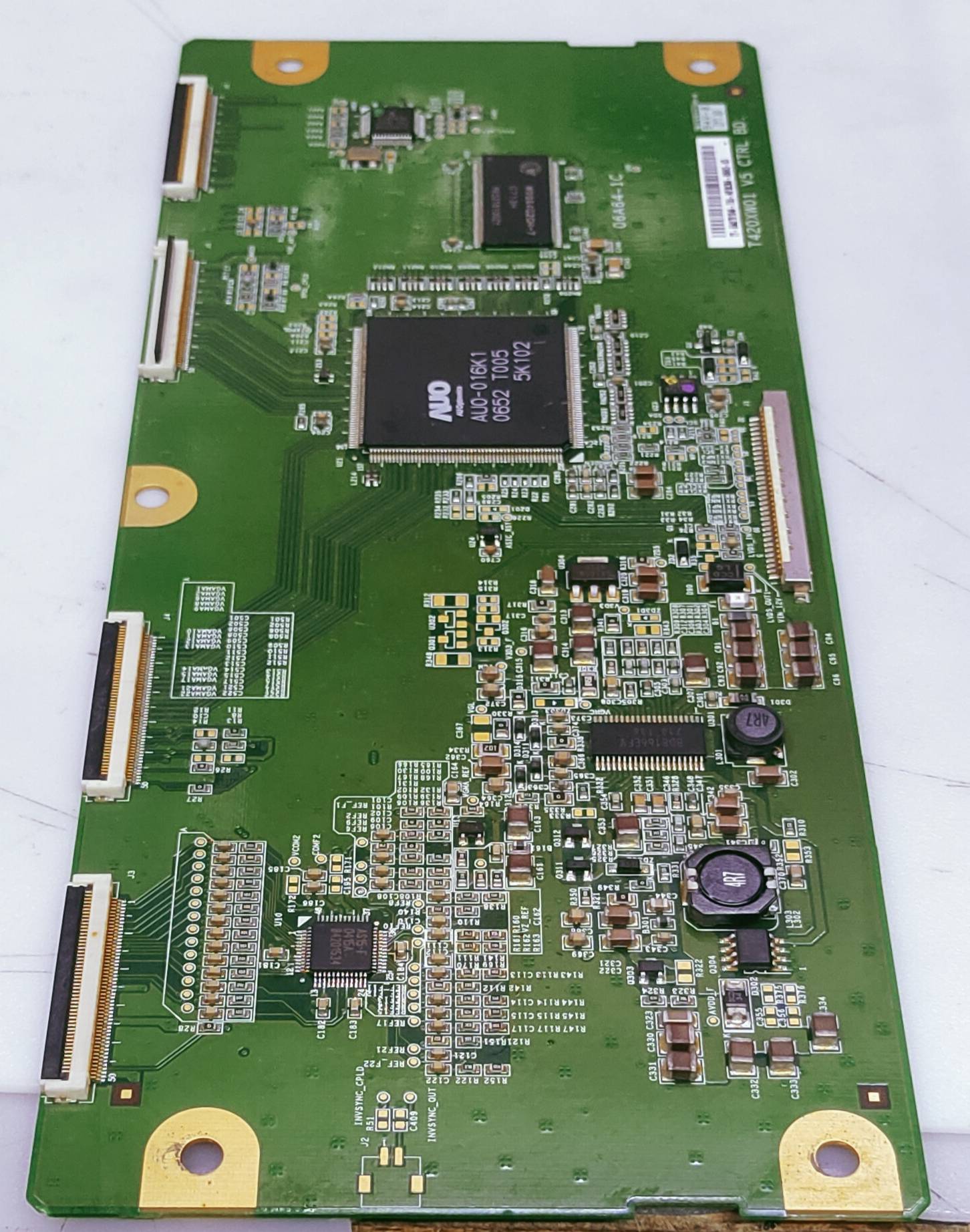

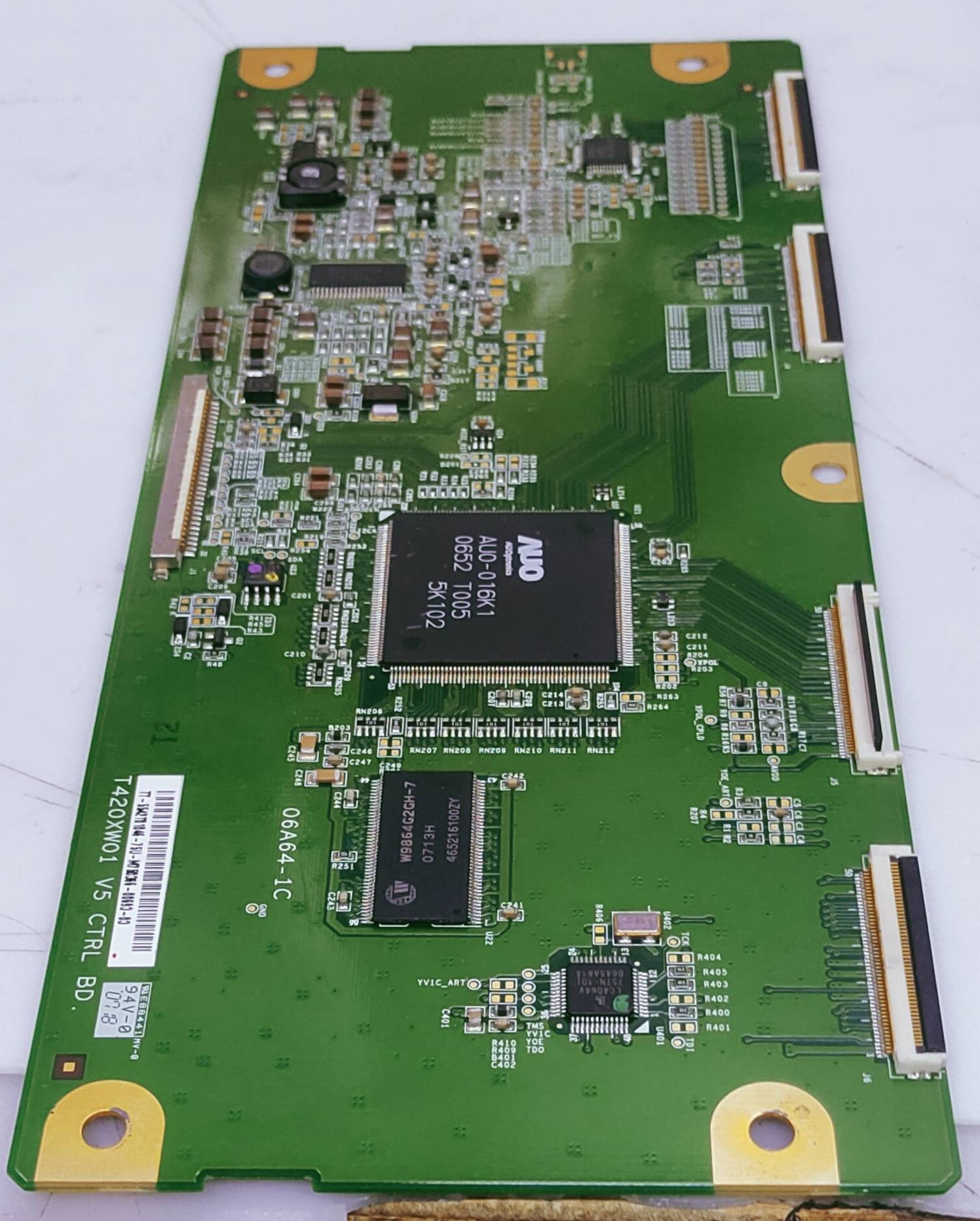

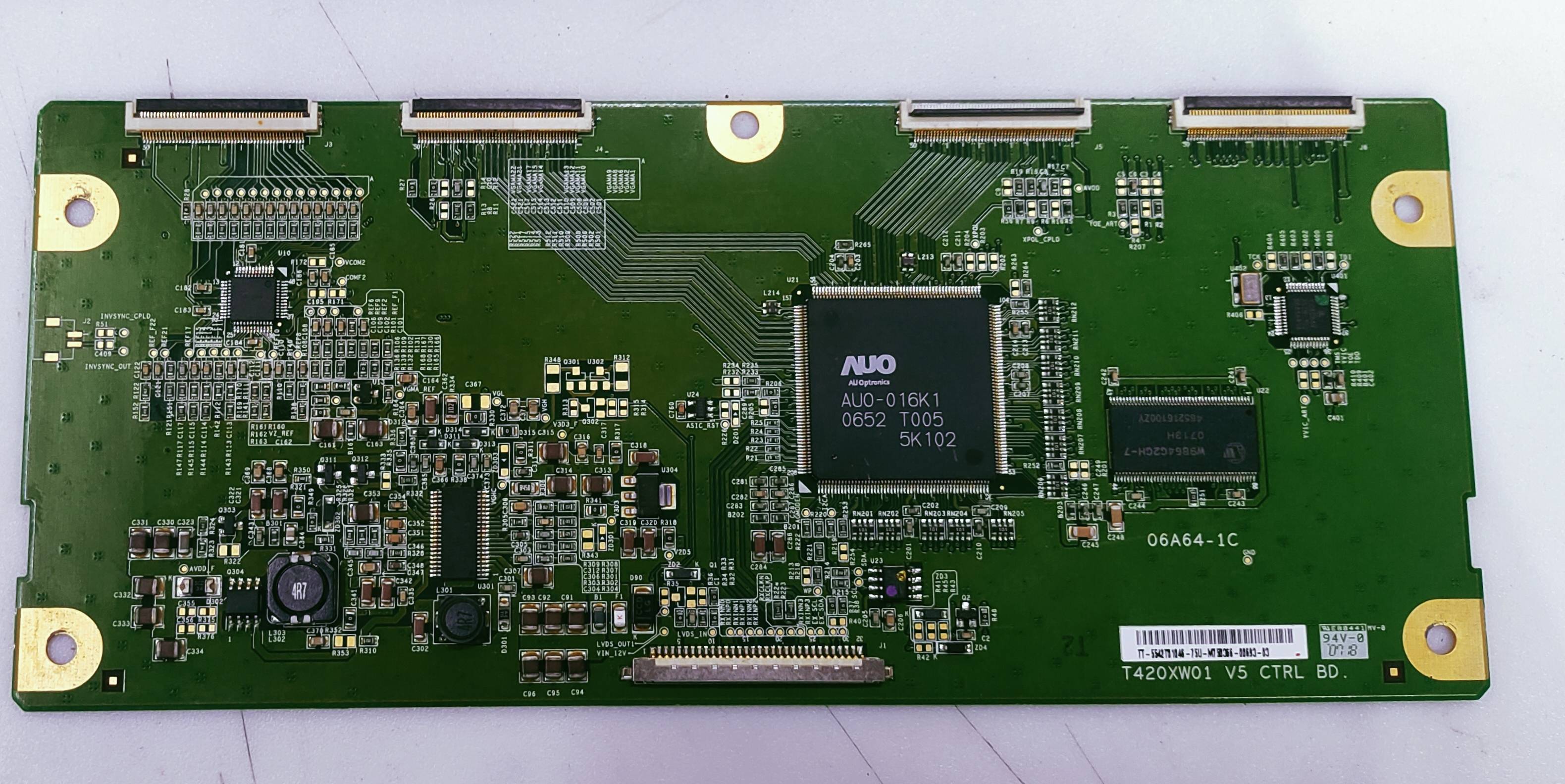

This circuit board is an AUO T-Con Board (Timing Controller), specifically model number T420XW01 V5, which is critical for controlling image data on LCD television screens.
Key Specifications and Details
Part Number: T420XW01 V5
Alternative Part Number: 55.42T01.046
Board ID: 06A64-1C
Compatible Brands: This board is compatible with various TV brands, including Toshiba (e.g., model 37A3000E), Beko, and Akai.
Function: It converts video signals from the main TV board into precise timing pulses to activate pixels on the display panel.
Troubleshooting
Symptoms of Failure: A faulty T-Con board often results in issues such as no picture, vertical lines, or discolored images.
Note on Lines: Horizontal lines on a screen are generally not caused by a bad T-con board; they usually indicate a defective panel.
