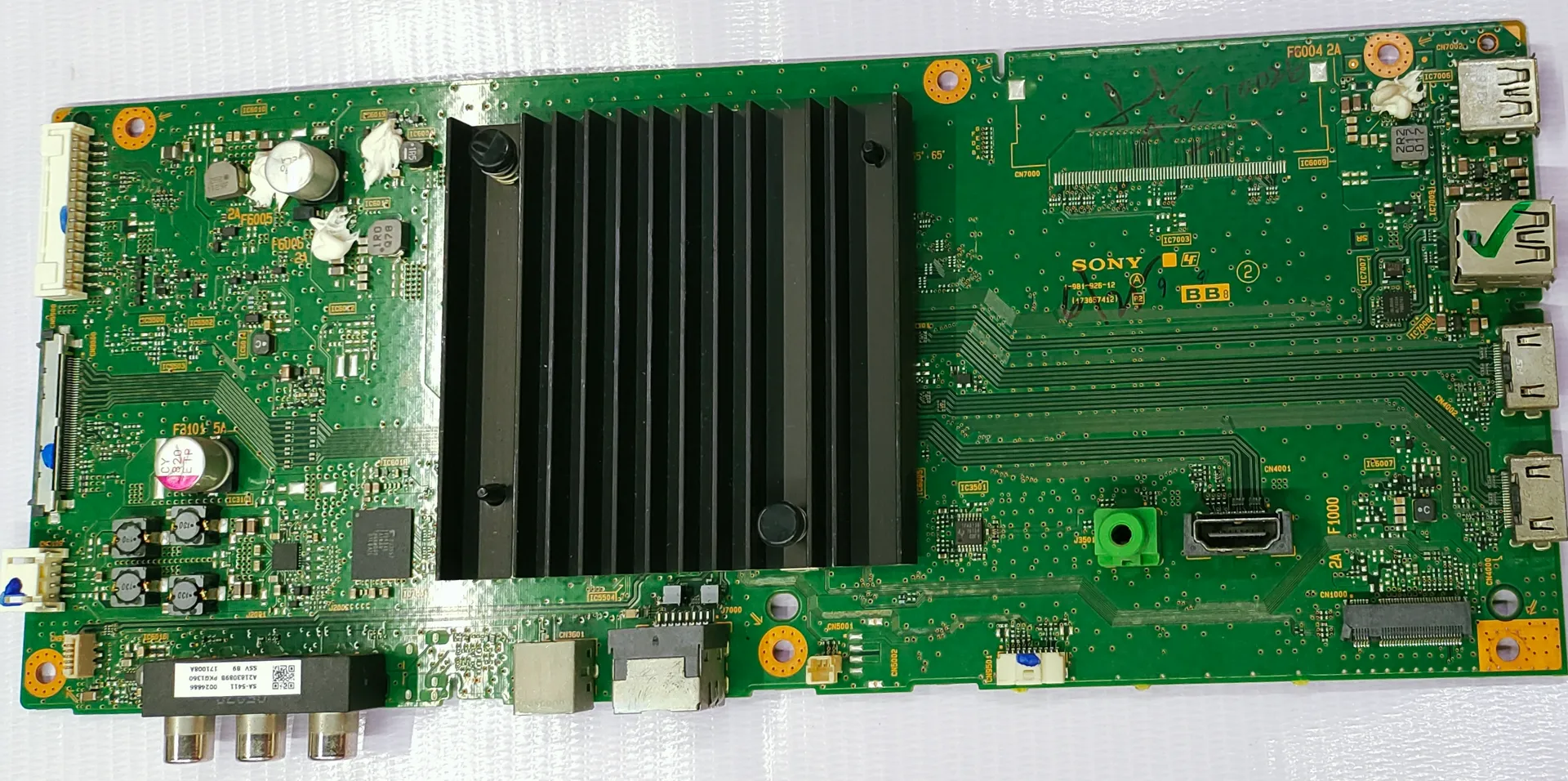

SONY 4K ANDROID MOTHER BOARD
MODEL NUMBER
KD-43X7002E
The Sony KD-43X7002E is a 43-inch 4K UHD LED Smart TV from 2017. Its main board, also known as the motherboard or PCB, serves as the central hub connecting all other components. This board facilitates communication between the display, audio, and various input/output ports like HDMI, USB, and composite video.
Here's a breakdown of the main board's functions and related information:
Key Features & Connectivity:
Display: The TV boasts a 4K UHD LED display with a resolution of 3840 x 2160.
Operating System: It runs on a Linux-based operating system.
Connectivity: The main board provides connectivity for:
3 HDMI inputs (including HDCP 2.2 support)
1 composite video input
1 digital audio output
1 audio/headphone output
3 USB ports
Wi-Fi (802.11b/g/n)
Ethernet (LAN) port
Audio: The TV features 20 watts of sound output.
USB Playback: Supports various video and audio codecs for playback from USB drives.
BRAVIA Sync (HDMI-CEC): Enables control of compatible devices connected via HDMI.
Components and Related Parts:
Motherboard/Main Board: This is the central PCB that connects all the TV's components.
T-Con Board: This board is responsible for driving the LCD panel and ensuring proper image display.
LED Driver Board: This board powers and controls the LED backlighting.
In essence, the main board is the core of the TV, enabling all its functionalities and connections. When troubleshooting or replacing parts, understanding the main board's role is crucial
SONY 4K ANDROID KD-43X7002E MOTHER BOARD
