Samsung Led Tv T-con
Model No.
UA32F5100AR
Part No.
BN96-25509A
Digital Electronics Services
pune maharashtra
9850791757
9763720390
(All India (COD) Cash on Delivery Service Available)

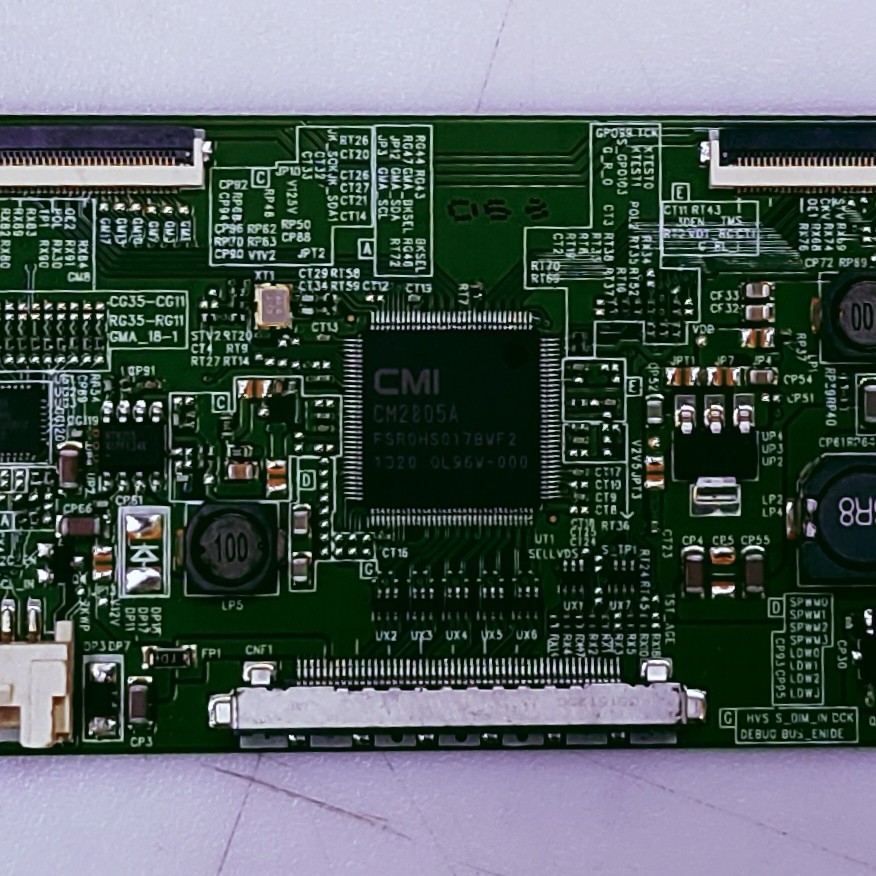

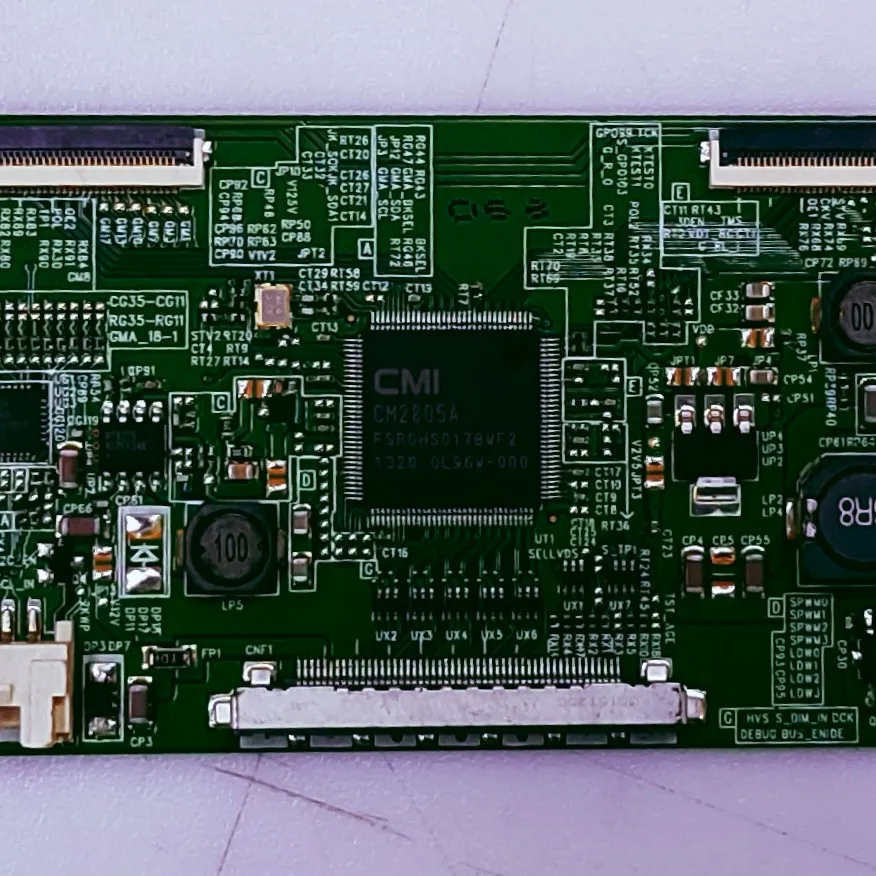

This is a Chimei Innolux V390HJ4-CE1 T-Con (Timing Controller) board, which is a critical component used in LED television panels to translate video signals into pixel driving signals.
Key Specifications & Features
Part Number: V390HJ4-CE1.
Manufacturer: Chimei Innolux.
Compatibility: This board is specifically compatible with various television models, including certain Samsung units such as the UA32F5100AR.
Function: It serves as the intermediary between the TV's mainboard and the LCD panel, controlling the logic signals for gate and source drivers.
Repair and Troubleshooting
Symptoms: A faulty T-Con board can cause issues like lines on the screen, ghosting, flickering, or a completely black display despite having sound.
Testing: These boards are highly sensitive and are often misdiagnosed; it is recommended to ensure the issue is not with the mainboard or panel before replacing.
