MI LED TV 4K TCON
MODEL NUMBER
L50M5-5AIN
TCON NO.
CCPD-TC495-008 V4.0

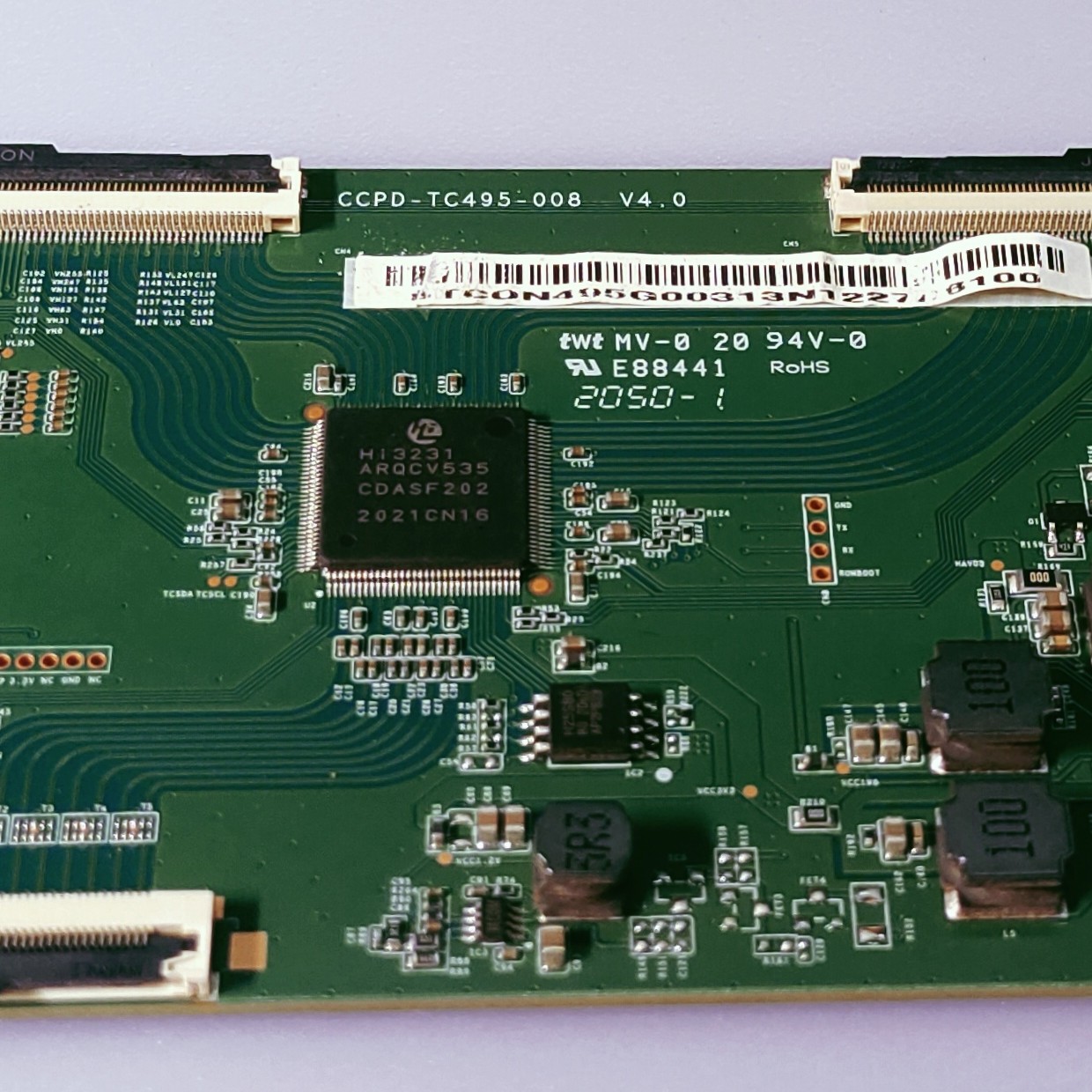

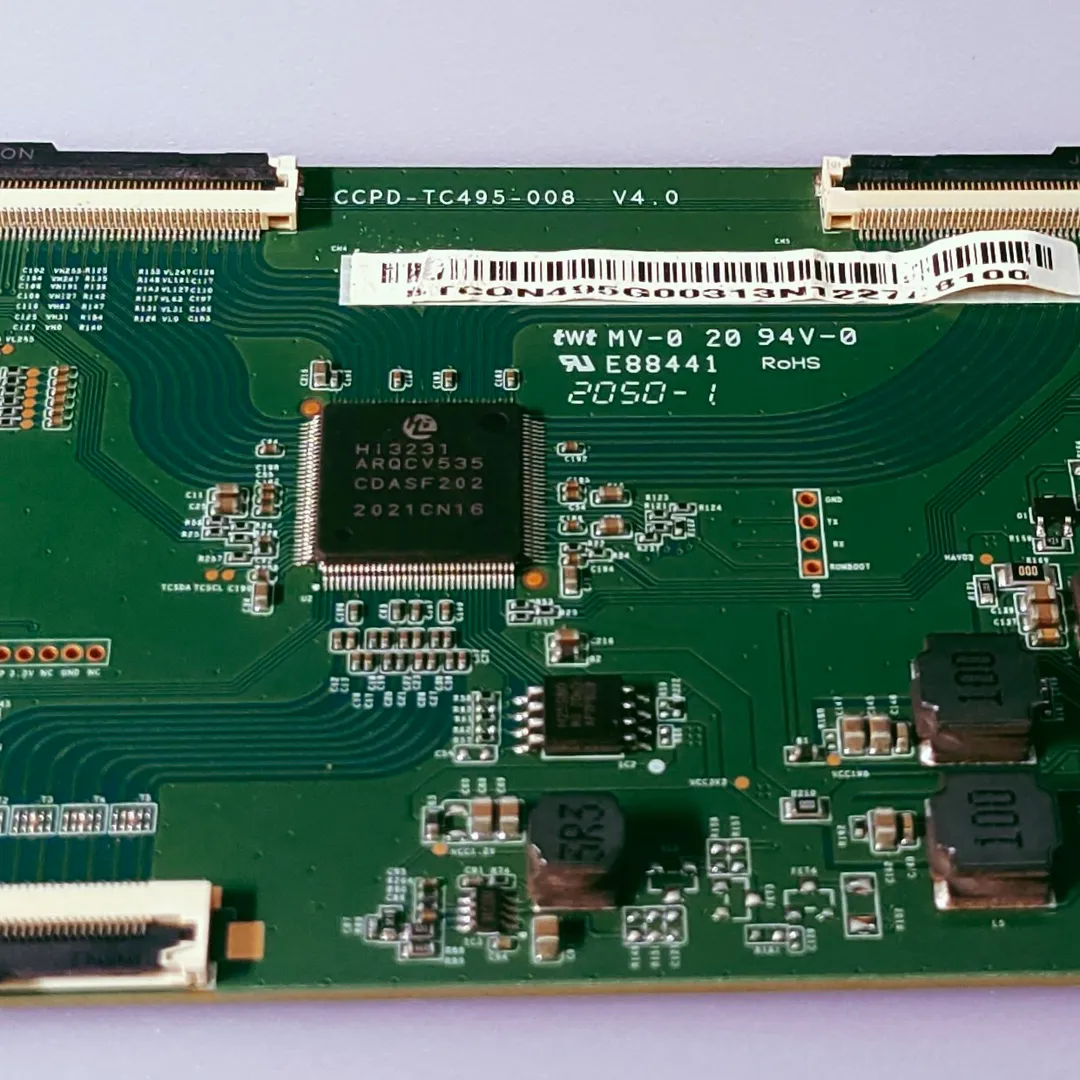

The T-Con board pictured is the CCPD-TC495-008 V4.0, which is an original Mi (Xiaomi) component. It is typically used in 50-inch LED TV models, such as the Mi TV L50M5-5AIN.
Details and Function
Purpose: A T-Con (Timing Controller) board is a critical component in LCD TVs responsible for receiving video signals from the main board and processing them into precisely timed signals and voltage levels for the actual screen panel.
Functionality: It handles essential image processing tasks, including:
Signal processing and timing control.
Color correction and brightness adjustment.
Ensuring picture clarity and optimizing the overall image.
Compatibility: This specific version 4.0 board is designed for 50-inch panels and is compatible with various models.
Common Fix: Replacing the T-Con board often resolves common TV display issues like no picture, distorted images, lines on the screen, or color problems.
