LG Led Tv T-con board
Model No.
37LH35 FR 8BD03H 1579A2
P/N.
6870C-0247A
Digital Electronics services
Near sudarshan chowak
Lane no 06
Pimpale gurav
Pune - 411061
Mob.9850791757

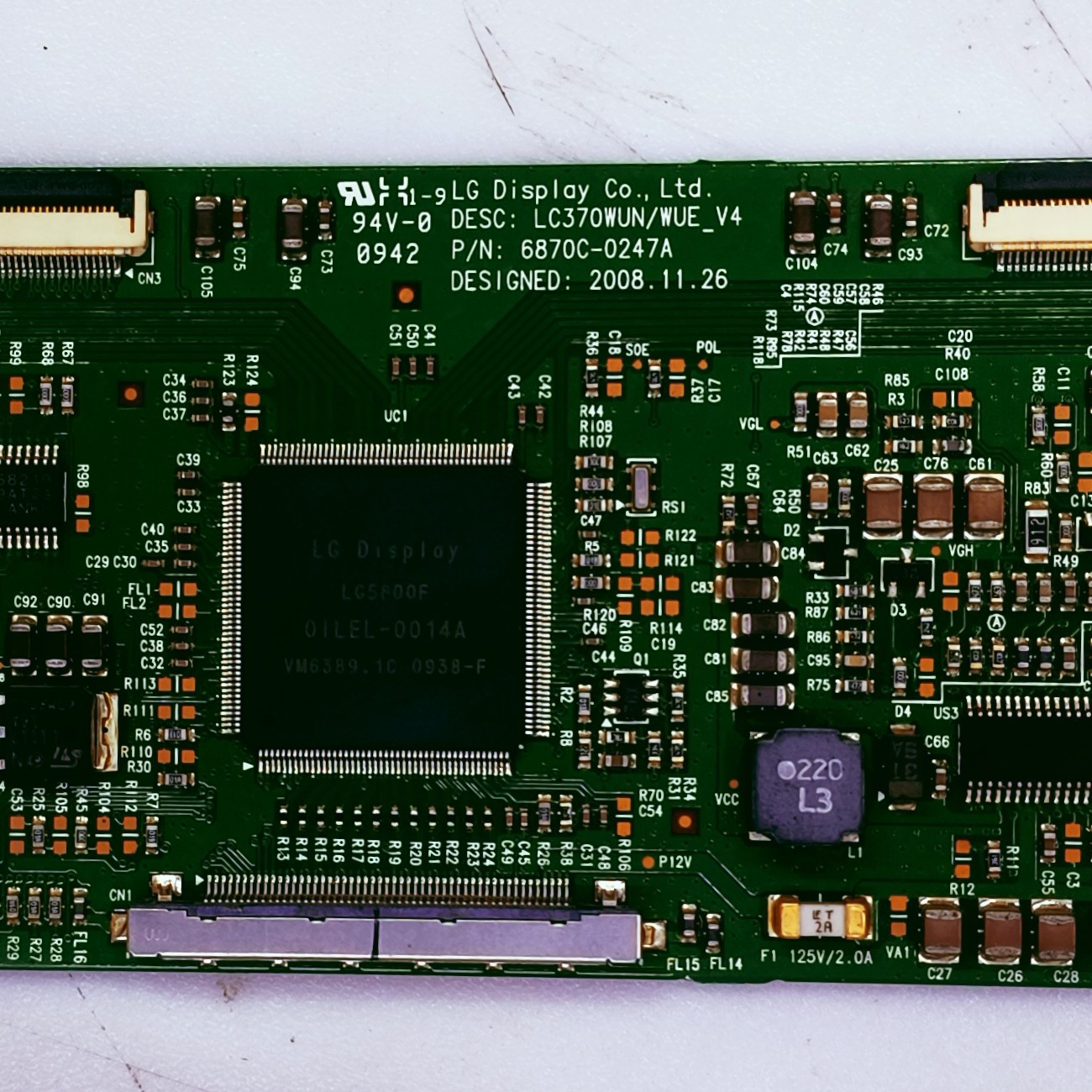

This is a Timing Controller (T-Con) Board from an LG display, specifically part number 6870C-0247A designed in 2008.
Key Specifications
Manufacturer: LG Display Co., Ltd.
Model Number: LC370WUN/WUE_V4
Part Number: 6870C-0247A
Function: This board processes video signals and sends them to the LCD panel to create an image on the screen.
Common Applications: Often used in 32-inch to 43-inch LCD/LED televisions from brands such as LG, VU, and Philips.
Technical Details & Repair Notes
Common Failure Symptoms: If this board fails, the TV may have a soft backlight but no image on the screen, or it may exhibit issues like full vertical lines or a completely black screen while sound still works.
Voltage Test Points: Technicians often check for missing voltages such as VGH, VGL, or HVDD on this board to troubleshoot display issues.
Replacement Precautions: If replacing, ensure the part number matches exactly to guarantee compatibility.
