LG Led Tv T-con Fhd
Model No.
AAKR1L 3640F1
P/N.
6870C-0502C
Digital Electronics Services
pune maharashtra
9850791757
9763720390
(All India (COD) Cash on Delivery Service Available)

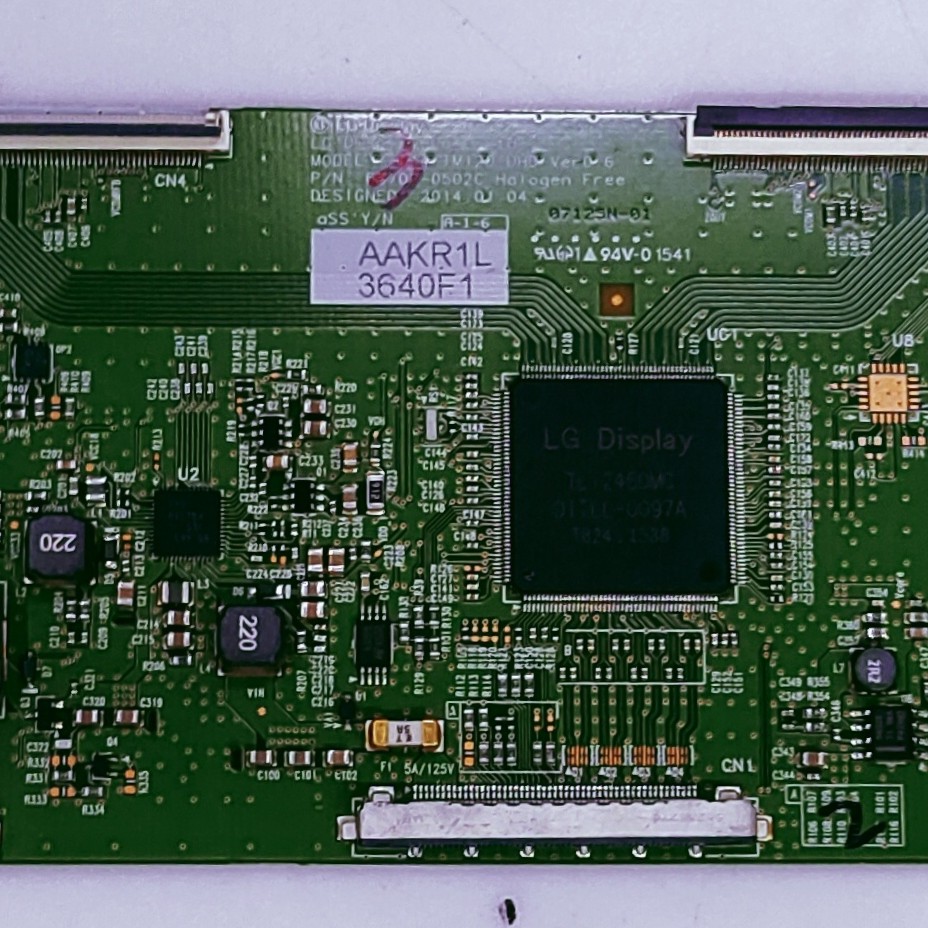

The image shows a T-Con (Timing Control) board for an LG LED/LCD TV. This specific board is used to translate the video signal from the main motherboard into the signals that the LCD panel uses to display an image.
Key Identifiers & Specs
Based on the markings on the board:
Model/Series: V14 TM120 UHD Ver 0.6
Part Number (on white sticker): AAKR1L 3640F1
Alternative Part Number: 6870C-0502C
Manufacturer: LG Display
Compatible TVs: This board is commonly used in LG 42-inch to 55-inch UHD (4K) LED TVs (e.g., models like 42LA644V, 55LA9650, or similar high-definition series).
Common Symptoms of Failure
If this board is faulty, you might see the following issues on your TV:
No image but the backlight is still on (the screen glows faintly in the dark).
Vertical lines or a "shuttered" effect across the entire screen.
Distorted colors or a "negative" looking image.
Half of the screen being white or black while the other half works.
Troubleshooting Tips
Check Connections: Ensure the ribbon cables (connected to the white ports at the top and bottom) are seated firmly and are not corroded.
Fuse Test: There is a small white or green fuse (marked "F1" or near the power input) on the board. If this is blown, the board will have no power.
Voltage Check: Technicians often check for
at the input connector to ensure the main board is sending power to the T-Con.
