LG Tv 4k T-con Board
Model No.
55UH970T
Part No.
6870C-0524A,
Digital Electronics Services
pune maharashtra
9850791757
9763720390
(All India (COD) Cash on Delivery Service Available)

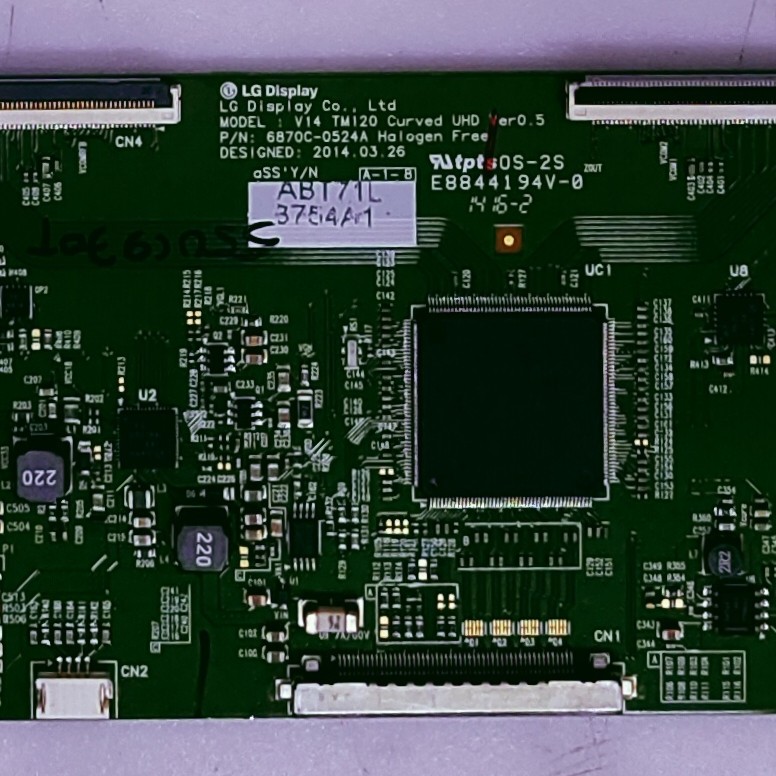

The image displays a T-Con (Timing Controller) Board for an LG television or monitor. This board acts as the "brain" for the display panel, translating signals from the main board into data that controls the actual pixels on the screen.
Board Specifications & Identification
Based on the text printed on the circuit board, here are the key technical details:
Manufacturer: LG Display Co., Ltd.
Model Number: V14 TM120 Curved UHD Ver0.5
Part Number (P/N): 6870C-0524A
Design Date: March 26, 2014
Compatibility: Designed for Curved Ultra HD (4K) displays.
Certification Marks: Includes a "Halogen Free" designation and a UL recognition mark (E8844194V-0).
Key Components Visible
Main Processor (Center): The large square chip in the middle is the logic controller that manages timing and signal processing.
Connectors (CN1, CN2, CN3, CN4):
CN1 & CN2 (Bottom): These typically connect to the TV's Main Board via LVDS or V-by-One cables to receive video data and power.
CN3 & CN4 (Top): These ribbon cable connectors interface directly with the LCD/LED panel source drivers.
