MI 4K ANDROID MOTHER BOARD MODEL NUMBER L32M5-AL The MI L32M5-AL TV uses a mainboard model TPD.T950X.PB791. This board is compatible with the 32-inch MI LED TV and supports Android OS. It features 3 HDMI ports, 2 USB ports, built-in Wi-Fi (802.11a/b/g/n 2.4 GHz), and an Ethernet (RJ45) port. The board is designed for HD panels with a resolution of 1366x768. It's also described as having double the RAM for enhanced performance. Here's a more detailed breakdown: Compatibility: Specifically designed for the MI L32M5-AL (32-inch) LED TV model. Mainboard Model: TPD.T950X.PB791. Operating System: Runs on Android (version may vary). Connectivity: 3 HDMI ports. 2 USB ports. Built-in Wi-Fi (2.4 GHz). 1 Ethernet (RJ45) port. Display: Supports HD panels with a resolution of 1366x768. RAM: Features double the RAM for improved processing and speed. Functionality: Can address issues like stuck on MI logo, no display, freezing, and non-functional ports. Installation: Designed for easy installation with basic tools, but professional installation is recommended

LG 4K MOTHER BOARD MODEL NUMBER 43UM7290 The image displays an LG LED TV motherboard, specifically identified as the LJ9 CHASSIS with part number EAX68253505 and firmware version V.04.80.15.01, intended for LG TV models like the 43UM7290PTF. Details of the Board: Chassis: LJ9 CHASSIS Part Number: EAX68253505 Firmware Version: V.04.80.15.01 Compatibility: This motherboard is compatible with LG LED TV models such as the 43UM7290PTE and 43UM7290PTF, indicating its use in 43-inch LG LED TVs. Inputs/Outputs: The board features various input/output ports, including multiple HDMI ports, composite video and audio inputs, an Ethernet port, and USB ports, as indicated by the connectors visible on the board and information from similar models.

LG 4K MOTHER BOARD MODEL NUMBER 43UN7800 The image displays an LG LED TV motherboard, identified by the "LJ9 CHASSIS" and "LD9N7100EL" labels visible on the board itself, and confirmed by search results to be compatible with models like the 43UM7800. Details of the 43UM7800 LG Motherboard: Function: This board serves as the main circuit board for LG LED TVs, controlling various functions including video processing, audio output, and input/output management for external devices. Compatibility: While specifically asked about the 43UM7800, this board (or very similar versions) is also compatible with other LG LED TV models, such as the 43UM7290PTE. Components: The board features various ports (e.g., HDMI, RCA), integrated circuits (some under a metal shield), and connectors for internal TV components. Availability: Original LG motherboards for models like the 43UM7800 are available from various suppliers, including those specializing in LED TV parts.

The image displays a TP.MS358.PB802 TV motherboard, a component designed to enhance the performance and functionality of display equipment.  Features: This motherboard is engineered to support high-resolution visuals, including both 1920x1080 and 1366x768 resolutions.  Functionality: It can improve image processing, response times, and overall TV performance and viewing experience when used as a replacement.  Connectivity: Some versions, like the TP.SK506S.PB802, include built-in Network WiFi for seamless internet connectivity, enhancing smart TV capabilities.  Compatibility: This type of motherboard is compatible with various TV models and brands, including those from Hitachi and others.

The CV59SH-A32 is a universal LED TV mainboard. The datasheet for this board, often found in PDF format, provides detailed technical specifications, schematics, and troubleshooting information for the board. It's commonly used in various LED TV models and can be helpful for repairing or understanding the functionality of these TVs. Key details found in the CV59SH-A32 datasheet (or similar documents): Main Components and Block Diagram: The datasheet will outline the main components of the board, such as the processor (often a TSUMV59 or similar), memory, power supply, and other key chips. It will also include a block diagram showing how these components are interconnected. Connectors and Inputs/Outputs: Details about the available connectors, including HDMI, VGA, AV inputs, USB, and audio outputs, are provided. Electronic Parameters: The datasheet will specify electrical characteristics like voltage levels, current consumption, and other relevant parameters. Troubleshooting Information: Common issues like no power, backlight problems, sound issues, and image abnormalities are addressed, along with potential solutions. Schematics: The datasheet may include detailed schematics of the board, allowing for in-depth analysis and repair. Software/Firmware: Information about the firmware or software versions compatible with the board may also be included. Where to find the datasheet: The datasheet for the CV59SH-A32 is often available on websites like Scribd. You can search for "CV59SH-A32 datasheet PDF" or similar terms to find the specific document. Why this information is useful: Understanding the details of the CV59SH-A32 mainboard is crucial for: TV Repair Technicians: Troubleshooting and repairing faulty TVs using the board. DIY Enthusiasts: Understanding how the board functions and potentially modifying or customizing their TVs. Engineers and Designers: Developing or integrating the board into new electronic devices.

MICROMAX POWER SUPPLY BOARD MODEL NUMBER 40T2810FHD The image displays a power supply board with the model number IPE06R41, which is associated with Micromax LED TVs, specifically mentioned in relation to the Micromax 40T2820FHD model. While the query specifies a "43 inch" model, the board shown and referenced in search results is linked to a 40-inch Micromax model, suggesting it may also be compatible or a similar version used in other sizes. Details of the IPE06R41 SMPS Board: Model Number: IPE06R41. Associated TV Model: Micromax 40T2820FHD LED TV. Type: Power Supply Board (SMPS - Switched-Mode Power Supply). Features: The board includes components typical of an SMPS, such as transformers, capacitors, and heat sinks, designed to regulate and supply power to various parts of the LED TV. Authenticity: Original parts are emphasized for maintaining TV display quality and ensuring proper functioning of other TV components.

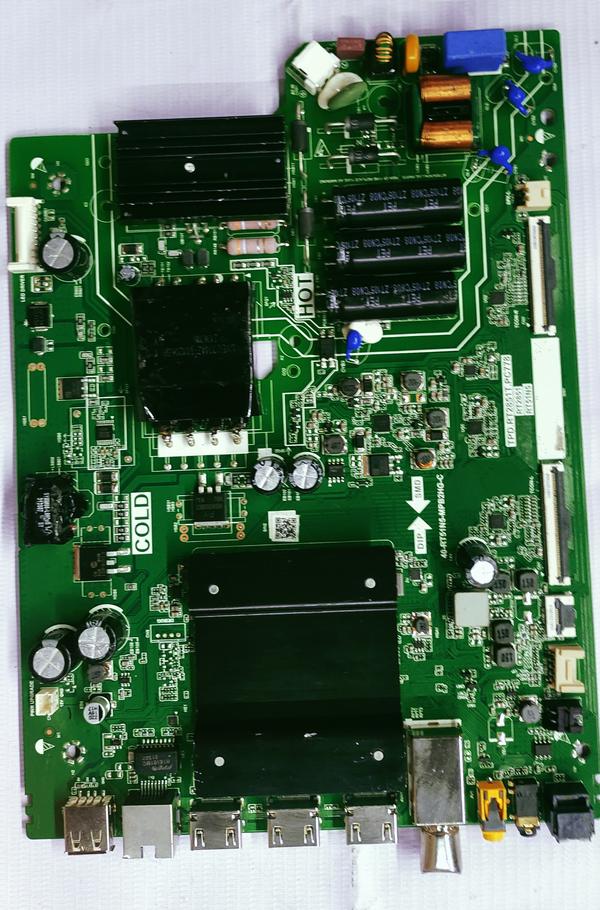

TCL/IFFALCON Android board model number TPD.RT2851T.PC778 RT2851 RT51N5 The image shows a circuit board, specifically identified as a TCL LED TV motherboard with the model number TPD.RT2851T.PC778.  This motherboard is a crucial component in certain TCL and IFFALCON LED TV models, such as the TCL 55 P615 and IFFALCON 50 K61.  It serves as a replacement part for damaged or faulty main boards in these TVs, controlling functions like video processing, audio output, and connectivity.  The board is compatible with various TCL models and some IFFALCON TVs and can be found at online retailers and electronics repair shops specializing in TV parts.  The "TPD" prefix likely indicates the board type or manufacturer, while "RT2851T" and "PC778" are specific model and version identifiers.

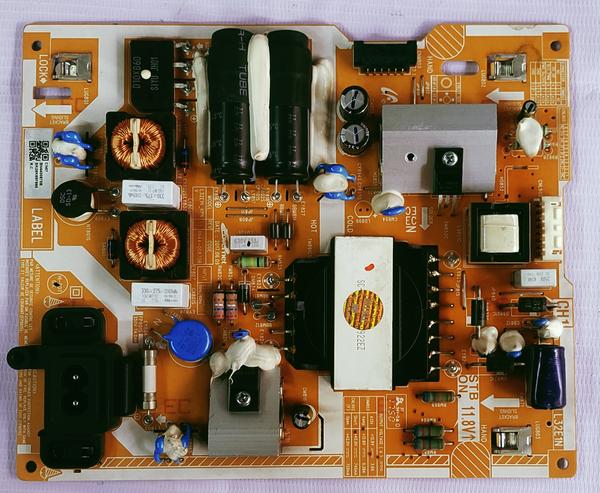

Samsung power supply model number UA32K5300 The Samsung UA32K5300's power supply board, also known as the SMPS (Switching Mode Power Supply) or PSU (Power Supply Unit), is a crucial component that converts AC power from the wall outlet to the DC power required by the TV's internal circuitry. It's typically a single-layered board with specific input and output voltages. Here's a more detailed breakdown: Key Features and Functions: Power Conversion: The primary function is to convert the household AC power (typically 240V) into lower DC voltages (like 9V or 12V) needed by the TV's various components. Voltage Regulation: The board regulates the DC voltage to ensure it's stable and within the required range for proper TV operation. Protection: The power supply board often includes protective circuitry to safeguard the TV from overvoltage, undervoltage, overcurrent, and other potential issues. Compatibility: It's designed to be compatible with specific Samsung LED TV models, like the UA32K5300. SMPS (Switching Mode Power Supply): The power supply board uses a switching mode technology to efficiently convert the AC power, making it smaller and more efficient than older linear power supplies. Common Issues and Troubleshooting: TV Not Powering On: If the TV doesn't turn on at all, a faulty power supply board could be the cause. Intermittent Power: If the TV powers on and then off intermittently, the power supply may be struggling to provide stable power. Visual Issues: A malfunctioning power supply can also affect the display (e.g., flickering, dark screen). Troubleshooting: If you suspect the power supply is faulty, you can try unplugging the TV, checking the power cord, and testing with a different power outlet. Replacement: If you need to replace the power supply board, it's essential to ensure you get a compatible board for your specific TV model (UA32K5300). You can find replacement boards from electronics retailers or

Lloyd LED MODEL NO. L32N2 BOARD NO. TP.MS3553.PB708 main board is a crucial component responsible for the TV's functionality, handling image processing, audio processing, and software control. It's a motherboard, also known as a mainboard, specifically designed for the L32N2 model.  Here's a more detailed breakdown: Key Functions: Image Processing: The main board processes the video signals, including those from HDMI, USB, and other sources, to display them on the screen. Audio Processing: It handles audio signals from various sources, such as built-in speakers, headphones, and external audio outputs. Software Control: The main board controls the TV's operating system, menu navigation, and other software-related features. Power Management: It manages the power supply to the TV, ensuring it operates efficiently and safely.  Replacement and Repair: If the TV malfunctions or the screen displays issues, the main board may need to be replaced or repaired. The L32N2 main board is a specific model and should be replaced with an identical or compatible version for optimal performance. Digital Electronics Services and other online retailers offer replacement main boards for this model. Note: It's crucial to ensure that the replacement board is compatible with the L32N2 model before purchasing, as different Lloyd models may have different main board designs.  General Information: The main board is typically located within the TV's chassis, often near the back or bottom edge. It connects to the power supply, display panel, and other internal components through cables and connectors. If you suspect a problem with the main board, it's recommended to consult with a qualified TV repair technician or electronics technician for diagnosis and repair.
