SONY 4K ANDROID MOTHER BOARD MODEL NUMBER KD-43X7002E The Sony KD-43X7002E is a 43-inch 4K UHD LED Smart TV from 2017. Its main board, also known as the motherboard or PCB, serves as the central hub connecting all other components. This board facilitates communication between the display, audio, and various input/output ports like HDMI, USB, and composite video. Here's a breakdown of the main board's functions and related information: Key Features & Connectivity: Display: The TV boasts a 4K UHD LED display with a resolution of 3840 x 2160. Operating System: It runs on a Linux-based operating system. Connectivity: The main board provides connectivity for: 3 HDMI inputs (including HDCP 2.2 support) 1 composite video input 1 digital audio output 1 audio/headphone output 3 USB ports Wi-Fi (802.11b/g/n) Ethernet (LAN) port Audio: The TV features 20 watts of sound output. USB Playback: Supports various video and audio codecs for playback from USB drives. BRAVIA Sync (HDMI-CEC): Enables control of compatible devices connected via HDMI. Components and Related Parts: Motherboard/Main Board: This is the central PCB that connects all the TV's components. T-Con Board: This board is responsible for driving the LCD panel and ensuring proper image display. LED Driver Board: This board powers and controls the LED backlighting. In essence, the main board is the core of the TV, enabling all its functionalities and connections. When troubleshooting or replacing parts, understanding the main board's role is crucial.

onida led tv mother board model number L022VTSBL The code "L022VTSBL" refers to a specific model number for an Onida LCD TV, and the circuit board in the image is likely a component (such as the motherboard or power supply) from that model. Specificity: The code "L022VTSBL" identifies an Onida LCD TV model. Explanation: The image displays a circuit board, which is a common internal component found in electronic devices like televisions. Search results indicate that "L022VTSBL" is a model number for an Onida LCD TV, and parts such as motherboards and power supplies are specifically sold for this model. Therefore, the circuit board shown is likely a part of an Onida L022VTSBL LCD TV.

LG 4K ANDROID MOTHER BOARD MODEL NUMBER 65UH7700 This image displays an LG EBT64174309 Main Board, which is a component used in certain LG TVs, specifically compatible with models like the LG 60UH7700UB and LG 65UH7700-UB.BUSWLJR. Product Identification: This is the main board or main unit for select LG televisions, responsible for handling HDMI, A/V, tuner, USB, Ethernet, and digital audio inputs. Compatibility: Ensure compatibility by verifying the part number (EBT64174309) and checking if your TV's SVC code matches compatible models like 65UH7700-UB.BUSWLJR. Installation: Disconnect power before installation and consider wearing work gloves for protection. Some repairs may require a trained service professional. Purchasing: When ordering, double-check the part number for your specific model as variations exist.

LG 4K ANDROID MOTHER BOARD MODEL NUMBER 55UC970T The LG 55UC970T main board, also known as the main PCB, is identified by the part number EBU62925601. It is a key component responsible for processing TV signals and ensuring a stable, clear picture. The board also handles audio decoding and amplification, and supports various smart connectivity options. Key Features and Functions: Signal Processing: Receives and processes various TV signals, including digital and analog, to produce a stable and clear picture. Image Optimization: The image processor enhances contrast, color saturation, and clarity for a better viewing experience. Audio Processing: Decodes and amplifies audio signals to deliver high-quality sound. Smart Connectivity: Supports multiple connection methods like HDMI, USB, and Wi-Fi for connecting external devices. Multi-screen Interaction: Enables interaction with mobile devices and tablets, allowing for screen projection and content sharing. Relevant Part Numbers: EBU62925601: Main PCB part number for the LG 55UC970T. EAX66104204: PCB Number associated with the main board. EAY63368701: Power board part number for 55UC970T and 65UC970T. 6870C-0524A: T-con board part number. 6871L-3918B: T-con board part number. Additional Information: The main board is a critical component for the overall functionality of the TV. A faulty main board can lead to various issues, including picture problems, audio issues, and connectivity problems. When replacing the main board, it's recommended to consult with a qualified technician to ensure proper diagnosis and installation.

LG 4K MOTHER BOARD MODEL NUMBER 43UJ6300 The image displays the mainboard for an LG TV, specifically identified by the chassis number EAX6714620311 (1.1), which is associated with models like the LG 43UJ6300. Board Details: Part Number: EAX6714620311 (1.1). Chassis: LJ7CHASSIS U#71P #A, C, J, T, K. Cover Shield: UJ65 Cover Shield, MGJ652174-01/02, LGEKR #1. Connectors: Includes multiple HDMI ports (JK3104 HDMI 4, HDMI 2), various AV input jacks, and tuner input (TU6700, TU6701, TU6703, TU6704). Software Label: Indicates "SOFTWARE LABEL" and "BAR CODE PCBA(WHITE)" areas. Physical Dimensions: PCB SIZE: 174 X 183 (174) 11.271.

LG 4K SMART.MOTHER BOARD MODEL NUMBER 43UFB40T The image displays a mainboard for an LG TV, specifically identified by the part number EAX66485504(1.0), which is compatible with several LG 43-inch and 49-inch models, including the 43UF640T.  Details of the Mainboard (EAX66485504(1.0)): Compatibility: This mainboard is designed for various LG TV models, such as 43UF6407, 49UF640V, 43UF640T, 43UF6400-CA, 49UF6400-CA, and 43UF6400.  Function: As a main board, it serves as the central processing unit for the television, handling functions such as image processing, audio output, and connectivity.  Identification: The board itself features markings like "E89382 HSB J" and "MV-1 94V-0 : 5493", which are manufacturing and standard compliance codes.

LG LED ANDROID MOTHER BOARD MODEL NUMBER 43LJ531T The image displays the main board for an LG 43LJ531T LED TV. Main Board Details: Model Number: 43LJ531T. Part Number (Partial): EAX67256903(1.0). Date of Manufacture/Revision: 2017.03.13 (March 13, 2017). Manufacturer/Supplier Information: "EVER ELECT" is visible on the board, along with a date "20/06/2017" and "DFT-1". Connectors and Components: The board features various connectors for inputs (e.g., HDMI, AV) and outputs, as well as integrated circuits (e.g., IC101, IC102) and other electronic components typical of a television main board. Bar Code Area: A "BAR CODE PCBAI(WHITE)" area is designated on the board. Specific ICs: Includes components like TU3703 TU3702, likely related to tuner functionality. Software Label Area: A "SOFTWARE LABEL" area is also indicated on the board.

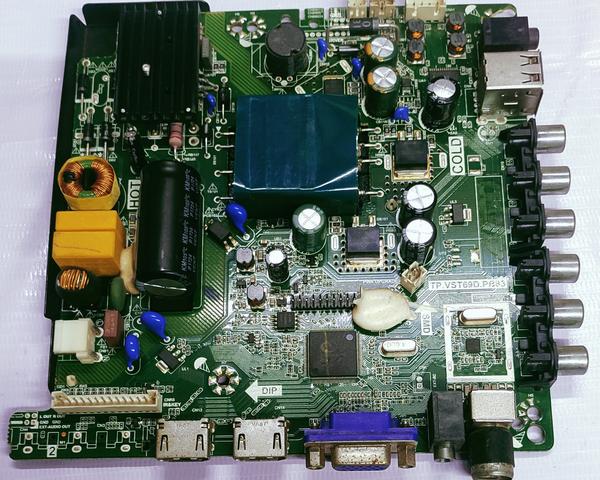

The product code TP.VST69D.PB83 refers to a Micromax motherboard, specifically for their LED TVs. It's also listed as a combo board for the Micromax 40C7550FHD model. The board is available for purchase from online retailers and may be pulled from broken units but tested to be working fine. Here's a more detailed breakdown: Brand: Micromax Product Type: Motherboard, also referred to as a combo board Compatibility: Specifically designed for Micromax LED TVs, including the 40C7550FHD model Availability: Available from online retailers like Sparefocus and IVD Store Condition: Can be found as pulled from broken units but tested to be working Pricing: Sparefocus shows a price of Rs. 2,400.00 with a discount from an original price of Rs. 4,200.00

Samsung Android main board model number BN94-12798M The image shows a barcode label with the code BN94-12798M, which likely identifies a component, specifically a motherboard. A motherboard is the main printed circuit board (PCB) in a computer. It acts as the central hub that connects all the essential components of a computer, such as the CPU, RAM, and expansion cards. The motherboard facilitates communication between these components, enabling the computer to function. Key features of a motherboard: Central Connection Point: It provides connectors for all internal and external components. Power Distribution: It distributes power to all connected components. Communication: It allows components to communicate with each other. Chipset: It includes a chipset that supports the CPU and other components. Expansion Slots: It offers slots for adding expansion cards like graphics cards and network adapters. Without a motherboard, the computer's components would not be able to interact, and the system would not work.
